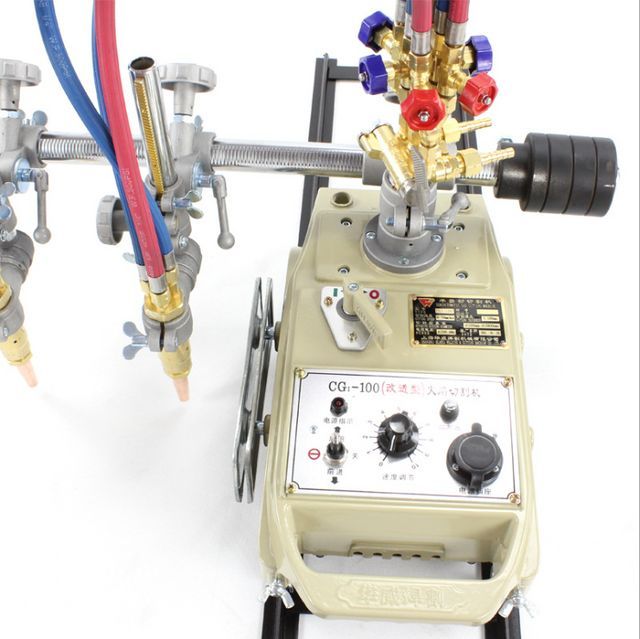

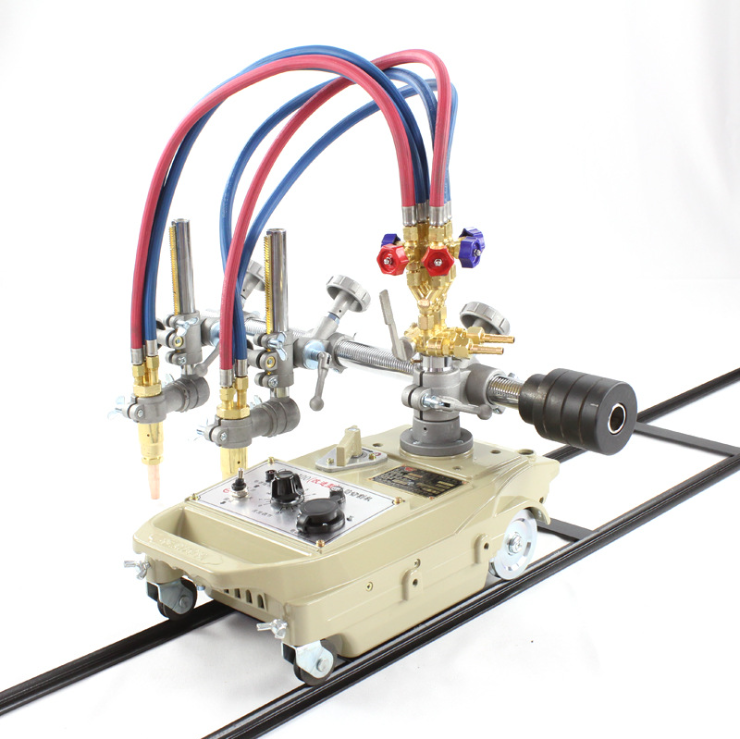

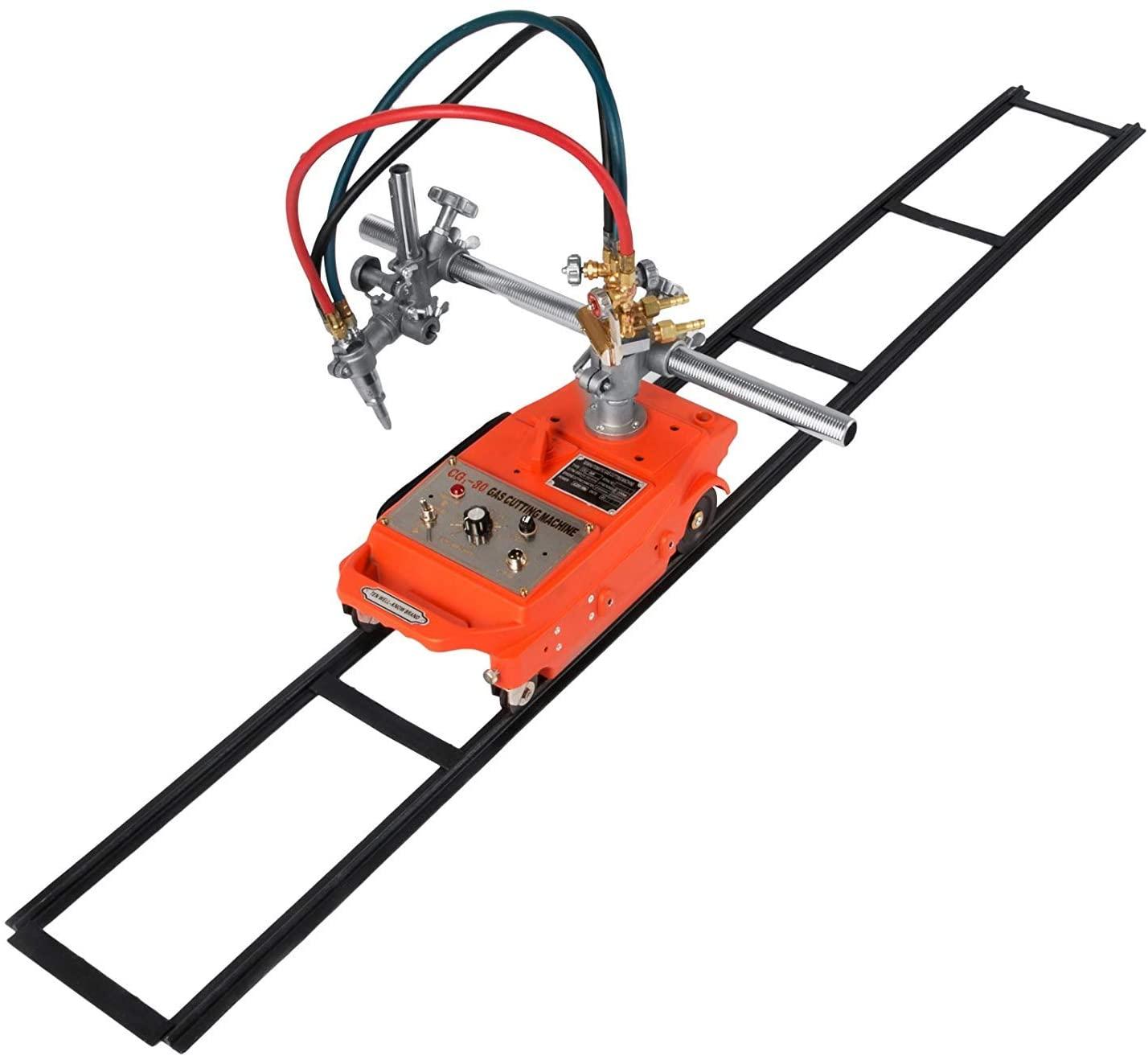

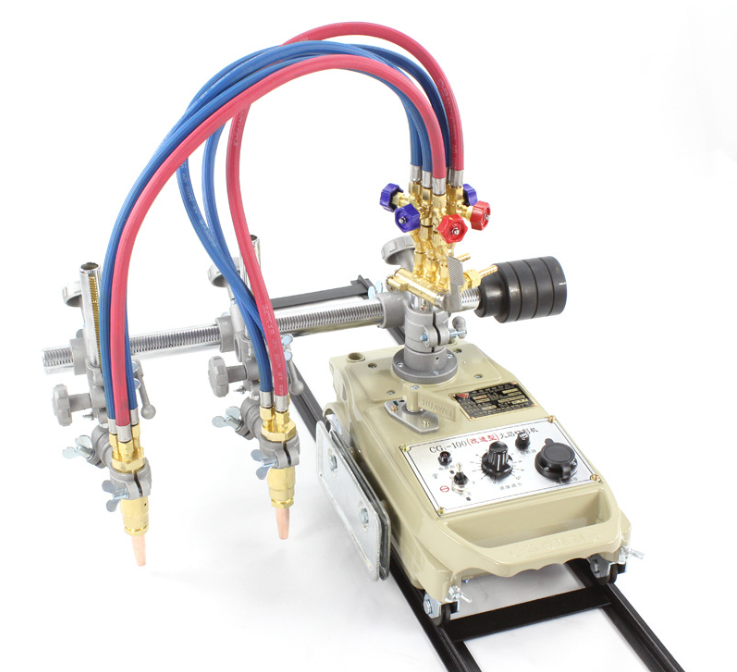

Straight or circular steel plate cutting gas flame cutting machine CG1-100

Supplier: Xuzhou Newlin Machinery Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Charles Wang
Price: $157.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	carton	Video outbound inspection:	if
payment terms:	L/C, Western Union, D/P, T/T, MoneyGram	Showroom location:	not any
Applicable industries:	Energy and mining, home use, construction, restaurants, building supplies stores, advertising agencies, machinery repair shops, manufacturing plants	Origin:	China
Cutting speed (mm/min):	50 - 750	Marketing Type:	2020 New Products
Health status:	new	Cutting diameter:	200-2000mm
Warranty:	1 year	Core component warranty:	1 year
Mechanical test report:	if	Cutting speed:	50-750mm/min
Cutting head quality:	1 or 2 pieces	Host size:	470x230x240mm

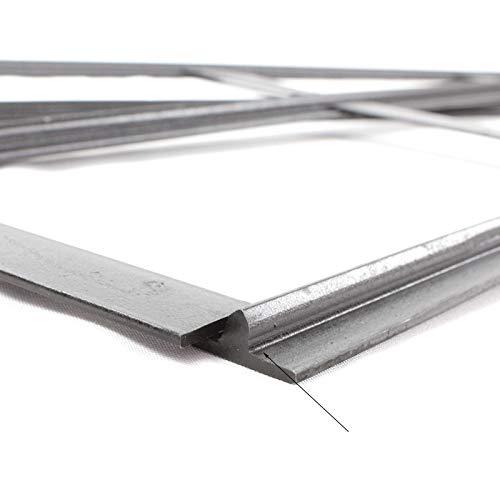

Single torch cutting, slots I, V:	45°	Supply capacity:	50 sets per month
Core components:	Programmable controller, motor	Cutting thickness (mm):	5 - 100
Weight (kg):	30 kg	Rail length:	1.8X2 meters
Main selling points:	easy to operate	Cutting thickness:	5-100mm
power supply:	110/220V, 50/60HZ	port:	Shanghai

Product Description

Cutting thickness	Torch Track Burner Cut Thickness: 3/16"-4" (5-100 mm)
Adjustment range	Cutting machine adjustment range: 50 – 750 mm/min (stepless speed regulation)
Cutting circle diameter	Flame cutting machine cutting circle diameter: 8"-6.56'(200-2000 mm)

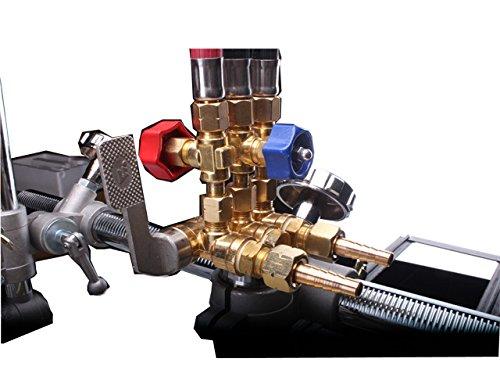

High Strength Aluminum Alloy	The main body and flame of the gas cutting machine are made of high-strength aluminum alloy and precision die-casting
color	Gray or red (random delivery) technical specifications

<1. Weight (main body): 16kg, track attachment: 7.8x2kg

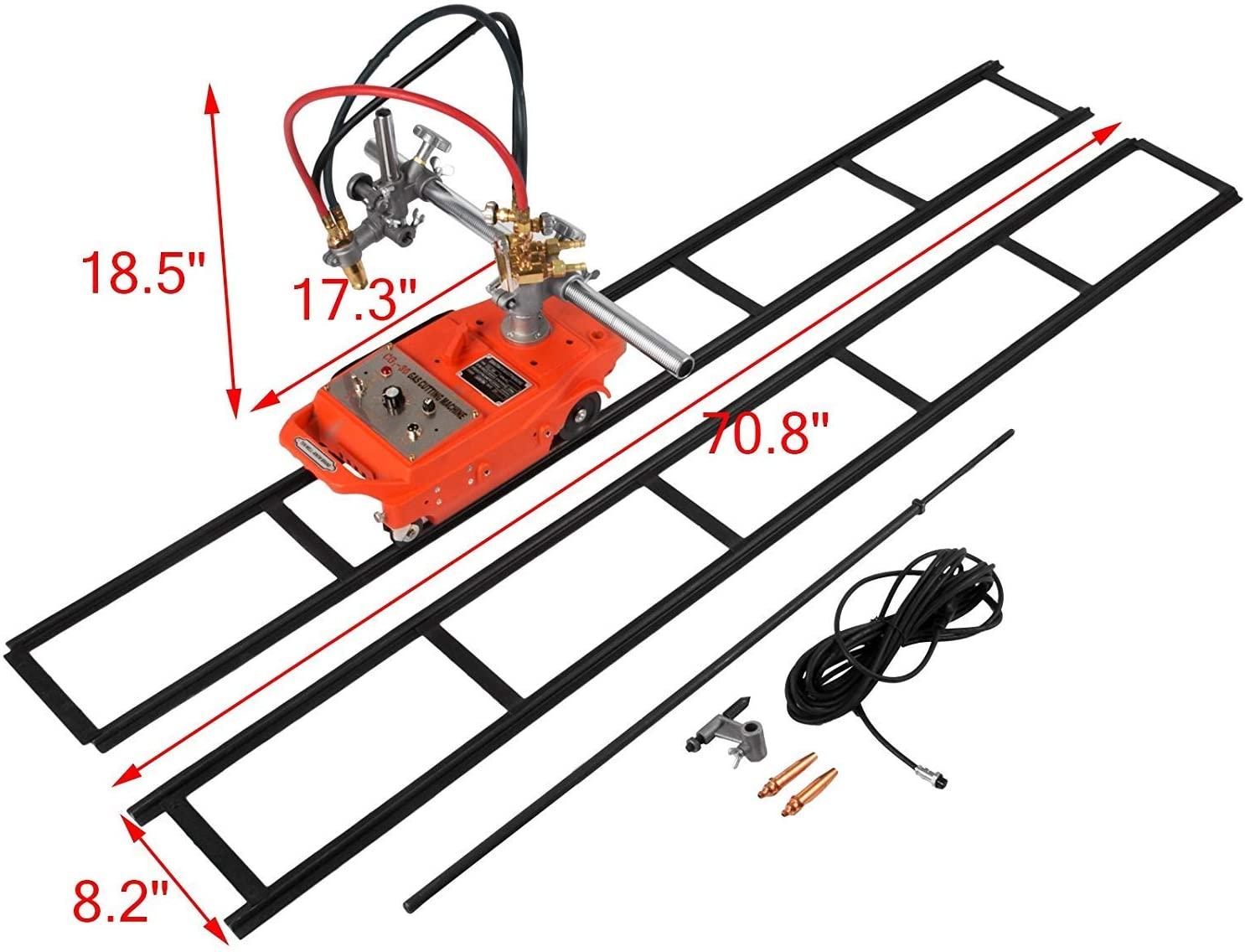

<2. Equipment size: 470*230*240mm

<3. Speed regulation mode: thyristor control

<4. Power supply: AC 110/220V±15％50/60HZ

<5. Cutting speed: 50～750mm/min

<6. Cutting thickness: 5-100mm

<7. Groove angle: 0-45 degrees

<8. Cutting circle diameter 200-2000mm

<9. Cutting nozzle: G02 (acetylene), G03 (propane)

<10. DC motor 110V 50HZ 30W speed 4200r/min

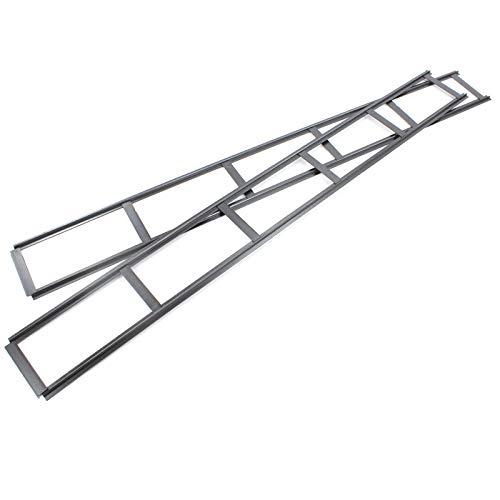

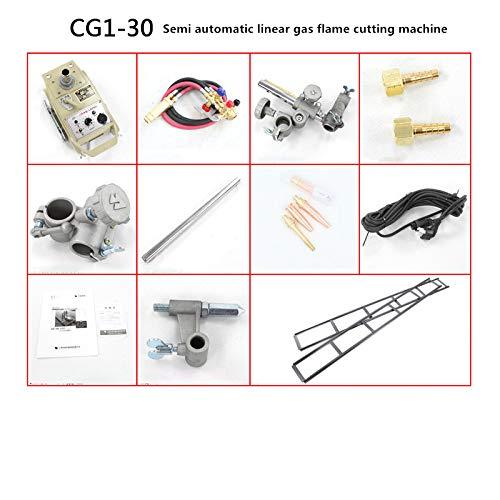

<11. Standard accessories: 1 set of trolley, 2x1.8m I-shaped track, 3 nozzles (random), 1 radius rod.c
