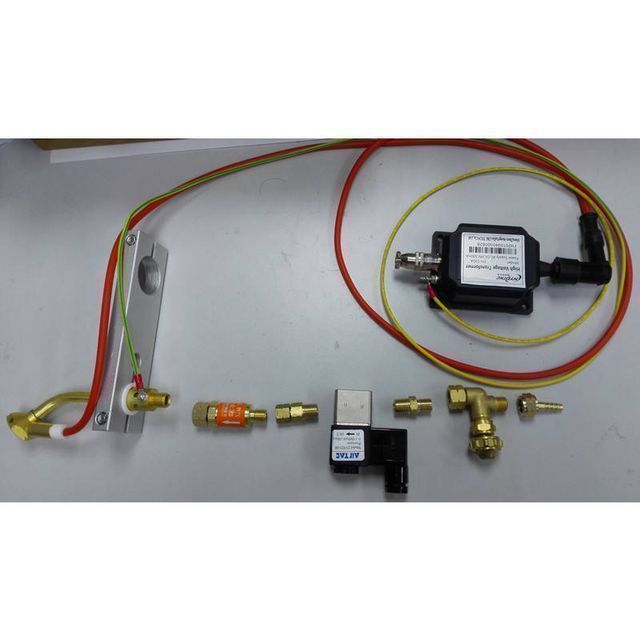

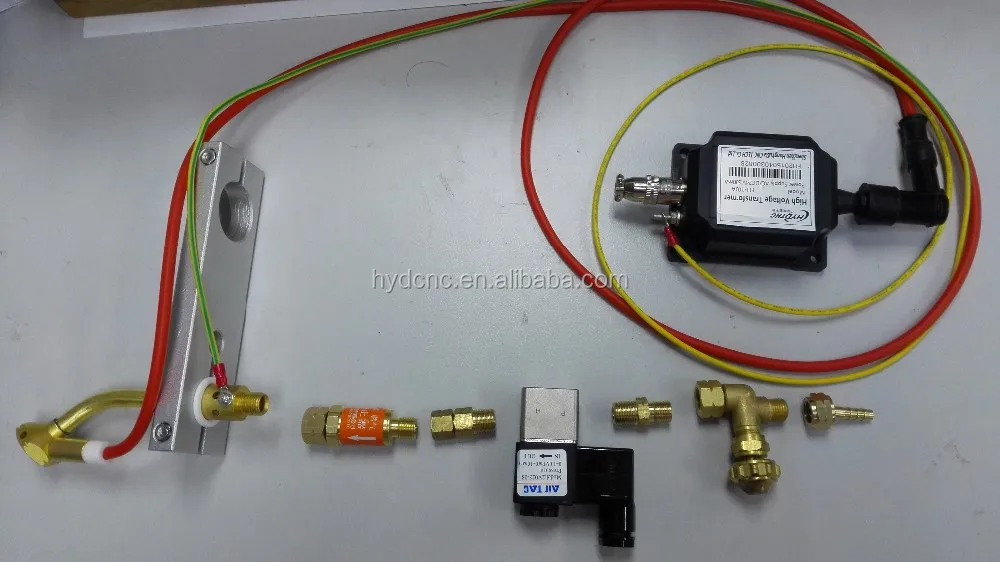

HYD-IG-100B automatic ignition system is an innovative and unique gas ignition device developed by Shenzhen Hyde CNC Technology Co., Ltd. It is mainly used for CNC oxy-fuel cutting, and can also be used in other fields that require automatic ignition. This new type of igniter The unique feature of it is that it can be ignited without gas supply, which greatly saves costs; 100% ignition efficiency, no carbon deposition, no interference, and simple installation and maintenance. It will be the perfect replacement for conventional ignition systems.

How does this work,

When inputting DC/AC24V to pull out the electromagnet, the electromagnetic drive will pull the drive of the high voltage connector to about 13mm from the torch head. When it reaches that position, the power converter pcb supplies a DC24V to the high voltage transformer, causing it to produce a flash high voltage of rated frequency, which creates a short circuit arc between the discharge needle and the torch head. At this time, due to the constant current control of the high-voltage transformer, the output of the high-voltage transformer drops to about 600V. At rated frequency (this high voltage transformer works differently than conventional transformers on the market), this short-circuit arc can last for a short time, long enough to ignite the gas.
