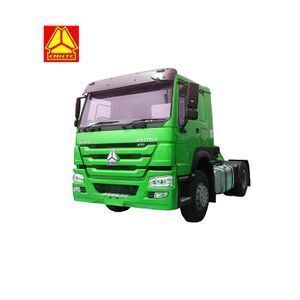

High Performance Hot Sale Trailer Head for South America Importing

Product details
Packaging Detail:as customers' requirements;Horsepower:251 - 350hp;
Payment Terms:L/C,T/T;Size:6800*2496*3125;
Fuel Type:Diesel;Port:Qingdao,Shanghai;
Emission Standard:Euro 2;Cab:HW76/HW79;
Tire:12.00R20;Drive Wheel:6x4;
Rear axle:HC 16;Transmission Type:Manual;
Color:Red Blue Yellow Green White;Brand Name:HOWO;
Transmission:HW19710;LOADING CAPACITY:20-30 TON;
Emission:Euro2 3 4 5;Front axle:HF 9;
Max Speed:101km/h;Product name:High Performance Hot Sale Trailer Head for South America Importing;
Gross Vehicle Weight:25000 kg;Supply Ability:100 Unit/Units per Month;
Engine Capacity:> 8L;Condition:New;

High Performance Hot Sale Trailer Head for South America Importing



Product Description



SPECIFICATION

Dimension(Lx W xH)(unloaded)(mm)

6800×2496×3125

Approaching angle/Departure angle(°)

16/70

Overhang(front/rear) (mm)

1500/725

Wheel base (mm)

3225+1350

Max speed(km/h)

101

Cub weight(kg)

8800

Engine(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

336HP

Emission

EUROII

Fuel tanker capacity(L)

400L aluminum oil tank

Transmission

Model

HW19710, 10 speeds forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

ZF8118

Front axle

HF9

Rear axle

HC16

Tire

12.00R20

Electrical system

Battery

2X12V/165Ah



Alternator

28V-1500kw



Starter

7.5Kw/24V

Cab

HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.
