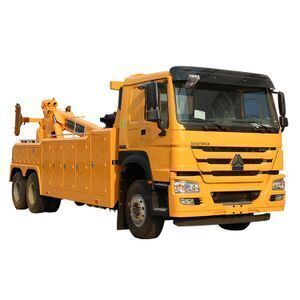

Diesel Fuel Type Towing Truck Equipment tow wrecker truck

Product details
Cab:HW76;Color:Customized;
Tire:12.00R20;Port:Qingdao, Shanghai, or Other China Main Port;
Payment Terms:L/C,T/T;Front axle:HF9;
Waranty:1 year;Supply Ability:200 Set/Sets per Month;
Max. speed (km/h):80;Emission Standard:Euro 2 to Euro 5;
Product name:Diesel Fuel Type Towing Truck Equipment tow wrecker truck;Rear axle:HC16;
Brand Name:Sinotruk;Transmission Type:Manual;
Fuel Type:Diesel;Dimensions (L x W x H) (mm):8875*2496*3874;
Fuel tank:300L;Place of Origin:Shandong China;
Transmission:HW19710;Condition:New;
Packaging Detail:Nude packing or as customers' requirements;

Diesel Fuel Type Towing Truck Equipment tow wrecker truck

It is mainly used for rescue and wrecker, clearing, lifting and traction of major vehicles in expressway and other road accidents or failures, so as to ensure smooth roads and tow the failing vehicles away from the scene.



SPECIFICATION FOR BOOM

Max Lifting Capacity(kg)

20000

Max. lifting height (mm)

6060

Max. tilting angle of boom (°)

30

Rating pulling force of winch(Ton)

20

Quantity of winch (unit)

2

SPECIFICATION FOR UNDERLIFT

Max. lifting mass (kg)

20000

Rating lifting mass (kg)

7500

Rating lifting mass fully extended(kg)

4600

Max effective length of underlift(mm)

3775

Extension stroke(mm)

2090

SPECIFICATION FOR CHASSIS

Dimension(Lx W xH)(unloaded)(mm)

10370×2496×3250

Approaching angle/Departure angle(°)

16/18

Overhang(front/rear) (mm)

1500/1670

Wheel base (mm)

5800+1400

Max speed(km/h)

102

Curb weight(kg)

19170

Engine(Steyr technology, made in China)

Model

WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection

Fuel type

Diesel

Power, max(kw/rpm)

336HP

Emission

EUROII

Fuel tanker capacity(L)

400L aluminum oil tank

Transmission

Model

HW19710, 10 speeds forward and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Steering system

Model

ZF8118

Front axle

HF9

Rear axle

HC16

Tire

12.00R20 (Radial Tyre)

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cabin

HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers.



Company Information



As a wholly- owned subsidiary of SINOTRUK, China National Heavy Duty Truck Group Jinan Special Automobile Co.ltd develops, manufactures and sells various kinds of special vehicles, serving as SINOTRUK'S refitted vehicle base in Jinan. The factory has a floor area of 250,000 m², building area of 42000 m², and 350 sets of advanced equipment.

The main product is Dump truck, Sprinkler truck, Oil tank truck, Cargo tuck, Mixer truck, Tractor truck, Sewage suction dredge truck, Garbage truck series.



FAQ



Q:  Are you Dealer or Factory ?

A: We are the subsidiary factory of Sinotruk and adopt the strict quality control system which the high quality of the truck.

Q:  I want to transport the truck by container, is it ok?

A: Yes, it is ok, but we need take apart the truck and you should reinstall in your country.

Q: How about your product quality?

A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

Q: I want to be your agent in my country, is that ok?

A: It’s ok, if your quantity is big, we will consider. For the first time 50 units is ok.

Q. How about your company's service, especially after-sale service?

A: SINOTRUK has been in this field for nearly 60 years and has strong production and distribution capability, we can satisfy your demand within 3-7 days. We always do our best to solve all the problems and put our customer's interests in the first place.

Q: What is your payment terms?

A: You can choose to the 30% prepaid and 70% paid before delivery or you can choose the LC 100% at sight.

Q: What is your lead time?

A: Usually it is 30-50 days after deposit received.
