Auto repair shop smoke arm/automobile exhaust extraction arm

Supplier: Qingdao Loobo Environmental Protection Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Loobo Qingdao
Price: $150.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Core component warranty:	3 years	port:	Qingdao
Marketing Type:	Hot Products of 2019	Mechanical test report:	if
Showroom location:	Egypt, Brazil, India	payment terms:	wire transfer
color:	custom made	Applicable industries:	Hotel, clothing store, building supply store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, household, retail, food store, print shop, construction, energy and mining, food and beverage store, other, advertising agency
After Warranty Service:	Video technical support, spare parts, on-site maintenance and repair services	Core components:	engine
Origin:	Shandong Province, China	product name:	Automobile exhaust arm, vehicle exhaust system
brand:	Lobo	diameter:	50mm/75mm/100mm or others
Function:	Auto Repair Shop Smoke Exhaust	After-sales service provided:	Video technical support, free spare parts, online support
Local service locations:	Egypt, Brazil, India	Video outbound inspection:	if
Warranty:	3 years	Health status:	new
Material:	Stainless Steel and PVC Hoses	Supply capacity:	10000 pieces per month
Packaging Details:	plywood packaging	length:	5-10 meters

Product Description

Automobile smoke exhaust arm, auto repair shop smoke exhaust system

LB-TD-R reel type car smoke exhaust system exhaust pipe guide rail type

application:

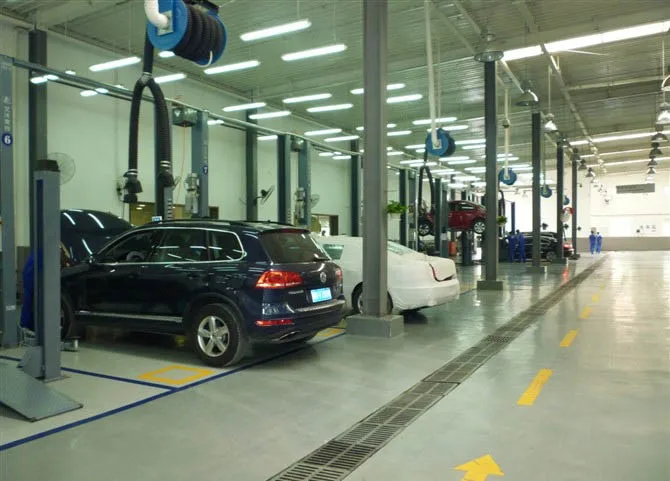

This product is used in various repair shops, 4S shops, garages, fire stations, and laboratories. It has a beautiful appearance and is easy to install and use.

product description:

instruct:

1: Remove static electricity and exhaust smoke from automobiles

2: The extraction arm can be easily dragged by hand

3. Guide rail type, high-strength aluminum alloy profiles, wide pipes to enhance the circulation wind speed

4. Four ball bearing rollers make the movement lighter + the continuous working temperature is 200℃, the durability of diesel and gasoline exhaust is important

• 5. Flexible pipe, high temperature resistant hose, flexible expansion and contraction, the external structure is a supporting spiral, and the internal embedded reinforcement protection has good chemical resistance such as impact resistance and corrosion resistance.

installation steps:

1. Install the special sling on a suitable suspension bracket

2. Install aluminum alloy guide rails and sealing strips on the ground

3. Lift the guide rail, put it into the special hoisting device, install the pipe and cover the slide rail

Note: When the fan is installed outdoors, it is necessary to ensure that all the indoor air ducts are under negative pressure.

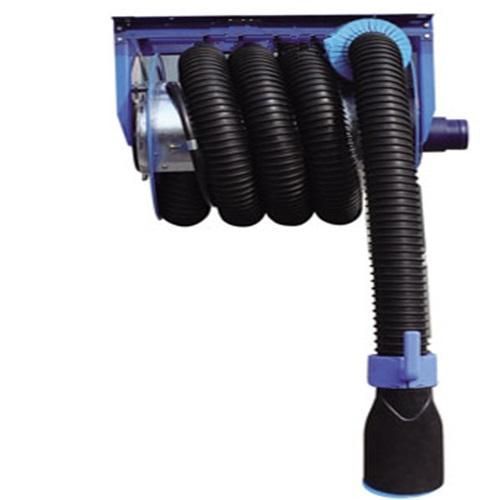

LB-TD-M Reel type automobile smoke exhaust system exhaust pipe manual mode

product description:

Function description: The product is all casted by aluminum die-casting parts and plastic glass fiber materials. The overall structure is firm and reliable, and the appearance is beautiful and generous. It is suitable for installation in repair shops, 4S shops, and automobile factories.

Instructions for use: The spring self-winding exhaust pipe is manually operated and equipped with a mechanical spring.

When it is necessary to exhaust the smoke, the operator grabs the exhaust nozzle and pulls the exhaust hose to the required length. A ratchet check mechanism inside the coil automatically secures the position of the selected hose. Then manually connect the suction nozzle with the car exhaust pipe.

After manually releasing the suction nozzle and the exhaust on the car, the spring force on the hose rolls down to the roll tube. The height of the nozzle rollback can be adjusted by the resistance stop of the hose, which is generally located at a position that can be operated by the operator.

The mechanical spring is more in line with the requirements of humanization, and the hose is pulled as fast as lightning without making the operator tired.

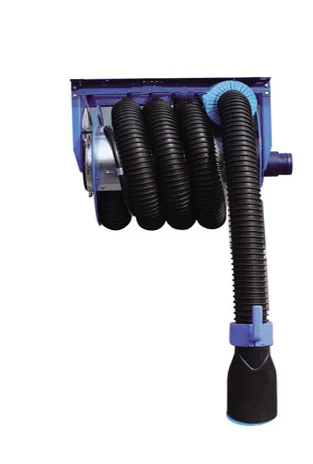

LB-TD-E reel type car smoke exhaust system exhaust pipe electric type

Electric roll type introduction:

The hose uses an electric horse, by pulling out and rewinding the hose. The drive can be controlled using a remote control panel or remote control panel. Electric vents are ideal for large diameter or long hose lengths and high installation heights.

The operator controls the electric exhaust via a wired control panel or a remote control panel.

The automatic control method is the best choice for long or heavy hoses. Suction nozzles are sometimes placed in places that people cannot access, such as heavy machinery, super high vehicles, then using electric self-rolling exhaust pipes is the only option.

Drive mechanism

It consists of 24V DC motor, planetary gear mechanism, electromagnetic brake, transformer and circuit board, including upper and lower limit switches. The power range is AC 220V, frequency 50Hz.

instruct:

1: For static vehicle exhaust emissions.

2: Simple, fast and safe to use and install.

3: There are two kinds of spring roll type and electric roll type.

4: The pulling force of the self-rolling hose is as fast as lightning, and the dynamic operation is simple and convenient.

5: Simple and safe installation

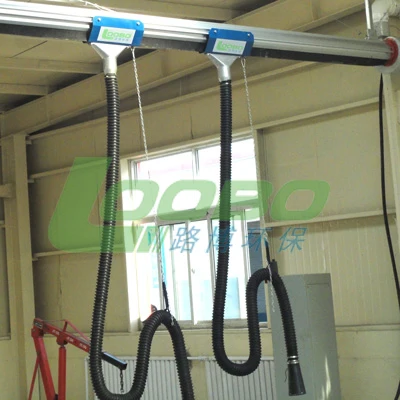

LB-TD track type car exhaust pipe

product description:

instruct:

1. To remove static electricity and exhaust smoke from automobiles

2. The extraction arm can be easily dragged by hand

3. Guide rail type, high-strength aluminum alloy profiles, wide pipes to enhance wind speed circulation

4. Four ball bearing rollers make the movement lighter + the continuous working temperature is 200℃, the durability of diesel and gasoline exhaust is important

5. Flexible pipe, high temperature resistant hose, flexible in expansion and contraction, the external structure is a supporting spiral, and the internal reinforcement is embedded for protection, and has good chemical resistance such as impact resistance and corrosion resistance.

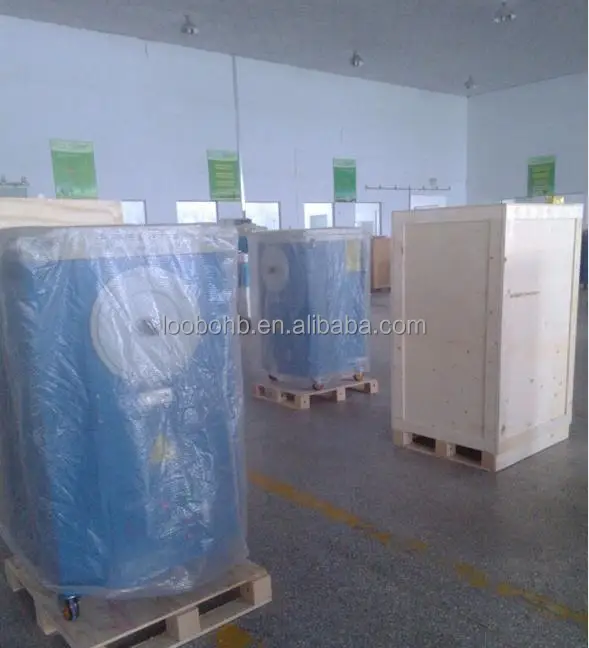

Packaging and Shipping

Packing: plywood box

Price Terms: Ex Works, FOB, C&F Sea Freight

Delivery time: 1 week for standard products, 2-3 weeks for special orders.
