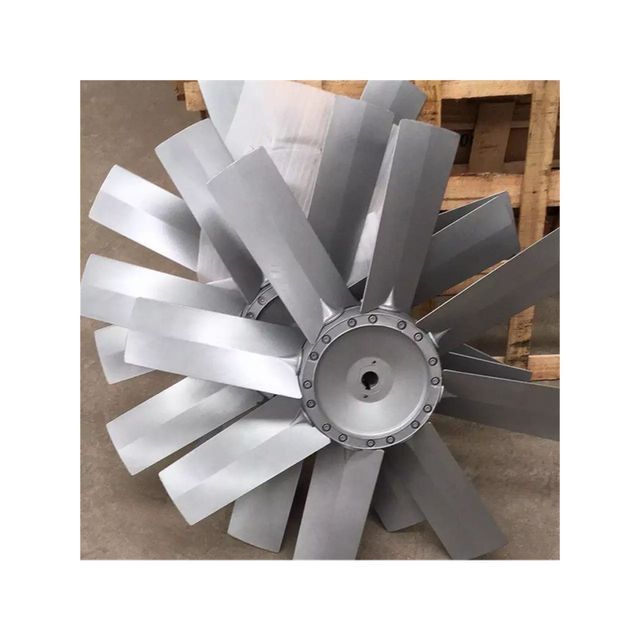

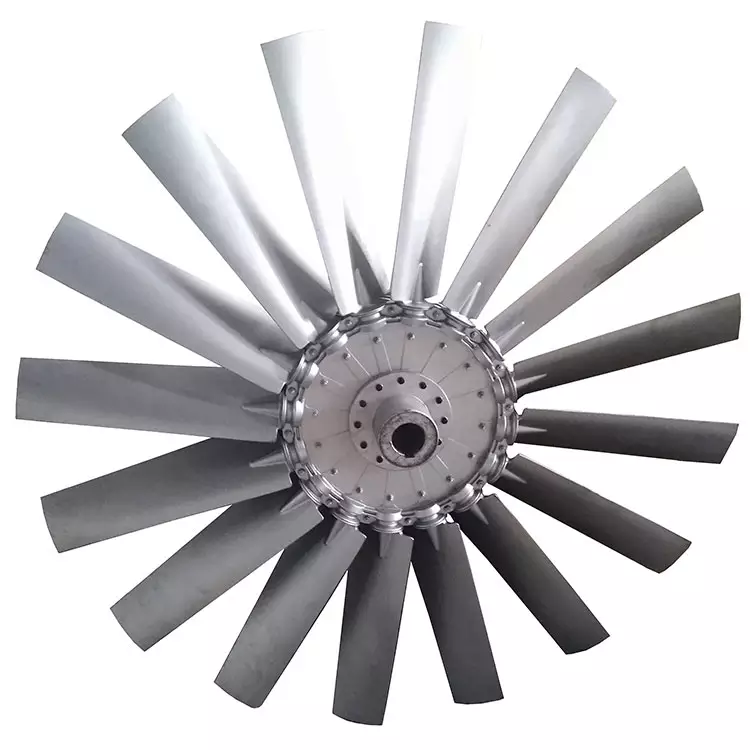

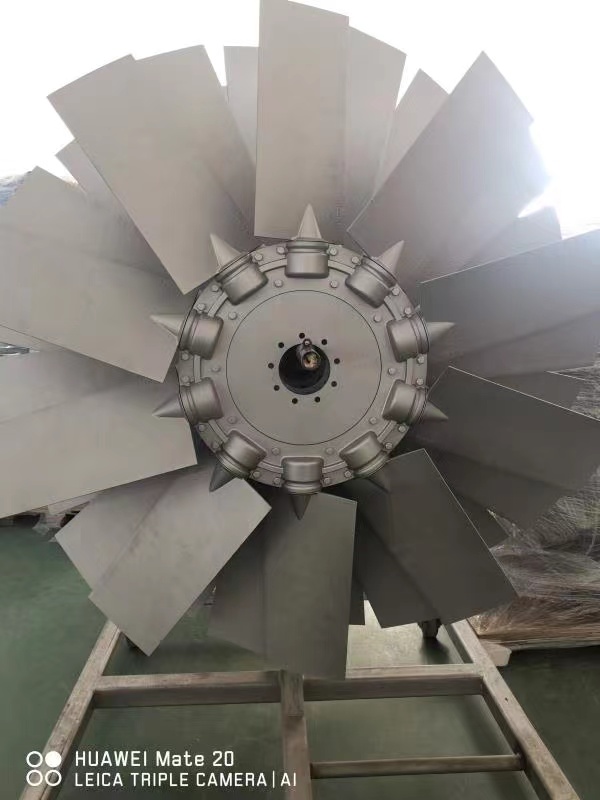

150-2000mm diameter axial flow fan impeller
- 399.00 1 - 99 sets
- 169.00 100 - 999 sets
- 15.00 >=1000 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Qingdao, China | Customization support: | OEM, ODM, OBM |
| Supply capacity: | 1000 sets of greenhouse air heaters per week | Package preview: | |
| size: | 300-2000mm | Install: | long exhaust pipe |
| Origin: | Shandong Province, China | Warranty: | 1 year |
| application: | Cooling Tower/Warehouse/Office/Residential/Heat Dissipation | brand: | Peng Sheng |
| Packaging Details: | Greenhouse air heater: standard carton packing | Rated voltage: | 220V 380V customized |
| air flow: | big | Applicable industries: | Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Factories, Construction Works, Energy and Mining, Others, Advertising Agencies |
| payment terms: | L/C, Western Union, T/T | Material: | aluminum |
| Certification: | CE/CCC/ISO9001 | product name: | Motor Axial Fan |
Product Description
introduce
1. 400 tons die casting, high density, heavy duty. The wall thickness is uniform, and the surface of the mold has no pores.
2. Aluminum alloy new material, no inclusions.
3. All impellers have passed dynamic balance inspection.
4. The blade angle is adjustable.
5. Tested by the assembled axial flow fan, the air performance parameters are true and reliable.
6. High electrostatic efficiency and long-lasting.
2. Aluminum alloy new material, no inclusions.
3. All impellers have passed dynamic balance inspection.
4. The blade angle is adjustable.
5. Tested by the assembled axial flow fan, the air performance parameters are true and reliable.
6. High electrostatic efficiency and long-lasting.
1. Blade installation angle is adjustable
2. The number of blades, 5 pieces, 6 pieces, 7 pieces, 8 pieces, 9 pieces, 10 pieces, 12 pieces, 14 pieces, 16 pieces, 18 pieces for your choice
3. Blade diameter 250mm～1800mm
2. The number of blades, 5 pieces, 6 pieces, 7 pieces, 8 pieces, 9 pieces, 10 pieces, 12 pieces, 14 pieces, 16 pieces, 18 pieces for your choice
3. Blade diameter 250mm～1800mm
4. Features: stable operation,High efficiency, low noise, solid structure, beautiful appearance.
Specification
Diameter of impeller | Φ280-Φ1250(mm) |
Air volume range | 1060-91800 cubic meters per hour |
pressure range | 37-681 Pa |
power range | 0.06-15 kW |
Noise range | 51-94dB(A) |
Material | aluminum alloy |
Function | Ventilation and fire fighting equipment |
feature | Adjustable installation angle and number of blades |
Impeller model | Applicable axial flow fan model | Air volume (cubic meter/hour) | air pressure (Pa) |
3 hours/6-6 | 2.8#-4.0# | 1060-4000 | 37-127 |
5Z/6-6 | 4.5#-6.3# | 2790-19200 | 81-288 |
5Z/9-9 | 7.1#-10# | 8000-70050 | 102-681 |
5Z/12-12 | 11.2# | 11400-70400 | 162-375 |
5Z/16-16 | 12.5# | 37800-91800 | 193-393 |
