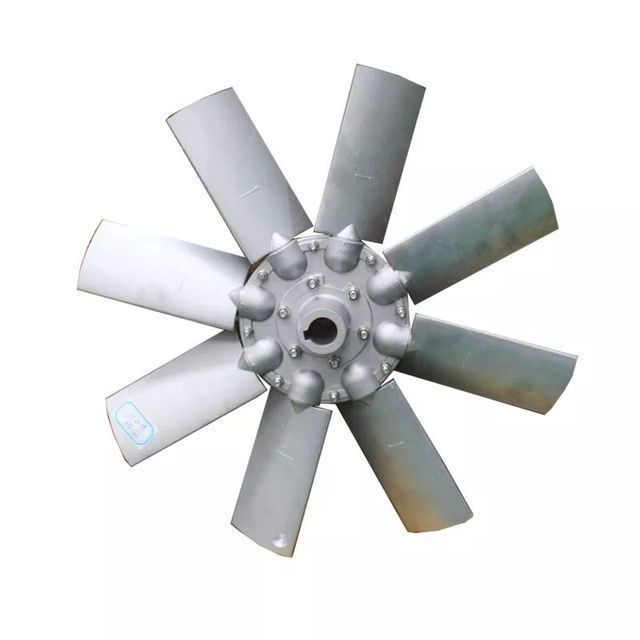

Axial flow fan parts aluminum alloy exhaust fan impeller different models
- 10.00 >=50 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Customization support: | OEM production | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company, other |
| Diameter of impeller: | 310mm to 1580mm | Blade Angle: | 15 to 45° |
| payment terms: | L/C, Western Union, T/T, Cash | Bushing Material: | iron or aluminum alloy |
| port: | Guangzhou/Shenzhen etc. | Package preview: | |
| Bushing diameter: | 150mm 200mm 260mm 350mm | Packaging Details: | wooden box |
| Diameter of impeller: | 71*60mm | Origin: | Guangdong, China |
| Supply capacity: | 6000 pieces per month | Blade material: | aluminum alloy |
| color: | Standard color is gray. Other colors can be customized. | Blade size: | 495mm |
| Flow rate: | 60 to 190,000 cubic meters per hour | Hub material: | aluminum alloy |
| brand: | Suifeng |
Product Description
adjustable aluminum

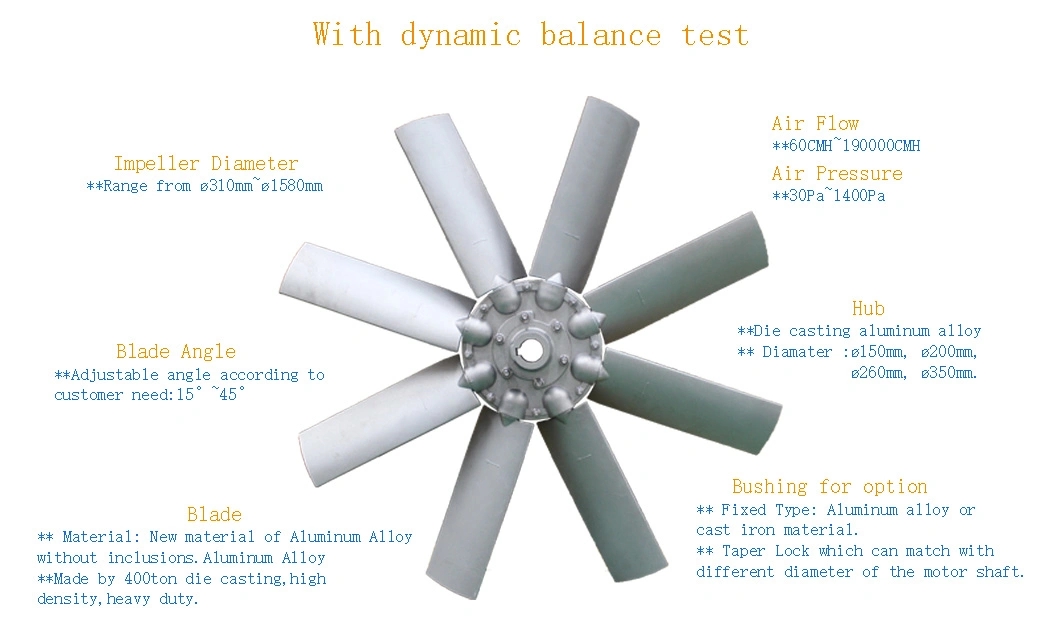

The blade is formed by precision die-casting of aluminum alloy. Through the positioning of the clamping wheel shell, the angle can be adjusted according to the user's needs, and the blade can also be adjusted to cause counterflow to realize the need for reverse ventilation. It can be divided into positive and negative blades, symmetrical positive and negative directions. . There are six blade mounts depending on the adjustment angle from 15° to 40°.
eight blades
Nine Blades
ten blades
14 small blades
14 wide blades
application
· Integrated fan
· Roof Ventilators
· Ventilation and air conditioning systems (HVAC)
· Industrial fan application
