China factory supply 10-12m3 mobile transportation compactor garbage truck price

Supplier: Chengli Special Automobile Co., Ltd.
Region: Hubei, China
Contact: Ms Jing Huang
Price: $33800.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Certification:	ISO9001 CCC ISO14001;	Condition:	New;
Drive Wheel:	4x2;	Brand Name:	Dongfeng D9;
After-sales Service Provided:	Video technical support,Online support;	Selling Units:	Single item;
Single gross weight:	9,700 KG;	Certificate:	ISO9001 / CCC;
Engine Capacity:	5900;	Transmission Type:	Manual;
Size:	8700,8500,8300x2500x3250;	Place of Origin:	Hubei China (Mainland);
Gross Vehicle Weight:	9700;	Type:	Compactor;
Emission Standard:	Euro 4;	Single package size:	870X250X330 cm;
Dustbin capacity:	10-12 cbm;	Color:	As you like;
Warranty:	1 Year;	Package Preview:	https://sc01.alicdn.com/kf/HTB19VOWVNnaK1RjSZFBq6AW7VXar.jpg_640x640.jpg;
Product name:	10m3 compactor garbage truck;	Fuel Type:	Diesel;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Food & Beverage Factory,Restaurant,Food Shop,Construction works ;	Package Type:	Nude with waxing, by roro or bulk ship.;

China factory supply 10-12m3 mobile transportation compactor garbage truck price

1. Compactor garbage truck consists of a sealed garbage compartment, hydraulic system, and operating system.

2. The compressed garbage vehicle is fully sealed, and the sewage in the process of self-compression, self-dumping and compression all enters the sewage compartment, which completely solves the problem of secondary pollution in the garbage transportation process, avoids inconvenience to people, and adopts key components. Imported parts have the advantages of high pressure, good sealing, easy operation and safety.

3. Optional rear bucket reversing mechanism or garbage bucket turning mechanism.

Product Description

1> We ChengLi is a famous professional and biggest garbage trucks manufacturer in China.

2> We can produce many kinds of garbage trucks, including compactor garbage truck, garbge collection truck, garbage transportion truck, container garbage truck, hydraulic lifter garbage truck, self-loading garbage truck, skip garbage truck, arm-roll rubbish truck, hanging bin garbage truck, dump garbage truck, hermetic garbage truck, sealed garbage trucks for sale, arm shaking garbage truck, and so on.

Currently we produce the garbage compactor truck from 4 m3 ~ 18 m3.

Skip swing arm container garbage truck from 4~10 m3.
Arm-roll garbage truck from 3~20 m3.
Hermetic dump garbage truck from 3 m3~10 m3.

Specifications of 10-12m3 mobile transportation compactor garbage truck:

Item	Parameter
Production name	Dongfeng D9 Compactor Garbage truck
vehicle model	CLW5163ZYSE5
Engine	Engine model: ISB180 50
	Engine manufacturer: Dongfeng Cummins Engine Co., Ltd.
	Exhaust: 5900 ml
	Power: 132 kw
Chassis model	EQ1161LJ9BDE
Tire	Tire specification: 9.00R20
Tire	Number of tire: 6
Axle	Number of axles: 2
	Axle-load: 5600/10400
	Wheel base(mm):3950
Traction system	4*2
Tank fact cubage(cbm)	10
GVW(kg)	16000
Curb weight(kg)	9700
Overall dimensions(mm)	8700,8500,8300×2500×3250
F / R track base(mm)	1858/1806
F/R overhang(mm)	1230/2770
Approach/departure angle(°)	19/13
Max speed(Km/h)	90
equipment	1> Equipped with hermetic dustbin, hydraulic system and operating system; 2> Hermetic dustbin: side 4mm, bottom 4mm carbon steel; 3> Automatic compress and uninstall; 4> Optional: Rear hanging bucket or small landing bin to turn.
Product cycle	15-20 days
Warranty	12 months, from the date of supply
FOB Shanghai	USD

For any special requirements of this 10m3 compactor garbage truck, pls let me know and we can design for you.

Contact information

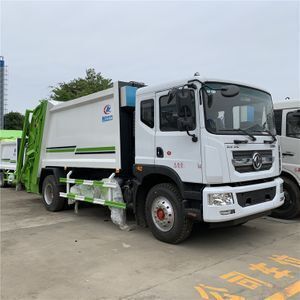

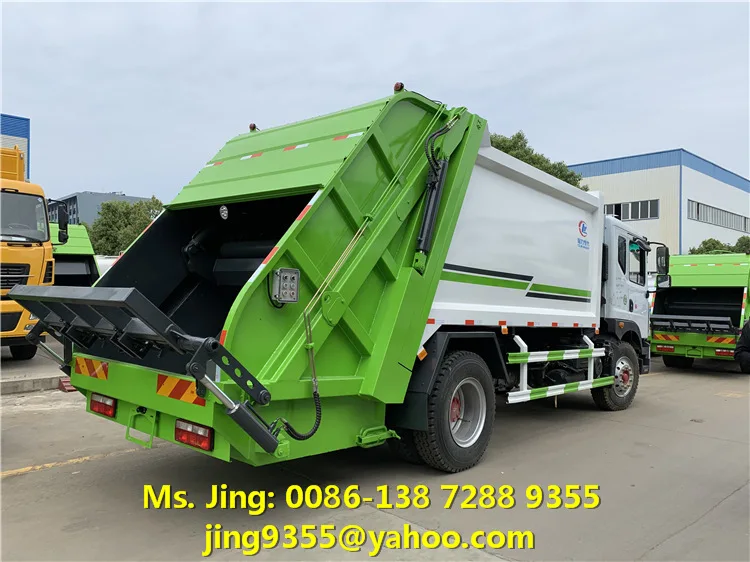

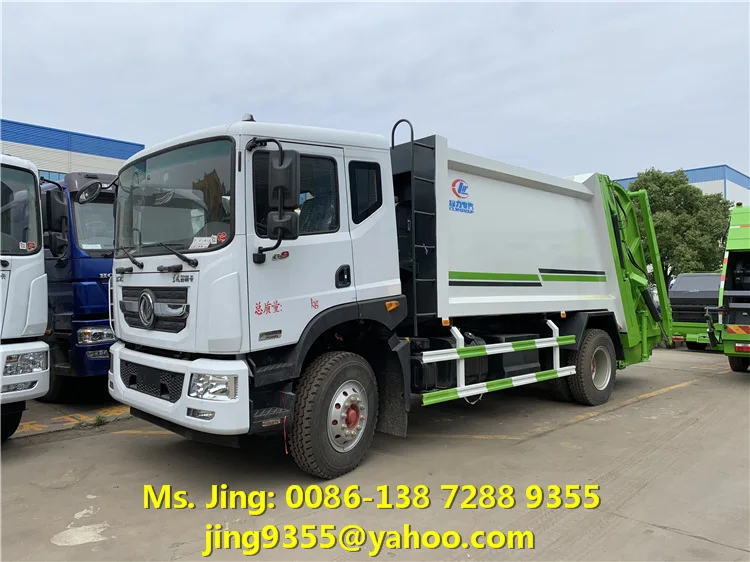

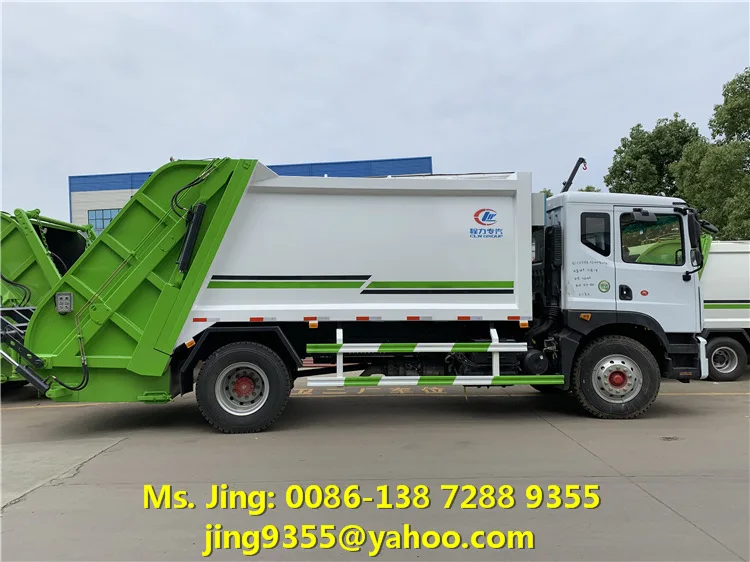

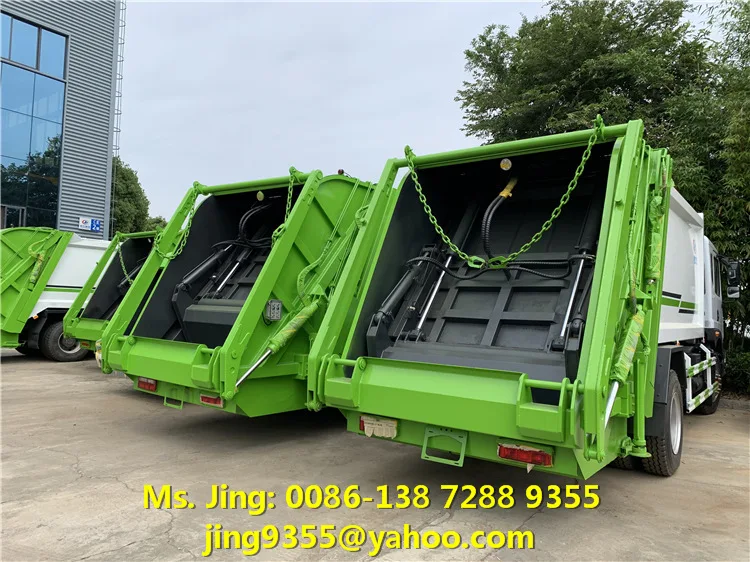

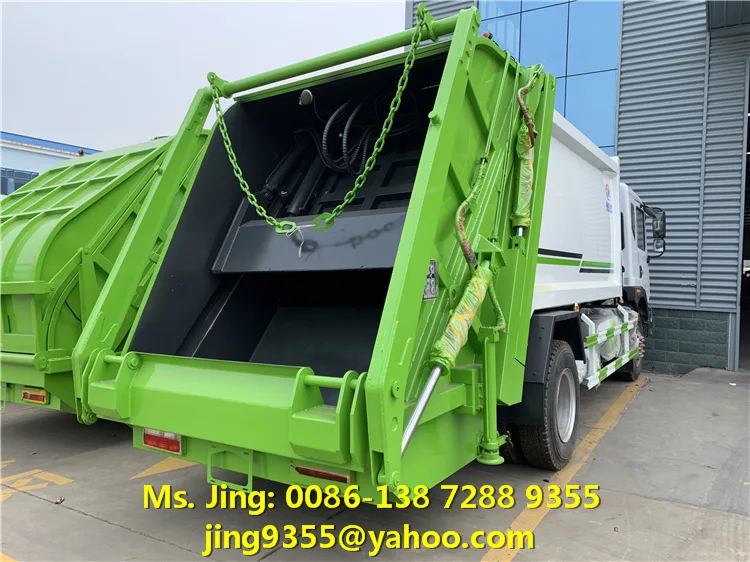

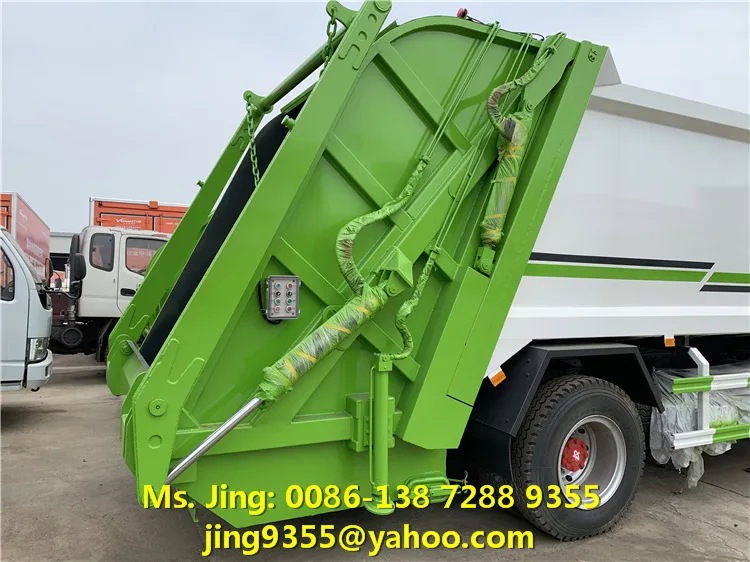

Product photos

Related photos

Packaging & Shipping

1> Packaging: Nude,but waxed before shipment in our factory.

2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements.
