Masor Bean PeelerMasor Bean Peeler

Supplier: Lushan Win Tone Engineering Technology Co., Ltd.
Region: Henan, China
Contact: Ms Lushan Wintone
Price: $5000.00 / 1 - 1 units
$2500.00 / >=2 units
Min. Order: 1 unit

Click here to contact

Product details

application:	Bean processing	Delivery Details:	Ships within 0 days after payment
Voltage:	380V/50Hz	product name:	Massor Bean Peeler Massor Bean Peeler
damage rate:	almost no breakage	After-sales service provided:	Overseas Service Machinery
type:	peeling machine	Packaging Details:	1. We will use inner protective film, outer waterproof plastic packaging. 2. If less than one container, wooden case packing is required. 3. The machine will be fixed inside the container by wire rope. Make sure the machine is in good condition when you arrive at your destination.
brand:	win sound	Supply capacity:	100 units per month
capacity:	2500-3500kg/hour	port:	Qingdao/Shanghai
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	Warranty:	1 year
Final product:	Peeled Masur Dal	Origin:	Henan, China
strength:	30 kW

Product Description

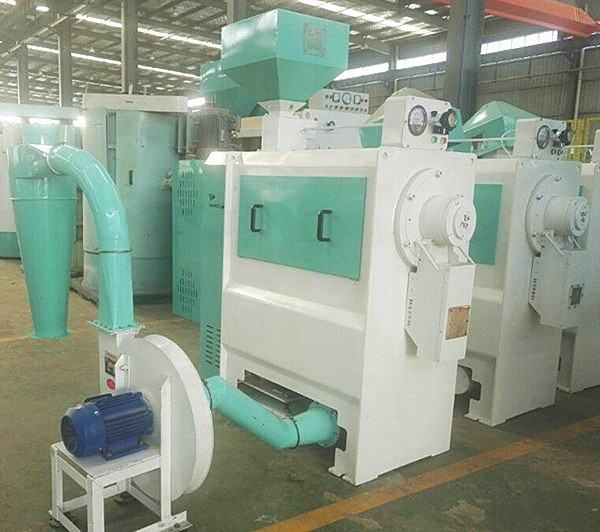

Masur bean peeler

Masoor dal beans are also known as Masoor dal or lentils in Pakistan. The masur bean peeler has a suction and dust extraction system that guarantees optimum hygienic conditions. YTPS-25B Masur bean peeling machine is connected with an efficient ventilation system to ensure the reliability of bean peeling. Features a powerful cooling system ensuring high hygiene standards.

application:

This machine is suitable for the peeling process of bean processing and the initial peeling and deep peeling processes of food processing enterprises. It can be used in the whole production line in series or in parallel according to the needs of the process. The masur bean peeling machine can also process red beans, soybeans, mung beans, lentils, etc.; only need to change the relevant technical parameters to adapt to the peeling of different beans.

Main ingredients:

MTPS25BBean peeling machineIt is mainly composed of chassis, main shaft, feeding adjustment device, feeding hopper, flow channel, fan parts, cyclone separator parts, protective cover, propulsion chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base and other accessories. Sieve plate, bearing housing, motor, belt.

work rules

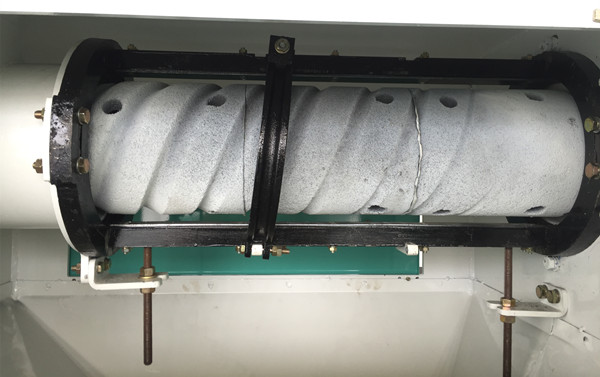

The material is transported to the peeling room at the core of the machine by the screw propeller. It uses high-speed rotating emery to continuously cut and rub the bean skin, destroying the bonding force between the bean skin, material skin and endosperm, and gradually separating the bean skin. Then the material is transported to the equipment outlet to complete the peeling process.

Features and advantages

Its built-in vacuum and dust extraction system ensures optimum hygienic conditions.
It is connected with an efficient ventilation system to ensure reliable discharge of soybean bran. Features a powerful cooling system ensuring high hygiene standards.
It is easy to maintain and operate.
Features parts such as sieve plates that can be quickly replaced. Durable grinding wheels and few wearing parts make the equipment easy to operate and maintain.

Technical Parameters

Massor bean peeler technical parameters:

Model

Wheel diameter

(mm)

Wheel length

(mm)

Spindle speed

(rev/min)

quantity

(ton/hour)

MTPS25B
