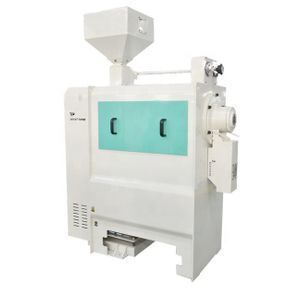

MTPS25S White Kidney Bean Skin Peeling Machine Peeler

Supplier: Lushan Win Tone Engineering Technology Co., Ltd.
Region: Henan, China
Contact: Ms Lushan Wintone
Price: $2500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

End products:	Peeled Kidney Bean;	Brand Name:	Win Tone;
Place of Origin:	Henan China;	Breakage rate:	Almost no broken;
Capacity:	1000-3000kg/h;	Application:	Bean Processing;
After-sales Service Provided:	Service Machinery Overseas;	Voltage:	380V/50HZ;
Warranty:	1 Year;	Product name:	MTPS25S White Kidney Bean Skin Peeling Machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	1. We will pack by the protect film inner, water-repellent plastic outside. 2. The wood packing is necessary if send by less than a container. 3. The machine will fixed by steel rope in the container.Make sure it is in good condition when arrived destination.;
Power:	4-pole 30KW;	Peeling rate(%):	80;
Port:	Qingdao/Shanghai;	Supply Ability:	100 Unit/Units per Month;
Type:	Peeling Mill;	Spindle speed (rpm):	1149;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;

Product Description

White Kidney Bean Skin Peeling Machine Introduction:

MTPS25S White Kidney Bean Skin Peeling Machine can be used as the supporting equipment in bean processing technology or as the single peeling equipment.

Application:

The machine is used in the peeling process for bean processing and primary and further peeling process for food processing enterprises. It can be used in series or in parallel in complete processing line according to technological demand. This white kidney bean peeling machine can also process red bean, soybean, mung bean, lentil, etc.; it is suitable for different beans peeling just by changing related technical parameters.

Main Components:

MTPS25S White Kidney Bean Skin Peeling Machine is mainly composed of fittings of base frame, main shaft, charging regulation device, charging hopper, channel, air blower parts, cyclone parts, protective cover, propelling chamber, instrument, pressure door, guide cylinder, upper and lower beams, motor base, sieve plate, bearing base, motor, belt.

Working Principle

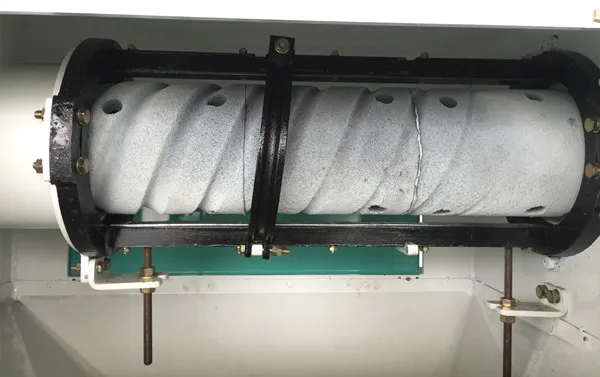

The material is conveyed by the screw propeller to the peeling chamber which is at the machine’s core part. It utilizes the emery with high speed rotation and cuts and rubs the beans skin continuously, which destroys the bonding strength among bean bran, material skin and endosperm, and makes bean bran separated gradually. Then the material is conveyed to the outlet of the equipment and the peeling process is finished.

Feature & Advantages

White Kidney Bean Skin Peeling Machine Features:
Its built-in suction and dust removal system ensures the best sanitary conditions.
It connects with the efficient ventilation system, which ensures reliable discharging of bean bran. It has the powerful cooling system and ensures the high sanitation standard.
It is easily maintained and operated.
It has quick-replaceable sieve plate and other parts. The durable emery roller and less abrasion parts make the equipment easily operated and maintained.

Technical Parameters

MTPS25S White Kidney Bean Skin Peeling Machine Technical Parameter:

Spindle pulley(MM)	Spindle speed (rpm)	Motor pulley(MM)	Motor
			Power	Voltage (V)	Current(A)
295	1149	240	4-pole 30KW	380	23

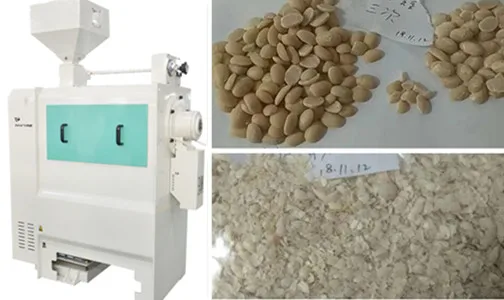

Peeling test:

	The first round (without pressure)	The second round (without pressure)	The third round(with pressure)
Peeling rate(%)	53.333	53.333	80
Breakage rate	Almost no broken	Almost no broken	a little broken
