125ml Quartz Distiller Laboratory Quartz Glass Flask

Supplier: Jinzhou Huafeng Quartz Electrical Appliance Co., Ltd.
Region: Liaoning, China
Contact: Ms Lucy Zhang
Price: $0.50 /piece
Min. Order: 1 piece

Click here to contact

Product details

OEM:	Yes	Origin:	Liaoning, China
Material:	99.99% Pure Quartz, Quartz	Packaging Details:	125ml laboratory quartz distillation flask Quartz glass flask 1. Bubble film; 2. Polystyrene foam board; 3. Carton; 4. Wooden case
port:	Dalian, Qingdao, Tianjin	Supply capacity:	5000 pieces per week
density:	2.2 g/cm3	brand:	high frequency
Softening Point:	1780°C	capacity:	5ml-20000ml
Name:	125ml Quartz Distiller Laboratory Quartz Glass Flask	payment terms:	L/C, Western Union, D/P, T/T, Paypal, Alibaba Trade Assurance
Classification:	flask	Operating temperature:	1100℃-1200℃
model:	HF-QLI-180030	pack:	Bubble wrap, polystyrene box, carton

Product Description

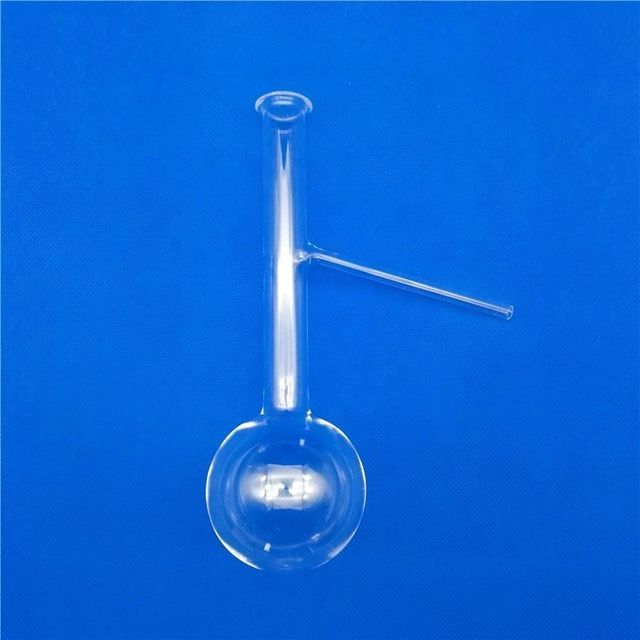

125ml Quartz Distiller Laboratory Quartz Glass Flask

Advantage:

1. High purity: SiO2>99.99%;
2. Excellent chemical resistance to acid and alkali;
3. No bubbles and no gas path;
4. High temperature resistance and corrosion resistance;
5. Excellent electrical insulator;

6. ISO 9001 certification;

6. We can accept customization according to your requirements.

Specifications and performance

silica₂	99.99%
density	2.2 g/cm³
Compressive strength	1100Mpa
Young's modulus	72000Mpa
modulus of rigidity	31000Mpa
Moh's hardness	6.6
transition point	1280°C
Softening Point	1780°C
Annealing point	1250°C
Specific heat (20~350℃)	670J/kg.℃
Thermal conductivity (20°C)	1.4W/m·℃
Refractive index	1.4585
heat treatment temperature	1750~2050℃
short-term working temperature	1300°C
Long-term working temperature	1100°C
tension	1270℃ Fused Silica Glass Brick
PPM level	Controlled 10/20/100 PPM
Resistivity: 1000℃	1x106Ω. centimeter

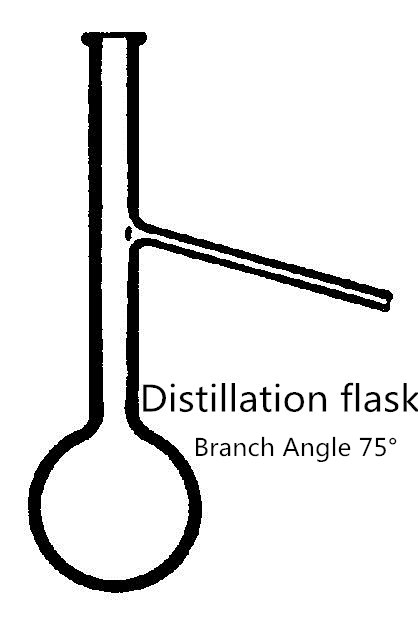

volume (ml)	high (mm)	Ball diameter (mm)	Neck outer diameter (mm)	Side tube length (mm)	Side pipe outer diameter (mm)
50	150	54	20	80	7
100	175	65	twenty one	100	7
250	220	88	28	140	8
500	270	110	30	170	8.5
1000	330	140	36	190	9.5
2000	400	175	43.5	250	11.5
3000	450	197	49.5	250	13.5
5000	505	235	53.5	270	15
10000	600	293	65	270	15

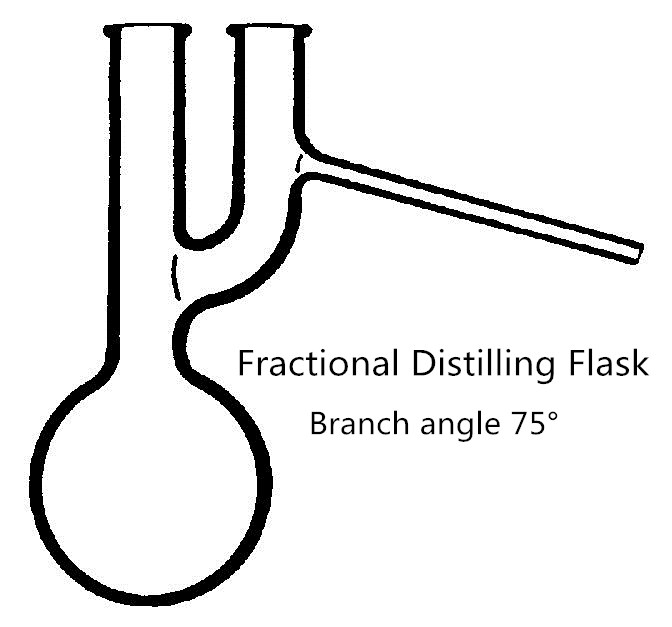

volume (ml)	high (mm)	Ball diameter (mm)	Neck outer diameter (mm)	Tube outer diameter (mm)	Side pipe length (mm)	Side pipe outer diameter (mm)
50	150	54	20	number 17	97	6
100	175	65	twenty one	number 17	136	7
250	220	88	28	twenty one	170	8
500	270	110	30	twenty four	170	9
1000	330	140	36	28	200	10
2000	400	175	43.5	30	200	11.5
3000	450	197	49.5	32	220	13.5
5000	505	235	53.5	36	220	15

notes

Flasks can also be customized, please send us the detailed requirements.

application

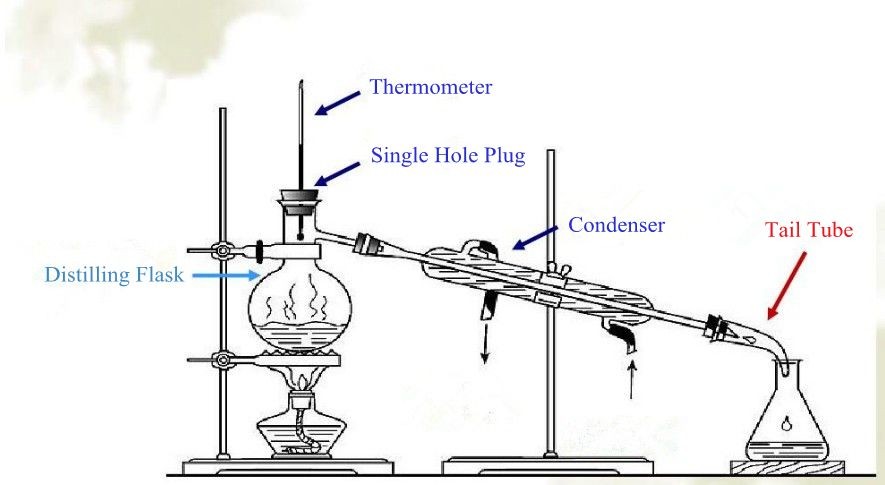

Widely used in chemical industry, petrochemical industry, electronic chemistry, biochemical pharmaceutical and laboratory and other fields.

detailed image

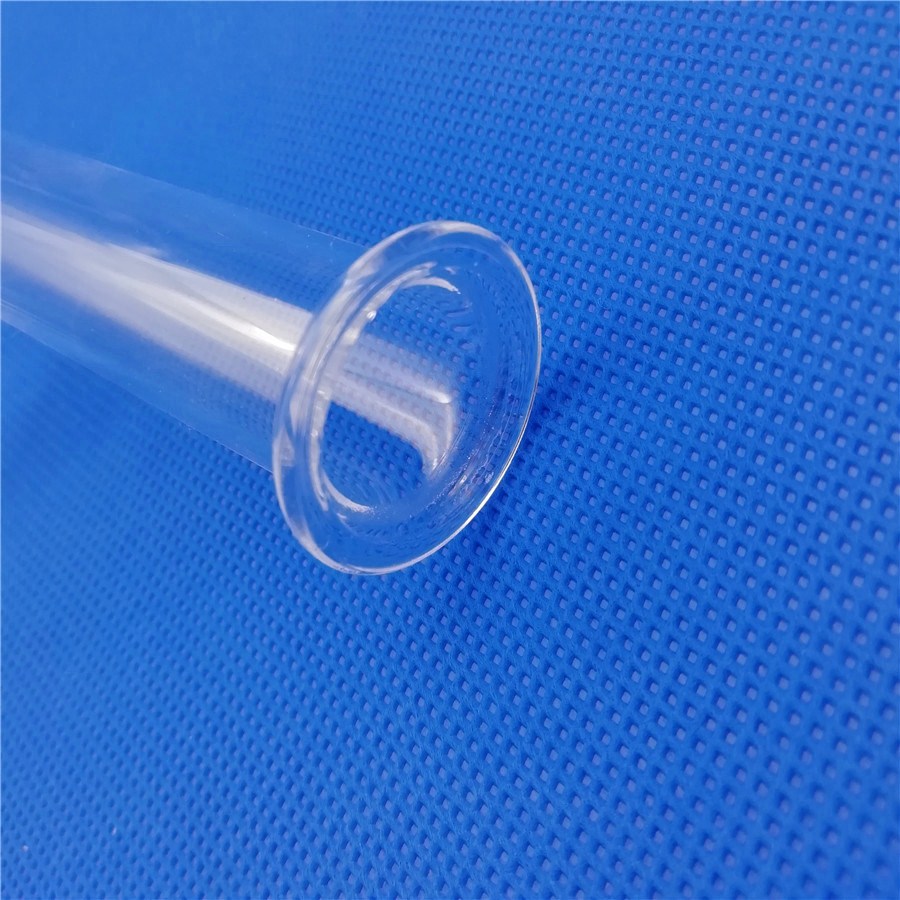

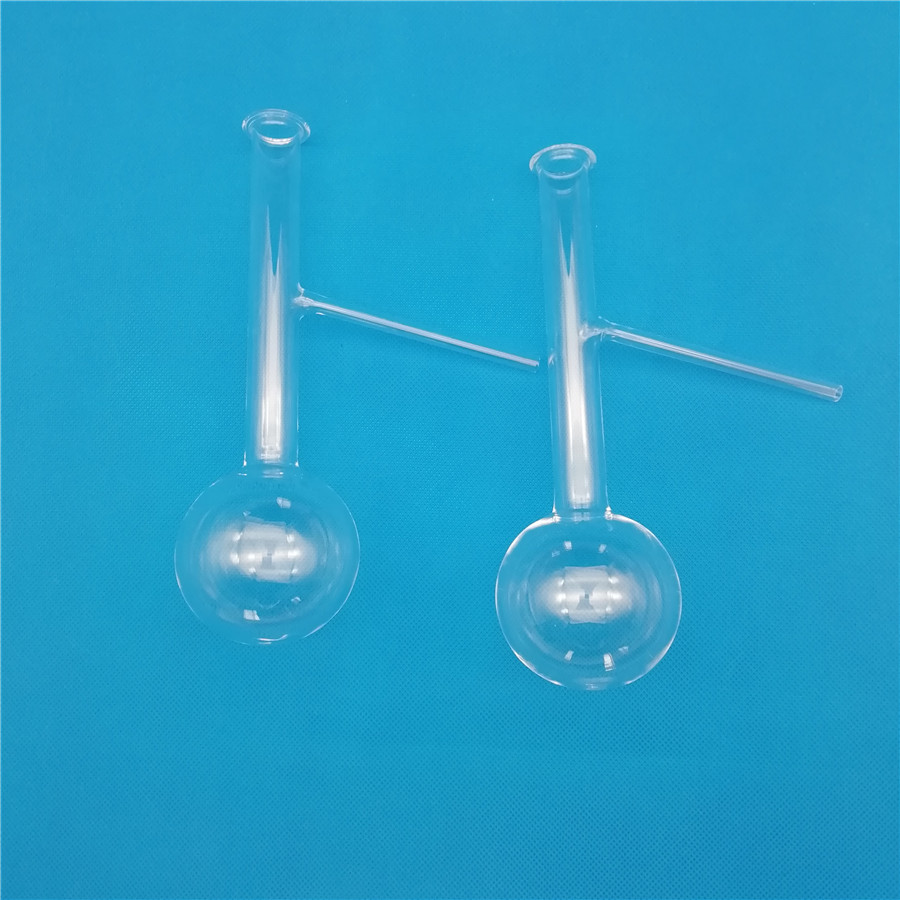

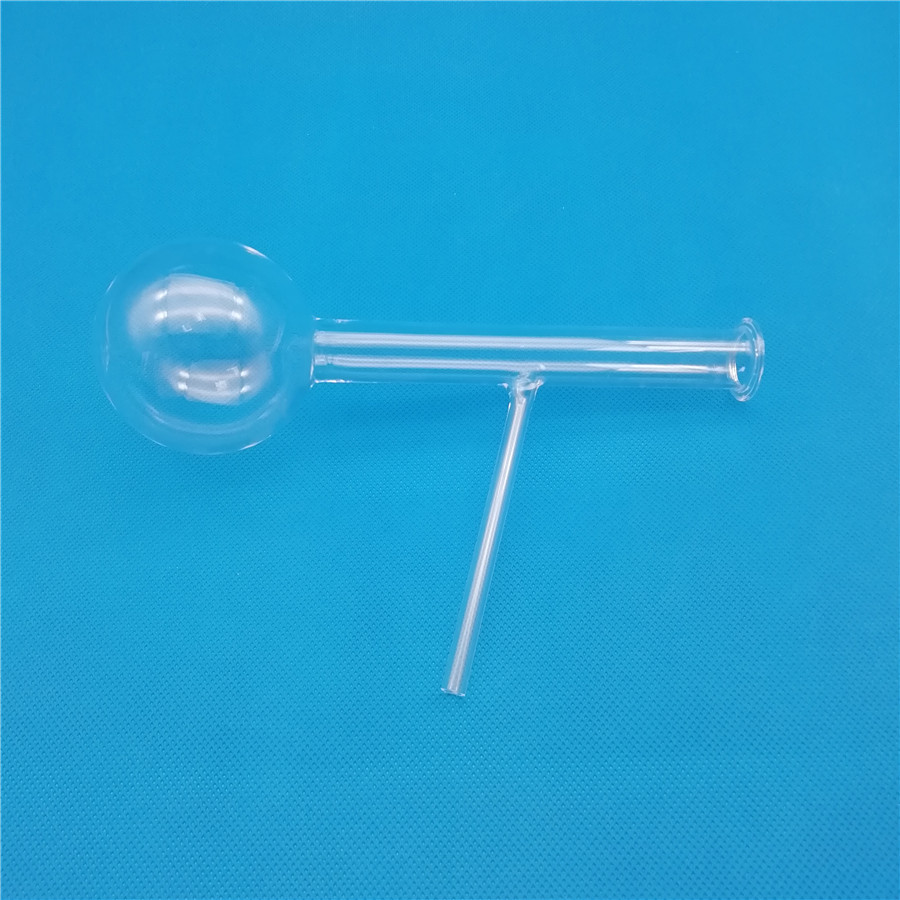

125ml Quartz Distiller Laboratory Quartz Glass Flask
