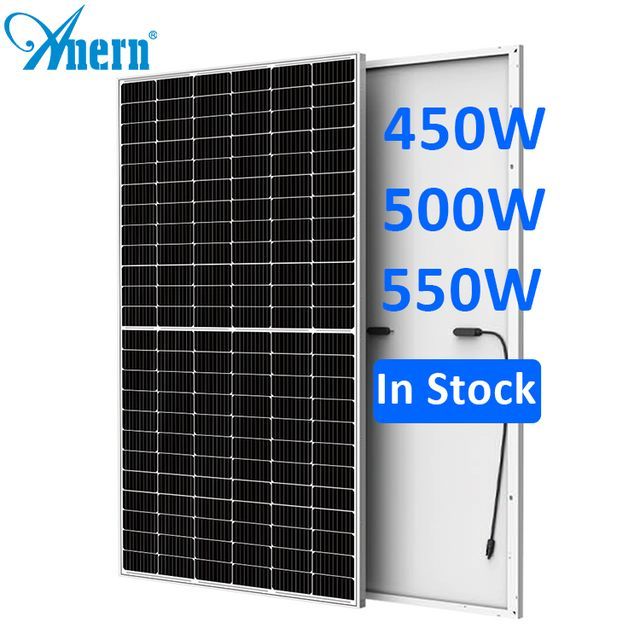

promotional monocrystalline solar panel 500w 500 watts
-
Supplier: Guangzhou Anern Energy Technology Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Sunly wang -
Price: $126.00 / 2 - 49 pieces
$108.00 / 50 - 99 pieces
$97.00 / >=100 pieces -
Min. Order: 2 pieces
Product details
| Key words: | promotional monocrystalline solar panel 500w 500 watts | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Maximum power current: | 12.82A | Panel size: | 2148*1020*35 mm |
| strength: | 400 watts 450 watts 500 watts 550 watts | Glass size: | 2158*1080*35mm |
| Open circuit voltage: | 49.42V | brand: | annan |
| Cell Size: | 2148*1020*35 | net weight: | 25.6 kg |
| type: | Shingled solar panels | Maximum supply voltage: | 41.18V |
| Origin: | Guangdong, China | Supply capacity: | 1000 pieces per month |
| Warranty: | 5 years | Output cable: | 4 square millimeters |
| model: | Mono 500W | Packaging Details: | Standard export packaging is suitable for long voyages and arduous handling |
| Panel efficiency: | 98% | port: | Guangzhou, Shenzhen |

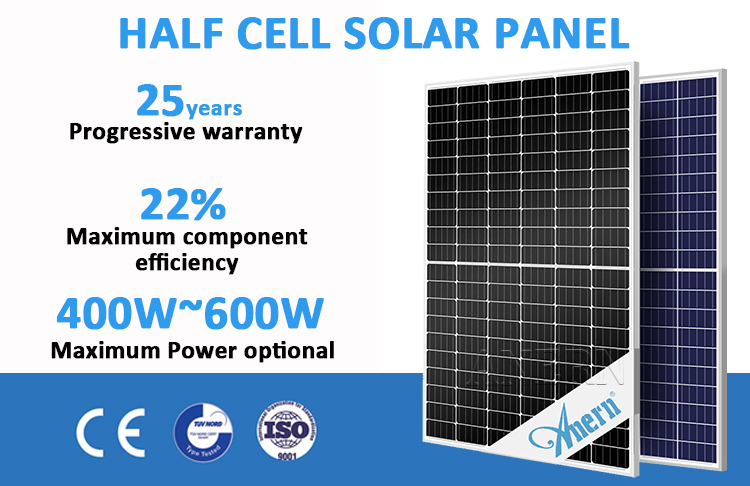

Half Cell Monocrystalline Panel

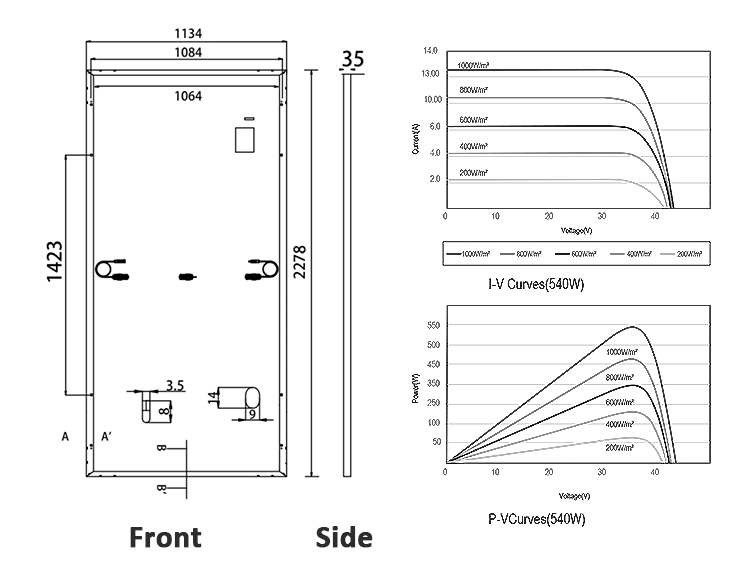

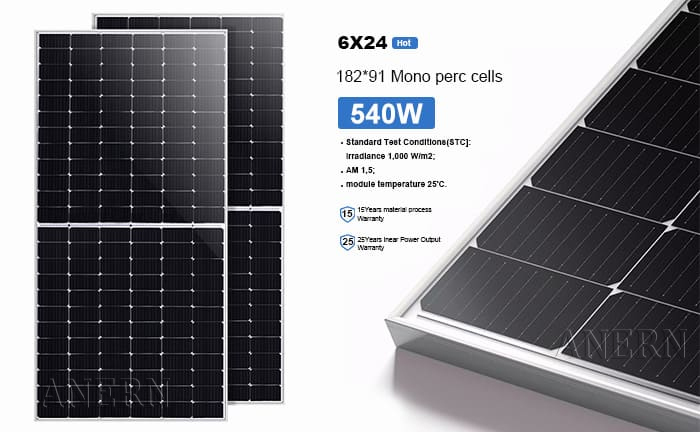

Main Features of 540W Half-Cell Monocrystalline Solar Panel
The solar cells of the 540W half-cut monocrystalline solar module are cut in half, which improves the performance and durability of the module. When a solar cell is halved, its current is also halved, so resistive losses are reduced and the battery can generate more power.
module | AN10-530W(144) | AN10-540W | AN10-550W | ||
Maximum power Pmax | 530W | Chapter 540 | 550 | ||
open circuit voltage | 49.30V | 49.60V | 49.90 | ||
short circuit current | 13.72A | 13.86 | 14:00 | ||
Maximum supply voltage | 41.31V | 41.64V | 41.96V | ||
Maximum power current | 12.83A | 12.97A | 13.11A | ||
cell | 182*91 single crystal quaternary battery | ||||
battery quantity | 144 (6×24) | ||||
system voltage | DC1000/DC1500 | ||||
Open circuit voltage temperature | -0.282 | ||||
Short circuit current temperature | 0.041 | ||||
peak power temperature | -0.387 | ||||
Operating temperature range | -40 to 85 | ||||
Nominal working temperature | 45±2 | ||||

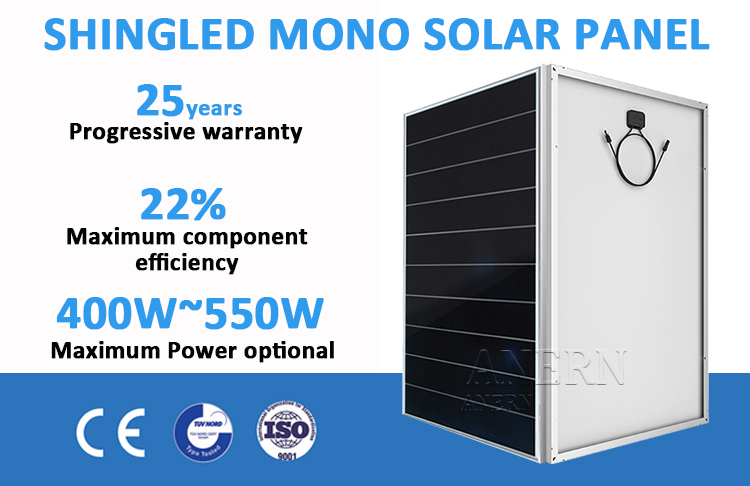

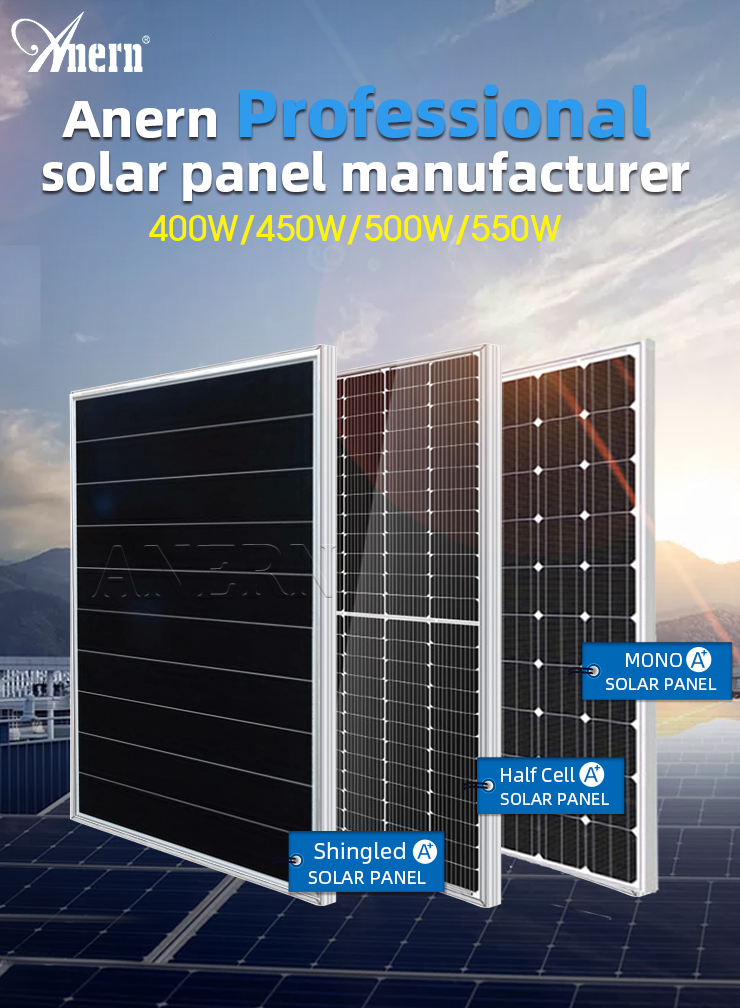

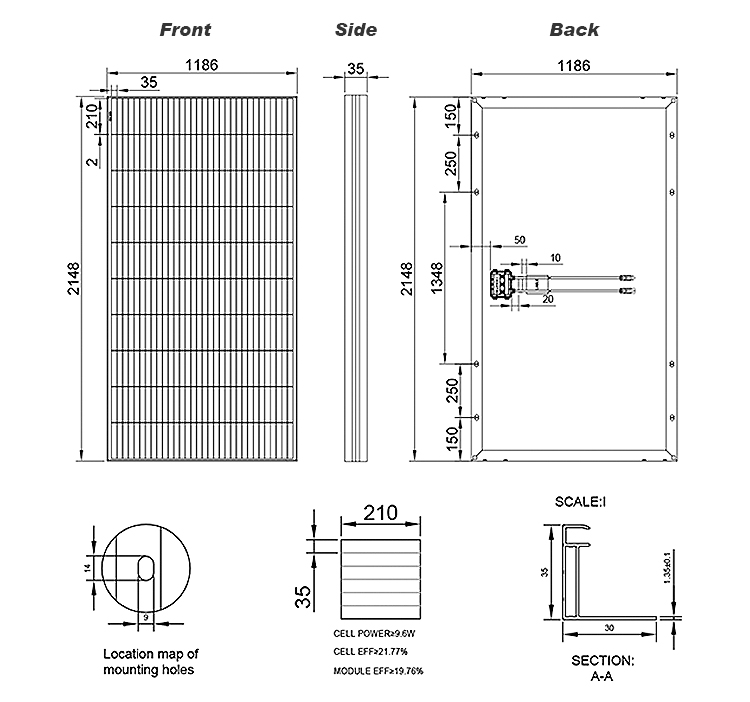

Shingled solar panels

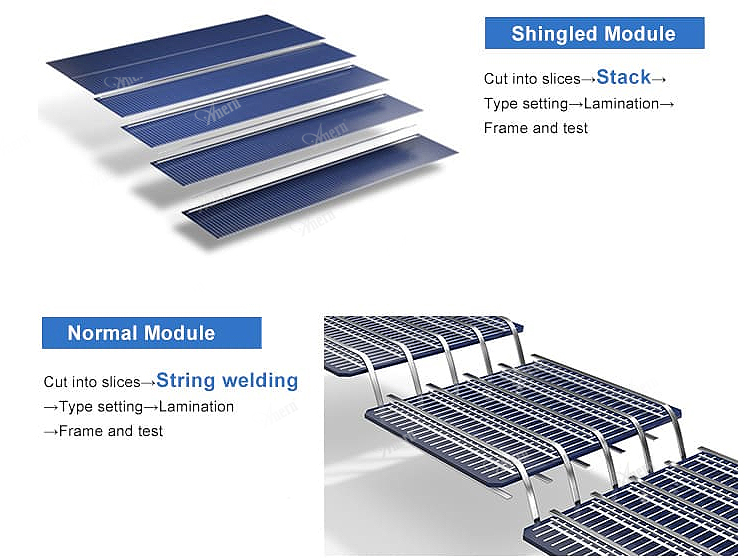

Overlapping solar panel technology is simpler and more reliable, avoiding defects such as ribbon deviation and cold welding.
Advantages of shingled monocrystalline silicon solar modules
1. Improve the conversion efficiency of solar panels 2. Effectively reduce power loss and hot spots caused by shading 3. Reduce the impact of defective cells
serial number. | afternoon (w) | Maximum supply voltage | Maximum power current | open circuit voltage | short circuit current | size |
SMSP-550W | 550W | 45.84V | 12.00A | 53.63V | 12.65A | 2148*1188*35mm |
SMSP-500W | 500W | 41.18V | 12.14A | 49.42V | 12.82A | 2148*1020*35 mm |
SMSP-450W | 450W | 36.74V | 12.25A | 43.07V | 12.86A | 2148*960*35 mm |
SMSP-400W | 400W | 41.26V | 9.70A | 48.17V | 10.23A | 1730*1080*35 mm |
SMSP-380W | 380W | 39.03V | 9.74A | 45.76V | 10.22A | 1730*1020*35mm |

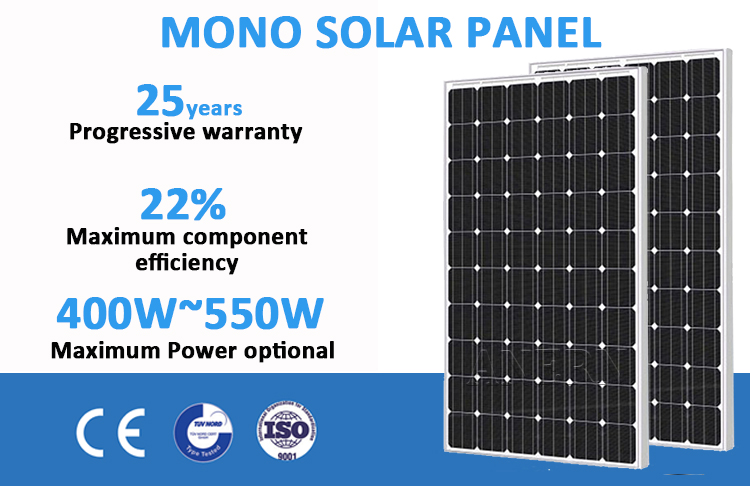

Monocrystalline Solar Panel
Monocrystalline Solar Panel
Both monocrystalline solar panels use the most advanced PERC cell technology to achieve higher module conversion efficiency. Using black silicon cells, the reflectivity is low and the power generation capacity is improved.
strength | Voltage | kid | aspect |
310W | 33.7V | 9.2A | 1640×992×35 mm |
350W | 38.8V | 9.02A | 1956×992×40 mm |
380W | 39.5V | 9.62A | 1956×992×40mm |
450W | 48.1V | 9.36A | 1956×1310×40 mm |
500W | 48.7V | 10.27A | 1956×1310×40 mm |
Through advanced cell technology and manufacturing capabilities, the module efficiency is as high as 22%.

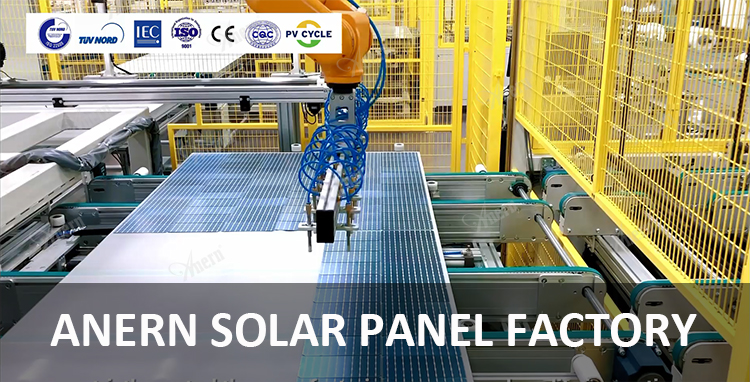

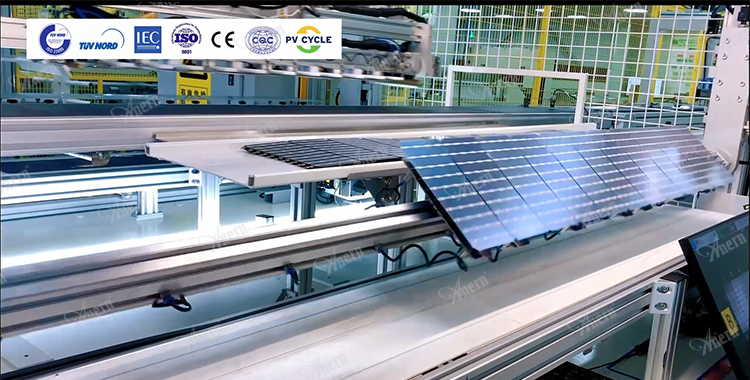

Annan Factory
Aneng has a professional automated factory, introduced advanced automated production equipment, specialized production lines, and an excellent R&D team, and has CE, ROHS, TUV, ISO9001 and other certificates.
Automatic Solar Cell Soldering
Use an automatic welding machine to connect the solar cells in series; all solar cells are made of high-quality solar cells.

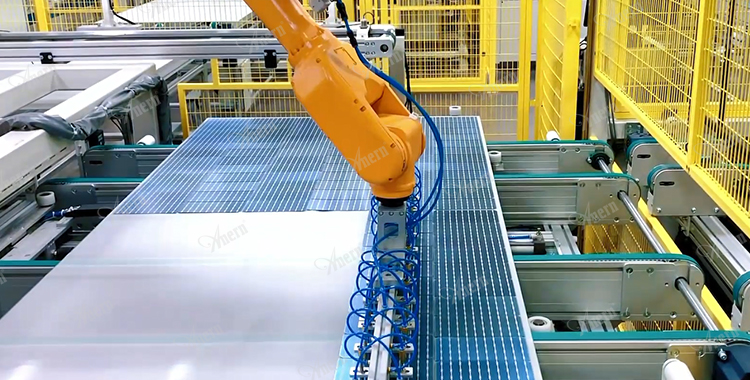

automatic typesetting machine
After the program is set according to the requirements of the process drawing, the typesetting machine will automatically typeset the battery strings. High precision, high efficiency, low defect rate
EL test
Use a mirror to check the appearance of solar modules before lamination, and repair them if they are defective

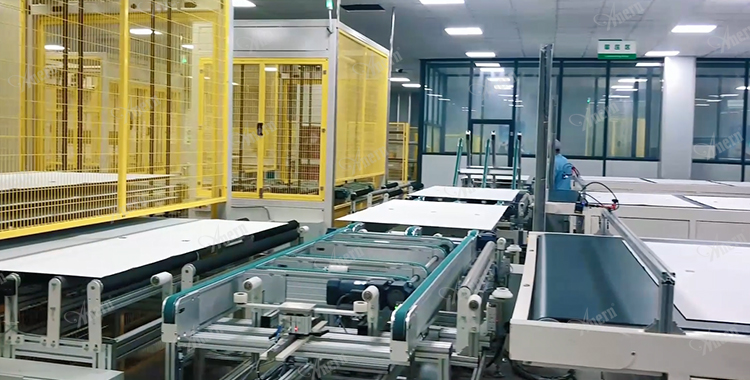

automatic welding
Automatic laying of EVA, backing, automatic cutting of excess backing material; the entire production process is 100% automated

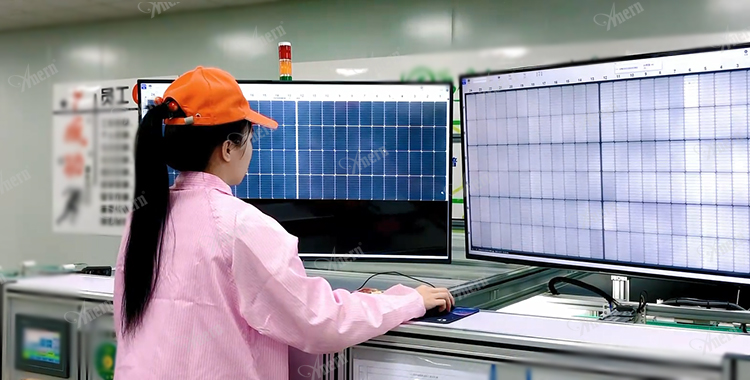

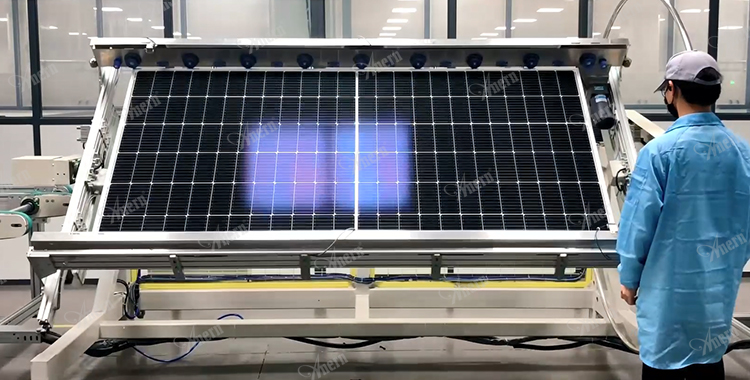

vision test
Through the lathe, the laminated solar panel is fully inspected, and the defects are recorded and fed back to the previous process

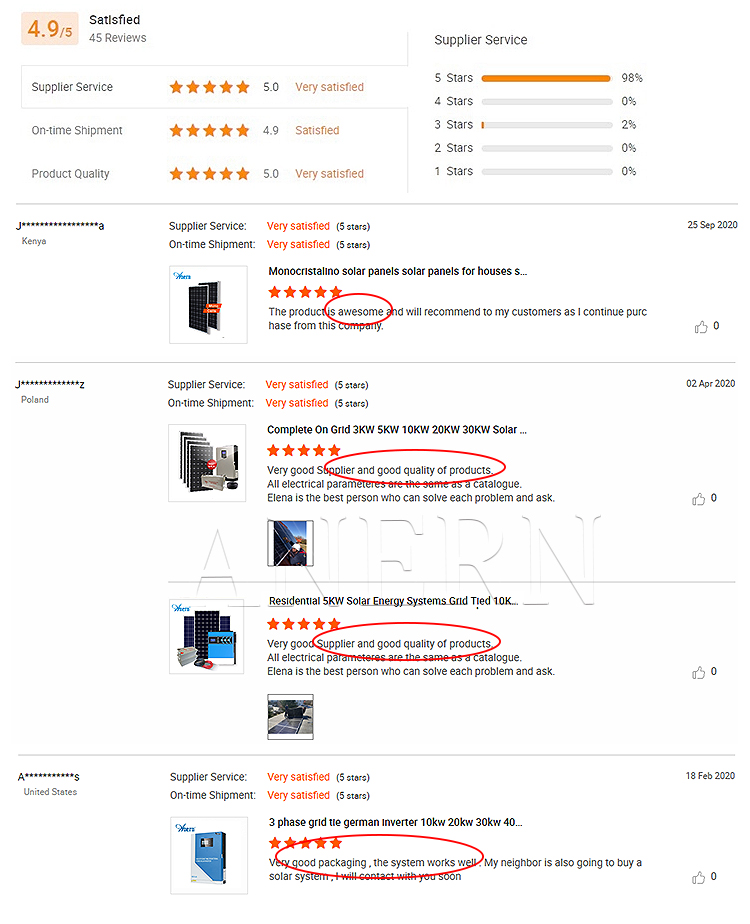

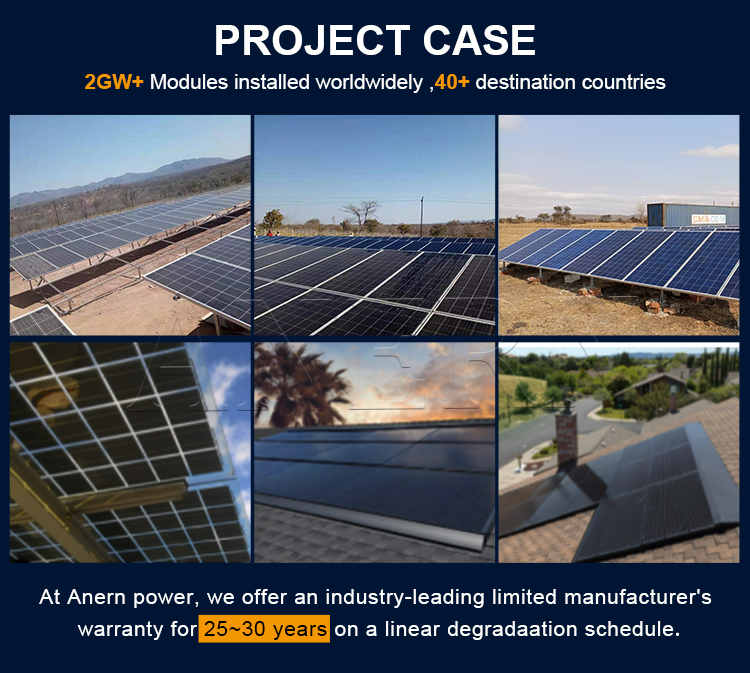

Projects and Feedback
One-stop new energy solution provider! We are one of the most professional solar module manufacturers and whole solar power system suppliers
The information comes from our customers, if you want to know more information, please feel free to contact us, thank you!
VIEW MORE
