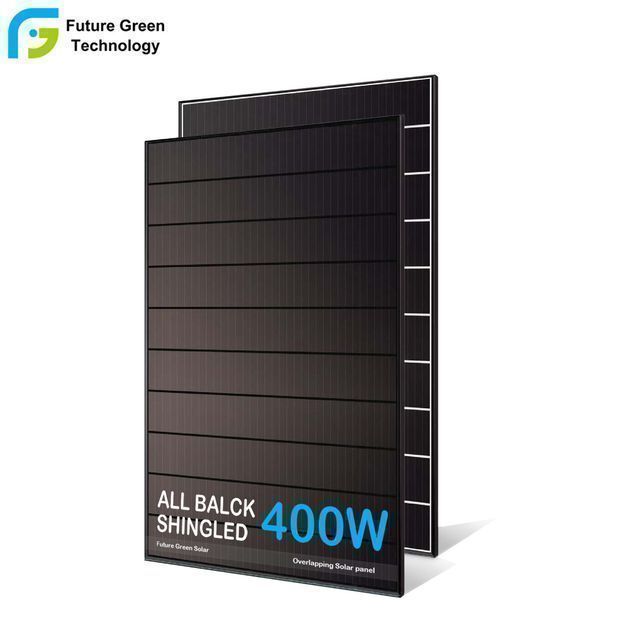

Full Back Full Black Overlapping Panel 400W 500W 600W 700W 800W 1000W Monocrystalline Solar Panel Price 10KW Battery Products from Guangzhou Future Green Technology Co., Ltd.

Product Details

Solar battery:	a grade	Supply capacity:	10000 pieces per month
Panel size:	1730112035	Packaging Details:	In well-protected carton or wooden case with pallet.
Glass:	3.2 mm anti-reflective glass	Cell number:	340 pieces, PERC single crystal shingled (166 *166mm)
place of origin; place of origin:	Guangdong, China	Maximum power:	400W
Open circuit voltage:	46.4	weight:	22.5KG
brand:	FGET	Panel Efficiency:	21.68%
Package preview:		product name:	1000W Energy Shingle Monocrystalline Solar Panel Price
payment terms:	L/C, Western Union, T/T, MoneyGram	Unit size:	210mmx210mm
Voltage at Pmax:	38.6	model:	FG-400W-SHB
application:	solar power plant, home	Module efficiency (%):	20.4%
port:	Huangpu Nansha Shekou Salt Field

Full Back Full Black Overlapping Panel 400W 500W 600W 700W 800W 1000W Monocrystalline Solar Panel Price 10KW Battery

A traditional solar module consists of many solar cells electrically connected using metal bus bars. There are gaps around the solar cells on traditional solar modules, and the busbars usually pass through the cells to connect them together. Shingled solar modules have multiple layers of solar cells that touch each other and are electrically connected using an electrically conductive adhesive (ECA). This eliminates the need for metal busbars. This approach means there are no gaps between the solar cells, increasing the surface area of the silicon cells in the solar module. Also, there are no bus bars covering the cells, reducing light on the solar cells. This improves the electrical and mechanical properties and aesthetics of the solar module.
Dimensions: 1730 x 1120 x 35mm (LxWxH)

Weight: 22.0kg

Solar cells: 340 pieces, 6-inch PERC monocrystalline silicon solar cells (in increments of 5 pieces)

Output cable: length 1500mm, 1 x 4sqmm

Connector: MC4 original

Versatile

Solar panels support multiple mounting options, panels can be adapted for flat mounts (Z-brackets, tilt-adjustable mounts) and pole/wall mounts

high efficiency

Minimizes power drop due to shading using high performance solar cells encapsulated in EVA (Ethylene Vinyl Acetate) Pre-installed bypass diodes in the junction box

waterproof

The solar modules are anti-reflection, high transparency, low iron tempered glass. IP65 rated junction box provides full protection against environmental particles and low pressure water jets.

Specification

Electrical Data @ STC	FGET-385	FGET-390	FGET-395	FGET-400
Peak Power in Watts - PMAX (Wp)*	385	390	395	400
Power Output Tolerance-PMAX (W)	0/+5	0/+5	0/+5	0/+5
Maximum supply voltage - VMPP (V)	38.4	38.5	38.5	38.6
Maximum power current-IMPP (A)	10.03	October 13	10.26	10.36
Open Circuit Voltage-VOC (V)	46.2	46.3	46.3	46.4
Short circuit current-ISC (A)	10.82	10.87	10.92	10.97
Module efficiency ηm (%)	19.6	19.9	20.2	20.4
Maximum system voltage (V)	1500
Temperature coefficient of Pmax (%/°C)	-0.34
Voc temperature coefficient %(/°C)	-0.27
Temperature Coefficient of Isc (%/°C)	0.04
mechanical data
Solar battery	PERC Monocrystalline Shingled (166 × 166mm)
cell direction	256 cells
module size	1,730 × 1,120 × 35mm (length × width × height)
weight	22±3% kg
Glass	4.0mm for PERC mono; 3.2mm for standard mono
Backplane	white
frame	Silver anodized aluminum alloy
Junction Box	20A IP 67 or IP 68 rating
cable	Photovoltaic technology cable 4.0mm², 1200 mm
Connector	EU countries: 28 MC4/UTX/TS4, non-EU countries: 28 QC4/TS4

Shingled Solar Panel Date Sheet

Model

Power (watts)

Voltage (v)

Material

Module efficiency (%)

Dimensions (mm)

arrange

Sh-550W-01

540-555W

36V

Shingled

21.75

2148*1188*35

210*30;10*40

Sh-500W-01

495-510W

36V

Shingled

21.98

2148*1080*35

210*30;10*36

Sh-470W-01

465-480W

36V

Shingled

21.91

2148*1020*35

210*30; 10*34

Sh-450W-01

435-450W

36V

Shingled

21.82

2148*960*35

210*30;10*32

Sh-400W-01

390-405W

36V

Shingled

21.68

1730*1080*35

210*30;8*36

Sh-375W-01

365-380W

36V

Shingled

21.53

1730*1018*35

210*30;8*34

Sh-350W-01

345-360W

36V

Shingled

21.68

1730*960*35

210*30;8*32

Sh-340W-01

325-340W

36V

Shingled

21.84

1730*900*35

210*30;8*30

Sh-300W-01

290-305W

36V

Shingled

21.56

1310*1080*35

210*30;6*36

Sh-280W-01

275-290W

36V

Shingled

21.7

1310*1020*35

210*30;6*34

Sh-275W-01

260-275W

36V

Shingled

twenty one

1320*992*35

210*30;6*33

application

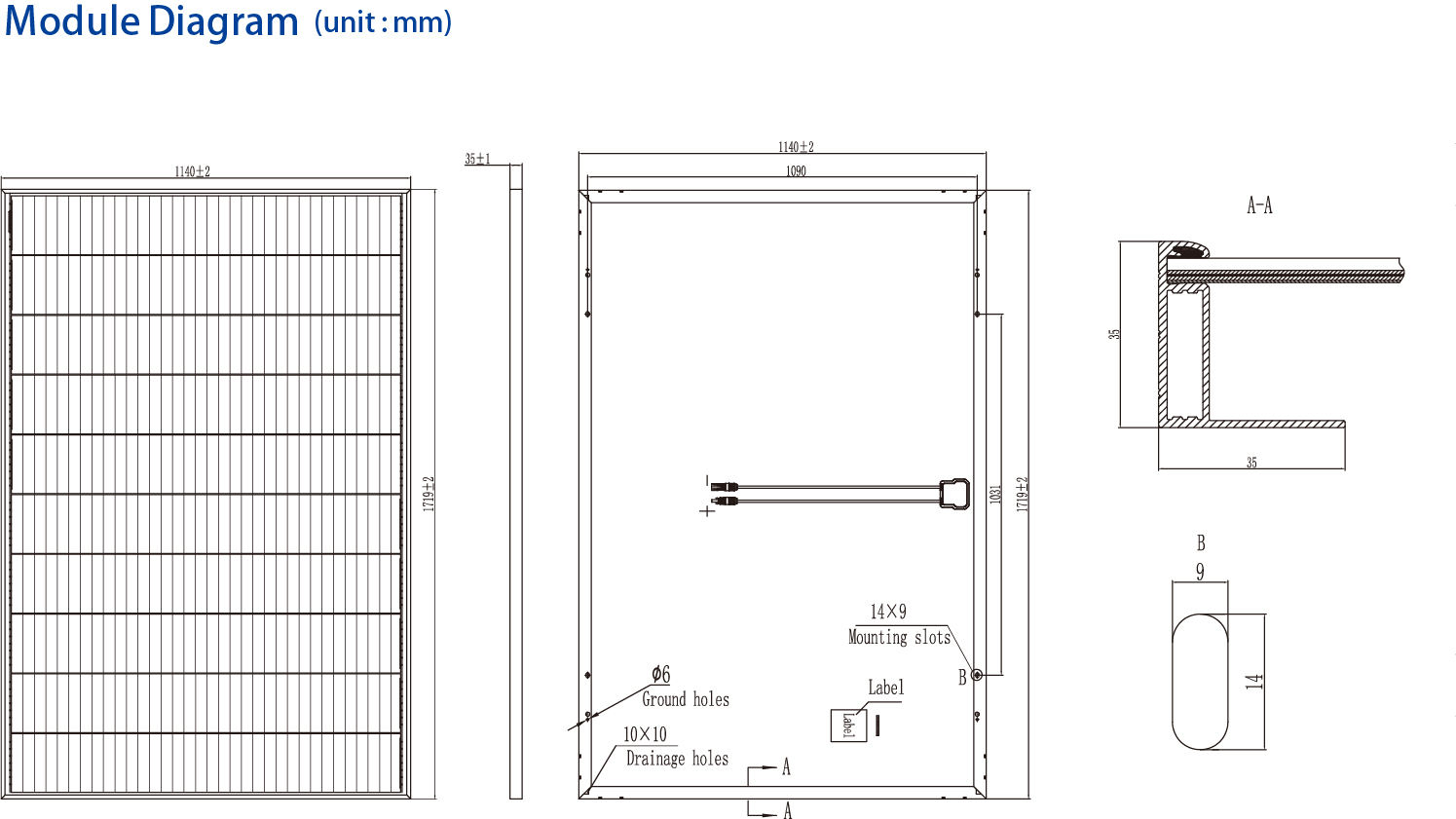

detailed drawing

PERC Monocrystalline Solar Cell

>Shingling components of the same area can fit into more cells>Conductive glue connects to conduct electricity and reduce resistance>Reduces power loss and hot spots caused by shading

Glass

> Pure clear low-iron glass > Translucency increased by 2% at normal brightness
> Module efficiency increased by 2%
> Self-cleaning function
> Service life of 25 years

frame

> Stock size
> silver and black
> Thickness 30/35/40/45/50mm
> Stress testing.

humanized design

> Practical and effective design provides more protection
> Prevent the aluminum frame from scratching your hands
> Use rainwater to clean dirt left on solar modules

Junction Box

>General stand-alone version and engineering customized version
> High-quality diodes ensure safe operation of the module
> IP67 degree of protection
> Heat dissipation
> Long service life

Backplane

>Low moisture permeability prevents snail marks defects
>Excellent electrical insulation for high system voltages up to 1500v
>Outstanding weatherproof performance

production process

cell sorting

Cell Sorting and Cutting

automatic threading

Battery Chip Receiving Area

layout

Solar Panel Kanban Inspection

Solar panel EL test

Laminated Solar Panels

Fully automatic lamination of solar panels

frame

Clearing and Labeling

pack

Solar cell welding--automatic typesetting machine--Automatic welding --EL test--appearance test--Flash test

Place the EVA and the base, and automatically cut off the excess substrate. The whole production process is a combination of automation and semi-automation

Product packaging

Packing: Carton packing or wooden case is recommended to protect samples during transportation. Customer designed packaging is welcome.
