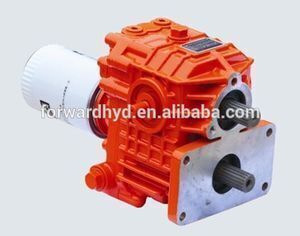

F-HPVMF-18-R-02 Hydrostatic Transmission for Combine Harvest

Supplier: Weihai Forward Hydraulics Co., Ltd.
Region: Shandong, China
Contact: Ms Tracy Chen
Price: $635.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	Shanghai & Qingdao;	Input speed:	3000rpm;
Motor Displacement:	18cc;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Detail:	Wooden Case or as the client required.;	Supply Ability:	1000 Piece/Pieces per Month;
Rotate Direction-pump:	clockwise rotation;	Rated pressure:	21Mpa;
Model No.:	F-HPVMF-18-R-02;	Place of Origin:	Shandong China (Mainland);
output speed:	0~3000rpm;	Delivery Detail:	8 weeks after receiving the payment;
Brand Name:	Forward;	Rotate Direction-motor:	Bidirection rotation;
Application:	Combine harvester;	Peak pressure:	28Mpa;
Model Number:	F-HPVMF-18-R-02;	Pump Displacement:	0~18cc;
Use:	Harvesters;

Product Description

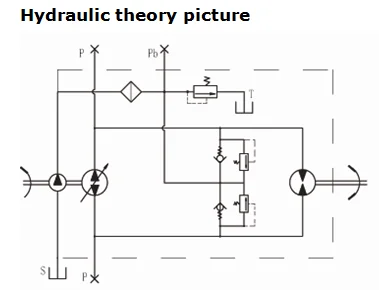

The product consists of main pump, motor, charge pump and valves. During working period, the main pump is driven by the motor to produce the hydraulic pressure through changes of piston and rotor cubage. The motor is provided with hydraulic pressure power by the hydraulic pressure pump. The principal axis is driven to rotate through interaction of the motor rotor and piston, which is transformed to mechanical energy to supply torques for the controlling elements.

The product has features of compact structure, small volume, high efficiency, light weight, long service life and low noises. It is mainly applied to the walking drive system of combine harvester and mini type engineering machine.

Technical Date

Displacement	pump: (0~18.8)ml/r
Displacement	motor: 18.8ml/r
Rotate direction	pump: clockwise rotation
Rotate direction	motor: bidirectional rotation
Rotate speed	Input: 3000r/min
Rotate speed	Output: (0~3000)r/min
Max pressure	28 Mpa
Rated pressure	21 Mpa
Inlet pressure	≥0.08MPa
Case drain pressure	≤0.15Mpa
Charge pump displacement	6.7ml/r
Max output torque	≥55N.m
Working medium	HM68 Anti-wear hydraulic oil
Filtration rating	10 μm
Operating temperature range	-20?C-80?C
Overall efficiency	≥73%
