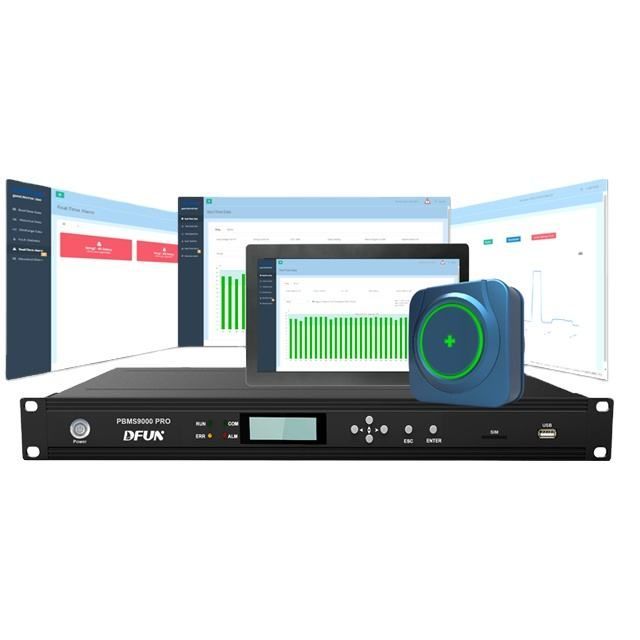

DFUN battery automatic balance monitor battery string voltage capacity charge and discharge current bank management system
- 55.00 >=2 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Origin: | Guangdong, China | Supply capacity: | 150,000 battery health monitoring systems per month |
| energy consumption: | <11W | PBMS8000: | Monitor and Control Gateway Using a Web Server |
| payment terms: | L/C, Western Union, T/T | CPU: | ARM Cortex M4 180MHz |
| application: | Chemical Industry, Oil & Gas, Trains, Nicd Batteries | Battery voltage measurement type: | 2V/12V lead-acid battery or 1.2V nickel-cadmium battery |
| port: | Guangdong Zhuhai Port | PBAT81: | battery sensor |
| Mean time between failures: | ≥100,000 hours | Typical operating environment: | IP65 degree of protection |
| brand: | DFUN | model: | PBMS9000Pro-2023 |
| energy consumption: | <5W | power supply: | Rated 220VAC range: 85～264VAC, 100～370VDC |
24/7/365 online monitoring, always pay attention to your battery health!
system structure
feature
UL94-HB-V0 fire rating
UL94-HB-V0 fire rating
Anti-corrosion
Product Description
Battery Type | Lead-acid battery, nickel-cadmium battery |
application | chemical industry, oil and gas, trains |
CPU | ARM Cortex M4 180MHz |
flash | 128Mbit flash memory |
total string | 1~4 strings |

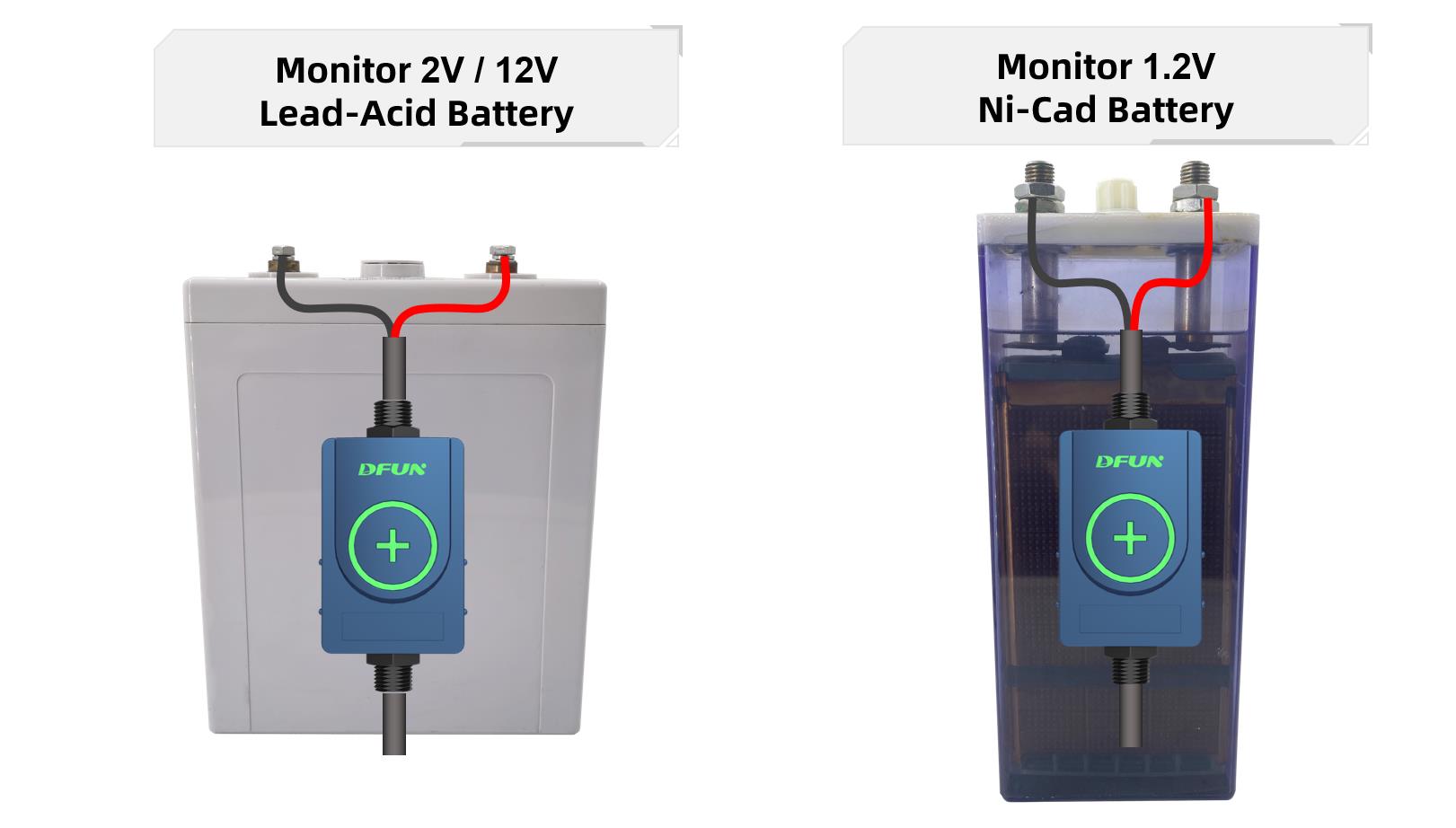

battery voltage | 2V / 1.2V, 12V |
power supply | Rated 220VAC range: 85～264VAC, 100～370VDC |
uplink communication | 1 Ethernet port (10/100M), MODBUS-TCP, SNMP 1 RS485 serial port, MODBUS-RTU, baud rate: 9600bps, 19200bps, 38400bps (optional) |
downlink communication | 4 aviation connectors, max per port. 15pcs batteries, total Max.60pcs, MODBUS-RTU. |
aspect | 190mm×100mm×44mm |
Sensor LED indication | Green: Normal status Red: Abnormal status |
Operating temperature | -20°C ~ 60°C |
Storage temperature | -40°C ~ 70°C |
humidity | 5% ~ 95%, non-condensing |

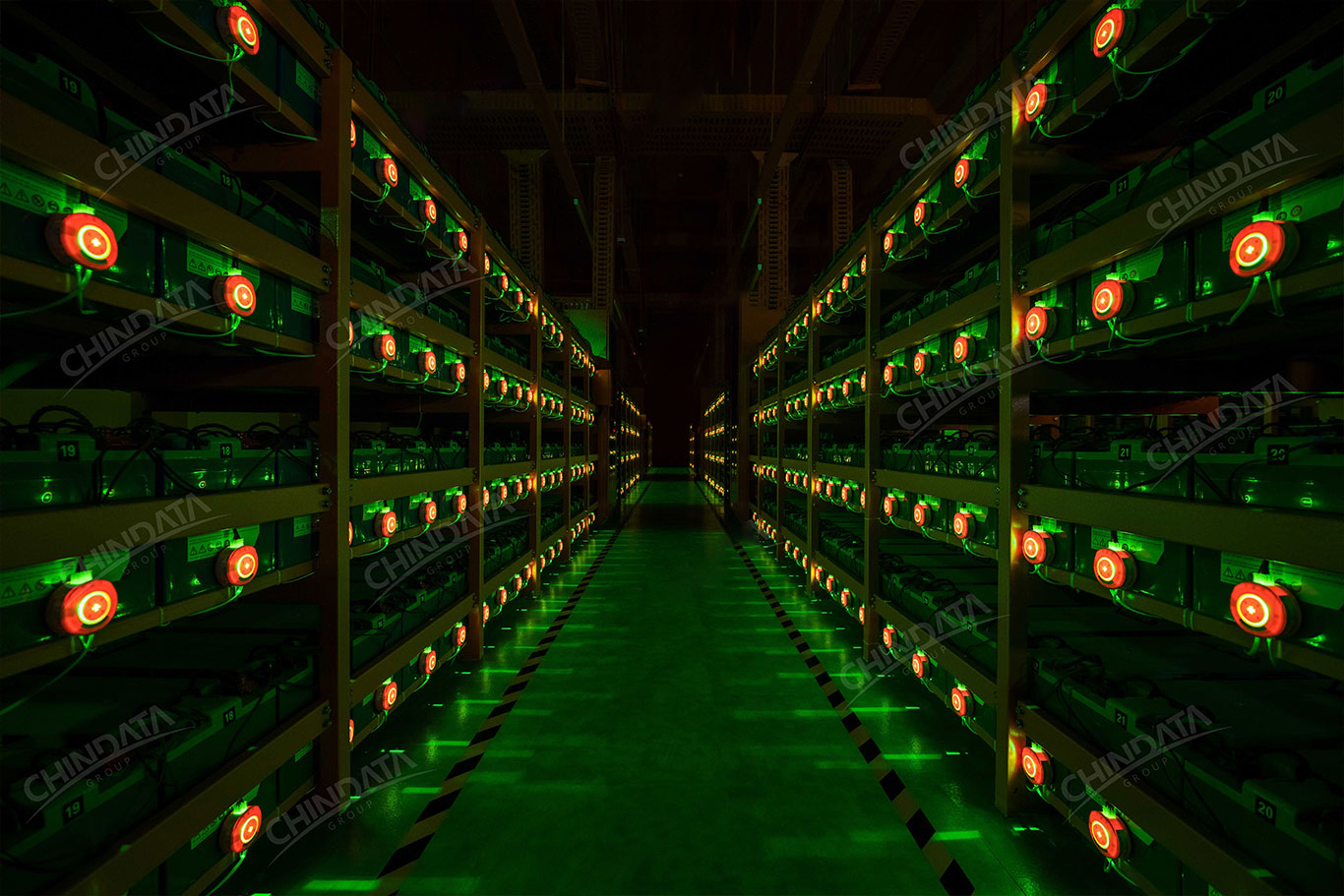

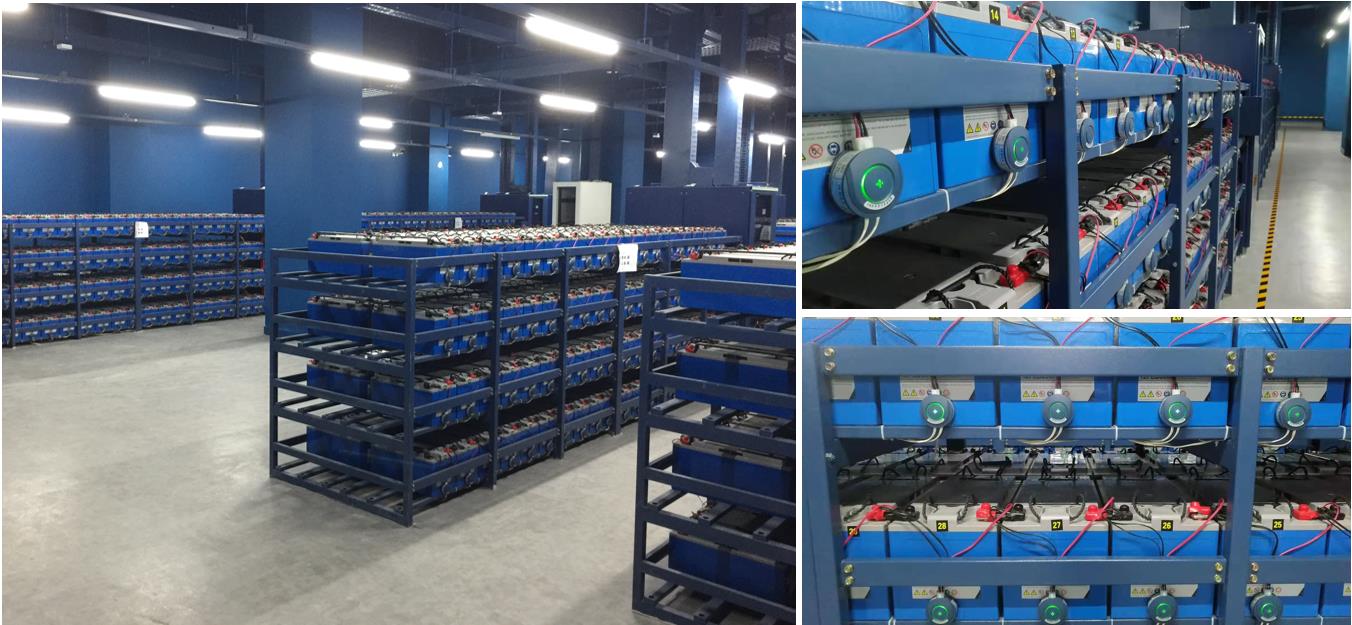

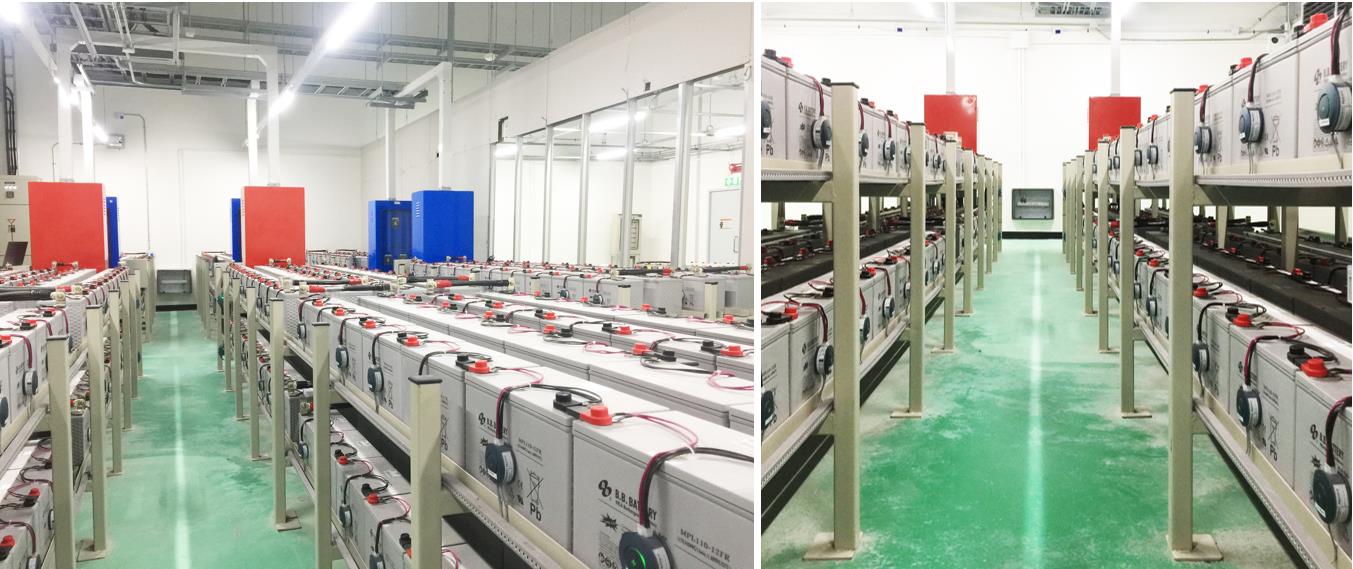

project reference
