Widely used 15s 16s 48v 5a 10a 20a 50a 100a 150a 200a 12v For 3.2v Lifepo4 battery management system

Supplier: Jiangsu Richpower New Energy Co.,ltd.
Region: Shanghai, China
Contact: Mr Dane Dong
Price: $60.00 / 1 - 99 sets
$58.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

payment terms:	wire transfer	place of origin; place of origin:	China
Battery size:	-	weight:	1KG
brand:	OEM	Warranty:	other
application:	For lithium battery protection	Certification:	-
model:	BMS065

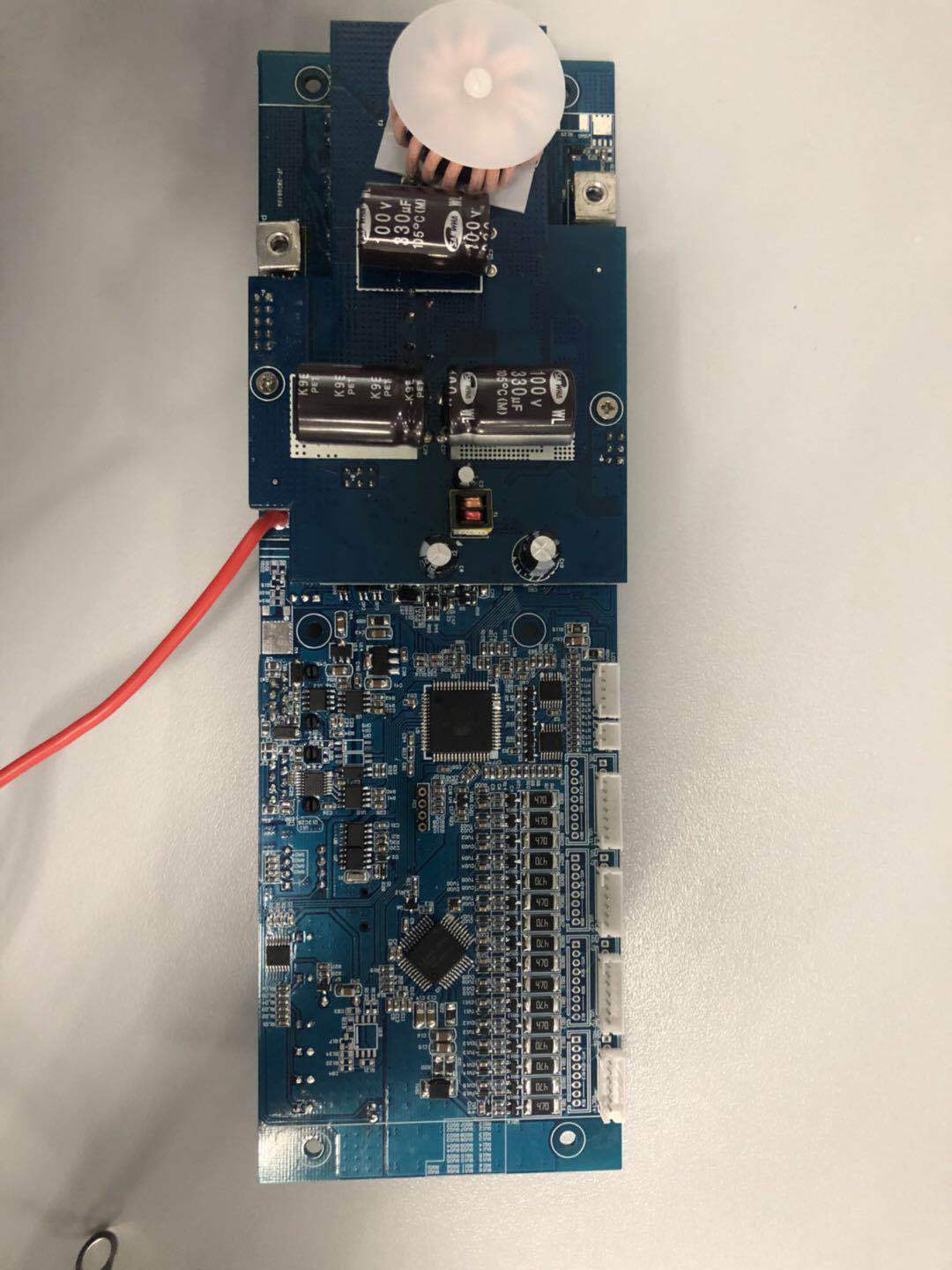

Product Description

title	put	thing	set value	set range
Single battery voltage alarm	enable	High pressure alarm	3600mV	3000mV~ ~Single cell voltage protection
	enable			High pressure alarm recovery	3500mV	3000mV~ High pressure alarm
		enable	Low voltage alarm voltage	2900mV	1500mV~ Undervoltage protection
		enable		Low Voltage Alarm Recovery	3000mV	Low voltage alarm~ 3300mV

Single cell overvoltage protection	enable	Overvoltage Protection Voltage	3650mV	High voltage alarm ~4500mV
				Overvoltage recovery voltage	3500mV	High pressure alarm recovery~ Over voltage protection
				Overvoltage Recovery Condition	1. Automatic recovery when the cell voltage drops to the protection recovery point 2. It is detected that the battery has a discharge current > 1A 3. Capacity <95%, automatic recovery

Single-cell battery undervoltage protection	enable	Undervoltage protection voltage	2500mV	1500mV~ Single low voltage alarm
				Brownout Recovery	2700mV	Single-channel under-voltage protection~single-channel low-voltage alarm recovery
				Brown-out Recovery Condition	Recovery when charging current (>1A) or mains detected
		disabled	Brown-out recovery function	After this function is turned on, when the voltage reaches the recovery condition, the under-voltage protection can be released (voltage BMS does not resume before hibernation)

Total battery voltage alarm	enable	High voltage alarm voltage	57.0V	55.0V~ Battery overvoltage protection
	enable			High pressure alarm recovery	55.6V	53.0V~ Battery high voltage alarm
		enable	Low voltage alarm voltage	46.4V	36.0V~ Battery undervoltage protection
		enable		Low Voltage Alarm Recovery	48.0V	Low battery alarm ~55.0V

Battery overvoltage protection	enable	Overvoltage Protection Voltage	58.4V	Battery high voltage alarm ~60.0V
				Overvoltage recovery voltage	55.6V	Battery High Voltage Alarm Recovery~ Battery overvoltage protection
				Overvoltage Recovery Condition	1. The total voltage drops to the recovery point and charges automatically. 2. Detect the effective discharge current of the battery > 1A, and discharge it for a period of time or a certain amount of time 3. Capacity <95%, automatic recovery
