Home Automation FCC EFR32 2.4G Zigbee Wireless Programmable Module

Supplier: Shenzhen RF-Star Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Sunny Li
Price: $5.08 / 1 - 999 pieces
$4.92 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Antenna type:	circuit board	Radio Frequency Integrated Circuits:	EFR32MG1B232
ZigBee protocol:	IEEE 802.15.4	interface:	GPIO
Supply capacity:	100000pcs zigbee transmitter and receiver per month	Packaging Details:	3B32_V102 zigbee transmitter and receiver packed in corrugated carton with anti-static sponge
application:	home automation	brand:	RF Star
chipset:	Silicon Labs EFR32M	type:	Zigbee module
country of origin:	China	distance:	50 meters to 300 meters
voltage:	2.0 volts - 3.6 volts	port:	Shenzhen, China
Package preview:		Memory:	8 KB
strength:	+3dBm±1.5dBm	model:	3B32
size:	20.4*14.8mm	payment terms:	L/C, T/T

Product Description

Home automation GPIO FCC RF powerful programming EFR32MG 3B32_V102 zll zll zigbee wireless module price

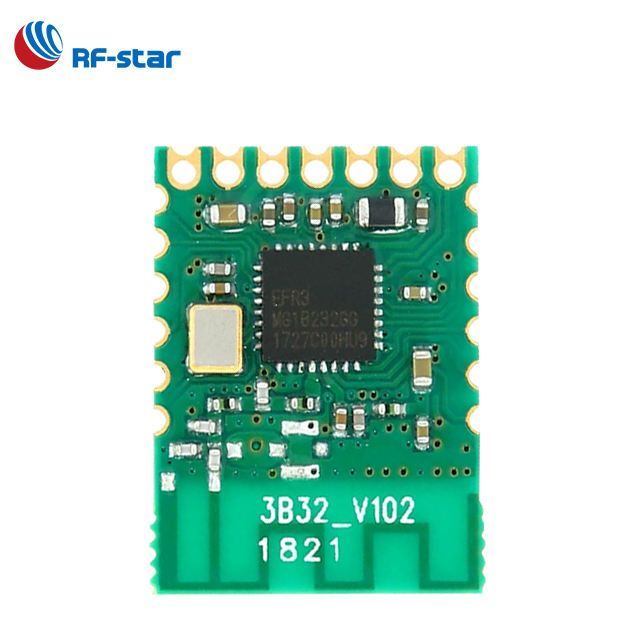

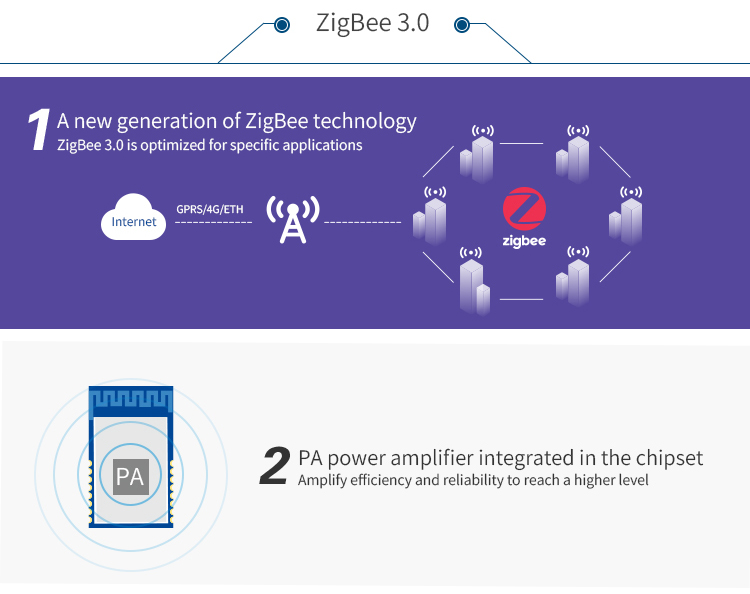

The 3B32-V102 module is based on the EFR32MG1B232F256GM32-C0 from Silicon Labs. The EFR32MG1B232F256GM32-C0 is a true ZigBee, Thread and multi-protocol system-on-chip (SoC) solution that supports the following modulation formats: 2/4 (G)FSK with fully configurable shaping, BPSK / DBPSK TX, OOK / ASK, shaping OQPSK / (G)MSK, configurable DSSS and FEC. The module enables industry-leading energy efficiency, ultra-fast wake-up times, scalable power amplifiers and an MCU without compromise. It integrates 32-bit ARM^Òcortex^Ò-M4 core with maximum operating frequency of 40 MHz, PA up to +19.5 dBm and balun.

• 40MHz 32-bit ARM Cortex-M4F core MCU with up to 1MB flash memory, up to 256KB RAM • RF frequency range: 2.4GHz ISM band

• RF output power: up to +19.5dBm

• Integrated DC-DC Converter with RF Noise Suppression

• 12-channel peripheral reflex system enables autonomous interaction of MCU peripherals

• Hardware cryptographic accelerator and true random number generator

• Protocol stack: ZigBee, Thread, ZigBee RC. There's also Bluetooth Smart and proprietary performance parts

3B32_V102 parameters

chipset	Silicon Labs: EFR32MG1B232F256GM32-C0
voltage	2.3V ~ 3.6V, recommended to 3.3V
frequency	2400 MHz~ 2483.5 MHz
transmit power	-30.0dBm ~ +19.5dBm
Receiver sensitivity	-98 dB
GPIO	12
crystal	38.4 MHz
Memory	32 KB
flash	256 KB
pack	Chip package
frequency error	±20 Hz
aspect	20.4 mm x 14.8 mm x (1.7± 0.1) mm
Antenna type	PCB antenna (default) / IPEX connector
Operating temperature	-40℃～+85℃
Storage temperature	-40℃～+125℃
RX current (1 Mbps GFSK)	8.7mA
RX current (250 kbps 0-QPSK DSSS)	9.8mA
TX current @ 0 dBm	8.2mA
deep sleep mode	5.5 uA

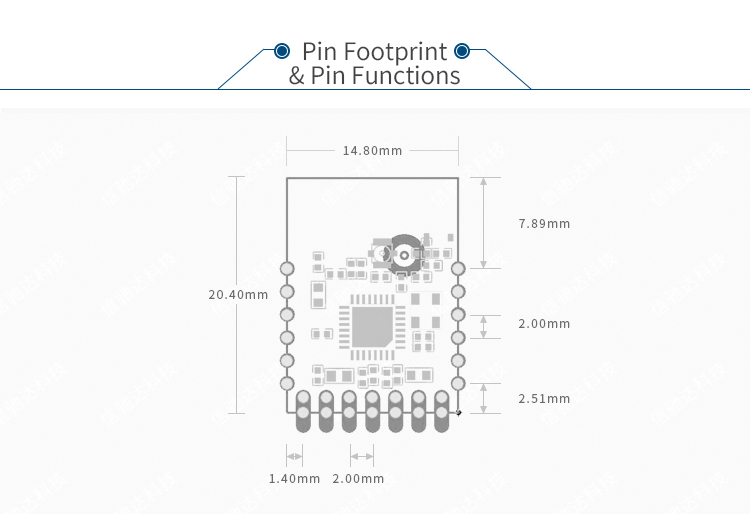

3B32_V102 pin function

pin	Name	chip pin	pin type	describe
1	PD13	PD13	input Output	GPIO (5V)
2	PD14	PD14	input Output	GPIO (5V)
3	PD15	PD15	input Output	GPIO (5V)
4	PB13	PB13	input Output	GPIO (5V)
5	PB12	PB12	input Output	GPIO (5V), PTLDATA
6	PB11	PB11	input Output	GPIO (5V)
7	PB14	PB14	input Output	GPIO (5V)
8	PB15	PB15	input Output	GPIO (5V)
9	PA0	PA0	input Output	GPIO, UART_TX
10	PA1	PA1	input Output	GPIO, UART_RX
11	virtual control center	virtual control center	3v3	Power supply: 2.3V ~ 3.6V. 3. 3 V is recommended.
12	PF2	PF2	input Output	GPIO (5V)
13	ground wire	ground wire	ground	ground
14	PC11	PC11	input Output	GPIO (5V)
15	switch clock	PF0	switch clock	Debugger SWCLK
16	virtual control center	virtual control center	3v3	Power supply: 2.3V ~ 3.6V. 3. 3 V is recommended.
17	SWDIO	PF1	SWDIO	Debugger SWDIO
18	ground wire	ground wire	ground	ground
19	RES	reset	reset	reset. Active low.

ZigBee application

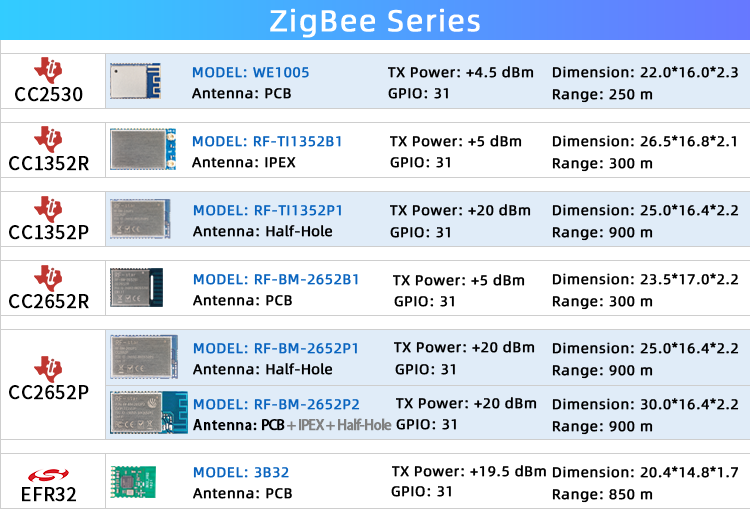

ZigBee module
