TI CC2652P multi-protocol zigbee module with IPEX connector RF-BM-2652P2I for Zigbee2mqtt for Zigbee network processor

TI CC2652P Multi-Protocol Module BLE5.1 TI CC2652P ZigBee Module

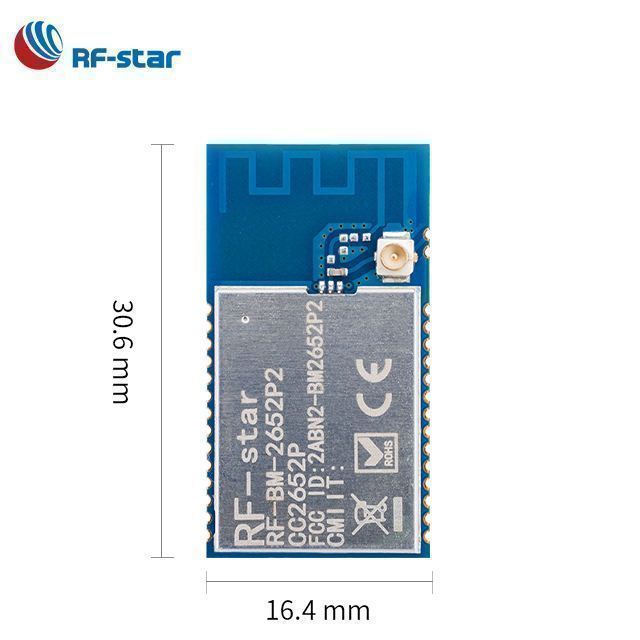

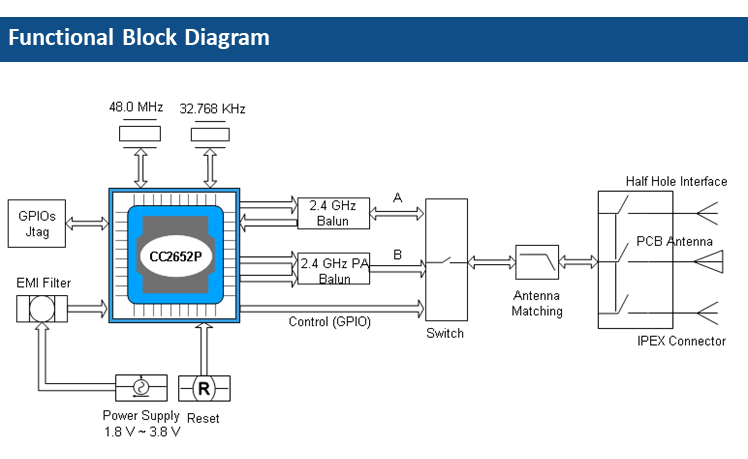

RF-BM-2652P2 is a radio frequency module based on TI's low-power CC2652P SoC. It is a multi-protocol 2.4GHz wireless module that supports Thread and Zigbee^®, Bluetooth Low Energy^®5.1, IEEE 802.15.4, IPv6-enabled Smart Objects (6LoWPAN), proprietary systems including TI 15.4-Stack (2.4 GHz), and concurrent multiprotocol via Dynamic Multiprotocol Manager (DMM) drivers. It integrates a 48 MHz crystal oscillator and a 32.768 kHz crystal oscillator, 352 KB in-system programmable flash memory, 256 KB ROM, 8 KB Cache SRAM, 80 KB ultra-low leakage SRAM. its ARM^®cortex^®- The M4F core application processor can run at very low current in flexible power modes. The module uses an integrated +20 dBm high-power amplifier for long-range and low-power applications, with a best-in-class transmit current consumption of 85 mA. It has the characteristics of small size, stable connection distance and high reliability.

RF-star can provide customers with a complete configuration file, application, radio and BLE protocol stack integration. conform toBluetooth Low EnergyAs standard, RF-star's modules can open up a new market for tiny, cost-effective and power-efficient wireless consumer products such as watches, medical sensors, mice, TV remotes and fitness trainers.
