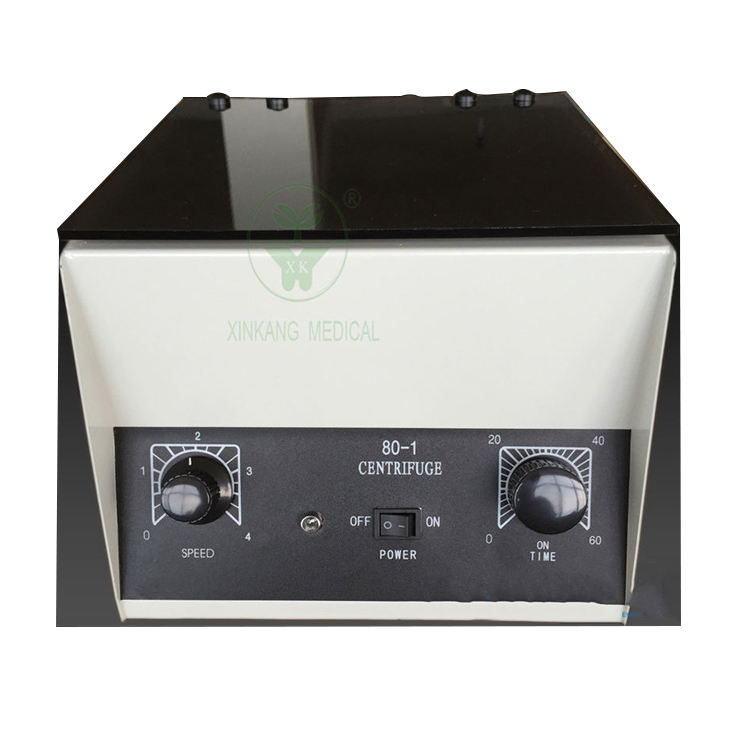

Centrifuge 80-1 4000rpm for Laboratory and Medicine with CE Certification, ISO13485

Supplier: Jiangsu Xinkang Medical Instrument Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jessie Zhou
Price: $30.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	1500 centrifuges per month 80-1	model:	Centrifuge 80-1
usage:	for laboratory and medical	Temperature rise:	≤12℃
Name:	Centrifuge 80-1	payment terms:	L/C, Western Union, T/T
Origin:	Jiangsu, China	Packaging Details:	1 set/carton neutral export packaging for centrifuge 80-1 4000rpm, CE for laboratory and medical use, ISO13485 certified
port:	Shanghai, Ningbo, etc.	Rotating speed:	1000-4000rpm
brand:	OEM production	volume:	6.15ml
Classification:	laboratory centrifuge	strength:	AC 220V±10% 50HZ±5%

Product Description

type	80-1
output power(W)	25
speed(rpm)	1000-4000
Maximum volume (ml)	6×15ml
voice	≤75dB(A)
temperature rise	≤12℃

a. Conditions

Temperature: 5°C-40°C

Humidity: ≤80%RH

b. Performance indicators: see Table 1

c. Power supply: AC220V±22V 50Hz±1HzA

Table 1: Centrifugal Performance Index

Centrifugal separation technology uses a high-speed rotating motor to generate centrifugal force to settle mixed particles of different densities and sizes in a centrifugal field at different speeds. Then finally the mixture particles are separated. This technology will be widely used in laboratories of scientific research institutes, universities, petrochemical and other industries. The environmental department conducts centrifugal qualitative and quantitative analysis of plasma, serum, urine, vaccines, organisms, inorganic compounds, etc. The centrifuge has excellent appearance and performance such as low noise, small size and light weight. Simple operation and convenient use. It is the key equipment of the laboratory.

Instructions:

a. Add the quantitative substance (about 5ml) into the centrifuge tube. (Each centrifuge weighs almost the same).

b. Insert the centrifuge tube evenly into the hole of the centrifuge head. Then close the lid.

c. According to the selected centrifugal speed, adjust the governor to "4", and the centrifugal speed is about 4000 rpm. When the regulator points to "3", "2" and "1", the speed gradually slows down, and there is a response relationship, but there is no proportional relationship.

d. Set the scale line of the timer knob to the selected time position (for example: if the required time is 40 minutes, set the scale line to "40").

e. Turn on the power. The power light turns on. The motor starts to spin and the sample starts to split. After the time is up, the centrifugation ends.

f. Turn off the power. Take off the power plug, open the upper cover of the instrument, take out the centrifuge tube, and a centrifugation process is over.
