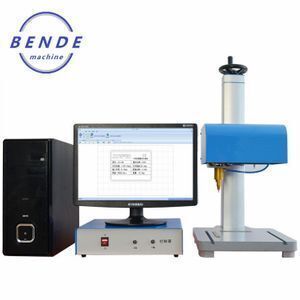

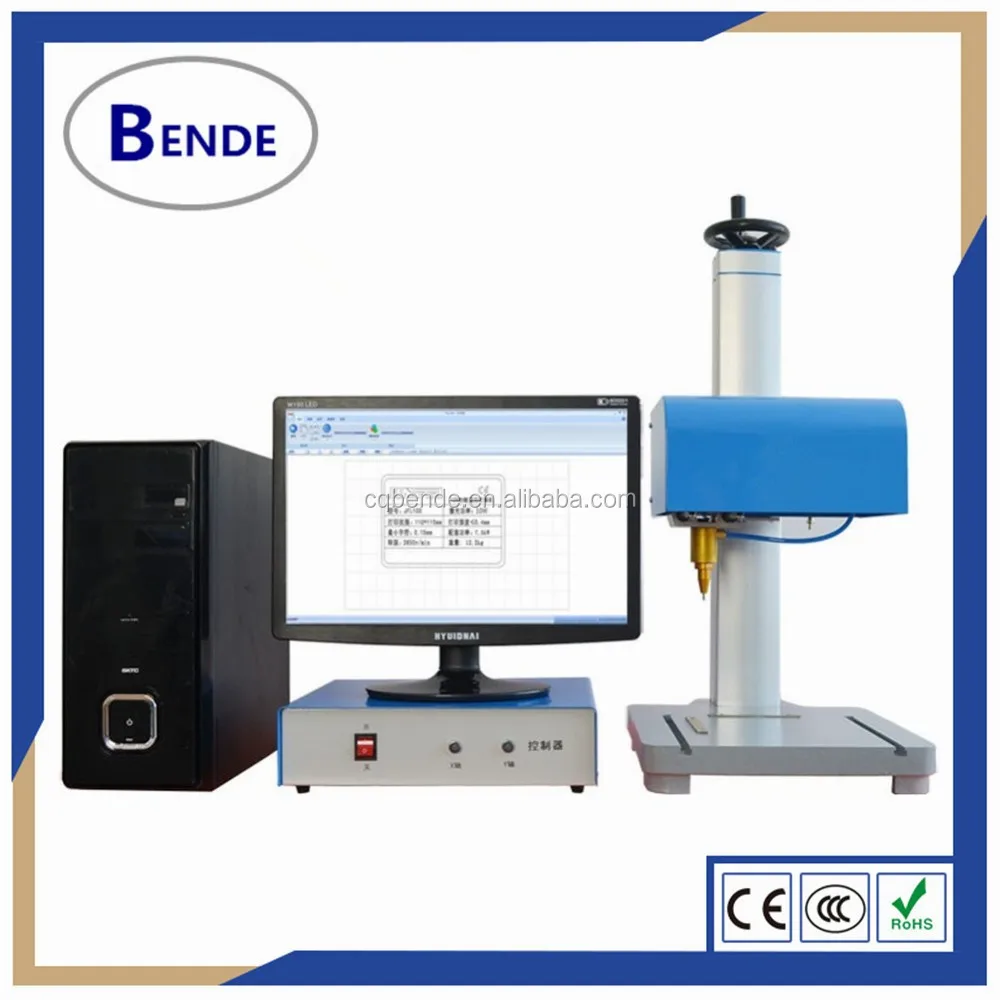

hot selling Metal Nameplates Dot Peen Marking/Engraving Mach

Supplier: Chongqing Bende Machinery Co., Ltd.
Region: Chongqing, China
Contact: Ms Anna Lin
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1Year;	Milling Cutter Diameter:	pin marker;
Dimensions:	170x110mm;	Feeding Height:	0-300mm;
Supply Ability:	1200 Set/Sets per Month;	Application:	Metal Marking;
Marking depth:	0.01~2mm(depends on the different materials);	Graphic Format Supported:	AI, BMP, DST, DWG, DXF, DXP....;
Engraving Speed:	200-300mm/s;	Marking Type:	Pneumatic Handheld Portable Pneumatic Marking Machine;
Model Number:	BD-PM;	Working Accuracy:	0.01mm;
Packaging Detail:	According to the customer and wooden cases;	After-sales Service Provided:	Engineers available to service machinery overseas;
Port:	Any port in China;	Marking area:	170x110mm(customized accept);
Brand Name:	BENDE;	Delivery Detail:	Shipped in 3 days after payment;
Condition:	New;	Main Axle Rotational Speed:	<=400W;
Weight:	50kg;	Inputting air pressure:	0.3-0.6MPa;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;	Warranty:	1Year;
Marking speed:	200-300mm/s;	Rated Power:	AC100V~240V50Hz/60HZ;
Lifting range:	0-300mm;	Place of Origin:	Chongqing China (Mainland);
Pin Hardness:	HRC75;	Certification:	CE;

Product Description

Product Application

hot selling Metal Nameplates Dot Peen Marking/Engraving Machine /vin number marker/dot pin marking machine，flat pneumatic marking machines, nameplate marking machines, USB computer connection control data ,Marking area 170x110,metal parts engraving machine,label embossor,Manufactures Low Price Industry Dot Pin Pneumatic Marking Machine, Serial numbers, Barcode scanned data, Dot Peen Marking System,Data from PLC, Date Codes, Month Codes, Year Codes, etc.

Main Features

1) Dot Pin marking is also known as micro percussion marking machines. These machines are ideal for replacing a hand punching operation & has a lot of advantages over many similar conventional processes.

2) Can mark all metals such as Steel, Stainless Steel, Copper brass, Gold, Silver etc.Ideal for marking on hard plastics.

3) Canmark permanent Batch numbers, Serial numbers, Barcode scanned data, Data from PLC, Date Codes, Month Codes, Year Codes, etc.

4) Can mark deep,speed fast,and mark beautiful.

5) Small air pressure for the machine.

Detailed Images

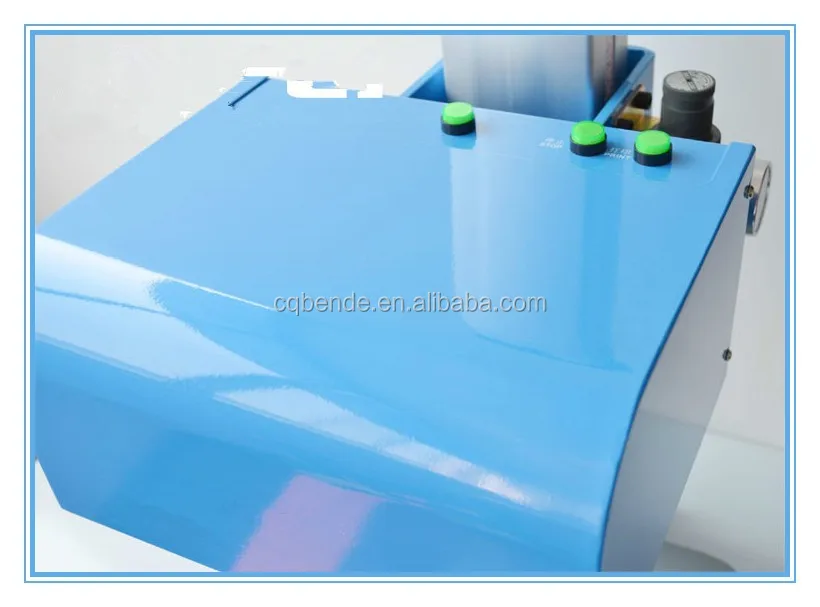

Name: Machine head

Machine head have beautiful color,very strong can not broken.three bottoms on the machine head control the machine work.

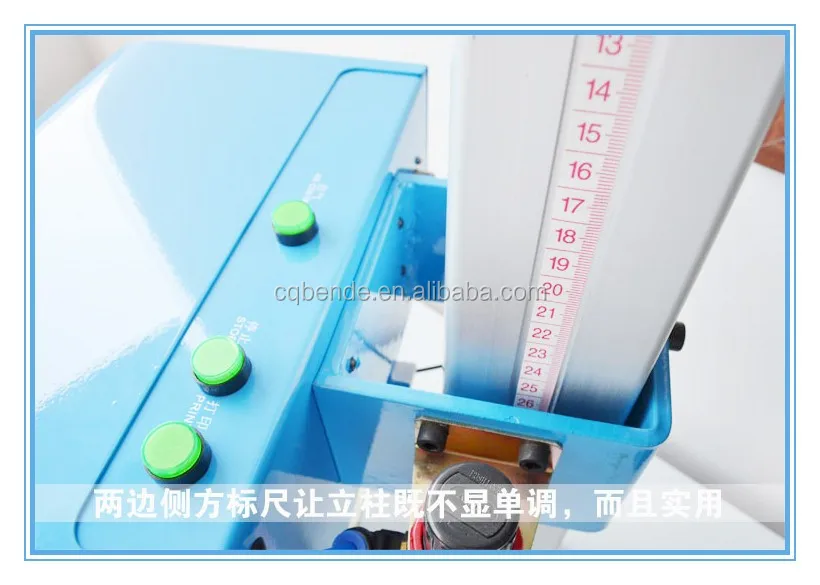

Machine upright

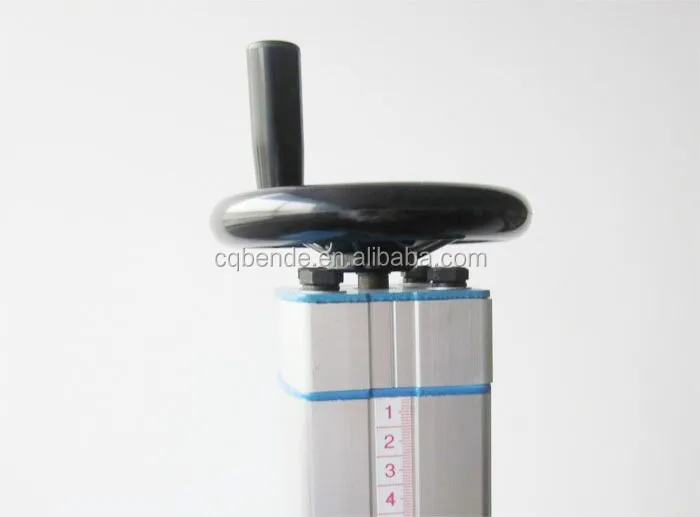

The machine On both sides of the side rod can display marking height.

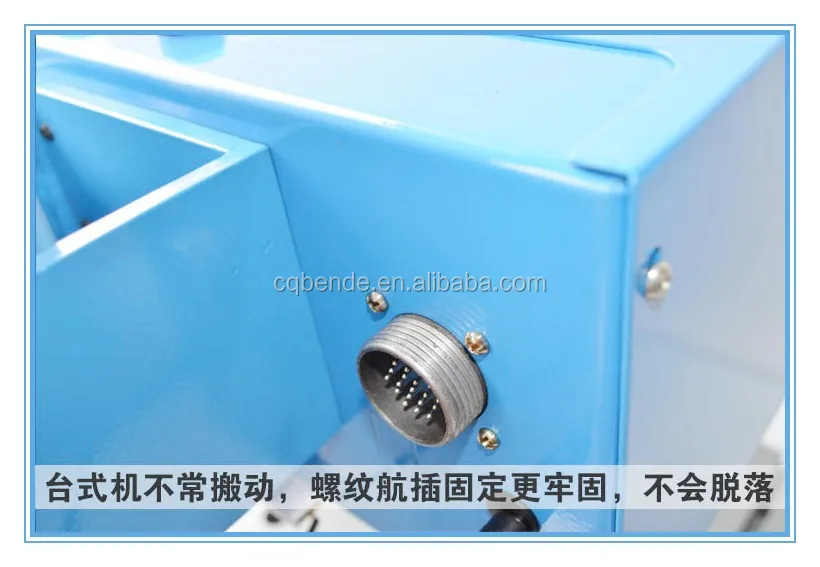

Machine thread navigation switch fixed stronger, don't fall off .

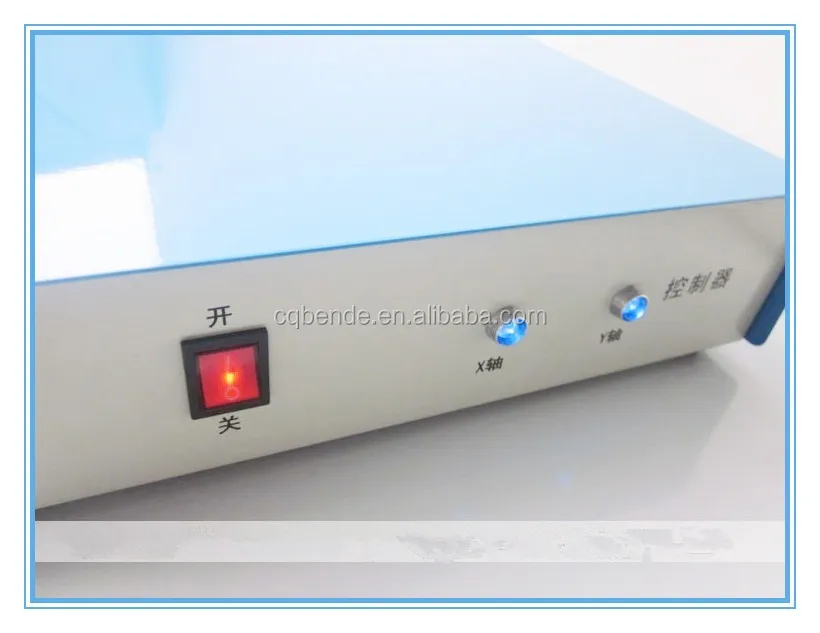

Machine electric control box

Control box is have power on light,and alarm if machine have problem.

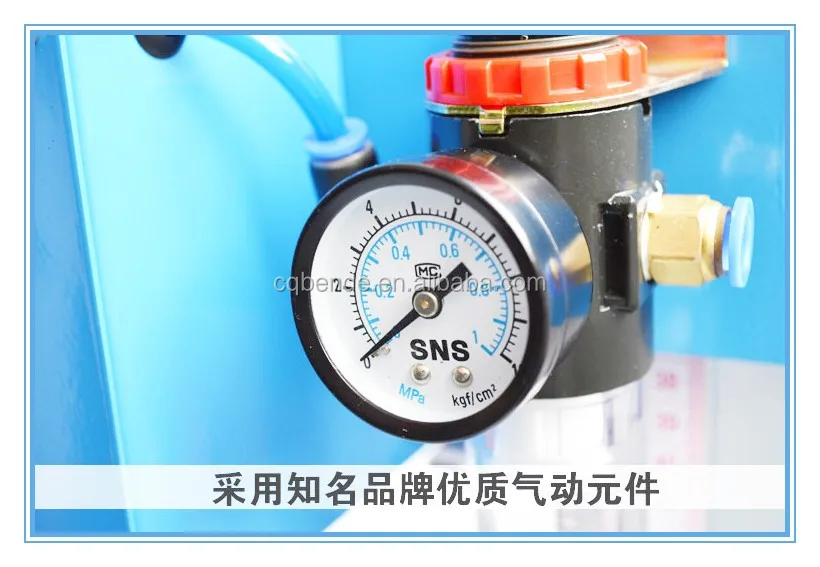

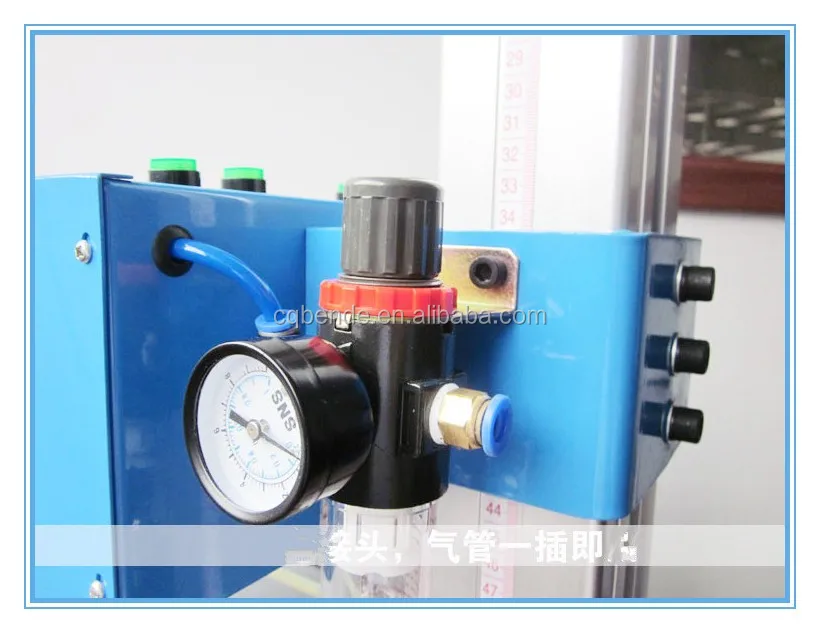

Air pressure valve

Before machine send to customer,the air pressure we have been setup,no need set again.

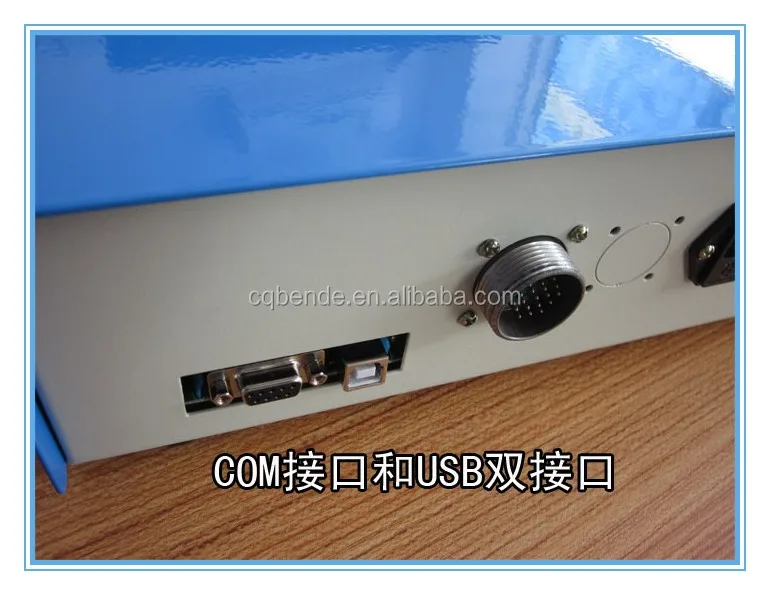

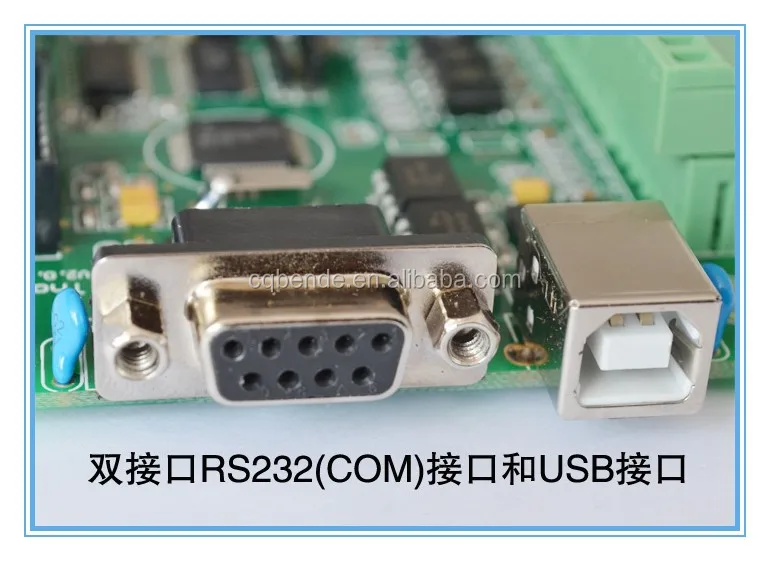

Wire connect insert

Machine connect to compuer,USB and parallel,very easy to connect.

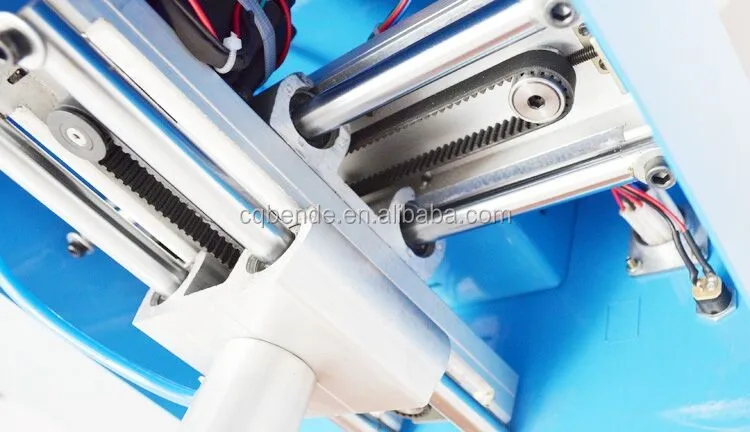

Linear guide

High precision linear guide, long service life.

Z axis adjustment

Adjust the marking products and marking the distance between the needle, marking the distance between the needle with the product is 3-5mm

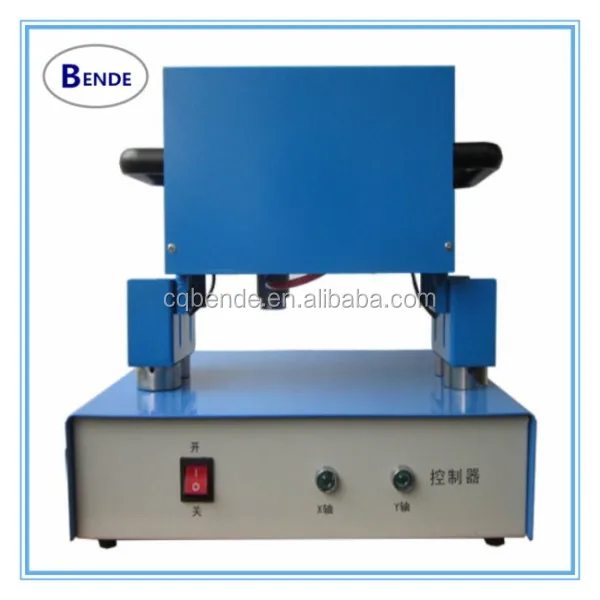

Other type dot pin marking machine

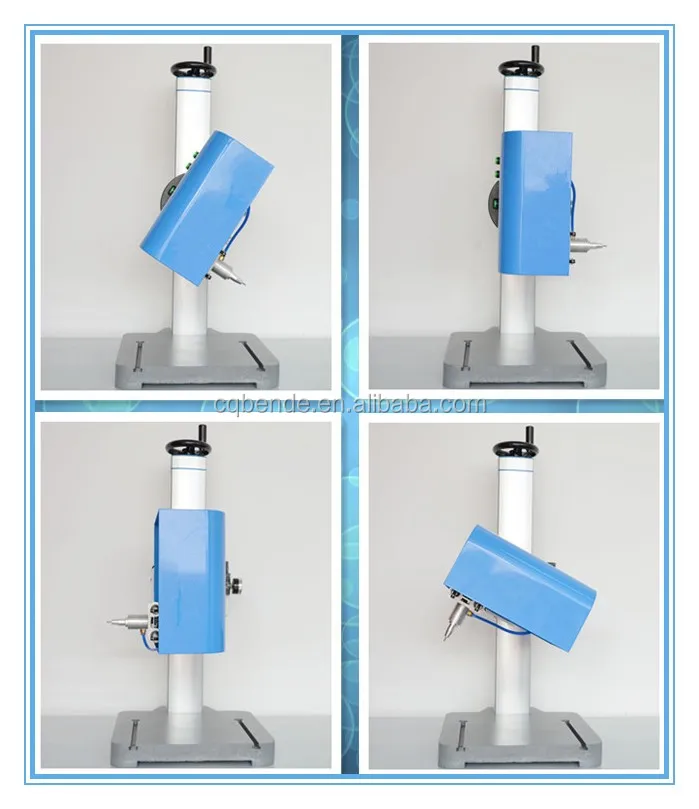

This machine marking head can 360° turn,marking unlimited.

Metal Engraving Machine/Dot Pin Marking Machine
Marking depth	0.01~2mm(depends on the different materials)
Speed	200-300mm/s
Marking area	170x110mm(customized accept)
Inputting air pressure	0.3-0.6MPa / 3L/S
electromagnetic valve	MAC from USA
Work power	AC100V~240V50Hz/60HZ
Working Accuracy	0.01mm
Lifting range	0~300mm
Pin Hardness	93HRC
Certificate	CE
Warranty	1Year

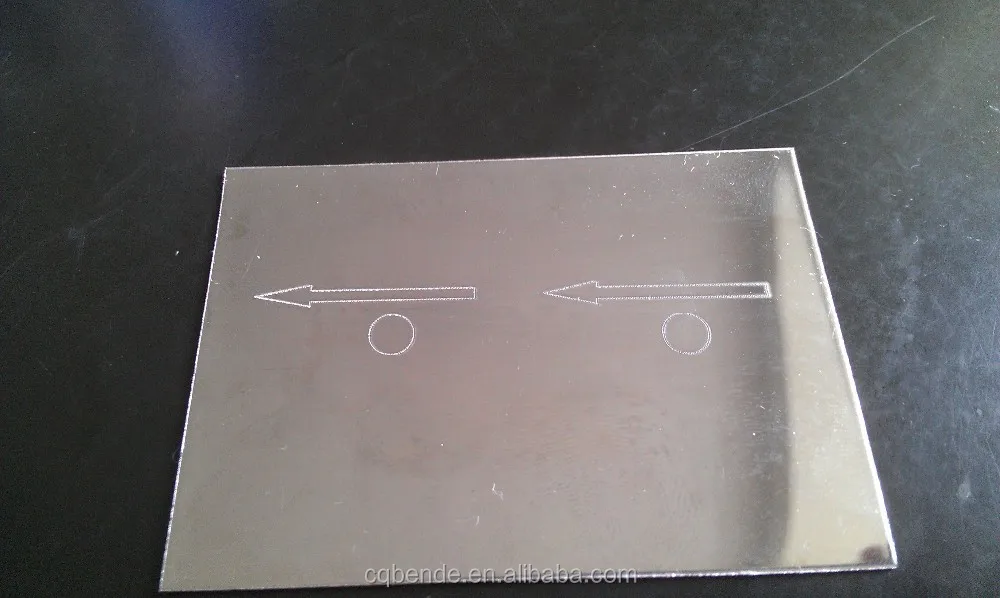

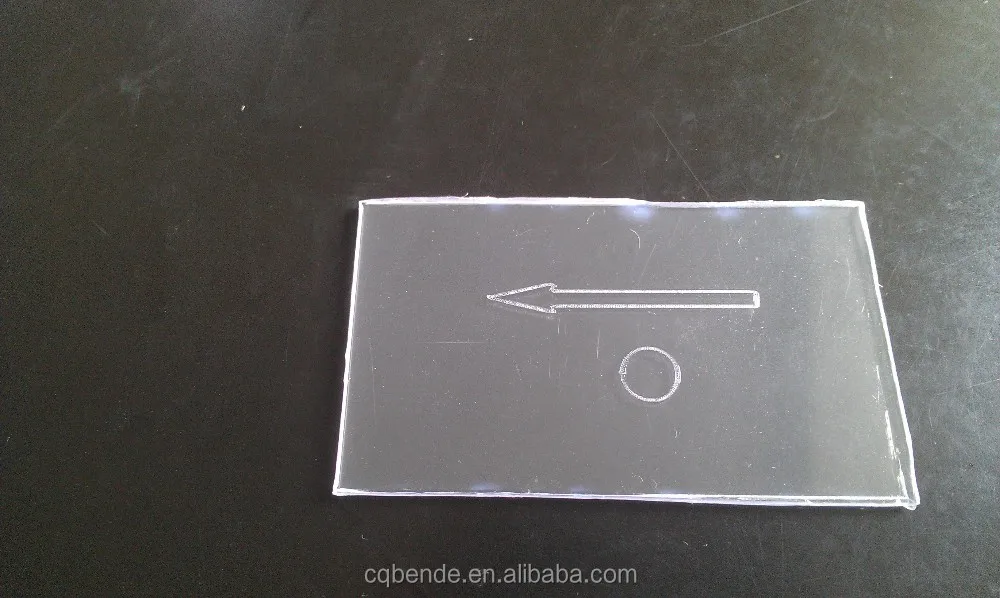

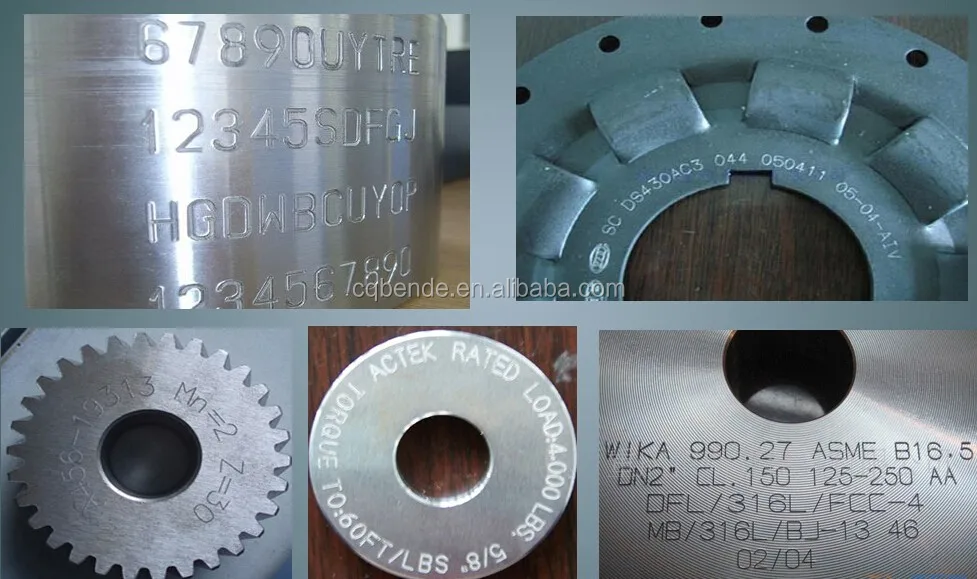

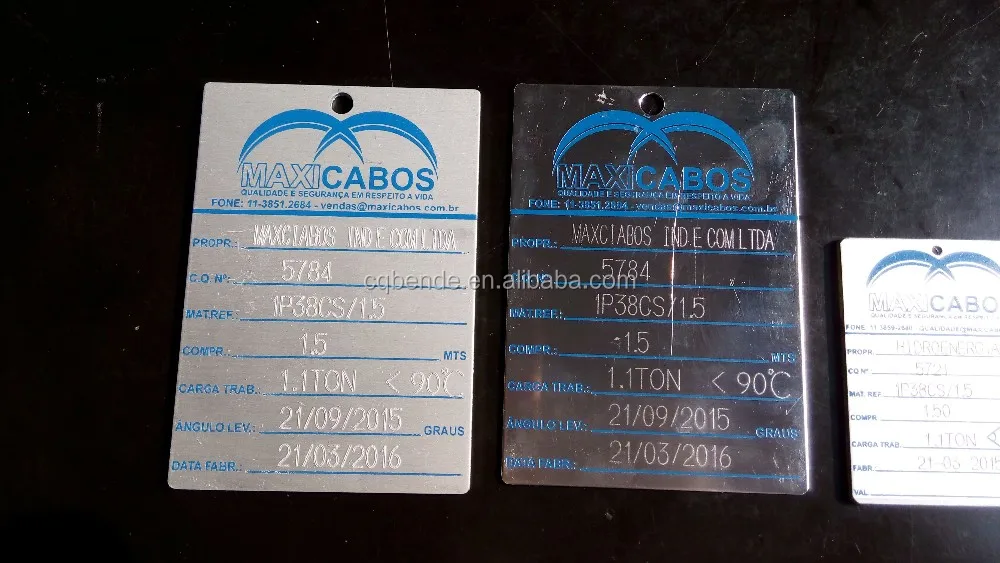

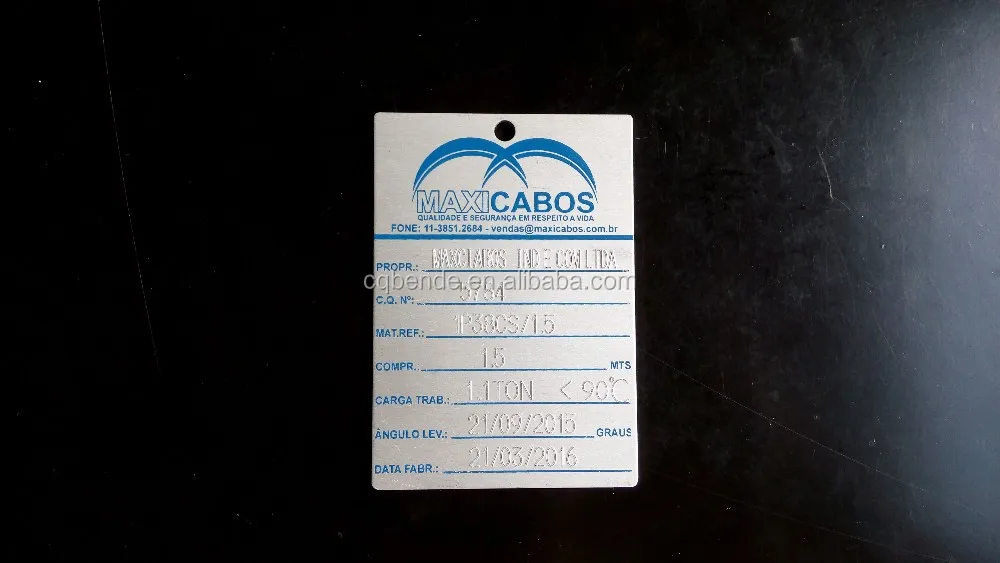

Marking samples (making on stainless、aluminum、steel 、acrylic)

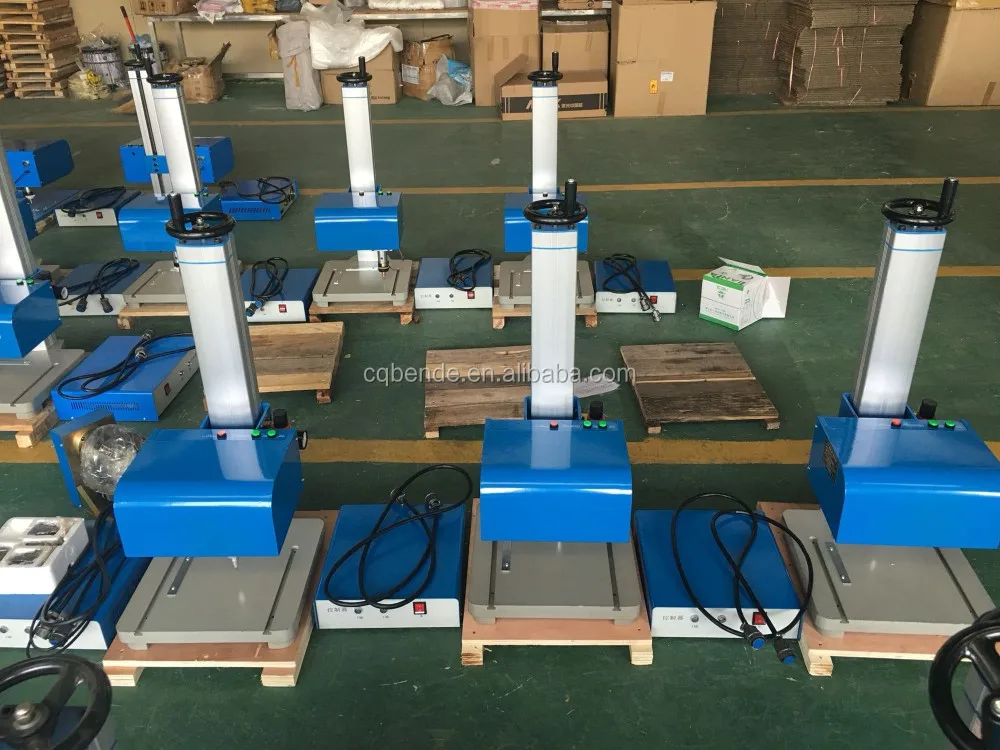

Packing & Delivery

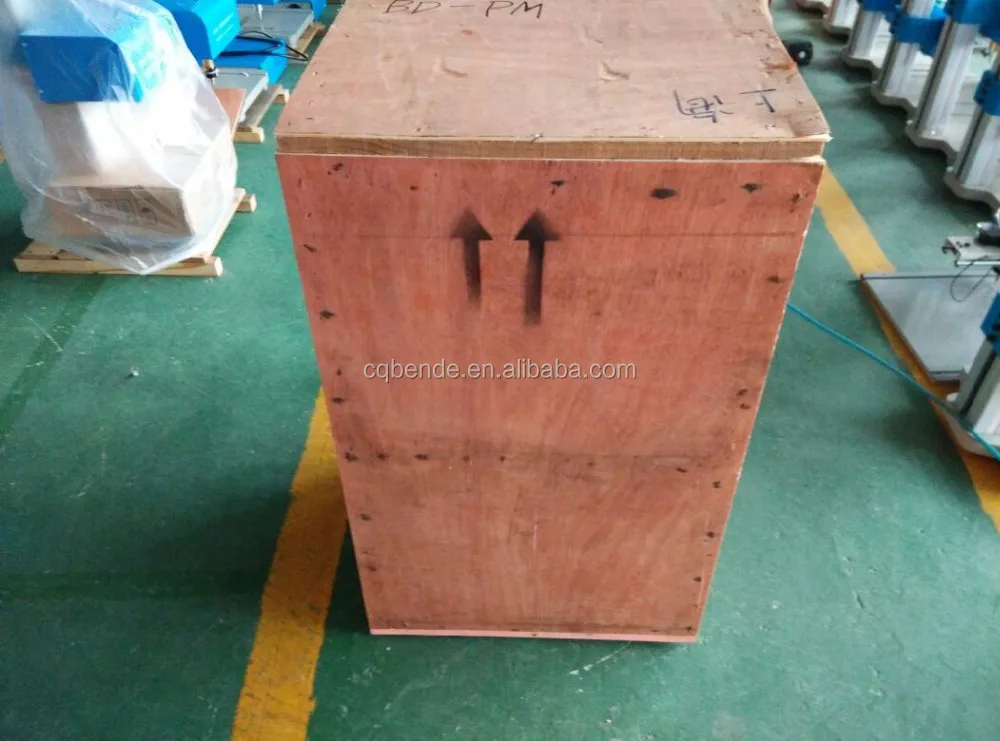

Packaging
Size	40(L) * 48 (W) * 80 (D)
Weight	48kgs
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

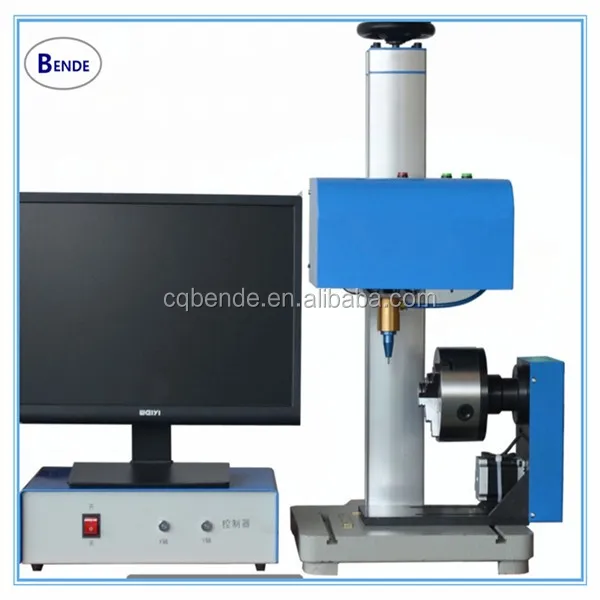

Marking machine with rotary

91.8% Response Rate

Marking machine gun

91.8% Response Rate

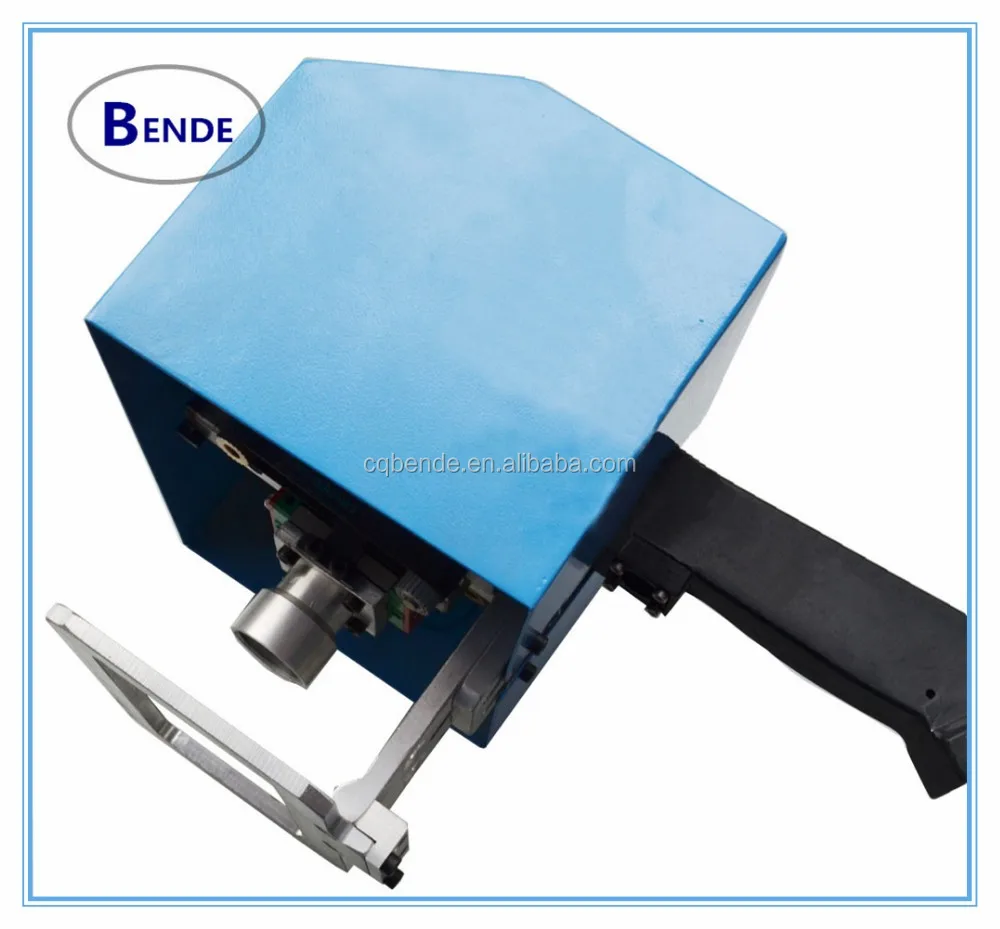

Handheld marking machine

91.8% Response Rate

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

1) What is the delivery time?
Delivery time is after got payment within 2days.
2) What is the paymeng term?
Payment term：L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPaI.

3) How about the warranty?
Warranty is 18months.
4) What about the delivery term?
By sea, air, express(DHL,UPS,TNT,FEDEX),it's up to u.

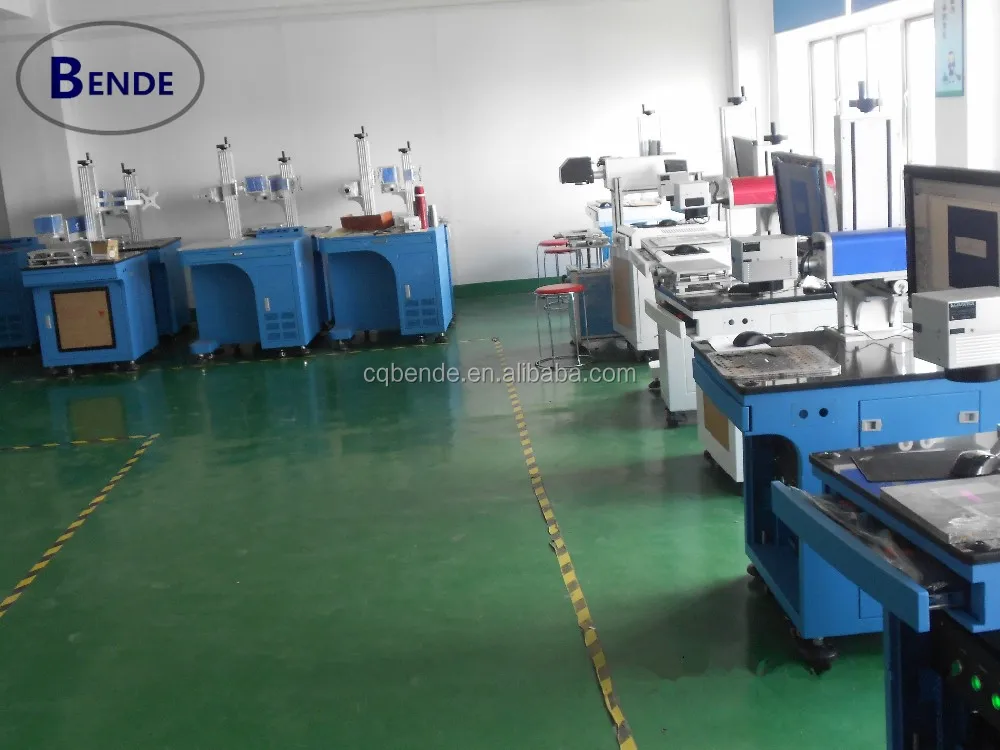

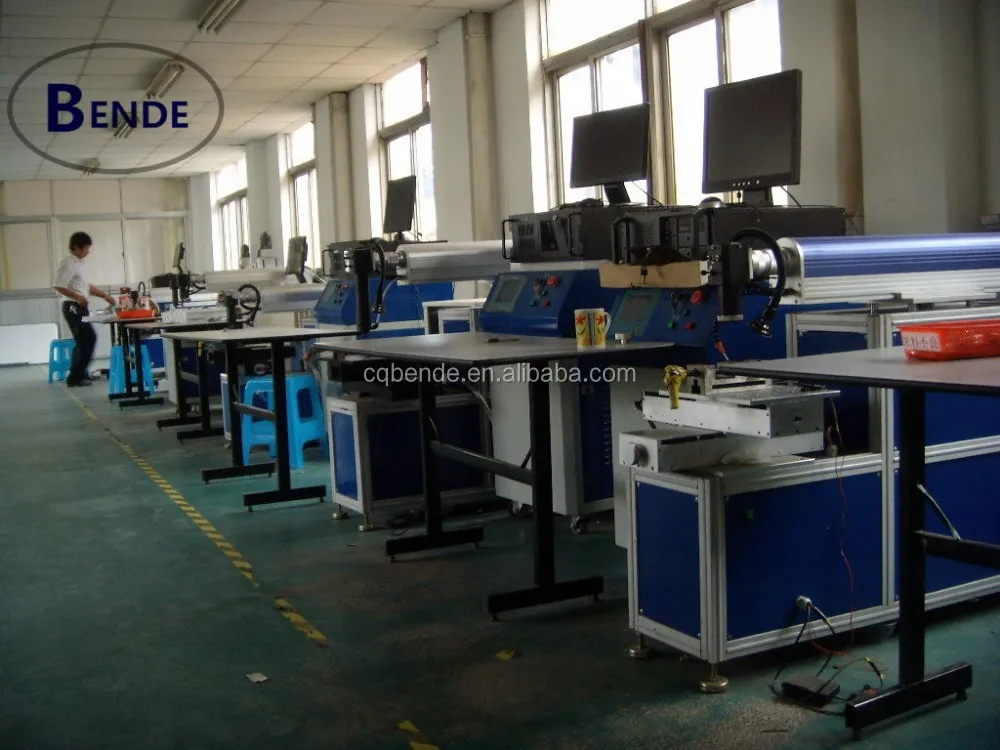

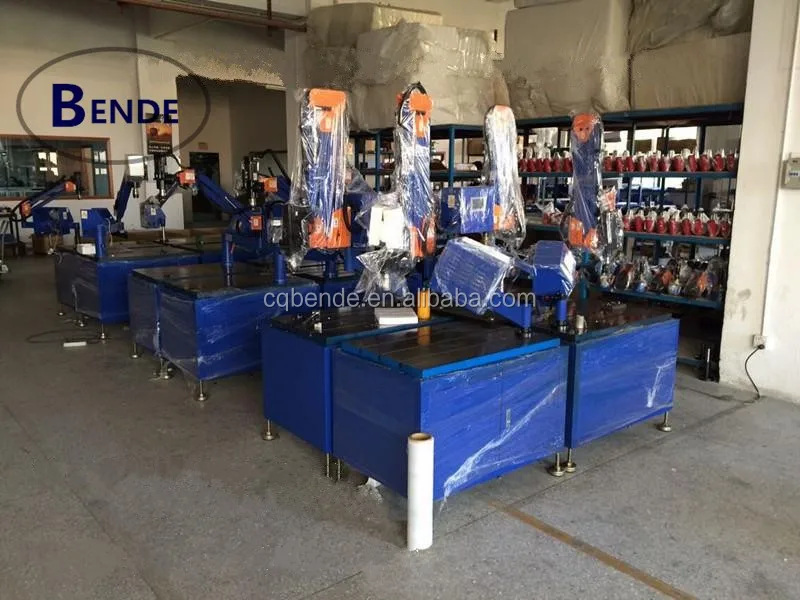

Our Company

We are specializing in producing,developing and selling laser marking machine,laser welding machine,air tapping machine,servo electric servo tapping machine,dot pin marking machine etc.It is Chinese industrial laser processing equipment ,domestic well-known marking equipment manufacturer.And,with rich experience ,we also have obtained huge success in international market ,the mainly foreign markets are United States, Germany, Spain, Russia, Singapore, Indonesia...more than 30 countries and regions .Till now, a lot of customers all over the world have visited us.
