Durable Low Price High Quality Insulated Ring Electric Crimp Terminal

Click here to contact

Product details

Packaging Detail:	Natural packing: plastic bag+carton Special packing: upon your request";	Color:	Red,Blue,Black,Yellow;
MAX current:	48A;	Type:	RV Type;
Place of Origin:	Zhejiang China (Mainland);	Brand Name:	TOLERANCE;
Cable Size:	4-6mm2;	Supply Ability:	100000 Piece/Pieces per Day We have 10 years experience in producing and outputing;
Feature:	Good electrical conductivity;	Certification:	CE ROHS SGS;
Port:	Ningbo or Shanghai;	Material:	Copper;
Payment Terms:	L/C,T/T,Western Union;	Usage:	Collecting wires;
Electro Material:	Tin Plated;	Insulation Material:	PVC;
Model Number:	RV5.5-8;	A.W.G:	12-10AWG;

Product Description

Specificaiton:

Terminal Material:	Copper
Plating:	Electro tin plated
Insulation Material:	PVC
Type:	RV
Feature:	Fixable, good elasticity, to bear collosion, unable broken, high durability
Certificate:	SGS, RoHS, CE
Usage:	Wire connection
Application:	Electricity, communications, machinery, construction, petroleum, chemical, aviation, transportation,railway,transportation, automobile manufacturing,household appliances,electrical installations,computers etc.
Feature:	1.Fireproof, insulate, easy to use
Feature:	2.Made by high purity copper
Color:	Red, blue, black, yellow
Function:	Electrically conductive and connection
Working Temperature:	-40℃-105 ℃
Delivery time:	3-15 days (Depend on your order quantity) after confirm order.
Payment terms:	T/T,Western Union,L/C

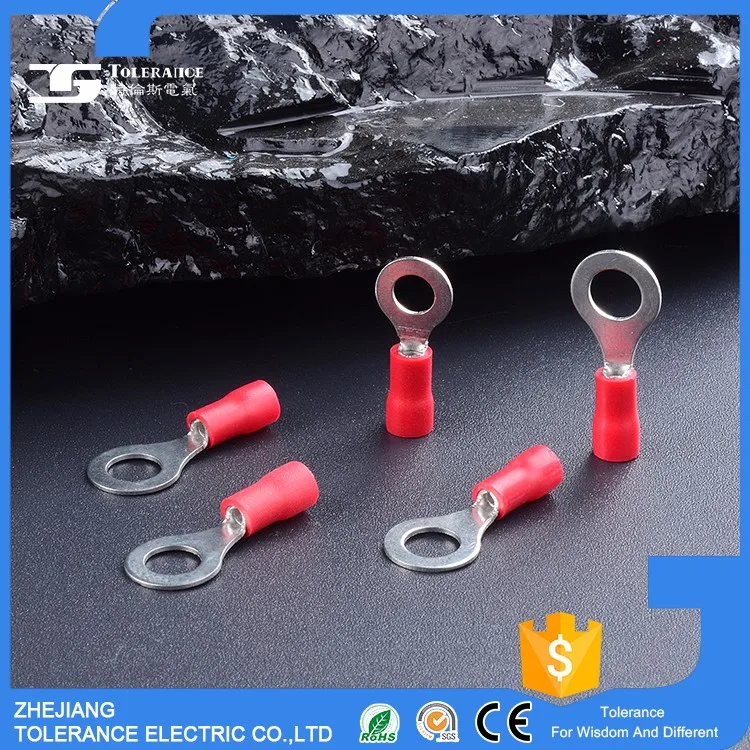

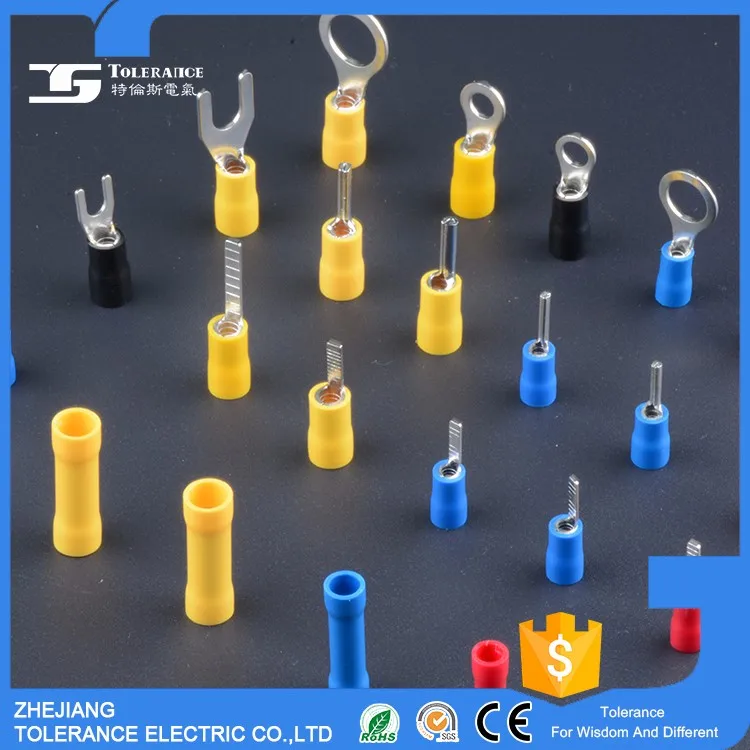

Product picture:

Specification:

Cable Size:0.5-1.5mm2(A.W.G22-16) Max Current:Imax=19A Material:Copper Material Thickness:0.75mm

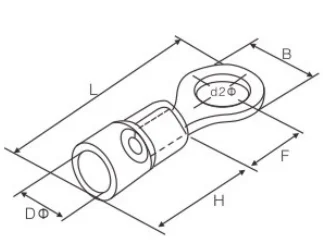

Item No	USA Screw	Screw Dia.d2∅(mm)	Dimension(mm)					Color
Item No	USA Screw	Screw Dia.d2∅(mm)	B	L	F	H	D∅	Color
RV1.25-3	#4	3.2	5.7	17.8	4.95	10.0	4.3	Red
RVS1.25-3.5	#6	3.7	5.7	17.8	4.95
RVM1.25-3.5	#6	3.7	6.6	20.1	6.3
RVL1.25-3.5	#6	4.3	8.0	21.5	7.0
RVS1.25-4	#8	4.3	6.6	20.1	6.3
RVL1.25-4	#8	4.3	8.0	21.5	7.0
RV1.25-5	#10	5.3	8.0	21.5	7.0
RVL1.25-5	#10	5.3	9.8	23.0	8.5
RV1.25-6	1/4	6.4	11.6	27.5	11.1
RV1.25-8	5/16	8.4	11.6	27.5	11.1
RV1.25-10	3/8	10.5	13.6	31.6	13.9
RV1.25-12	1/2	13.0	19.2	36.0	16.5
Cable Size:1.5-2.5mm2(A.W.G16-14) Max Current:Imax=27A Material:Copper Material Thickness:0.8mm
RV2-3	#4	3.2	6.6	17.8	4.3	10.0	4.9	Blue
RVS2-3.5	#6	3.7	6.6	17.8	4.3
RVM2-3.5	#6	3.7	8.5	21.0	7.0
RVL2-3.5	#6	3.7	6.6	22.5	7.75
RVS2-4	#8	4.3	8.5	21.0	7.0
RVL2-4	#8	4.3	8.5	22.5	7.75
RVS2-5	#10	5.3	8.5	22.5	7.75
RVL2-5	#10	5.3	9.5	22.5	7.25
RV2-6	1/4	6.4	12.0	27.6	11.0
RV2-8	5/16	8.4	12.0	27.6	11.0
RV2-10	3/8	10.5	13.6	30.2	13.9
RV2-12	1/2	13.0	19.2	35.4	16.5
Cable Size:2.5-4mm2(A.W.G14-12) Max Current:Imax=37A Material:Copper Material Thickness:1.0mm
RV3.5-4	#8	4.3	8	24.5	7.7	13.0	6.2	Black
RVS3.5-5	#10	5.3	8	24.5	7.7
RVL3.5-5	#10	5.3	12	27.9	7.7
RV3.5-6	1/4	6.4	12	27.9	7.7
Cable Size:4-6mm2(A.W.G12-10) Max Current:Imax=48A Material:Copper Material Thickness:1.0mm
RV5.5-3.5	#6	3.7	7.2	21.4	5.9	13.0	6.7	Yellow
RVS5.5-4	#8	4.3	7.2	21.4	5.9
RVL5.5-4	#8	4.3	9.5	25.5	8.3
RV5.5-5	#10	5.3	9.5	25.5	8.3
RV5.5-6	1/4	6.4	12.0	31.5	13.0
RV5.5-8	5/16	8.4	15.0	33.7	13.7
RV5.5-10	3/8	10.5	15.0	33.7	13.7
RV5.5-12	1/2	13.0	19.2	38.1	16.0
