Anywii 4k video live broadcast camera live ptz broadcast camera sdi ptz ndi hx 12x 20x studio broadcast equipment

Product details
Origin:Guangdong, Chinainterface:USB3.0
lens:12X optional zoomVideo output:HDMI-SDI USB3.0 NDI
Function:AI Trackingsolve:4K (3840*2160)
Applies to:Live remote conference online teachingwhite balance:car
brand:any wiiControl interface:RS232/RS485
sensor:1/2.8" CMOS sensormodel:HC-510-12+C1
Supply capacity:10000 pieces per monthtype:conference camera, video conferencing system
payment terms:Wire transfer, visaport:Shenzhen
Product Description

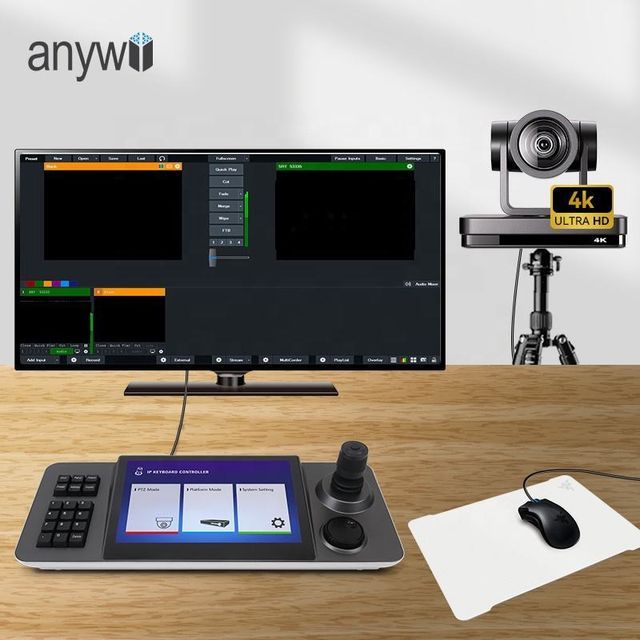

Price includes PTZ camera and controller

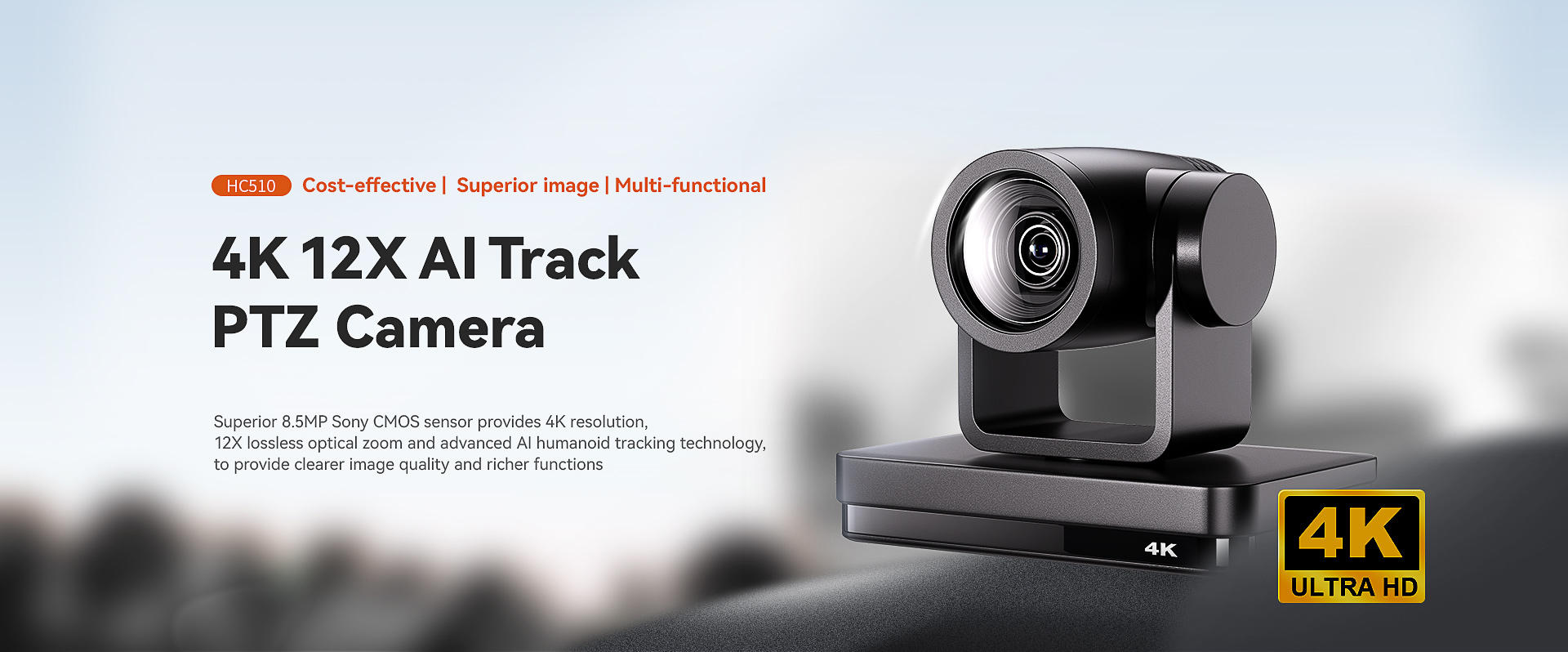

4K Auto Tracking PTZ Camera, USB HD-MI SDI 4K PTZ Camera 12X
■ 8.5 megapixel SONY CMOS sensor, up to 4K (3840 × 2160)@30fps
■ AI automatic tracking, automatic framing according to the host
■ 12x lossless optical zoom lens supports viewfinder adjustment
■ USB/HD-MI/SDI LAN (POE) video output to meet various needs
■ Support audio input (3.5mm line in) and AAC/MP3/G.711A compression format
■ Support RTSP, RTMP, ONVIF, RTMPS, SRT, GB/T28181, VISCA OVER I, IP VISCA protocol
■ Support H.265/H.264 encoding, the picture is smoother and clearer under low bandwidth.

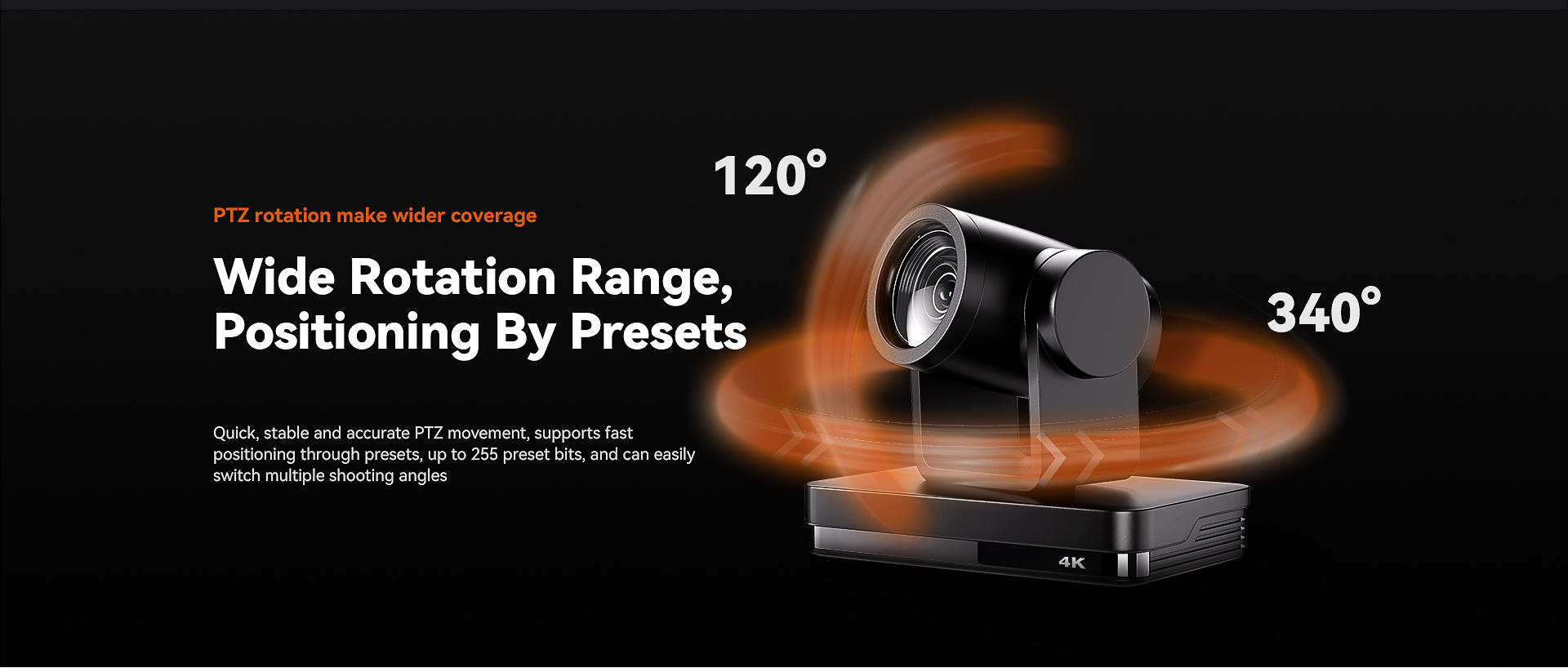

■ Pan 340°, pitch 120°; achieve fast, quiet and precise pan/tilt movement
■ Multi-preset settings, 10 preset positions for infrared remote control, 255 preset positions for rocker controller
■ Multiple installation methods, desktop, tripod, wall, ceiling (upside down)
Specification
Equipment and lens parameters
image sensor sensor
1/2.8 inch high quality CMOS sensor
Effective Pixels
851M, 16:9
video signal
4K30FPS
Lens optical magnification
12x optical zoom
view
Horizontal: 6.5° (narrow angle) ~ 70.9° (wide angle)
Pore ​​coefficient
F1.6~F2.8±5%
digital zoom
15 times
Minimum illumination
0.5Lux (F1.8, automatic gain control on)
digital noise reduction
2D&3D digital noise reduction
white balance
Auto/manual/one-key white balance/designated color temperature
focus mode
Auto/manual/one key focus
SNR
>50dB
Interface function performance
product port

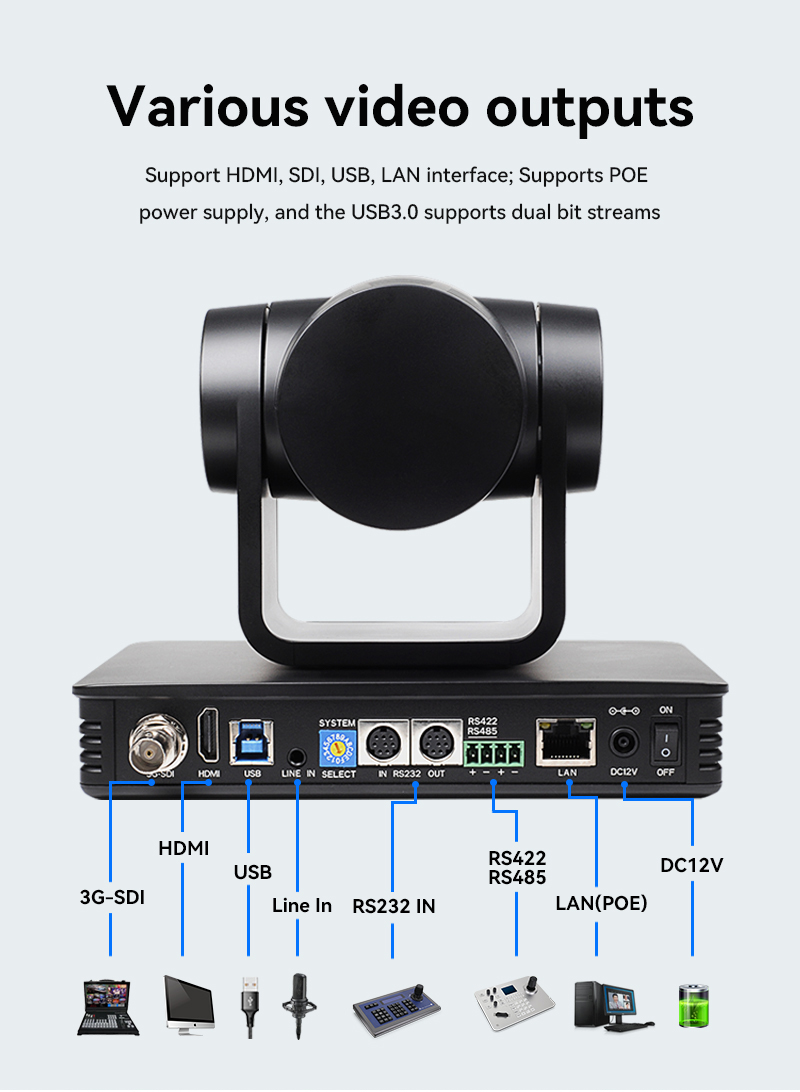

HDMI, SDI, LAN (support POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), DC12V power supply, DIP switch,
switch; power switch
AI Tracking
real-time tracking
The maximum tracking distance is 6 to 7 meters, which can support the speaker to walk at a speed of 3 to 4 miles
area tracking
Four tracking zones can be set from -170° to +170° horizontally and -30° to +90° vertically
PTZ parameters
horizontal rotation
-170° to +170°
pitch rotation
-30° to +90°
Default number
Users can set up to 255 preset positions (10 remote controllers)
