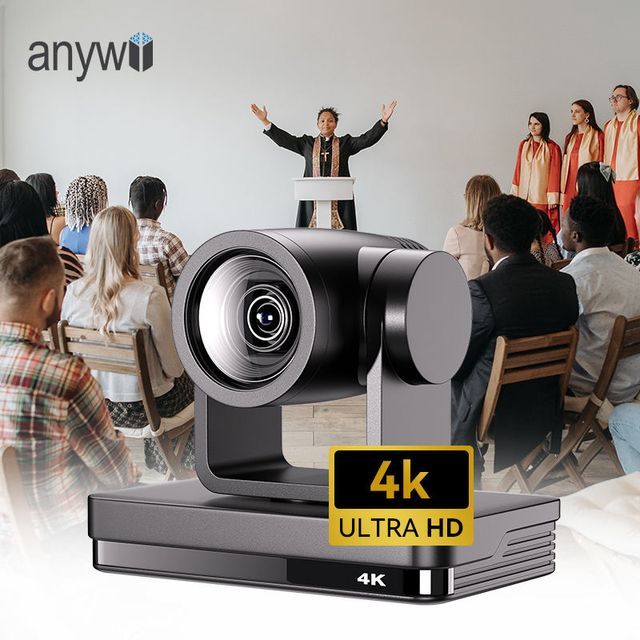

Luckimage video conference camera conference system 1080p usb ptz meeting room camera video conference camera supplier

Click here to contact
Product details
interface:USB 3.0Video resolution:4k
sensor:1/2.8" CMOS sensorFunction:remote control
Function:AI TrackingPrivate Mold:Yes
Control interface:RS232/RS485Applies to:Video conference room/live broadcast/teaching
payment terms:Wire transfer, visaVideo output:IP+SDI+HDMI+USB
Origin:Guangdong, ChinaDefault number:255
model:HC510-12lens:12x optical zoom
brand:lucky imagewhite balance:car
type:video conferencing system
Specification
Equipment and lens parameters
image sensor sensor
1/2.8 inch high quality CMOS sensor
Effective Pixels
851M, 16:9
video signal
4K30FPS
Lens optical magnification
12x optical zoom
view
Horizontal: 6.5° (narrow angle) ~ 70.9° (wide angle)
Pore ​​coefficient
F1.6～F2.8±5%
digital zoom
15 times
Minimum illumination
0.5Lux (F1.8, automatic gain control on)
digital noise reduction
2D&3D digital noise reduction
white balance
Auto/manual/one-key white balance/designated color temperature
focus mode
Auto/manual/one key focus
SNR
>50dB
Interface function performance
product port
HDMI, SDI, LAN (support POE), USB3.0, A-IN, RS232-IN, RS232-OUT, RS422 (compatible with RS485), DC12V power supply, DIP switch,
switch; power switch
Video output interface
HDMI, SDI, LAN, USB3.0
audio output interface
HDMI, SDI, LAN, USB3.0
control port
RS232-IN, RS232-OUT, RS422 compatible with RS485
Serial communication protocol
VISCA/Pelco-D/Pelco-P; Support 9600/4800/2400/115200/38400 baud rate
USB communication protocol
UVC (video communication protocol), UAC (audio communication protocol)
power interface
HEC3800 power socket (DC12V)
power adapter input
AC110V to AC220V. Output DC12V/2.5A
Input voltage
DC12V±10%
Input Current
<1A
Overall power consumption
＜12W
AI Tracking
real-time tracking
The maximum tracking distance is 6 to 7 meters, which can support the speaker to walk at a speed of 3 to 4 miles
area tracking
Four tracking zones can be set from -170° to +170° horizontally and -30° to +90° vertically
PTZ parameters
horizontal rotation
-170° to +170°
pitch rotation
-30° to +90°
Default number
Users can set up to 255 preset positions (10 remote controllers)
Product Description
Ultra HD 4K 30FPS
Ultra-high-definition video, 4K output frame rate up to 30 frames per second, can provide extraordinary clarity and resolution of picture quality.
Multiple Interface Details
Support HDMI, SDI, USB3.0, LAN interface; support POE power supply, USB3.0 supports dual stream
Various application scenarios
Multiple scenarios and multiple application scenarios
