Hardware Parts Ultrasonic Cleaning Machine for Auto_Car Parts _Engine Block Ultrasonic Cleaning of Hardware Ultrasonic Cleaning

 Hardware parts ultrasonic cleaning machine has basic parameter for each size, under is just for reference, pls double confirm with your expected size and functional features

01: Parameter

02: Introduction

Ultrasonic cleaning is a technology that uses high frequency sound waves (ultrasonic: above the range of human hearing) to agitate an aqueous or organic medium (cleaning chemistry) that in turn acts on contaminations adhering to substrates like metals, plastics, glass, rubber and ceramics. Contaminants can be dust, dirty, oil, pigments, grease, polishing compounds, flux agents, fingerprints, soot wax and mold release agents, biological soil like blood, and so on

03: Application

Ultrasonic cleaning can be used for many applications, including plastic parts, bearing, bolts, rubber parts, internal parts, plastic injection molds, transmission parts, and final cleaning of all engine parts prior to assembly, the versatility of ultrasonic cleaning machine make them the perfect choice for automotive, medical, pharmaceutical, aerospace, engineering and many other industries

04: Characters

Opposing horizontal transducers mounted at two sides

Digital control wave ultrasonic generators

Movable cleaning basket

Can combined with lifting system, drying tank, rinsing tank, recirculation & filtering system

Incredible versatility in dimension, function and auxiliary couples

05: why clean parts with ultrasonic?

Delivering and using clean parts is not always obvious, certainly, no one wants to handle a dirty parts or install it into a critical machine, but, dirty, debris and contaminants can cause problems for manufactures and end users, from the merely frustrating to catastrophic, dirty parts can cause critical components to exceed tolerances and even fail damaging valuable equipment and property while contamination (everything from grease, oil and chemicals to viruses and bacteria) can seriously harm users.

06: How to choose cleaning chemistry

Depending on the type of cleaning requirement and the substrate that needs cleaning a detergent solution or a similar aqueous medium can dramatically increase the cavitations, lowering the surface tension of the liquid reduces the energy required to form the bubbles and when combined with inherent cleaning property of the solution results in superior micro cleaning of the solid surface

The choose of the cleaning medium is critical, the nature of the substrate and contamination are the key factors in selecting the cleaning chemistry, which is typically aqueous or semi-aqueous

07: Buying guidance

Please provide KEEPLEADER below information to get recommendation

What type of object do you want to clean (Metal, plastic, machine parts, etc)?

What type of contamination do you want to remove from the object?

How large is the object and how many do you need to clean?

What is your time frame?

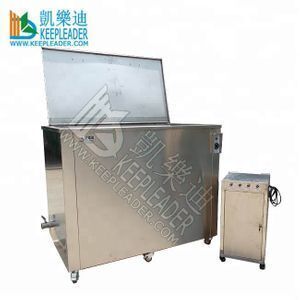

 Hardware Parts Ultrasonic Cleaning Machine has tank lid, separated power stand, Ultrasonic control and Heating Control

Top 5 things to consider before choosing an ultrasonic cleaning machine

01; Size of parts/objects being cleaned

Always consider the largest item or part that will be cleaned regularly in the machine, full measurements of the largest item should be taken and given the manufacturer so that proper tank can be specified for the application

02: Ultrasonic cleaning goals

Post cleaning results are of primary concern for people in manufacturing, rebuilding, restoration or the medical field, ultrasonic is the most thorough process of cleaning known to science, consequently this methodology is utilized for countless application around the world today, this time to clean parts is greatly reduced when ultrasonic cleaners are used versus hand cleaning methods, as a result, production is dramatically increased while the cost of cleaning goes down

03: Utilizing the correct basket/racks

This items being cleaned must not touch the ultrasonic transducers located inside the tank, parts baskets should be utilized and selected specifically for the cleaning application, any parts or baskets making contact with the ultrasonic transducers packs will eventually cause the surface of the pack to etch or scratch, even though the packs are constructed of stainless steel, once etching occurs erosion will follow and will over time destroy the integrity of transducer pack, this damage cannot be repaired and transducer pack will eventually need replacement

Ultrasonic cleaners create heat energy as they run, the heat will rise during the cleaning process due to the friction of cavitations activity being created within the cleaning vessel, the rise in temperature cannot be avoid, heaters are required to bring the cleaning solution to the designed starting temperature, they are also a necessity when cleaning contaminants such as carbon oil and grease residue, high temperature help break down these contaminants to better facilitate the cleaning process

04: Generator adjustability and wave sweep

Wave sweep is utilized and recommended in virtually all cleaning situation, by dispersing various frequencies with different wave lengths, wave sweep effectively eliminates in active and deep zones in the cleaning tank, this results in more uniform and effective cleaning of all parts especially those of intricate detail, ultrasonic cleaners equipped with wave sweep do not require degassing modes as engaging the wave sweep accomplishes accelerated degassing of solutions

Ultrasonic frequency and power

Most ultrasonic cleaners operate between 28 and 120khzm, the lower frequencies produce large cavitations bubbles with more abrasive cleaning, these frequencies are recommended for coarse cleaning needs such as removal of lapping compounds from durable metal surfaces, for fine cleaning of very delicate items such as jewelry and soft metals with polished surfaces, higher frequencies may be more suitable, the most commonly utilized frequencies are 38 to 40khz because they are ideally suited for the vast majority of both commercial and industrial cleaning application, the power generated by an ultrasonic cleaner should be capable of dealing with the client’s most difficult cleaning applications, controls on the ultrasonic generator allow the operator to dial down the power whenever more delicate cleaning applications are addressed, because power can be dialed down there is no need to buy cleaner with minimal power capability, even cleaning delicate items may require more energy when multiple parts are cleaned at one time

For more that two decades, ultrasonic international has helped business improve profitability by providing their clients with ultrasonic cleaning equipment that feature the latest advancements in wave sweep technology, KEEPLEADER ultrasonic cleaning machine has a reputation for reliability and longevity utilizing the proper ultrasonic cleaning machine saves money and improves cleaning processes, cleaning results will be measurably better and less time and labor hours to complete the cleaning process, production mummers go up addressed simultaneously

05:Hardware Parts Ultrasonic Cleaning Machine

The standard model is single tank, which will comply with your lifting sytem, the fitler circulation also can combined with this machine, so, pls tell keepleader your preferred function, inner size, and cleaning effect in your enquiry

ABOUT PRODUCT

Customized design; Safe and convenient operation

ABOUT FACTORY

Comprehensive management process, leading technology and service team

EXPERIENCE

Internationalization of business process; Rich experience of Non-standard design

AFTERSERVICE

Uniform standard with special difference for each, Professional and Experienced service

MARKET

Yearly 30% Market share increased, One-to-one service

Hardware Parts Ultrasonic Cleaning Machine

Buid the machine, provide cleaning solution and service on operation, maintenance, and after-sales

 Hardware Parts Ultrasonic Cleaning Machine

Pls contact Ms Helen by E-mail: sales at keepleader for Hardware Parts Ultrasonic Cleaning Machine

Cellphone/Wechat/Whatsapp: +86 13590415784   / Tel: +86 755 84190358

Website: www.keepleader.com
