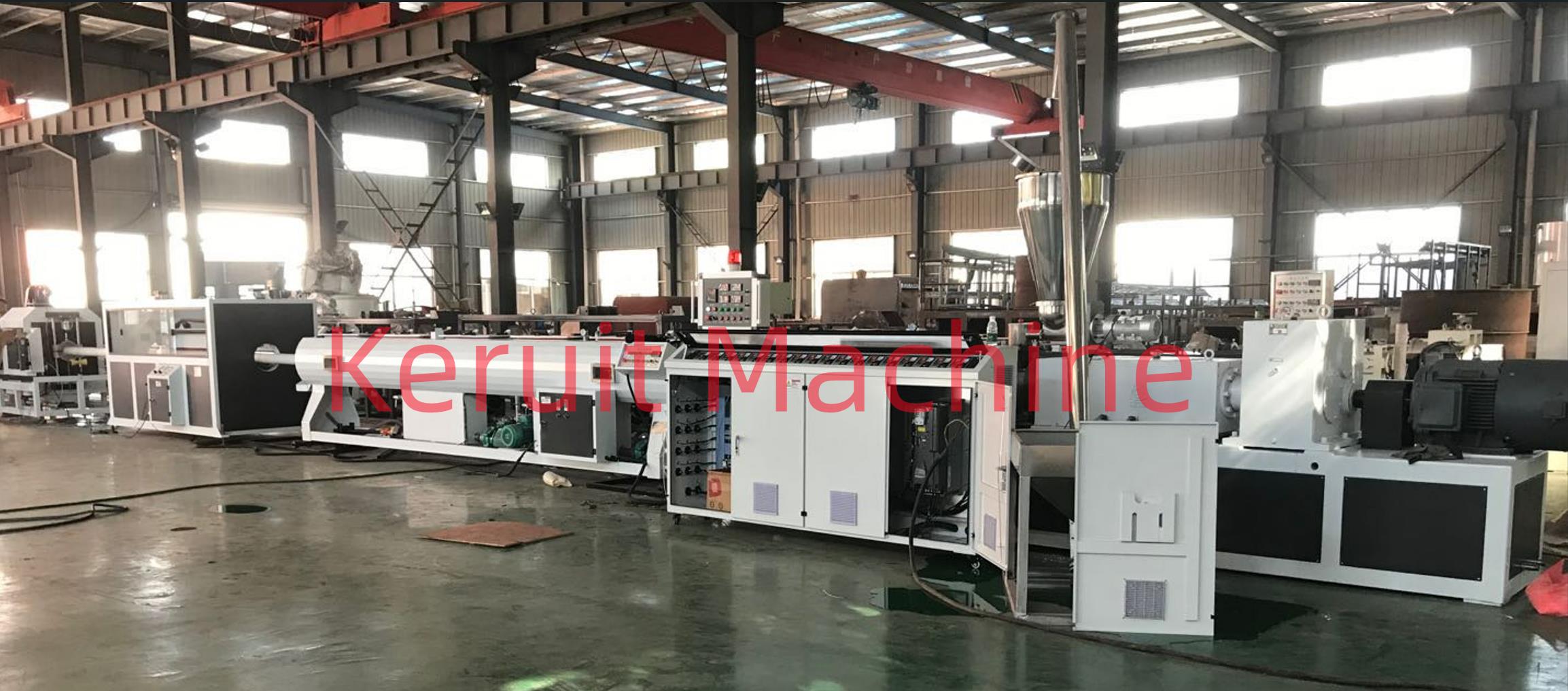

75-250mm PVC pipe extruder PVC pipe making machine PVC pipe extruder

Supplier: Zhangjiagang Keruit Machine Co., Ltd.
Region: Jiangsu, China
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machine capacity:	200 kg/h	Marketing Type:	normal product
Type of machine:	automatic	application:	PVC pipe
strength:	37 kW	Product Category:	Plastic pipe, pipe extrusion
model:	16-800mm	Applicable materials:	pvc
weight:	10000 kg	Mechanical test report:	if
Automatic level:	automatic	Health status:	new
port:	Shanghai	Voltage:	380V
Video shipment inspection:	if	Core component warranty:	1 year
Supply capacity:	2 sets per month	brand:	Kerrett, Kerrett
capacity:	100-700kg/hour	Origin:	Jiangsu, China
payment terms:	L/C, Western Union, T/T	Packaging Details:	Plywood box packing and plastic wrap
Key machines:	plastic mixer, plastic extruder	Year:	2022
Dimensions (LWH):	22m1.5m2.6m

Product Description

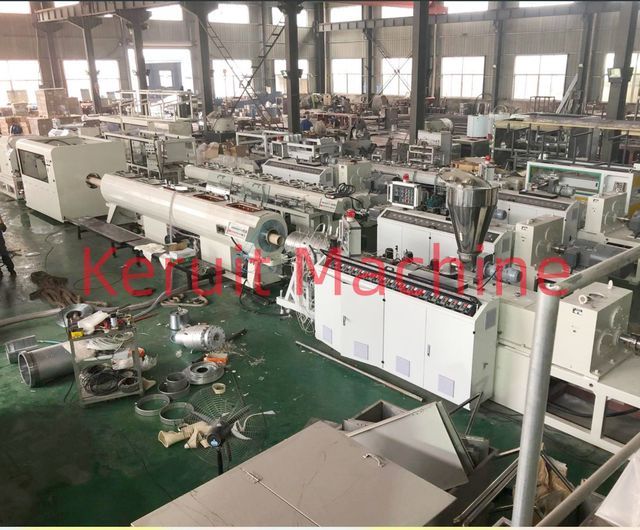

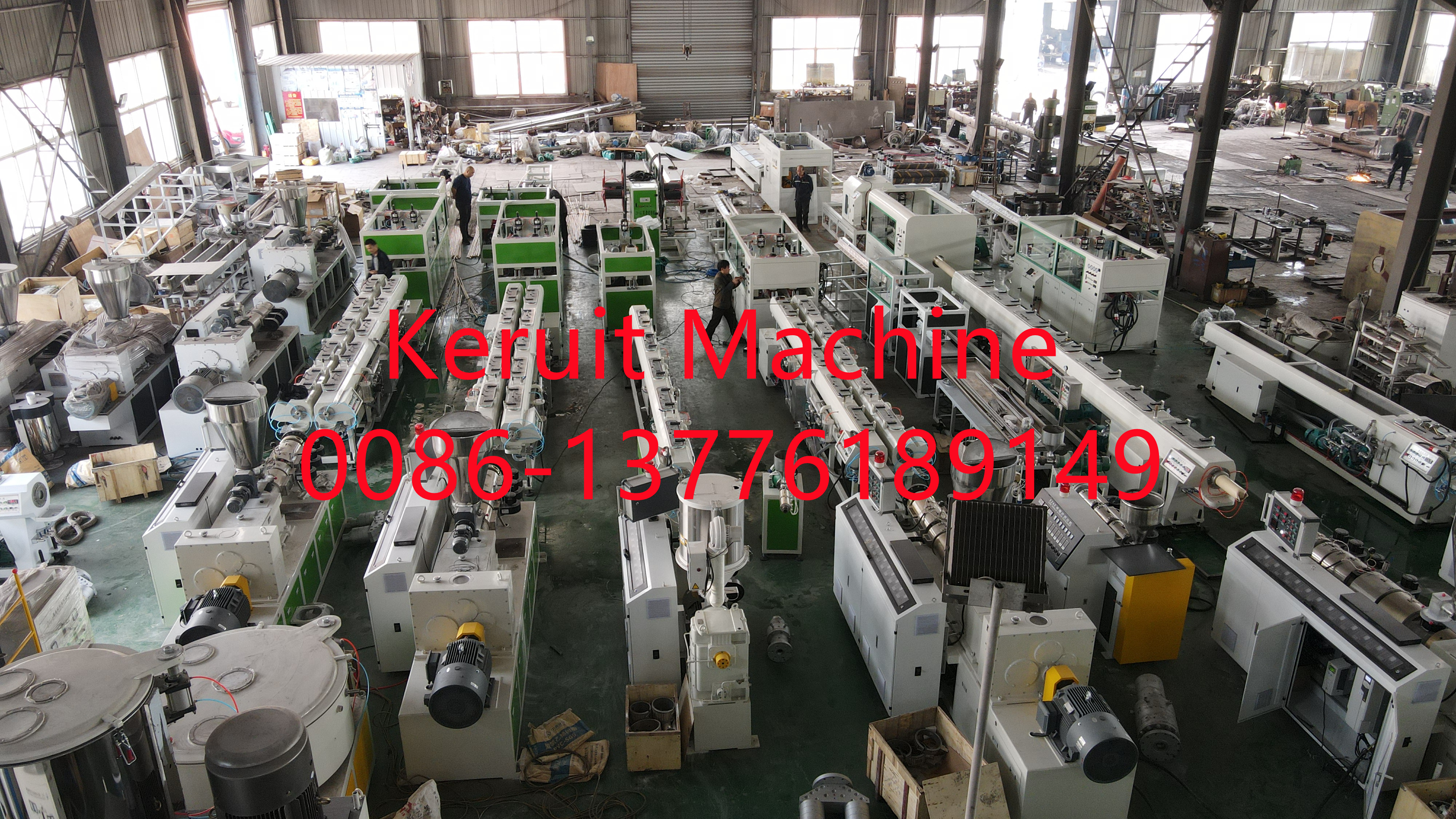

my warehouse and machines

>>PVC pipe production lineMainly used for productionAgricultural water supply system, sewer system, civil and industrial building drainage system, cable duct, cable protection sleeve, etc.

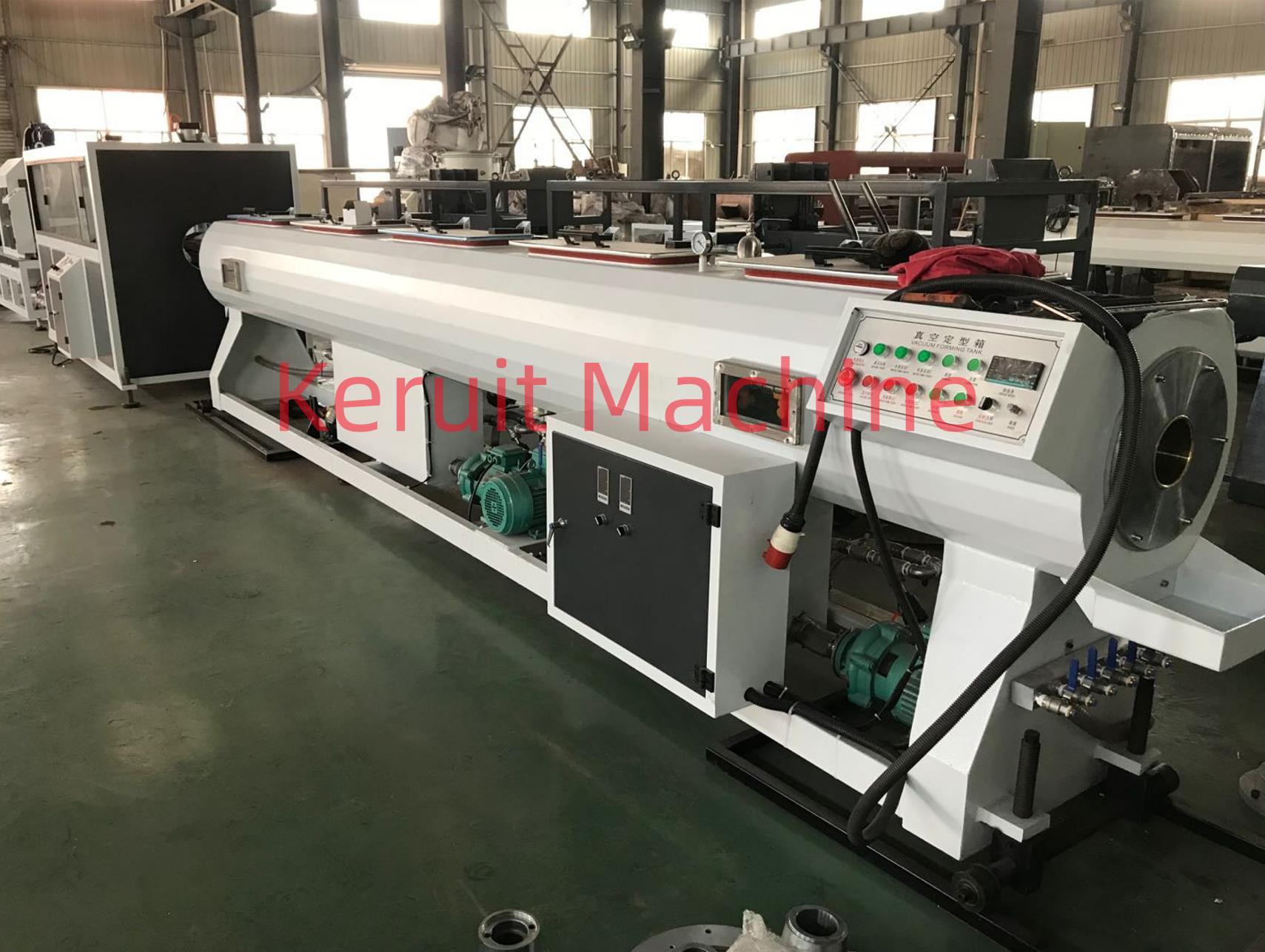

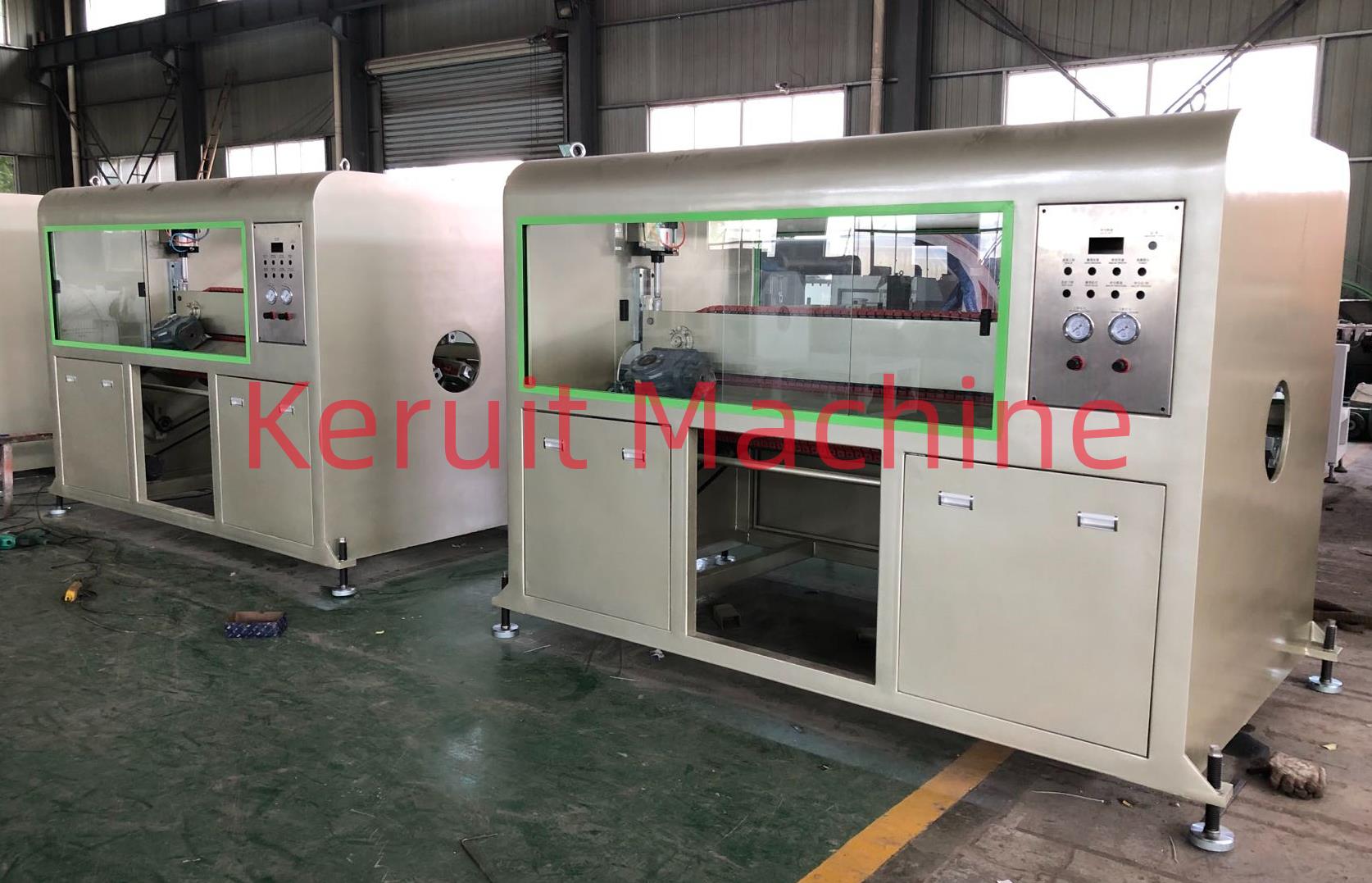

>>Process flow:Mixer screw feeder→mixing unit→extruder screw feeder→conical twin-screw extruder→mold→vacuum calibrating tank→four-claw traction→planetary sawing machine→flaring machine/demolding table→finished product inspection package

Finished goods

Model	Pipe range (mm)	Extruder model	Output (kg/h)	Extruder motor power (kw)
KRT-50PVC	Φ16-50 double tube	SJSZ65/132	150-250	37
KRT-160PVC	Φ63-160	SJSZ65/132	150-250	37
KRT-250PVC	Φ75-250	SJSZ80/156	300-450	37
KRT-315PVC	Φ110-315	SZSJ80/156	300-450	55
KRT-400PVC	Φ200-400	SZSJ80/156	300-450	75
KRT-630PVC	Φ250-630	SZSJ92/188	500-800	110
KRT-800PVC	Φ315-800	SZSJ92/188	500-800	110

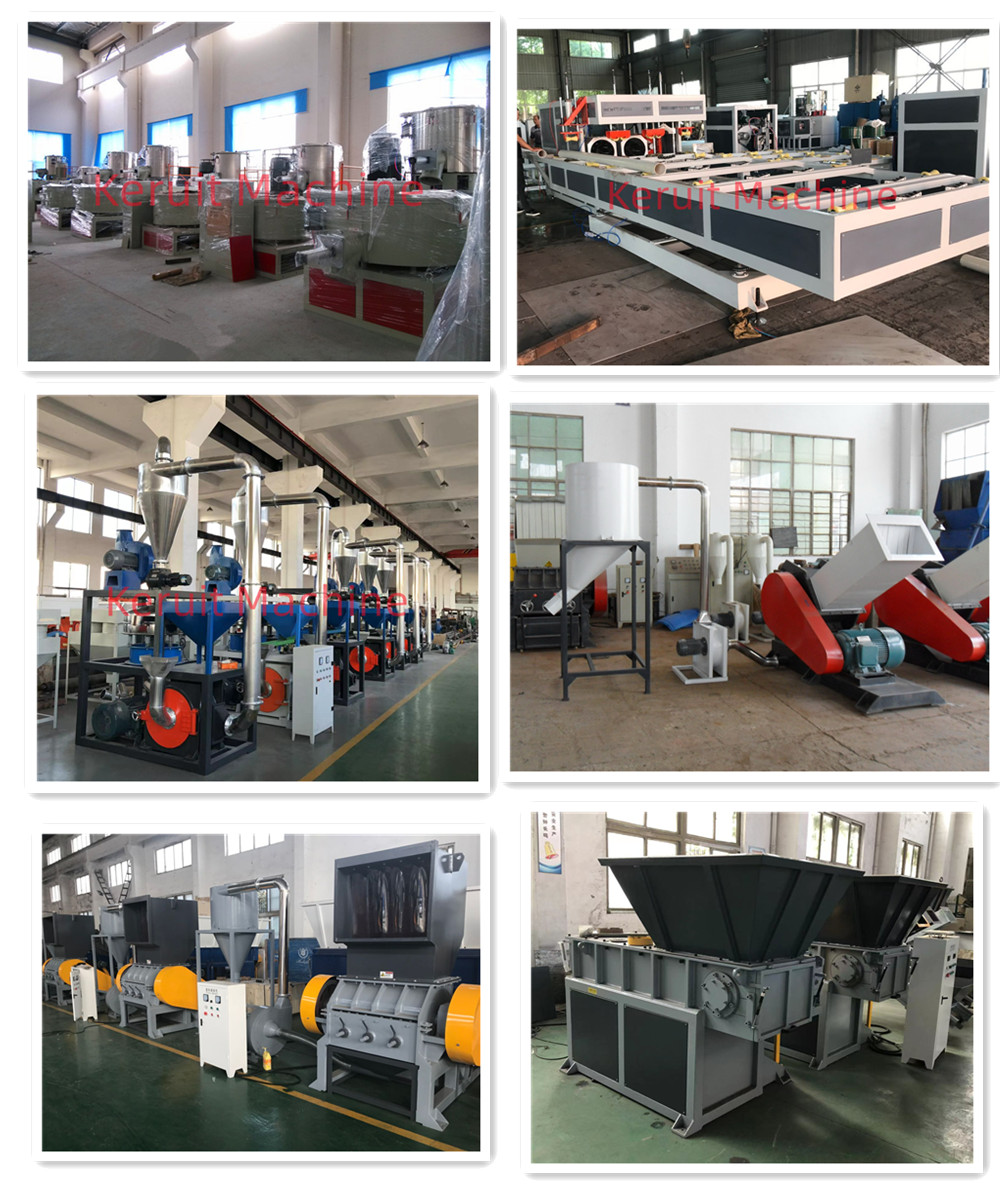

Other auxiliary machines
