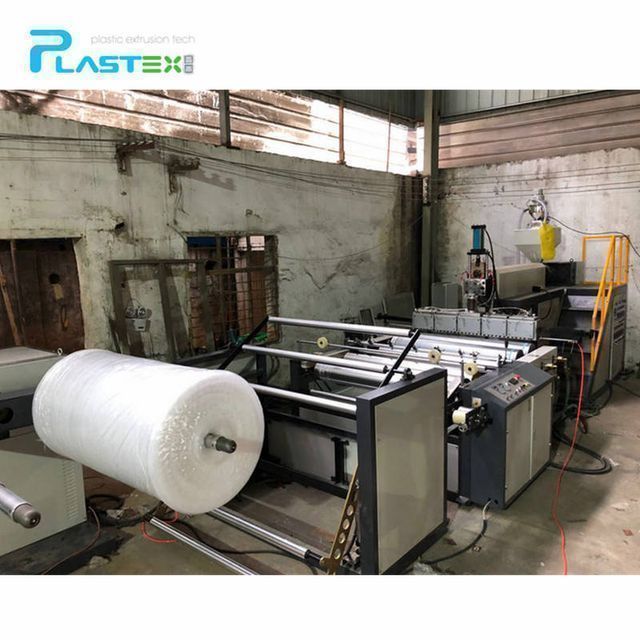

Bubble Film Rolling Machine
- 15000.00 1 - 4 sets
- 14000.00 5 - 9 sets
- 13000.00 >=10 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Types of: | extruder | State of health: | new |
| Key machines: | Plastic feeding machine, plastic extruder, plastic tractor, winding machine, die head, forming die, composite parts | Product width: | 1200mm |
| application: | Packaging industry | Packaging Details: | Due to the large size and weight of the equipment, we generally use sea transportation. Each machine is wrapped with plastic film. If LCL, the machine will be put in wooden case. If it is a full container, the machine will be fixed in the container. Landlocked countries will be by rail or road. |
| Dimensions (L*W*H): | According to the final design | Number of extruders: | 2 sets |
| Extruder type: | single screw | Center height of extruder: | 1050mm |
| Extruded Film Quantity: | three floors | Package preview: | |
| Resin used: | polyethylene | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Automatic level: | automatic | Machine capacity: | 100 kg/h |
| model: | FTPEG-1200 | port: | Shanghai port/Qingdao port/Ningbo port/other ports (according to customer requirements) |
| Supply capacity: | 50 sets per month | Voltage: | 220V/380V/customizable |
| product: | Three layers of bubble film, width 1200mm | brand: | plastic |
| place of origin; place of origin: | Anhui, China | strength: | 95 kW |
| weight: | 1000 kg | Device color: | Lal 9002 |
| Product Category: | Bubble film machine | year: | 2022 |
Bubble Film Rolling Machine |
Product Description
Performance and Features:

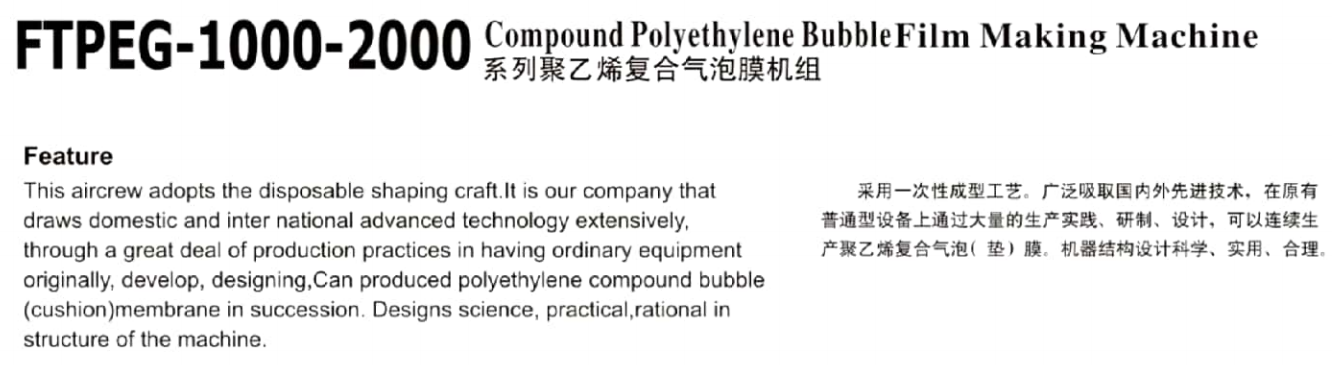

PLPEC-1000-2000 Series Polyethylene Composite Air Bubble Film Making Machine
Adopt one-time molding process, extensively absorb advanced technology at home and abroad, through mass production practice, develop and design on the original general-purpose equipment, can continuously produce polyethylene composite bubble cushion (membrane), the machine structure design is scientific, practical and reasonable.

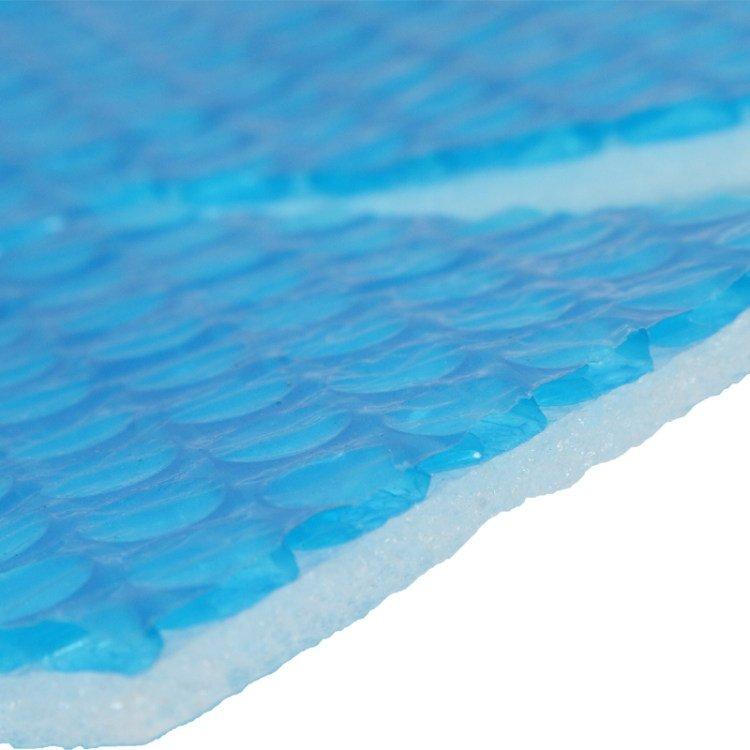

EPE composite bubble film

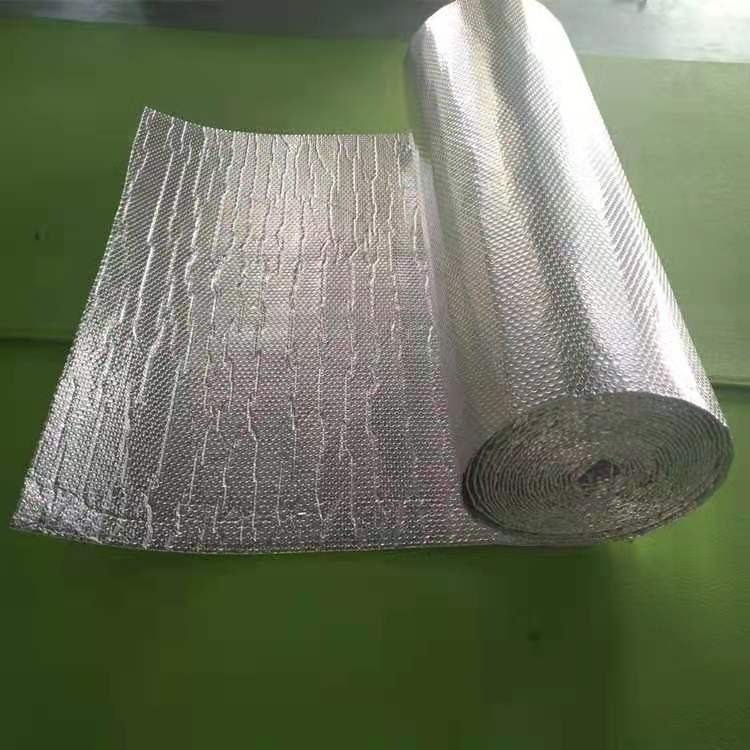

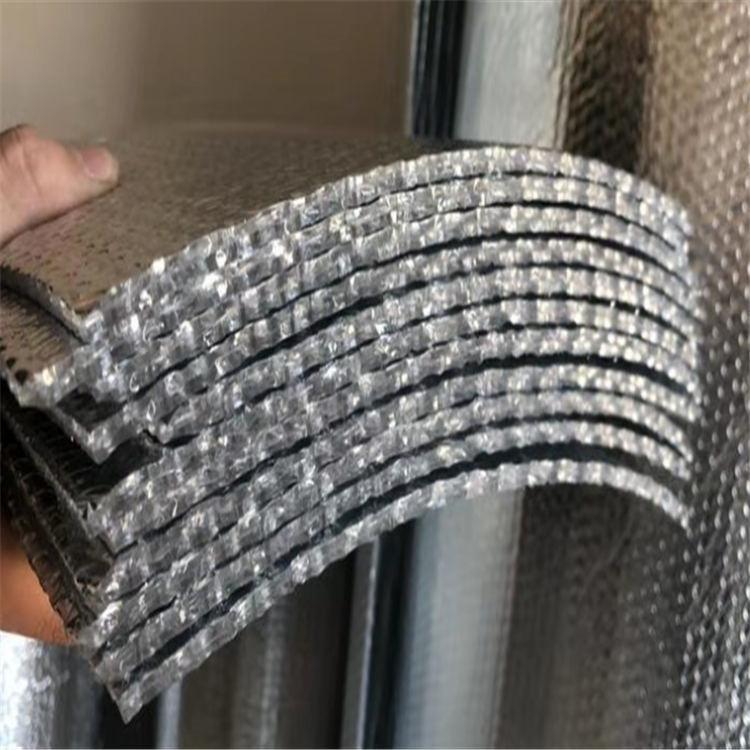

Aluminum foil composite bubble film
EPE composite bubble film

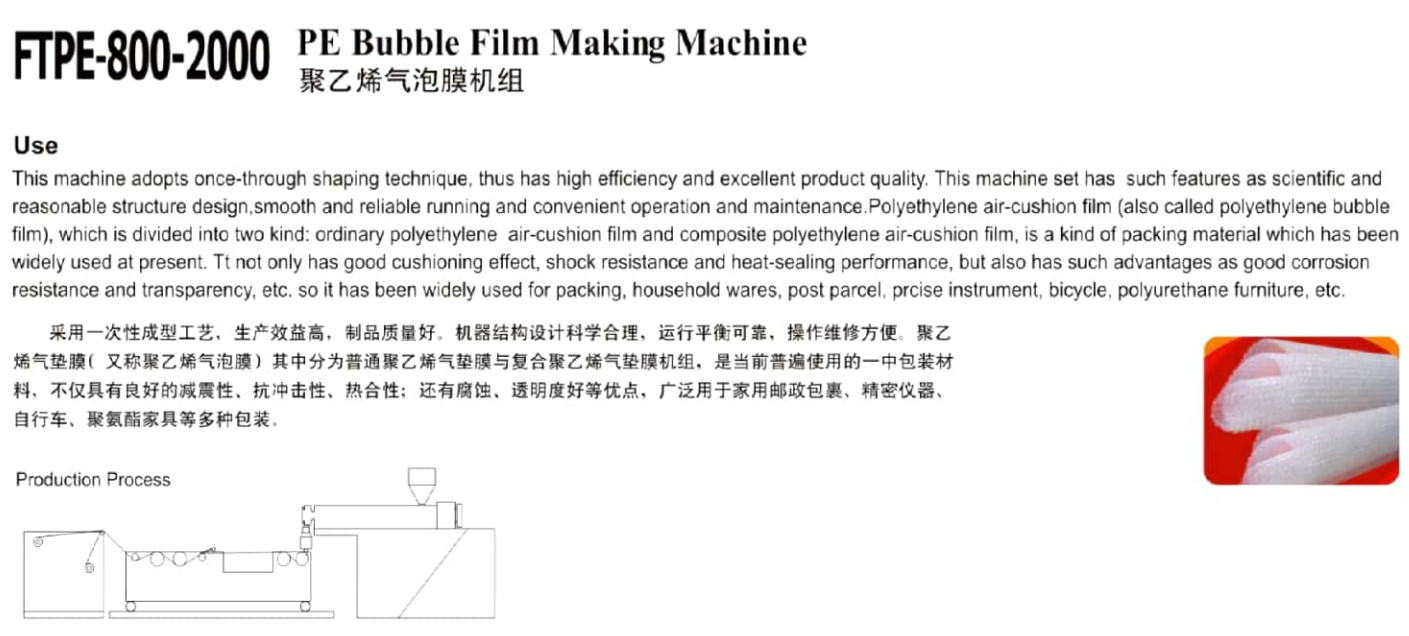

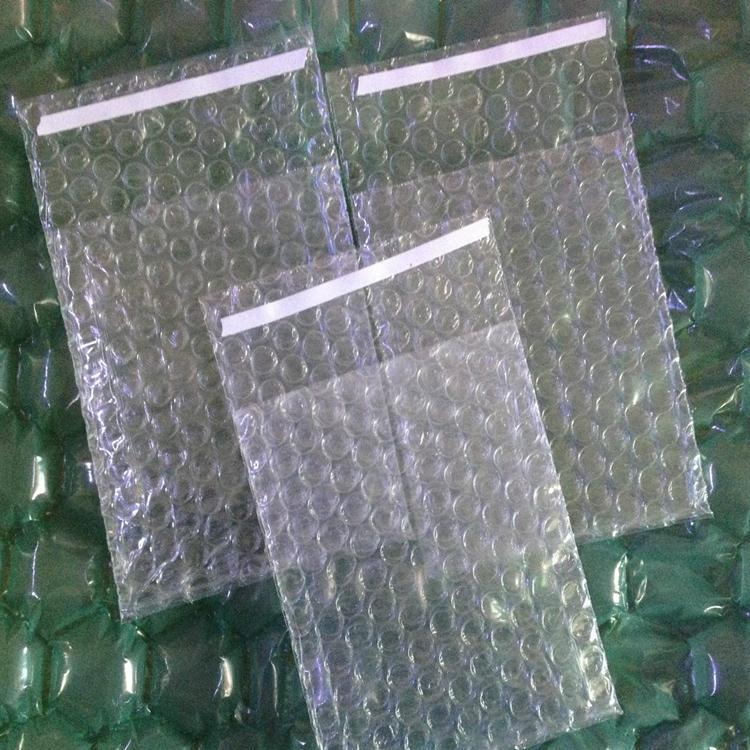

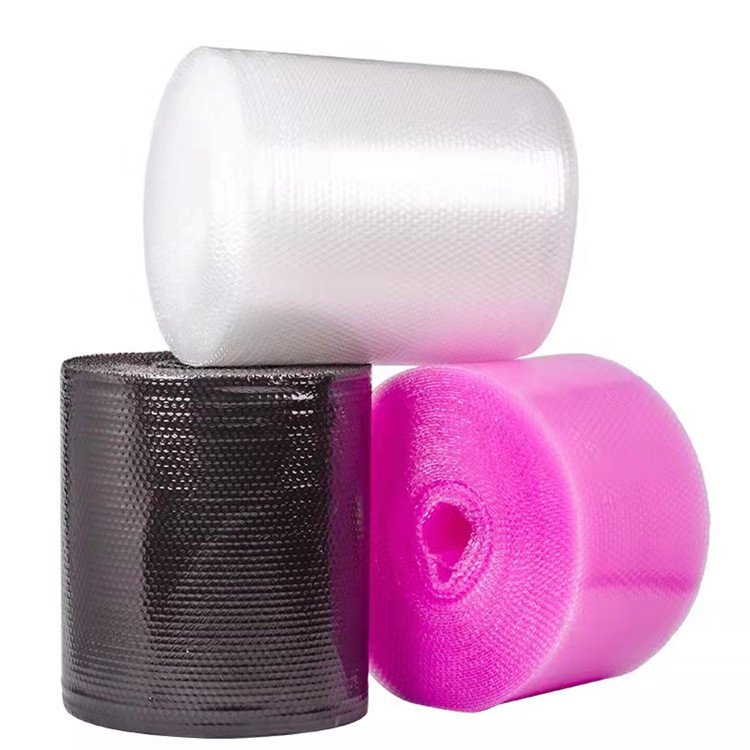

Our equipment can make many kinds of bubble wrap, as shown in the picture above.

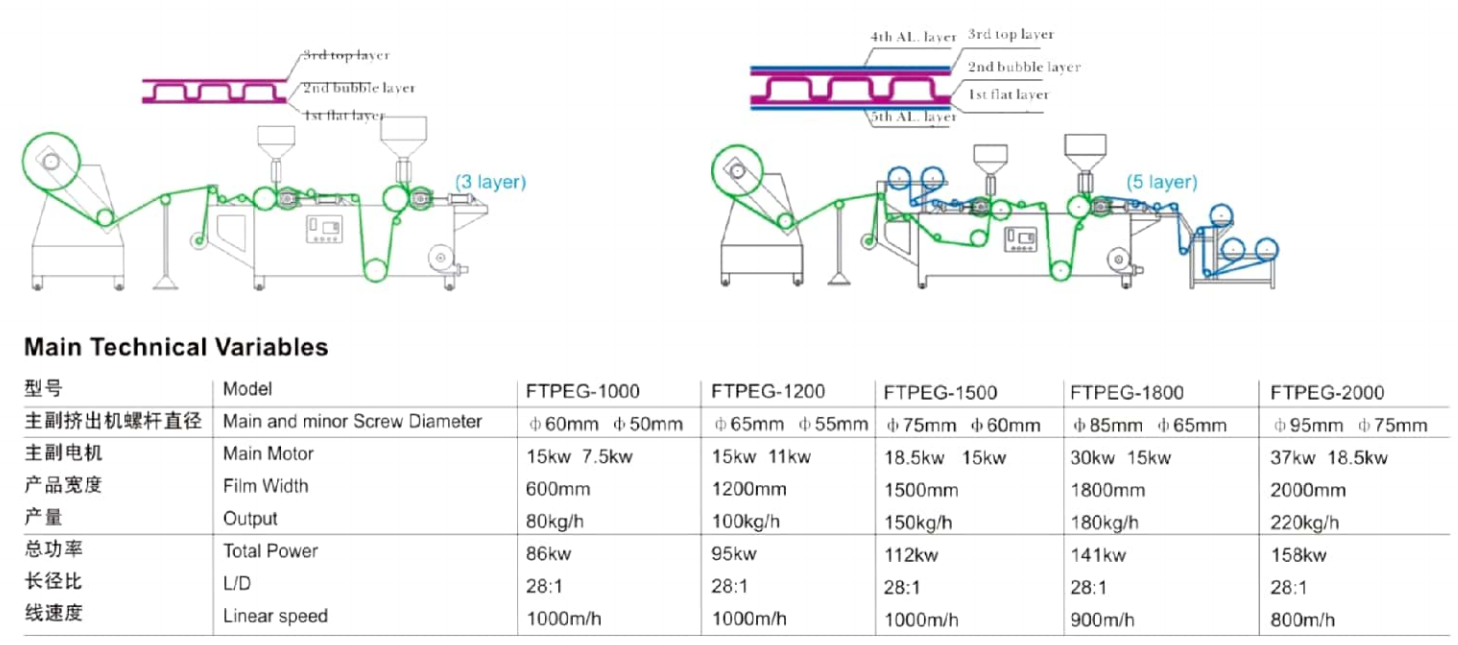

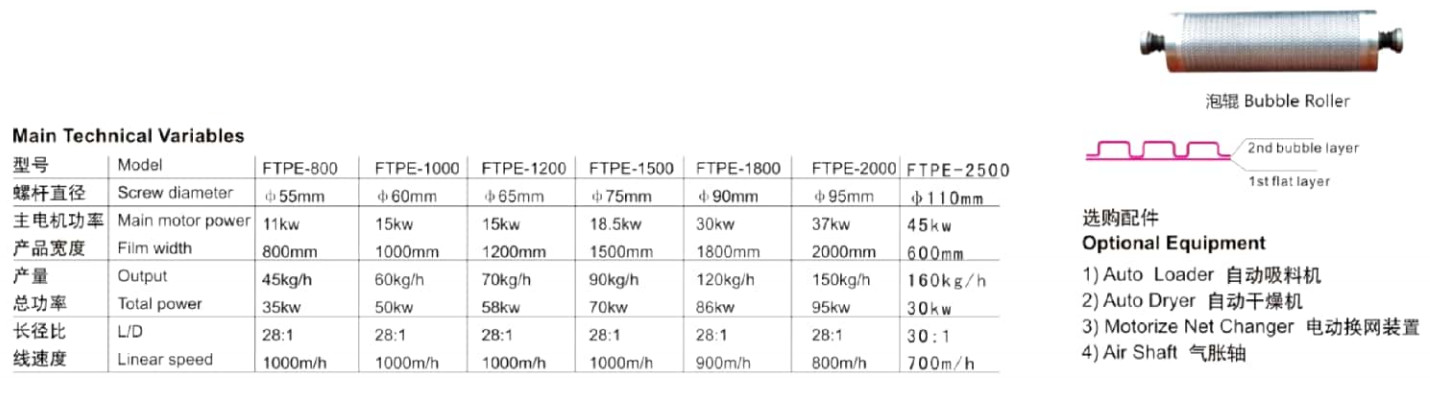

Technical Parameters
our service
pre-sale
A good connection with us will help you choose the right
Project Feasibility Consulting
Project Process Technical Consulting
small recipe test
special offer
Smooth communication with us will help the project go smoothly
Factory Design Guidance
Process Flow Layout Guidelines
Free training for operators and maintenance personnel
after promotion
Communicating with us in time will help the normal operation of the equipment
Free installation guide debugging
One year warranty
Lifetime spare parts supply and maintenance guidance
Production Technology Consulting
