Cost Effective Small IP PBX UC100 Product, Wifi, LTE, VoIP

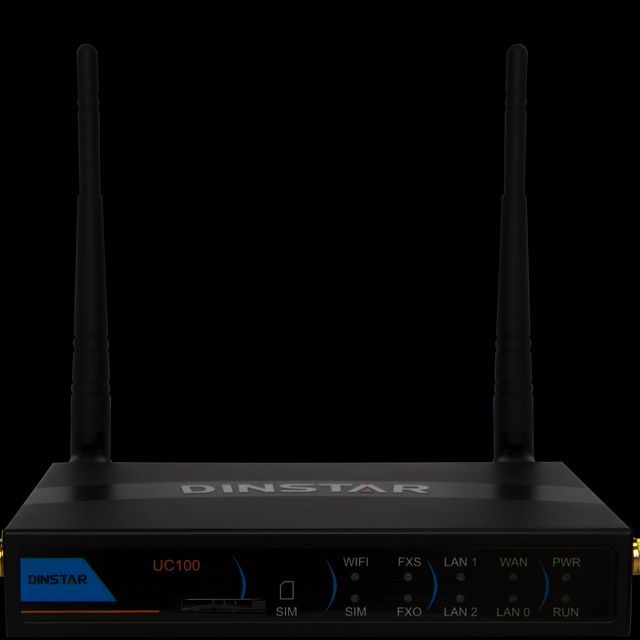

UC100 is a multi-functional gateway that integrates FXO landline voice, 2G/3G/4G VoLTE network, and SIP trunk VoIP into one. On the other hand, it provides high-speed mobile Internet service through LTE 4G/WCDMA 3G network.

UC100 supports WiFi and has high-speed data processing capabilities, allowing users to enjoy high-speed Internet access through WiFi or LAN ports. UC100 has VPN transparent transmission function, very suitable for personal use. At the same time, it is very suitable for small and micro enterprises, providing high-speed Internet access, good voice service and SMS service.

Main features:

• FXS/FXO/GSM/LTE interface on a single device
• Send/receive calls from PSTN/PLMN via FXO/GSM/LTE
• Flexible dial plan, by time, number, source IP, etc.
• IVR customization
• High-speed NAT forwarding, support WIFI hotspot
• Built-in SIP server, supports up to 32 SIP extensions
• Humanized web interface, multiple management methods

Physical interface:

• FXS ports: 1

• FXO ports: 1

• SIM slots: 1

• Ethernet interface

1WAN&3LAN 10/100 Base-T RJ45

• WIFI 2.4GHz 802.11b/g/n, 2T2R

foreign exchange:

• Connector: RJ11

• Caller ID: Bellcore Type 1&2, ETSI, BT, NTT and DTMF

• Answer and disconnect signals: answer, disconnect, busy tone

• Polarity reversal

• hook flash

FXO:

• Connector: RJ11
• Caller ID: FSK, DTMF
• Polarity reversal
• response delay
• Busy tone detection
• No current detection

 Mobile:

• GSM/GPRS/EDGE: 900/1800MHz
• WCDMA(3G): UMTS/HSDPA/HSPA+ B1/B8 TD-SCDMA B34/B39
• LTE(4G): TDD-LTE B38/B39/B40/B41, FDD-LTE B1/B3/B7/B8
• SIM/USIM: 1 USIM per channel
• SIM card: 1.8V, 3.0V
• Antenna: 3.0dB, SMA interface
• SMS/USSD

Voice function:

• VoIP protocols: SIP over UDP/TCP/TLS, SDP, RTP/SRTP
• Codecs: G.711a/µ method, G.723.1, G.729A/B, iLBC, G.726
• Mute suppression
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)
• Echo Cancellation: G.168, up to 128ms
• Dynamic Jitter Buffer
• Adjustable gain control
• Automatic Gain Control (AGC)
• Call progress tones: dial tone, ringback tone, busy tone
• Fax: T.38 and straight-through
• NAT: STUN/UPnP
• DTMF: RFC2833/SIP message/in-band

Supplementary Services:

• Call forwarding (unconditional/no answer/busy)
• call waiting
• call on hold
• Call forwarding
• hotline
• do not disturb
• 3-way conference
