Huawei VoIP PoE USB Phone Expansion Module 7903X

Supplier: Shanghai Kaifei International Trade Co., Ltd.
Region: Shanghai, China
Contact: Mr Icegreen Guan
Price: $100.00 /set
Min. Order: 1 set

Click here to contact

Product details

weight:	about 0.9 kg	Six-Party Local Meetings:	supported
Network protocol:	TCP/IP,SIP,SDP,UDP,RTP,RTCP,DHCP,DNS,PPPoE,HTTP,HTTPS,SNTP,XCAP	Packaging Details:	huawei original bag
brand:	Huawei	model:	eSpace 7903X
Headphone port:	RJ-9/USB	exhibit:	5-inch color screen, 800 x 480 pixels, 16 million colors
aspect:	217mm x 208mm x 124mm	place of origin; place of origin:	Guangdong, China
Supply capacity:	200 sets of Huawei VoIP Phone PoE USB Expansion Module 7903X per week	type:	online telephone
payment terms:	L/C, T/T, Western Union, Paypal	energy consumption:	About 6.49W
port:	Shanghai	network port:	2 GE interfaces, 10Mbit/s, 100Mbit/s, 1000Mbit/s adaptive, support PoE
Embedded Bluetooth:	supported	Name:	Huawei VoIP Phone PoE USB Expansion Module 7903X

Huawei VoIP Phone PoE USB Expansion Module 7903X

Product Description

Huawei IP Phone 7900 series is a new generation of IP phones with excellent performance. The innovative design is intuitive and easy to use, enabling users to benefit from efficient communication.

Slim design

Compared to clunky traditional IP phones, the IP Phone 7900 Series features a sleek, advanced design that provides a clean and stylish experience.

Crystal-clear full-range high-definition (HD) audio performance

Based on profound insights into acoustic science, Huawei has pioneered revolutionary audio technology to deliver superior sound quality.

ergonomic design

Based on an in-depth analysis of user habits, Huawei has created an elegant and ergonomic design for the handset and adjustable base, bringing users a comfortable feel and the best view.

Gigabit Ethernet (GE) port and color screen

Color screen IP phones 7900 series are equipped with GE interfaces and support Opus full-band voice codec. These features support high-bandwidth services, making the IP phone 7900 series the best choice for cost-effective IP phones for enterprises.

Consistent experience across terminals

IP Phone 7900 series phones use the same user interface (UI) style as other Huawei Unified Communications (UC) endpoints to provide a consistent and easy user experience

feature

VoIP 7910

eSpace 7910 has a 2.83-inch color screen and supports three SIP accounts. Its graphical user interface (GUI) provides a rich operating experience. It also provides a user-friendly man-machine interface (MMI) and feature-rich programmable buttons to provide high-quality call services.

Screen
Color 2.83-inch screen, 320 x 240 pixels, 260,000 colors
button
Two line keys, red and green dual-color LED, support up to 12 concurrent calls
Ten programmable buttons with red and green bi-color LEDs
Four fixed-function buttons with red LEDs, including speaker, headset, mute, and call log
Seven fixed-function buttons without LEDs, including Home, Messages, Volume, Contacts, Hold, Conference, and Transfer
Four easy-to-use softkeys activate on-screen options
Five navigation buttons including up, down, left, right and ok
port
Two GE ports supporting Power over Ethernet (PoE)
One RJ-9 headphone port

Voice and Security

Opus full-band speech codec with sampling frequency up to 48 kHz
Hi-Fi speakers, earpieces and headphones
Comprehensive signaling and media stream encryption

like

ring

10 system ringtones
Flexible Ringtone Selection
ringtone import

wallpaper

12 System Wallpapers
Large wallpaper selection
wallpaper import

manage

local configuration

LCD screen GUI for local call management

Built-in web server

Web configuration page for easy phone management

Huawei eSight

eSight is a unified network management system (NMS) that provides a variety of IP phone management functions, including batch restart of phones, centralized configuration of phones, unified deployment, unified upgrade, log export, centralized wallpaper and ringtone update

application

GUI
consistent user experience
Human-machine interaction on the HMI, with the help of softkeys
Versatile and easy to operate
local six-party meeting
Easily host and manage local multiparty conferences with up to six people
Powerful conference status display for easy identification of participants
Convenient Conference Control
contact person
Up to 1,000 contacts
contact group
Contact information (including avatar) settings
Lightweight Directory Access Protocol (LDAP) directory
IP phone LCD screen Efficient keyword query enterprise contact information
Multi-keyword fuzzy search
Click to dial to search for contacts
Synchronize with corporate directory via LDAP

call records
Up to 100 records for each dialed, received, and missed call
Missed call LED indication
Detailed call information such as profile picture and call duration
Dial directly from the call log
Easily add numbers from call log to contact list
application
XML browser support
Allows use of third-party XML applications
Widely used in UC/CC/IMS solutions

IP Phone 7900 series IP phones can be used in Huawei UC solutions, providing rich functions such as corporate contacts, linkage, and one-key switching. They also support multiple registrations and server redundancy to help ensure high reliability.

In Huawei's Contact Center (CC) solution, IP phones 7900 series work with agent desktops to provide voice call services. The IP Phone 7900 series can also apply Huawei's IP Multimedia Subsystem (IMS) solution to provide basic IP Telephony (IPT) services.

extension module

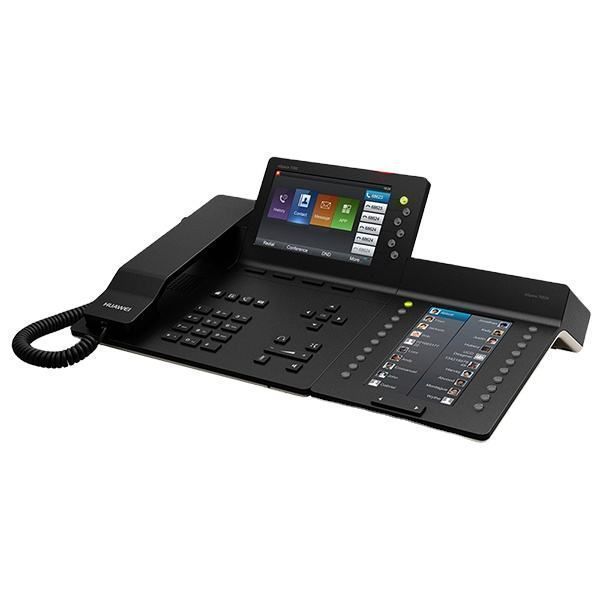

The 7903X expansion module (shown installed on the IP Phone 7950) is used with the IP Phone 7950 for functional expansion.

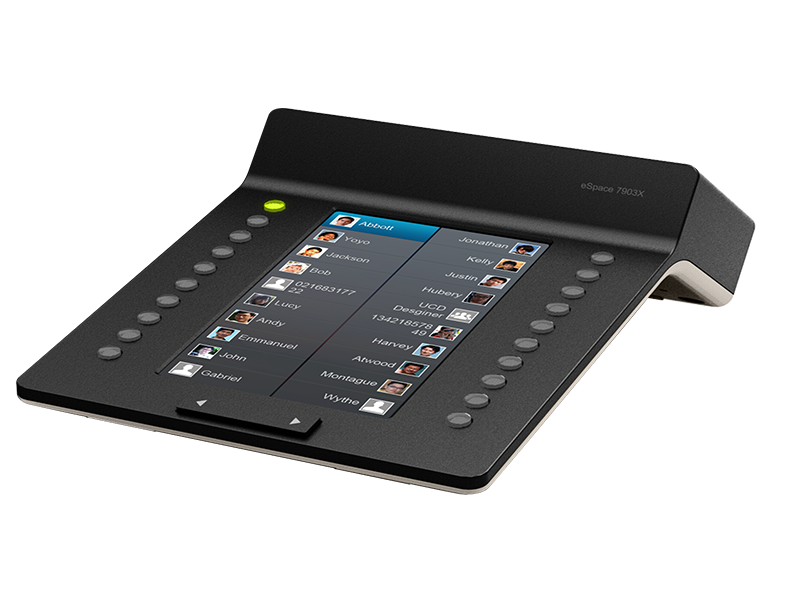

eSpace 7903X

The expansion module 7903X is a multifunctional IP phone expansion module. A single expansion module 7903X expands the IP Phone 7950 to provide an additional 40 programmable buttons and optimize viewing through a 5-inch color LCD screen.

True Color 5" screen, 480 x 800 pixels (high resolution), 16 million colors
20 programmable buttons with red and green bi-color LEDs to indicate different line states and provide multiple functions including speed dial, busy lamp field (BLF), contact group, XML application, phone lock, phone sleep, call Transfer, Pickup, Group Pickup, Call Park, and Do Not Disturb (DND)
Two page-turn buttons with single-color LEDs provide access to an additional 20 programmable buttons (total of 40 buttons)
Icon display for multiple functions, including phone lock, phone sleep, XML application and contact group
Contact's profile picture display

Product Details

category	parameter	7910	7950
protocol	Network protocol	TCP/IP, SIP, and SDP UDP, RTP, and RTCP DHCP, DNS, and PPPoE HTTP, HTTPS, SNTP, and XCAP
mobile phone function	Multi-line	6	12
	multiple accounts	3	6
	audio codec	G.711a, G.711μ G.722, G.722.1, G.722.2 G.729AB, iLBC, Opus, AAC-LD
	audio function	• Dual Tone Multi-Frequency (DTMF): In-band/RFC2833 • Anti-clipping (ACLP) • Acoustic Echo Cancellation (AEC) • Automatic Gain Control (AGC) • Adaptive Jitter Buffer (AJB) • Automatic Noise Reduction (ANR) • Comfort Noise Generation (CNG) • Hearing Aid Compatibility (HAC) • Packet Loss Concealment (PLC) • Voice Activity Detection (VAD) • Sidetone cancellation • Voice Quality Monitor (VQM) • Hum cancellation
	call records	• Up to 100 records for each dialed, received and missed call • Missed call notifications
	contact person	• Up to 1,000 contacts • Contact query, import, export
	language	exhibit: Chinese (simplified and traditional) English, Portuguese, Spanish, French, Arabic, Turkish, Russian German, Polish and Hungarian enter: Chinese (simplified and traditional) English, French, Portuguese Spanish, Arabic, Polish, Hungarian and Russian
	ring	• 10 system ringtones • Ringtone import
	wallpaper	• 12 system wallpapers • Wallpaper import function
	local meeting	• 6-way audio conferencing • Participant status display • Add, mute, remove participants, etc.
service application	Basic voice service	Call Waiting, Call Hold, Call Forwarding, Call Forwarding, Call Deflection Do not disturb Advanced Secretarial Services call park pick up group pickup Featured Ring automatic call back Voicemail Abbreviated dialing BLF paging broadcast hunt group Password-based call barring Emergency call
	company directory	Contact query, direct dial, add contacts to the local address book
	Name and department display	Incoming and outgoing calls display the other party's name, department, phone number
	Profile picture display	Incoming and outgoing calls display the other party's avatar
	chain	• Call control using desktop client • Status synchronization between Desktop Client and IP Phone 7910/7950
	Call Recording	• Record audio calls • Recorded information saved on the server • Recording control (start or stop) on IP Phone 7910/7950
	instant meeting	Instant audio conferencing with the conference button
	group meeting	Audio conference with participants in a contact group

Specification

parameter	7910	7950
Screen	2.83 inches, 320×240 pixels, 260,000 colors, color screen	5 inches, 800 x 480 pixels, 16 million colors, color screen
led	Line, Message Waiting Indicator (MWI), Mute, Speaker, Call Log, Headset, and Programmable Button LEDs
angle adjustment	2 adjustable angles
button	• 2 line buttons • 5 navigation buttons (up, down, left, right, OK) • 10 programmable buttons • 4 softkeys • 4 fixed function buttons with LEDs (speaker, headset, mute and call log) • 7 non-LED fixed function buttons (Home, Messages, Volume, Contacts, Hold, Conference and Transfer	• 6 line buttons • 5 navigation buttons (up, down, left, right, OK) • 4 softkeys • 4 fixed function buttons with LEDs (speaker, headset, mute and call log) • 5 non-LED fixed function buttons (Home, Messages, Volume, Contacts and Forward
ethernet port	2 GE interfaces: 10/100/1000Mbit/s adaptive, support VLAN configuration
mobile port	RJ-9
headphone port	RJ-9	RJ-9/USB
Power supply	Level 1	level 2
Power Adapter	Input: 100V to 240V AC Output: 5V DC, 2A
aspect	9" x 8.1" x 4" (231mm x 208mm x 103mm)	8.5" x 8.1" x 4.8" (217mm x 208mm x 124mm)
energy consumption	About 3.84W	about 6.49W
weight	Approx. 1.8 lbs (0.85 kg)	Approx. 1.9 lbs (0.9 kg)

Packaging and Shipping

Trade information

Trade terms: FOB, CIF, CFR, etc.
Price terms: L/C, D/P, T/T, Western Union, PayPal
Payment terms: T/T in advance
MOQ: 1 piece
FOB price: US $1 - 1,000 / piece
Port: Shanghai
Delivery time: within 5 working days after payment received.
Shipment: by express, by air, by sea
Supply Ability: 200pcs/piece per week
Sample availability: yes (not free)
