Hot Sale Concrete Machine !!! 350L Diesel Concrete Mixer for

Supplier: Guangzhou AJ Building Material Co., Ltd.
Region: Guangdong, China
Contact: Mr Oscar Ou
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Productivity:	10-14m3/h;	Outline Dimension:	315022003200mm(LWH);
Charging Capacity:	560L Concrete Mixer;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Cash;
Place of Origin:	Guangdong China (Mainland);	Weight:	1700kgs;
Warranty:	1 Year;	Motor Power:	16HP/18HP Concrete Mixer;
After-sales Service Provided:	No after-sales service;	Tank Volume:	100L;
Maximum size of aggregate:	60mm;	Brand Name:	AJ Concrete Mixer;
Packaging Detail:	Concrete Mixers are packed in bubble plastic bags;	loading plan:	2 sets/20GP, 6 sets/40HQ;
power of water pump:	1.1kw;	Working Cycle Period:	10-14 m3/h Concrete Mixer;
Mixing Power:	16HP/18HP Concrete Mixer;	Thickness of Mixing Drum:	6-8mm;
Max trailing speed:	20km/h;	Reclaiming capacity:	350L Concrete Mixer;
Supply Ability:	1000 Set/Sets per Month;	wheel:	2 wheels;
Speed of Mixing Drum:	14r/min Concrete Mixer;	Port:	Huangpu, Guangzhou;
Discharge Way:	Reverse-Rotation;	Water Supply Mode:	adjustable time relay;
Condition:	New;	Hopper tipping:	by wire rope;

We Promise 100% real picture of product in real environment

Hot sale!!! 350L Diesel Concrete Mixer for Sale With 10-14m³/h Productivity, Guangzhou Manufacturer

Product Description

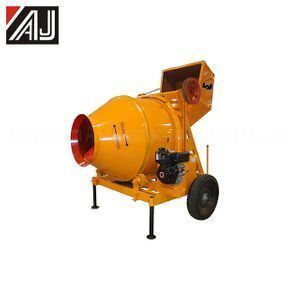

Description of JZC350 Diesel Concrete Mixer:

Diesel Concrete Mixer is mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.

Diesel Concrete Mixer is featured by diesel engine power, wire rope tipping hopper, novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, It is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.

Features of JZC350 Diesel Concrete Mixer:

1. All-steel construction, Concrete Mixer has long life span.

2. Large wheels, It's easy to move the Concrete Mixer to anywhere.

3. Diesel Concrete Mixer is energy saving and environment friendly.

4. Cast iron gear Diesel Concrete Mixer steady and silent working.

5. Painted surface, Diesel Concrete Mixer is rust- proof.

Technical Parameter of JZC350 Diesel Concrete Mixer:

Main Technical Parameter
Model	JZC350 Diesel Concrete Mixer
Engine Type	Water-cooled Diesel Engine, Air-cooled Diesel Engine
Diesel Engine Power	16HP/18HP
Charging Volume	560 L
Discharging Volume	350 L
Productivity	10-14m³/h
Speed of Mixing Drum	14r/min
Drum Thickness	6-8mm
Maximum Size of Aggregate	60mm
Power of Water Pump	1.1kw
Accuracy of Water Supply	Error≤2Percent
Type of The Tires	6.50-16
Max Trailing Speed	20km/h
Overall Dimension	3150×2200×3200mm
Weight	1700KG
Loading Plan	2sets Per20GP, 6sets Per40HQ for Concrete Mixer
