Solar panel pack with battery all outdoor solar system energy storage system

Click here to contact
Product details
Origin:Shandong ChinaPackage preview:
Packaging Details:One package includes: 1pc solar panel, 1pc battery, 1pc charge controller, 1pc waterproof case, 1pc stand, 1pc user manual and 1pc warranty card.port:Qingdao
Supply capacity:100 sets per weekInput voltage:12V
payment terms:L/C, Western Union, T/T, MoneyGramproduct name:Solar system 30Kw completed
brand:day onewaterproof:IP67
model:TV-30W10A-KL
Product Description
solar kit
-low power system
-Suitable for small weather stations
-Efficient silicon battery
- One-piece kit for easier installation
- Low cost and high endurance

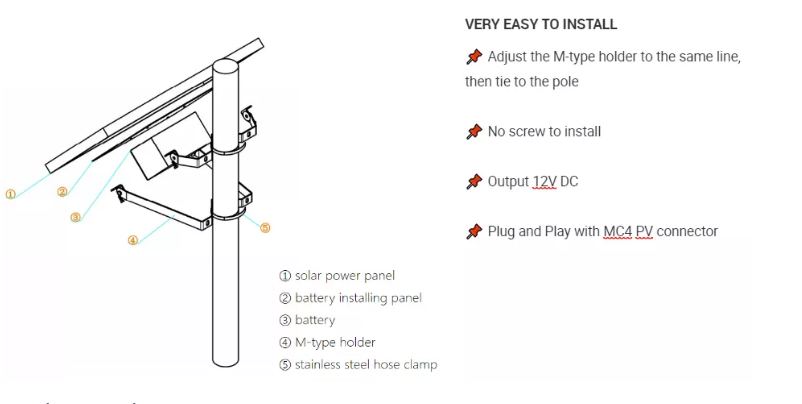

.all in one bracket
Lithium battery and solar charge controller are integrated in the bracket, there are 2
The wires from the bracket are connected to the solar
Panels and loading equipment.

10A PWM solar controller in the bracket, manage charge and discharge intelligent regulation charge, high
The conversion rate is high, and multiple safety protections work at full load for a long time to enter the protection state.


Support small wholesale, online wholesale, OEM customization, customized LOGO, foreign trade orders, no boxes,
Support distribution agents. We have a complete range of goods, reasonable prices, stable supply, and provide pictures
contact us:
sales manager-roget
Phone/WhatsApp/WeChat- 008613156985651
roget@tenyir.com
URL - www.wq-link.com
Specification

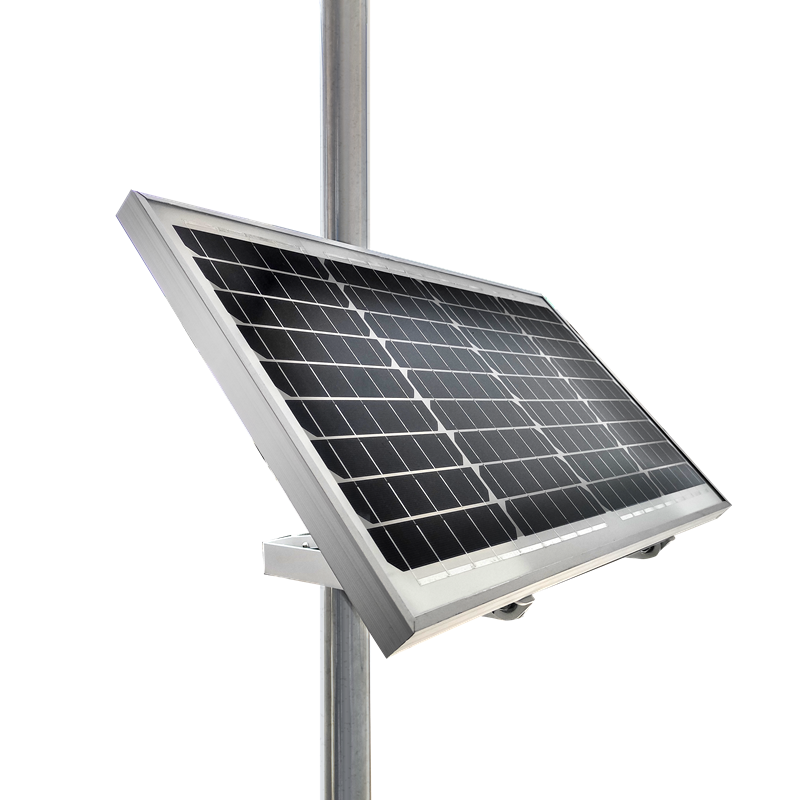

Solar panels
30w 18v monocrystalline silicon solar panel*1
Model
WQ-18V-30W
Maximum power at STC (Pmax)
30W
Maximum supply voltage (Vmp)
18V
Maximum power current (Imp)
2.00A
Open circuit voltage (Voc)
21.6V
Short circuit current (Isc)
2.27A
aspect
650*350*25MM
Battery
20ah ternary polymer lithium battery*1
Rated voltage
11.1V
Nominal capacity
20A
Short circuit protection
Yes
continuous current
12A
Maximum pulse current
20A
Operating Voltage
7.8V~12.6V
aspect
200*120*75mm, 1.6kg
controller
10A pwm solar controller*1
system voltage
12V
Rated charging current
10A
Rated discharge current
10A
Maximum panel voltage
<50V
float current
12.6V
overcharge voltage
9.3V
Over-discharge recovery voltage
11.1V
IoT controller (optional)
Remote control on/off, when the battery is low, send a message to your WeChat. show its battery
Power on the phone
consumer cable
5ADC male cable (1M)
tighten
M6 screw(4)
U-shaped hoop
200-220 U-shaped hoop (2)
Model M IoT Solar Kit
Model
Solar panels
lithium battery
Accessories
application
pack
WQ-S120WH-B
1
*30W 18V
1
*10AH 12V
10A PWM*1pcs
U-shaped hoop 200-
220*2
IoT sensor
battery standby
3*24 hours
300*450*210mm
15 kg
WQ-S240WH-B
1
*30W 18V
1
*20AH 12V
10A PWM*1pcs
U-shaped hoop 200-
220*2
IoT sensor
battery standby
7*24 hours
300*450*210mm
15 kg
a

Including solar panels, lithium batteries, PWM controllers, brackets, and a solar power generation system in one. The integrated design is easy to install and simplifies field wiring.
