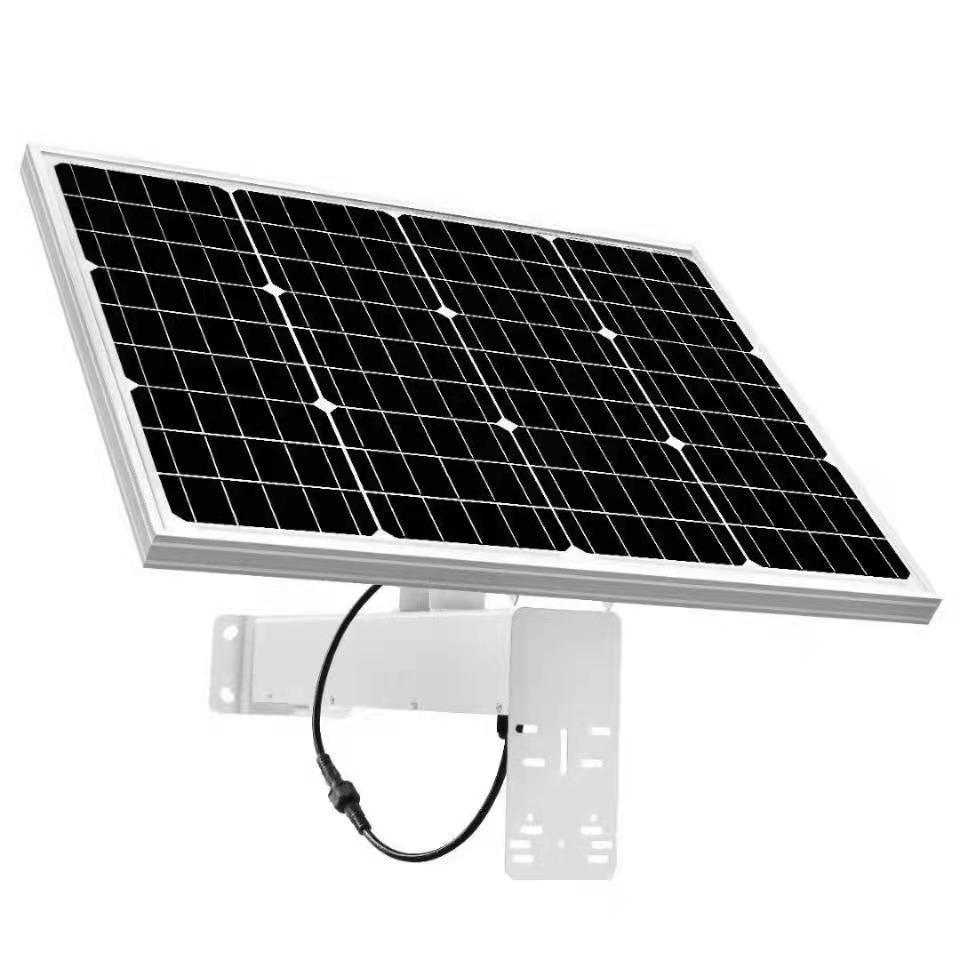

Solar panel for all 4G wifi cameras or IP PTZ cameras 30W-20A/H solar battery 30W 18v charging about 2 hours

Supplier: Shenzhen Anxinshi Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Eddy Que
Price: $77.50 / 2 - 19 pieces
$74.50 / 20 - 99 pieces
$71.50 / >=100 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Supply capacity:	5000 pieces per month	Maximum power (Pmax):	30W
Short circuit current (Isc):	1.83A	Packaging Details:	Packaging Details: Standard Carton Packing/Carton Packing Camera: 1pc Product Manual: 1pc Screw Bag: 1pc
place of origin; place of origin:	Guangdong, China	product name:	30W 18v solar panel
brand:	Mingshengda	Input voltage:	18v
waterproof:	ip66	model:	SUN30W-20A/H
Open circuit voltage (Voc):	21.4V	Maximum power current (Imp):	1.66A
Battery nominal capacity:	20AH	payment terms:	L/C, Western Union, T/T
Maximum supply voltage (Vmp):	18V

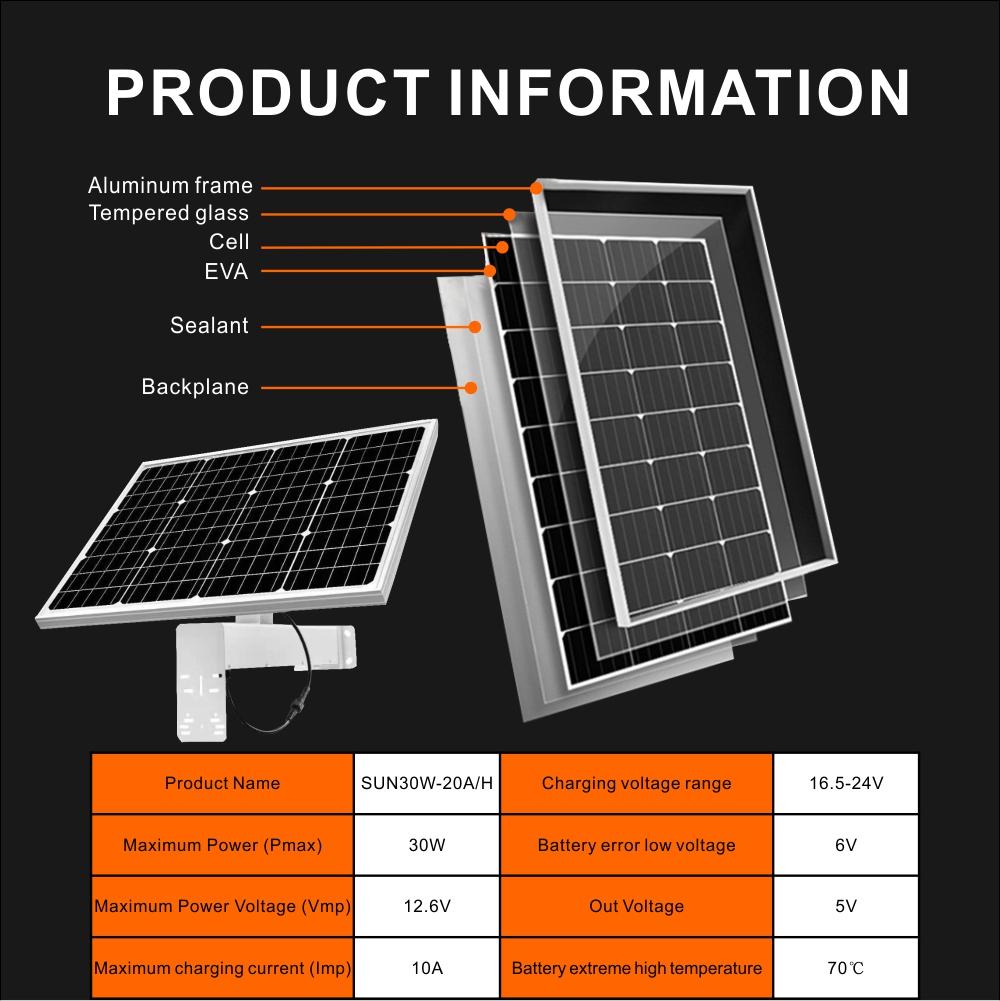

Product Description

1. Grade A monocrystalline silicon solar panel, 30W/12V 2. Lithium battery can be equipped with 20AH 3. Maximum output: 12V5A 4. Ordinary camera can supply power for at least 48 hours. 5. Special waterproof box for battery, with switch, aluminum alloy bracket 6. 2 dedicated DC interfaces for cameras 7. Suitable for 4G dome camera, or ordinary network camera (wireless bridge transmission)

technical parameter
model	SUN30W-20A/H
Solar panels
Maximum power (Pmax)	30W
Maximum supply voltage (Vmp)	18V
Maximum power current (Imp)	1.66A
Open circuit voltage (Voc)	21.4V
Short circuit current (Isc)	1.83A
cell type	Grade A monocrystalline
cell number	36 (4×9)
aspect	643618mm (single solar panel)
weight	3.5kg (single solar panel)
front glass	3.2mm, AR coating, high light transmission, tempered glass
frame	aluminum alloy
Battery
Nominal capacity	20AH
The output voltage	DC12V (2 DC interfaces)
Output current	≤5A
Internal resistance	≤300mΩ
Charging batteries	Standard charging: 2A, fast charging: 4A
full charge time	8 hours
cycle life	> 500 times
overcharge protection	DC12.6V
Over discharge protection	DC9V
charging temperature	0℃~45℃
discharge temperature	–20℃~60℃
Storage temperature	–20℃~40℃
weight	3 kg
power supply time	Power supply time = (battery capacity × output voltage) / camera power
Maximum power/average power (calculated based on 4G camera power)	22 hours / 31 hours

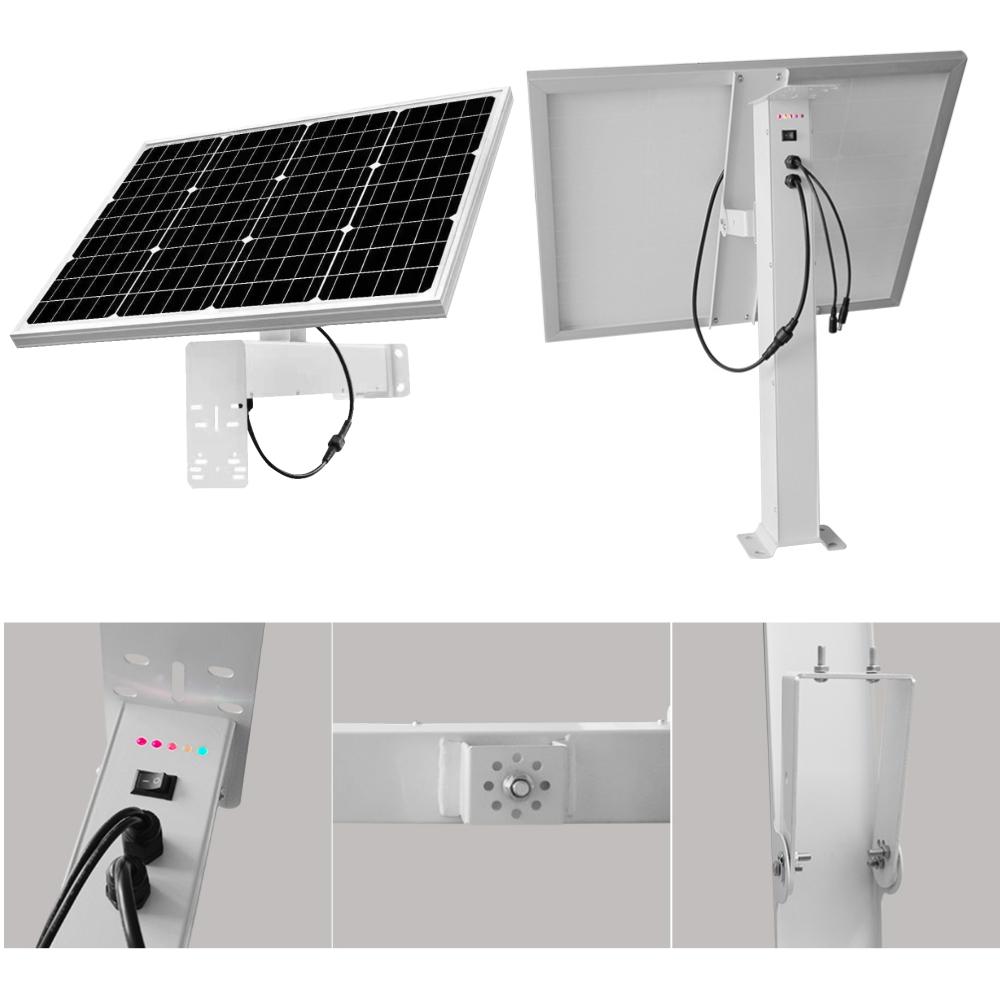

brackets
installation method	Wall-mounted
aspect	640360180mm
weight	6.5 kg
others
packing list	Solar panel × 1, lithium battery × 1, bracket × 1, expansion screw × 4
gross weight	9.5 kg
