3M9735 Surface Grinding and Milling Machine for Cylinder Block and Head Block

Product details
Applicable industries:Restaurant, Farm, Home, Manufacturing, Energy and Mining, Clothing Store, Retail, Food and Beverage Store, Construction, Advertising Agency, Food Store, Printing Shop, Machinery Repair Shop, Building Materials Store, Food and Beverage Factory, HotelYear:2022
Mechanical test report:ifDimensions (L*W*H):3000*1150*2200
Grinding length (mm):1500Showroom location:not any
Package preview:Voltage:220/380V
Surface roughness (μm):0.32 micronsbrand:Shuichi
Weight (kg):2800Marketing Type:New Products 2020
CNC or not:normalCore component warranty:1 year
Supply capacity:100 pieces per monthWarranty:1 year
Table travel (X) (mm):1500Health status:new
Table size (mm):1500*500Video shipment inspection:if
payment terms:L/C, Western Union, T/TMain selling points:easy to operate
Core components:Motors, Bearings, Pumpsport:Shanghai
Table travel (Y) (mm):600Origin:Anhui, China
Packaging Details:Our machine is covered with plastic film and fixed with steel wire inside, it will be well protected during transportation.Power (kW):5
Model
3M9735*1300
3M9735*1500
table size
1300*500MM
1500*500MM
Maximum processing length
1300MM
1500MM
Maximum processing width
350mm
350mm
Spindle travel
600mm
600mm
processing height
600mm
600mm
Grinding wheel vertical travel
100mm
100mm
Sand tile diameter
360mm
360mm
Spindle motor speed
100-1400 rpm
100-1400 rpm
Sand wattage
10
10
Spindle motor power
4KW
4KW
Feed motor power
0.75KW
0.75KW
cooling motor power
40W
40W
weight
2600KG
2800KG
Dimensions
2900*1150*2200MM
3000*1150*2200MM
3M9735

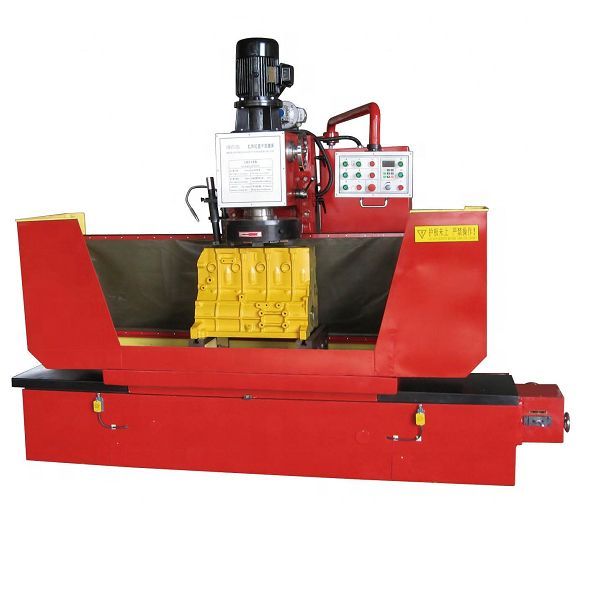

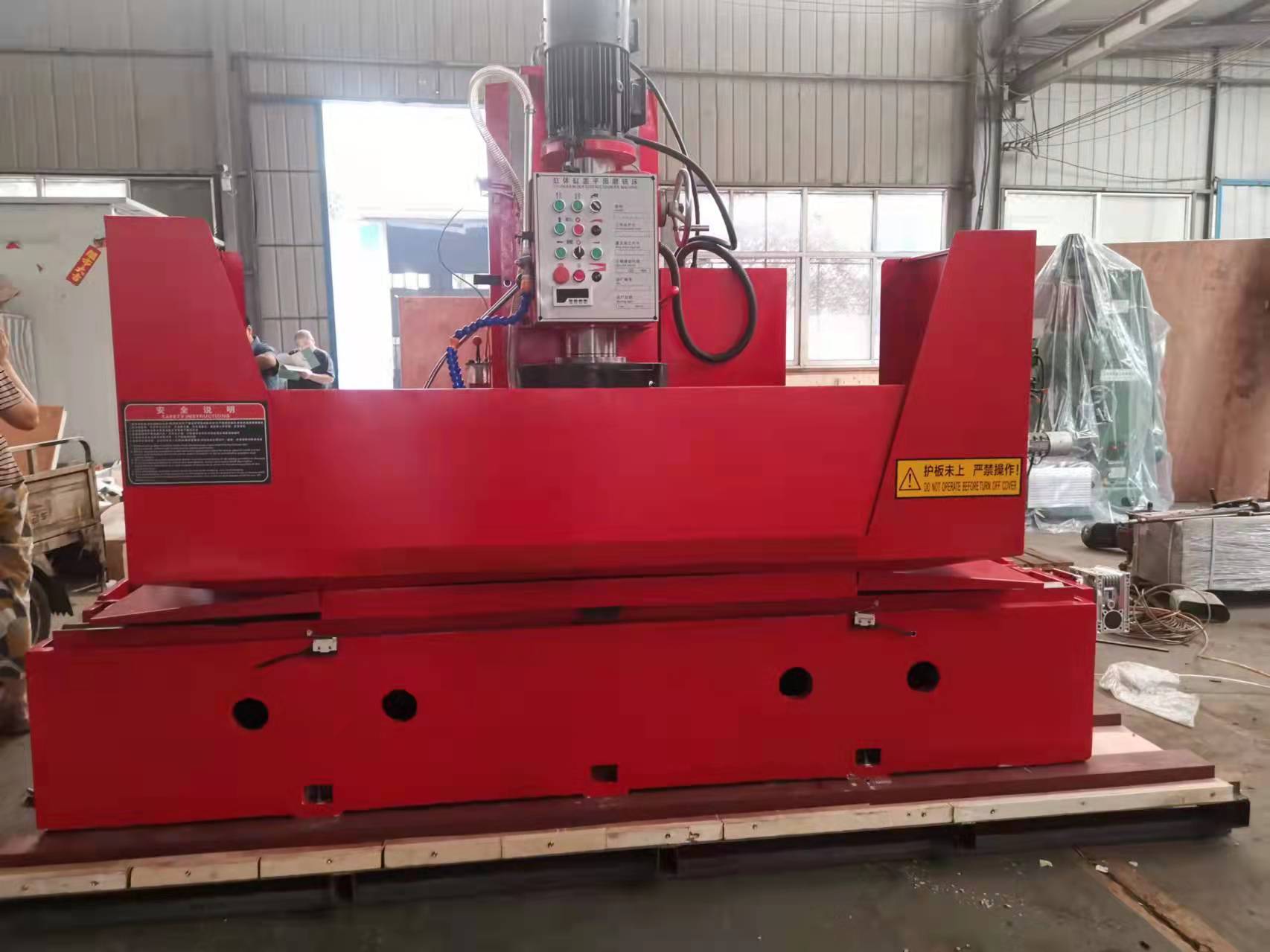

The cylinder block grinding and milling machine is suitable for grinding the cylinder block and end cover plane of various motors.
Structural features:
1. The main shaft adopts high-precision bearings with high machining accuracy.
2. The machine runs smoothly with little resistance.
3. The movement of the workbench adopts frequency conversion stepless speed change, which is suitable for processing parts of different materials.
Q1: How long the warranty period do you offer? / How about the warranty?
A1: 12 months guarantee after machine on board.

Q2: What services can you enjoy during the warranty period?
A2: Free replacement parts during the warranty period. Cost value replacement parts out of warranty. Be quick to act and respond to technical questions anytime.

Q3: Can you provide training for operating CNC machines?
A3: Yes, free training or engineer overseas service can be provided in our factory according to customer requirements (the relative cost is borne by the customer.

Q4: Can you provide customized machine or special machine?
A4: Yes, we provide customers with different kinds of processing solutions to meet different requirements.

Q5: Can we visit your factory before order?
A5: Of course, we warmly welcome you to visit our factory at any time. The more you know us, the more you trust us! Therefore, you can rest assured to use our high-quality products and best service.
