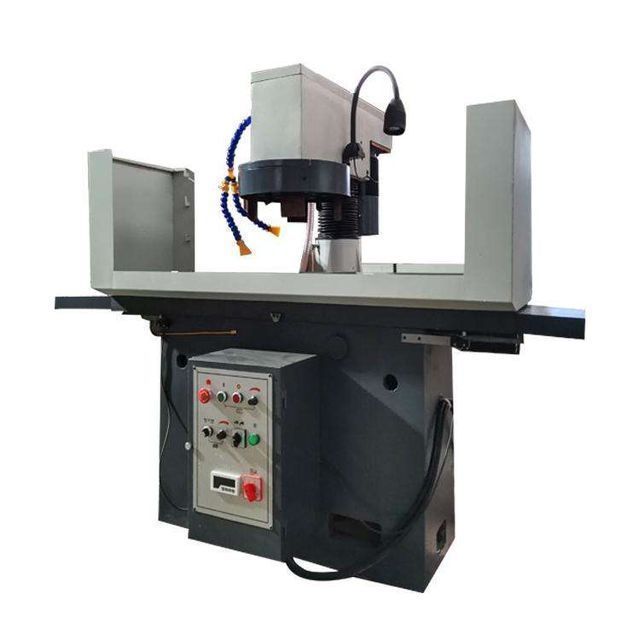

TSM850 Cylinder Block Cylinder Head Plane Milling Machine Surface Grinder Automobile Cylinder Head
- 10000.00 1 - 6999 pieces
- 3000.00 >=7000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Main selling points: | competitive price | Origin: | Jiangsu, China |
| payment terms: | L/C, Western Union, T/T | Table travel (Y) (mm): | 160 |
| Power (kW): | 2.25 | Surface roughness (μm): | 0.03 micron |
| Voltage: | 220V/440V 50HZ | Grinding length (mm): | 850 |
| Dimensions (L*W*H): | 1720*870*1630mm | Core component warranty: | 1 year |
| Warranty: | 1 year | Health status: | new |
| brand: | Shuichi | Video shipment inspection: | if |
| Mechanical test report: | if | CNC or not: | normal |
| Packaging Details: | Our machine is covered with plastic film and fixed with steel wire inside, it will be well protected during transportation. | Weight (kg): | 800 |
| Showroom location: | not any | Marketing Type: | New Products 2020 |
| Core components: | Pump | Applicable industries: | Farms, households, energy and mining, clothing stores, retail, food stores, machinery repair shops, building supplies stores, food and beverage factories |
| Package preview: | Table size (mm): | 1115 | |
| port: | Shanghai | Table travel (X) (mm): | 440 |
| Supply capacity: | 100 pieces per month |
Main performance characteristics:
This machine tool is used for grinding (or milling) the joining planes of the engine block and cylinder head. equipped with
The corresponding fixture can also be used for plane processing of other parts.
1. This machine is a vertical grinding and milling machine with high grinding efficiency and high precision.
2. The movement of the workbench of this machine is driven by a geared motor and a ball screw, with frequency conversion and stepless speed regulation, which is convenient and fast
Stable adjustment.
3. Equipped with special fixtures to realize multi-angle grinding cylinders and grinding heads.
4. The castings of this machine are resin sand castings with small deformation and elegant appearance.
This machine tool is used for grinding (or milling) the joining planes of the engine block and cylinder head. equipped with
The corresponding fixture can also be used for plane processing of other parts.
1. This machine is a vertical grinding and milling machine with high grinding efficiency and high precision.
2. The movement of the workbench of this machine is driven by a geared motor and a ball screw, with frequency conversion and stepless speed regulation, which is convenient and fast
Stable adjustment.
3. Equipped with special fixtures to realize multi-angle grinding cylinders and grinding heads.
4. The castings of this machine are resin sand castings with small deformation and elegant appearance.
Product parameter description:
SpecificationsTSM-850
SpecificationsTSM-850
Table stroke 1115mm
maximum. Workpiece length 850mm
maximum. Workpiece width 330mm
maximum. Workpiece height 430mm
Min workpiece height 160mm
Table feed 0÷600mm/min
Milling wheel diameter 330 mm (13")
Milling wheel diameter 330 mm (13")
Tool speed 300÷1200g/min(rpm)
Voltage (+/- 15%) 230V , 400V
stage 1, 3
Minimum degree of protection IP 44
Main motor power 1.5kw
Gear box motor power 0.75kw
Total power 2.25kw
Environmental conditions: temperature 10÷30°C
Humidity15÷90%RH
Weight 800kg
Size length*width*height 1720*870*1630mm
