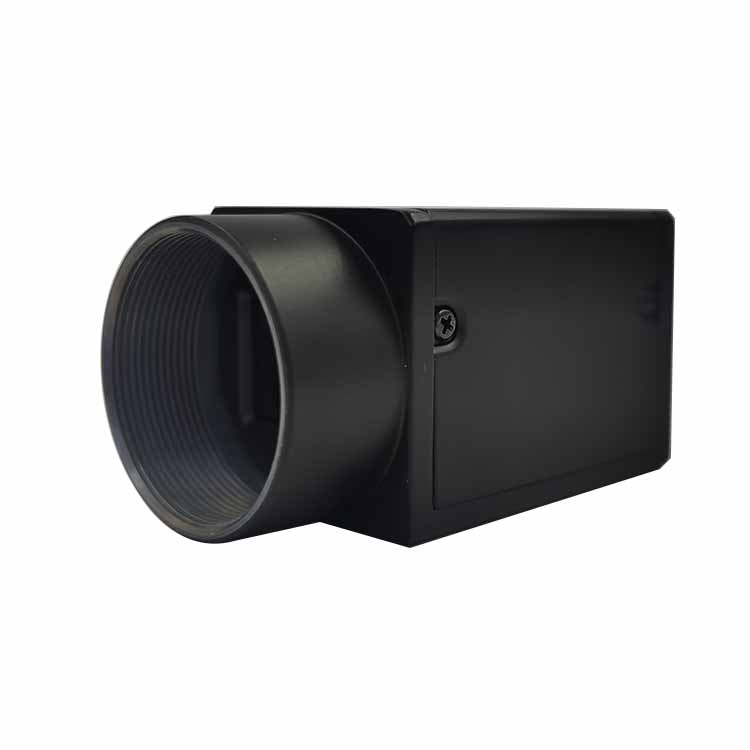

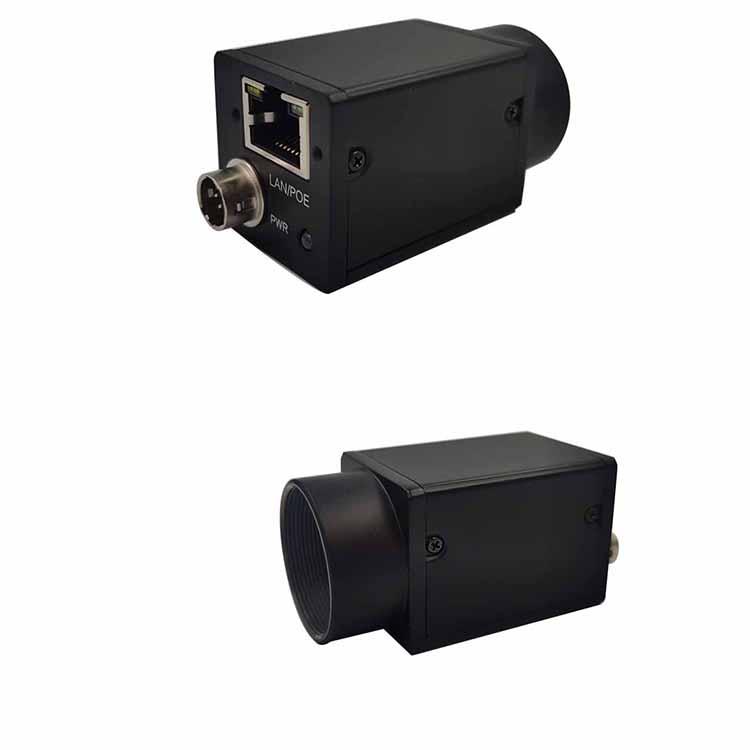

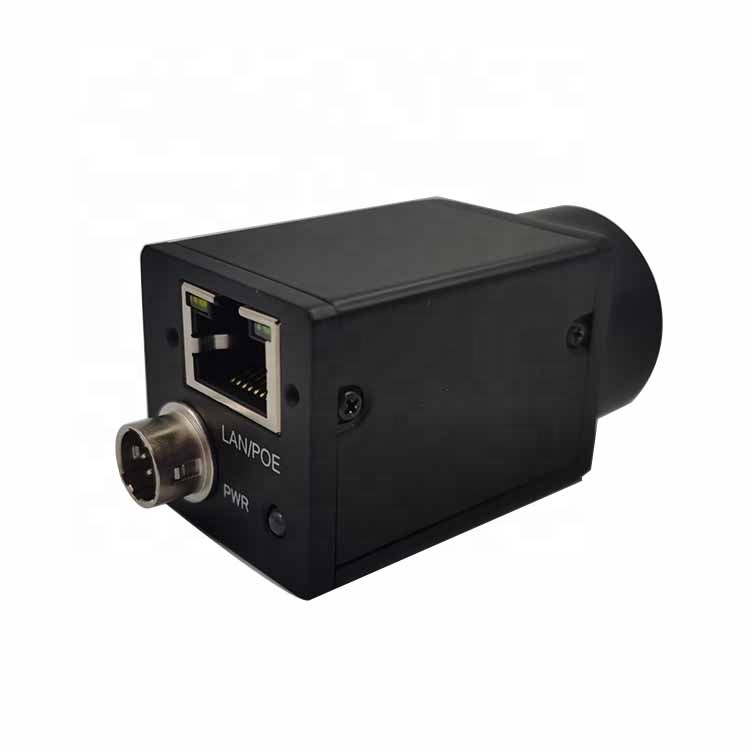

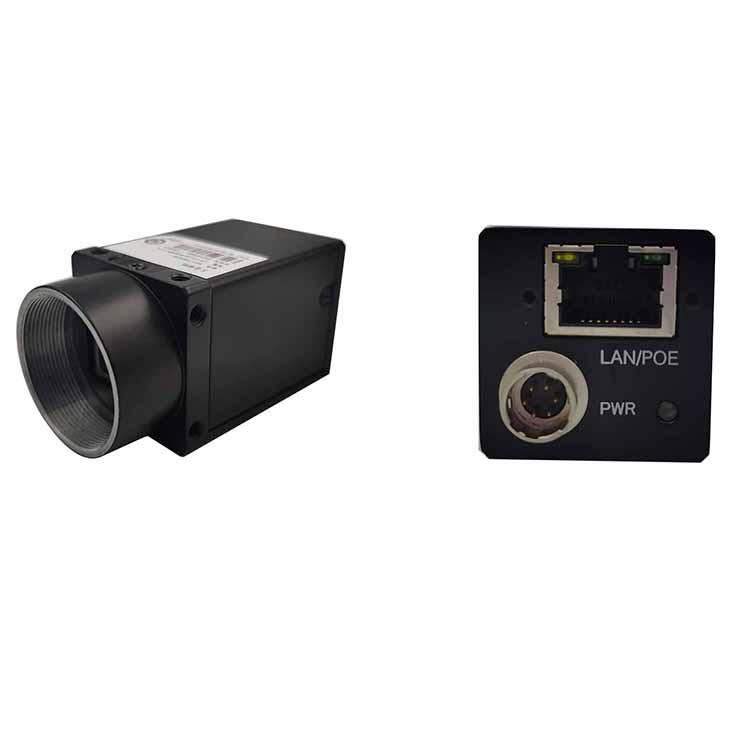

LANO Color Rolling Gigabit Ethernet Gige Industrial Camera Area Scan Camera for Machine Vision Products from Lano Photonics Co., Ltd.

Product Details

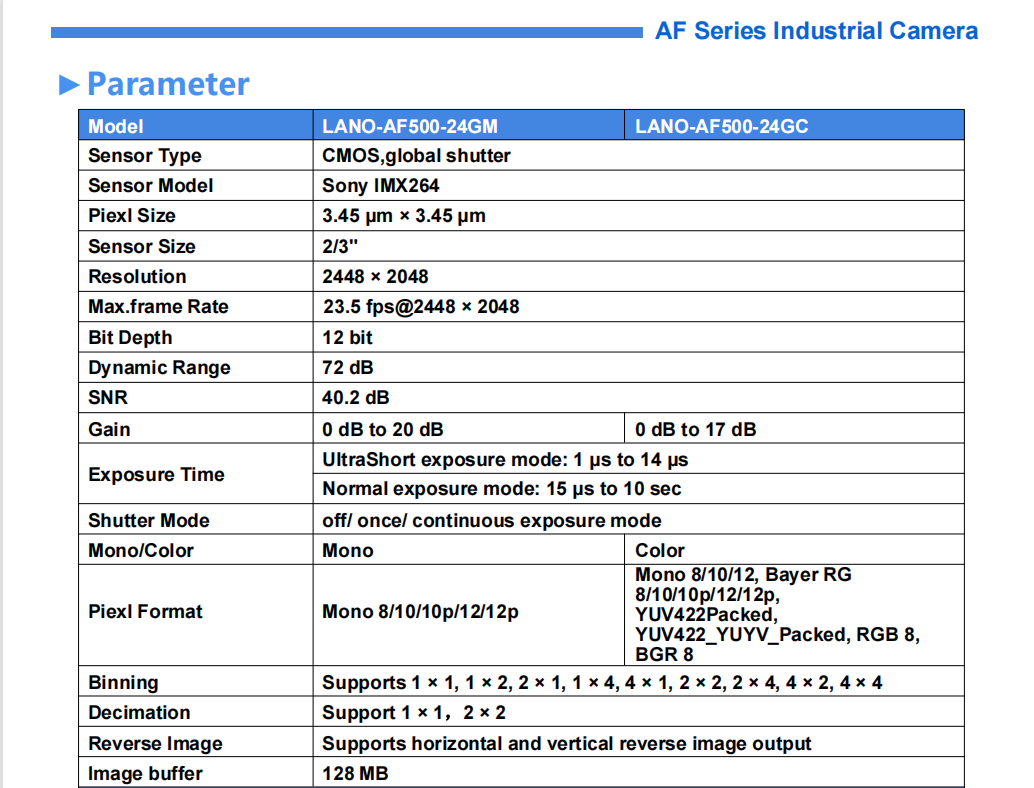

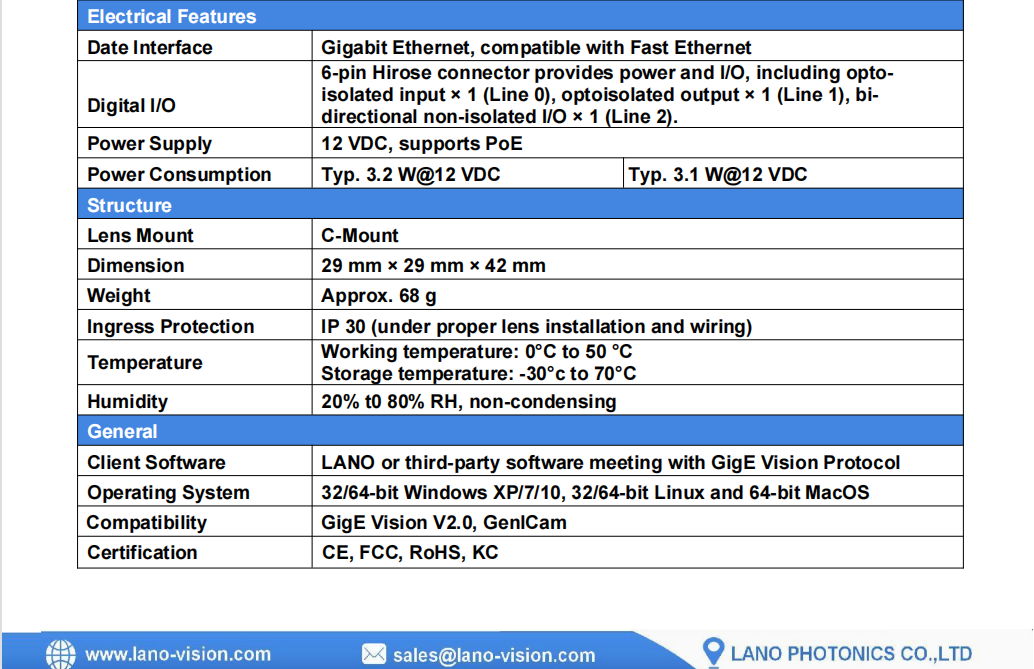

Package preview:		solve:	2448*2048
Maximum frame rate:	23.5 frames/sec@2448 * 2048	Imaging sensor:	IMX249
Date interface:	Gigabit Ethernet, Fast Ethernet compatible	Lens mount:	Type C interface
Sensor model:	Sony IMX264	Private Mold:	Yes
sensor type:	CMOS, global shutter	Image buffer:	128MB
model:	LANO-AF500-24GMGC	Sensor size:	2/3"
screen size:	< 2"	media type:	DVD
Scan speed:	23.5 frames/sec@2448 * 2048	Origin:	Jilin China
brand:	Lano	Pixel Dimensions:	3.45 microns*3.45 microns
Packaging Details:	1. Packaging Details: A. Standard carbon and plastic bubble wrap. B. Safe green carton. C. Customized. 2. Delivery details: within 25 days. (also depends on quantity)	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, paypal

Product Description

LANO-AF500-24GMGC adopts Sony IMX264 sensor and global shutter exposure, which has the characteristics of high definition, high precision and low noise;

Covering multiple resolutions, multiple data transmission methods, and stable performance;

It can be widely used in manufacturing quality control, electronics, semiconductor and component testing, food and beverage, medicine and other fields.

It can also work stably in various harsh environments. It is an industrial camera product with high reliability and high cost performance.

Product advantages

●Support ISP automatic or manual adjustment of sharpness, noise reduction, exposure time, gamma correction, brightness, contrast, etc.
Function.
●Support multiple image data format output, ROI, Binning, mirroring, etc.
●Support hard trigger, soft trigger and free running mode.
●Compact and strong structure, small size, suitable for more severe installation conditions.
Standard GigE Vision, Compatible with GenICam,
GenTL protocol, support third-party image processing software.
