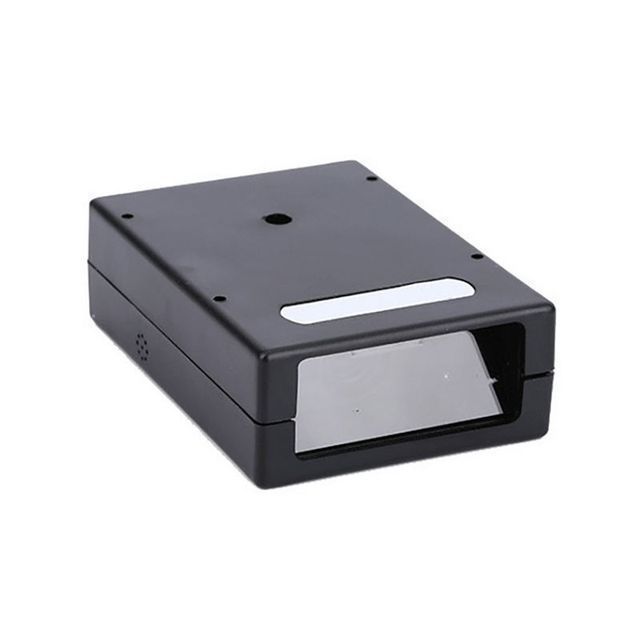

Wired 2d Thermal Scanner Qr Code and Fast Decoding Mini ccd/coms Barcode Reader Module

  • Supplier: Shenzhen Oscan Electronics Co., Ltd
  • Region: Guangdong, China
  • Contact: Ms Selina Huang
  • Price: $58.00 / 2 - 19 pieces
    $55.00 / 20 - 49 pieces
    $50.00 / 50 - 999 pieces
    $32.00 / >=1000 pieces
  • Min. Order: 2 pieces
Product details
Scan mode:1D 2D Qr Code Barcode Scanner USB Cablebrand:OSCY
Gross weight per piece:0.500 kgmodel:OBC-202M
interface:USB2.0Packaging Details:Best Price Wired Portable Handheld USB Barcode Reader Cheap 1D Laser Barcode Scanner Barcode Scanner, Scan Barcode Scanner, Handheld Barcode, 1D Barcode Scanner, Mini Barcode Scanner, Laser Barcode Scanner, Mini Barcode Scanner, 1D Scanner, 2D Scanner, 2D Code Scanner
Sales unit:single productImaging sensor:CMOS
place of origin; place of origin:Chinaindex:Siren and LED lights
Color Depth:32 bitSingle package size:8X5X3 cm
Scan element type:CCD/COMSsize:70.3*50*22.4mm
product name:barcode scanning modulecolor:Black
Scan speed:100 times/secondCertification:CE/RoHS
Warranty (year):1 yearweight:51 grams
Product Description
Two-dimensional wired CCD/COMS module barcode reader, which can scan two-dimensional barcodes on paper and on the screen at the same time
It can be embedded in various devices as a barcode reading component application. Widely used in production equipment, logistics warehousing, banking systems, medical systems, storage cabinets, exhibition halls, ticket inspection machines, vending machines and other fields
Model
OBC-202M
Infrared sensing distance
150 - 200 mm
light source
650nm visible red light emitting diode
Image Resolution
≥4 million
minimum contrast
≥30%
decoding speed
100 times/second
data port
USB
Dimensions (LxWxH)
70.3×50×22.4 mm
Weight (excluding cables)
51 grams
index
Siren and LED lights
Operating Voltage
DC5V
Maximum current
95 mA
recharging current
450mA
Storage temperature
-40°C ~ 60°C
Operating temperature
0°C ~ 50°C
Relative humidity
0 ~ 95%
height range
1.5m
degree of protection
IP52
barcode type
UPC/EAN/JAN,UPC/EAN with supplementals, UCC/EAN128,Code39,MSI,Code11,Code39 Full ASCll, Code39 Trioptic, Code128,Code128 Full
ASCll Codabar, Code93, Discrete 2 of 5 IATA, RSS vanrians, Codabar, chinese 2 of 5, Interleaved 2/5, Interleaved 2 of 5, International
General size barcode
application
