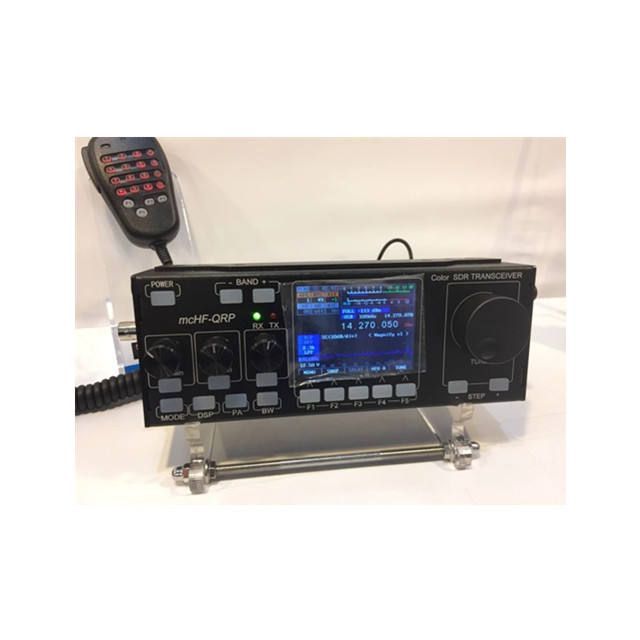

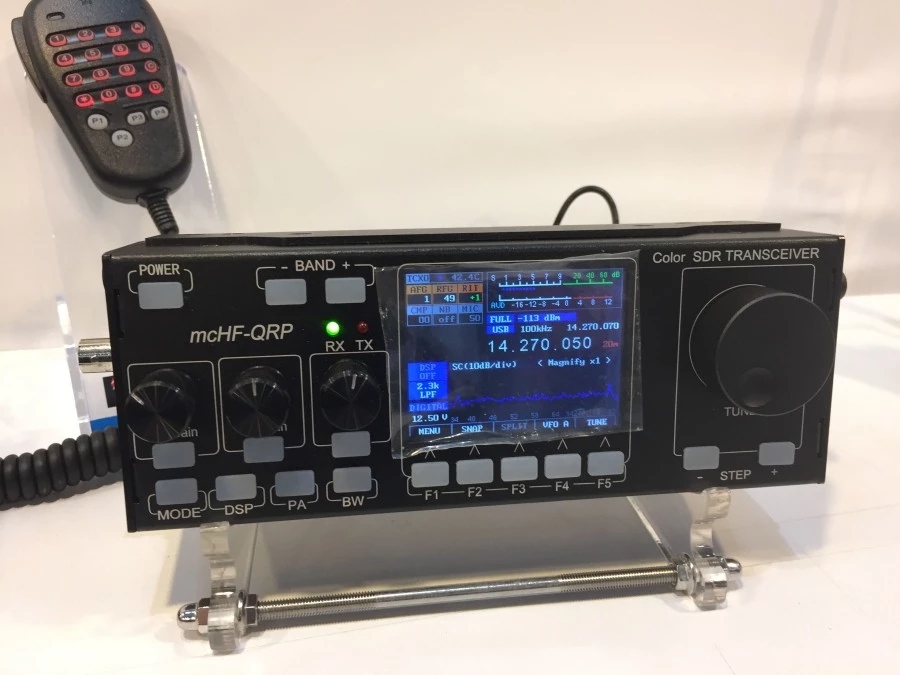

0.5-30mhz HF radio mobile car transmitter

Click here to contact
Product details
payment terms:wire transferSupply capacity:100,000 pieces per year
power supply:12~14.5V DCAudio output:0.5W@8Ω
Storage channel:All HF amateur bands, including WARC bandsPackaging Details:High quality bag, sturdy carton.
Transmission frequency:All HF amateur bands, including WARC bandsFrequency Range:0.5-30mhz high frequency band
model:TL-HF radioOrigin:Fujian China
Package preview:Modulation:SSB Balanced Modulation: AM Low Level Modulation
brand:Tianlu or OEMport:Xiamen
Call range:100 kilometersOperating mode:SSB(J3E) CW (A1A) AM (A3E)
Receive frequency:Receive: 0.5~30MHz (continuous)aspect:120*45*180(mm), 120*45*180(mm)
Product Description
product name
TL-HF radio
Material
All HF amateur bands, including WARC bands
Function
Receive: 0.5~30MHz (continuous)
pack

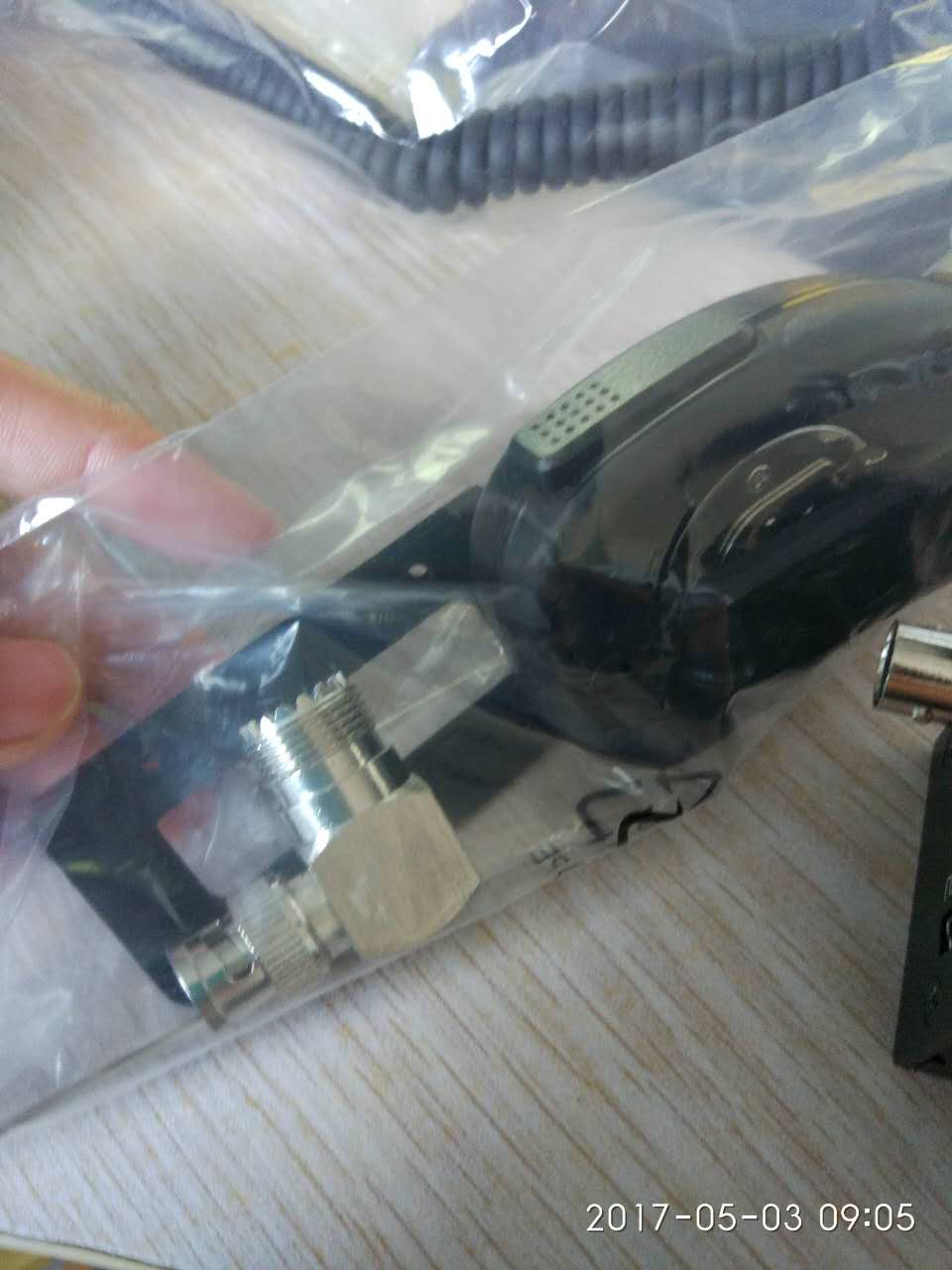

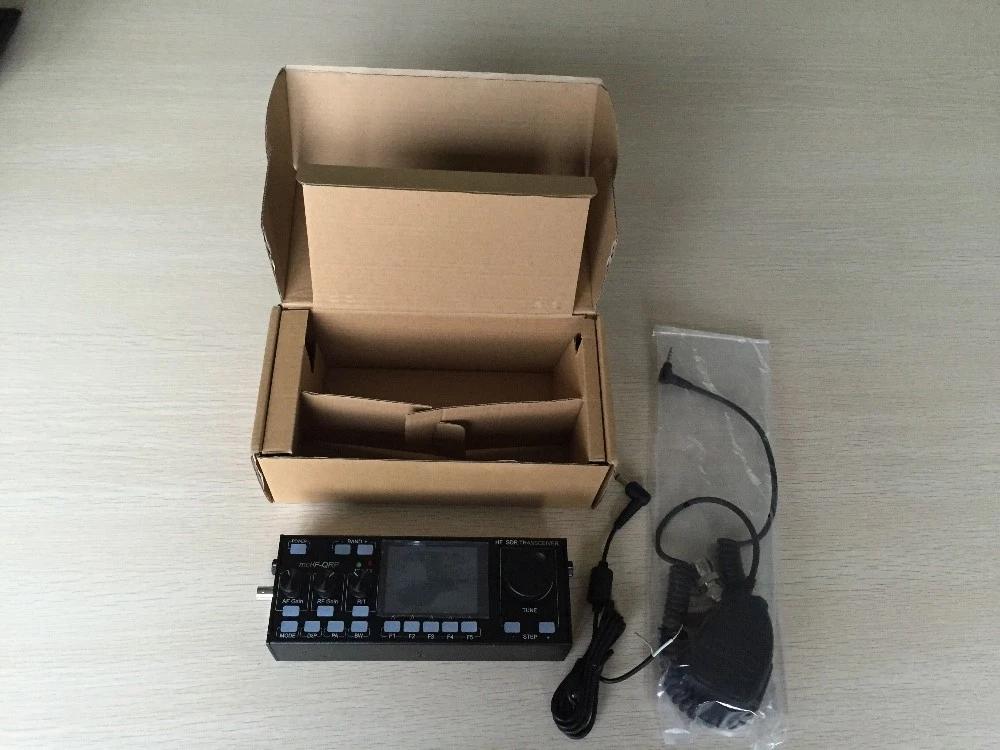

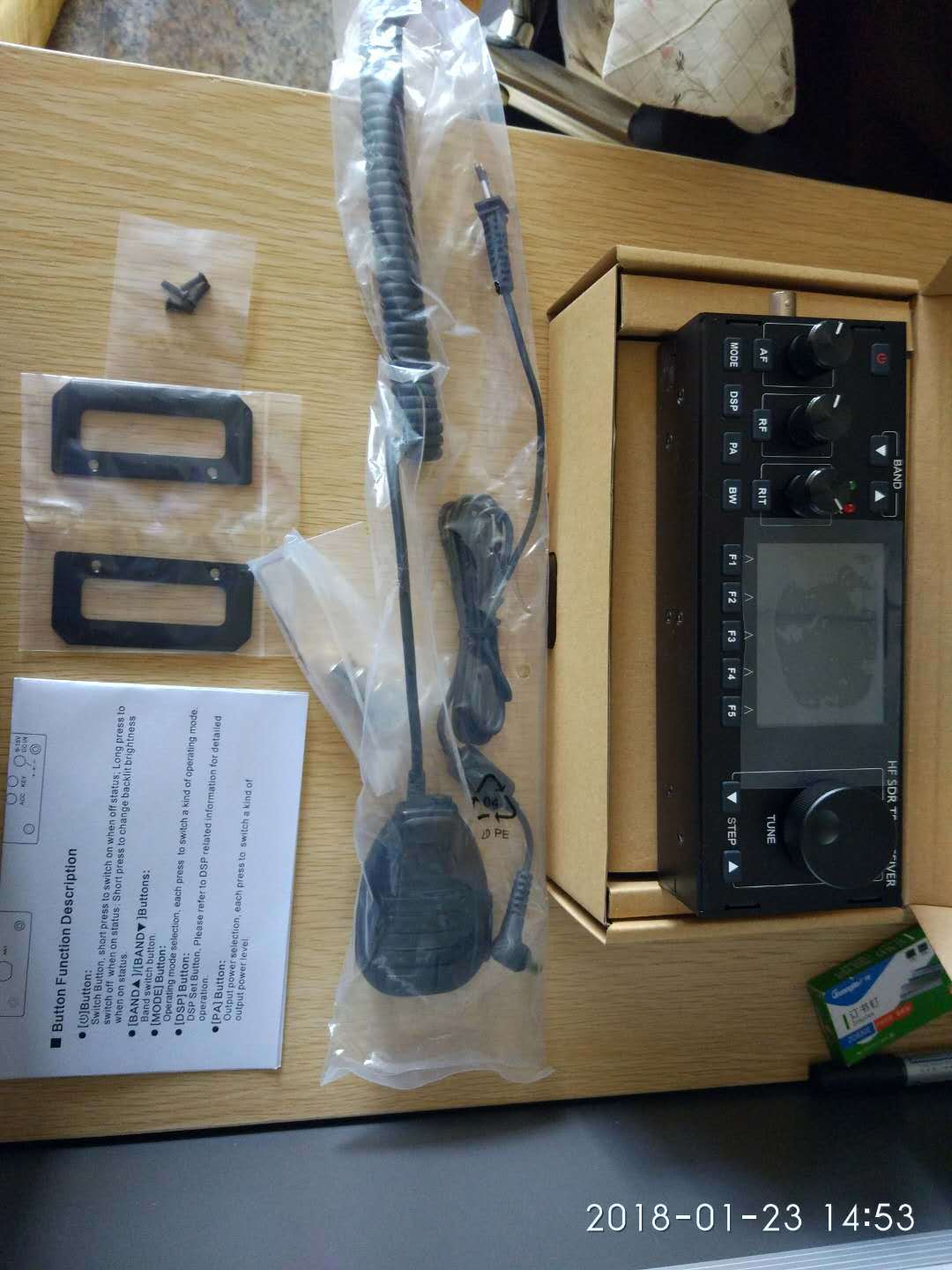

High quality bag, sturdy carton.

    • Basic Specifications:


Frequency range: RX: 2.5—30MHz
TX: All HAM HF bands
Operating modes: SSB, CW, FM, AM (RX only)
Minimum frequency step size: 1Hz

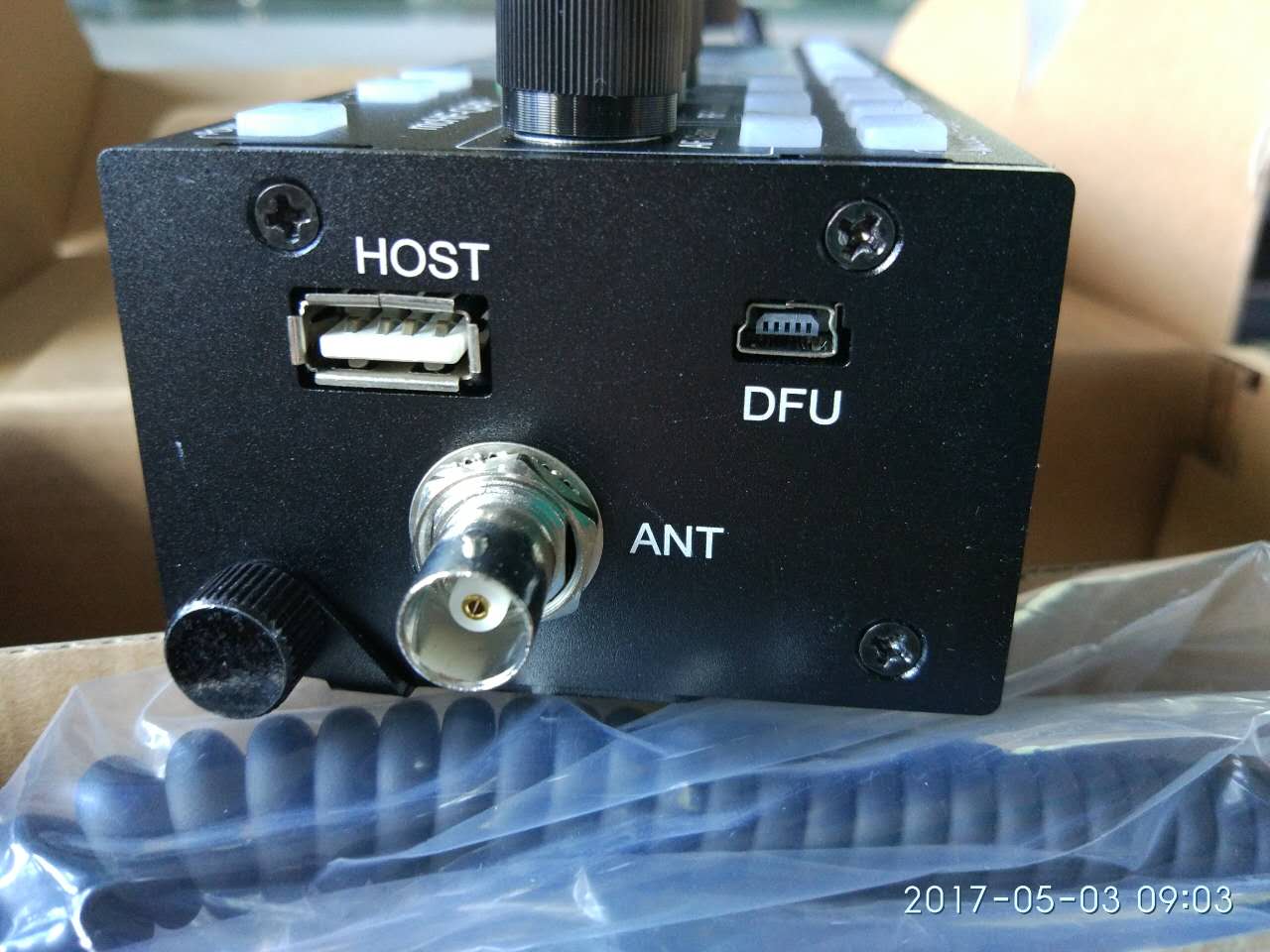

Antenna Impedance: 50ohm
Operating temperature range: -10°C - +60°C
Frequency stability: ±1.5PPM @ 5 minutes after power on (standard)
±0.5PPM if optional TCXO is used

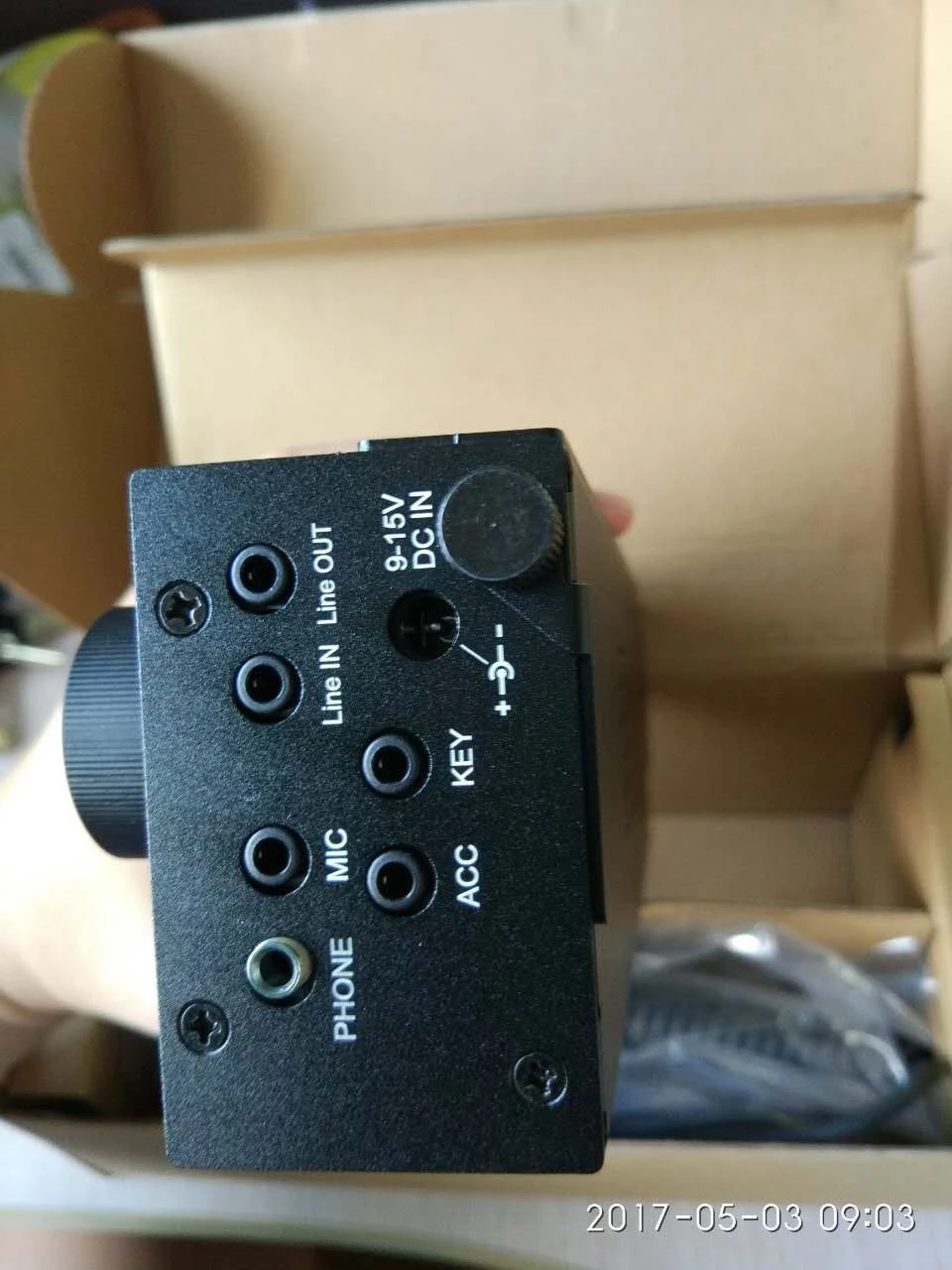

Working voltage: 9-15V DC
Working current:
Receiving: <450mA; about 65mA after power off (can be improved to 5mA)
TX: Max. 3A (full power), 1.5A (5W power)
Equipment size: 190mm(W)﹤70mm(H)﹤40mm(D)

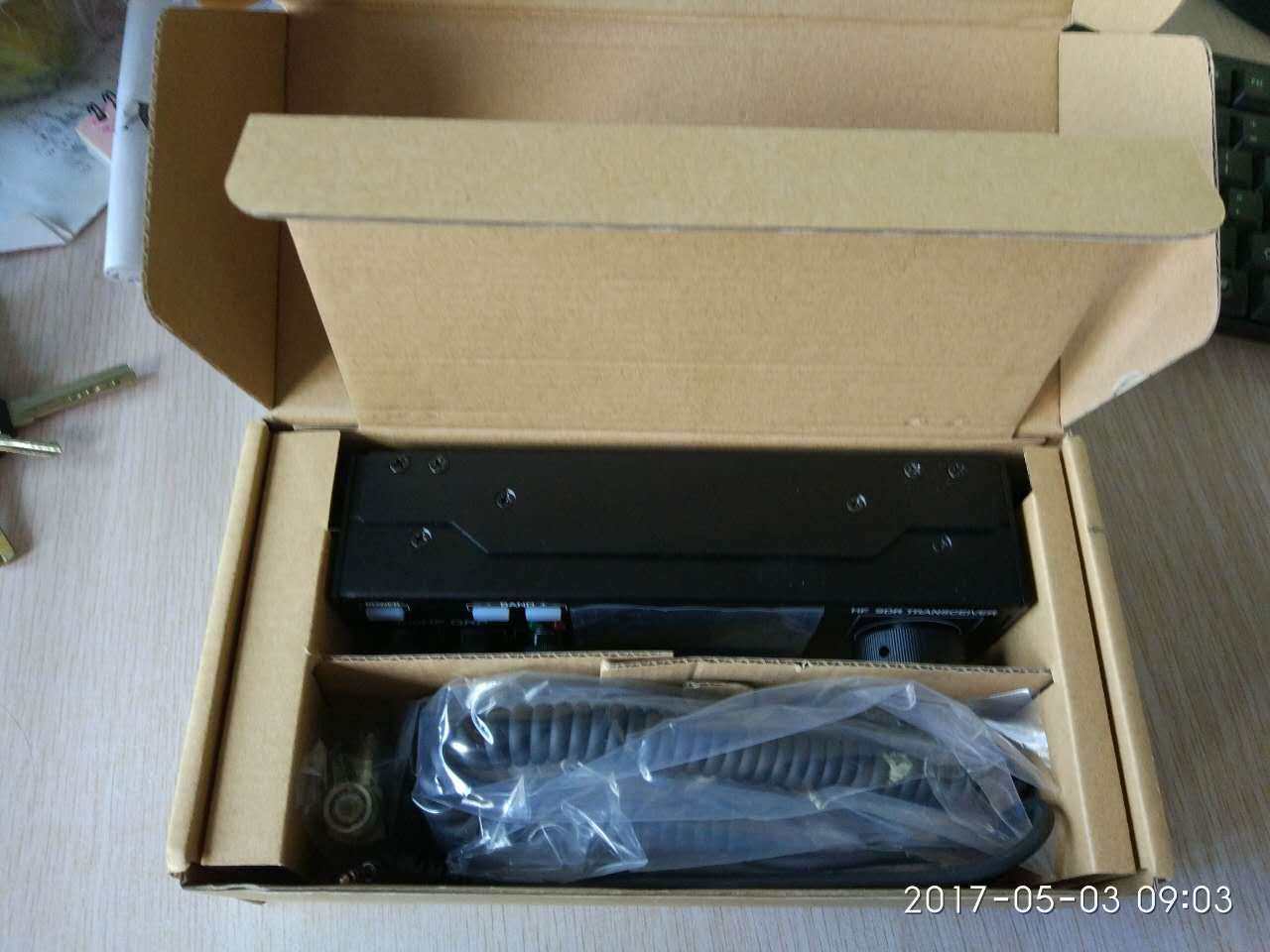

Packing box size: 245mm(W) * 125mm(H) * 80mm(D)
detailed drawing
Transmitter Specifications
Product Usage

Transmitter Specifications
Frequency band: 80-10m All HF Ham Band
Transmission power: Standard 5W (13.8VDC), 15W (FULL, 13.8VDC)
Modulation method: SSB software balance modulation, 10KHz FM
AM software low modulation (RX only)
Spurious suppression: >40DBC
Carrier suppression: >45DBC
Selectivity: SSB 2.3KHz (-6db)
CW 500Hz (-6db)
if frequency: 0
Receiving sensitivity: >-115dBm
Dynamic range: >95dB
RIT frequency tuning range: ±1KHz
Audio output: 8ohm, 0.5W
