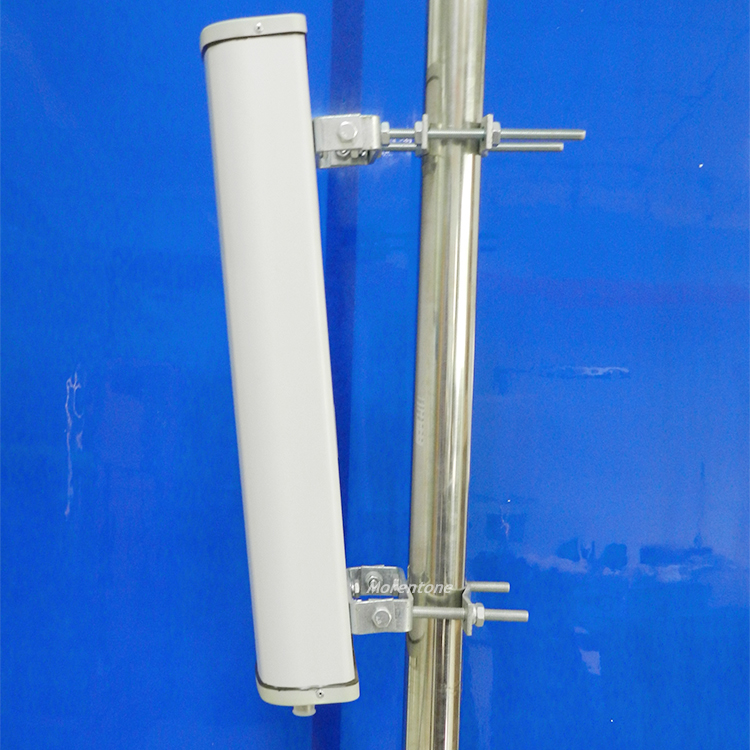

2.4g long distance wifi wireless antenna 30km

Electrical Specifications

Model

MNTOPA215D2

Frequency Range

2400-2500MHz

get

15±0.5dBi

horizontal beam width

90±5°

vertical beam width

12±3°

front/rear ratio

≥20dB

isolation

≥28dB

VSWR

≤1.5

impedance

50Ω

polarization

Vertical+Horizontal/±45°

Maximum power

100W

Connector

N-Female

lightning protection

DC ground

Mechanical Specifications

aspect

650x180x75 mm

weight

2.8 kg

Rated wind speed

36.9m/s

Reflector material

aluminum

Working humidity

<95%

Radome Color

off-white

Radome material

pvc

Operating temperature

40~55℃

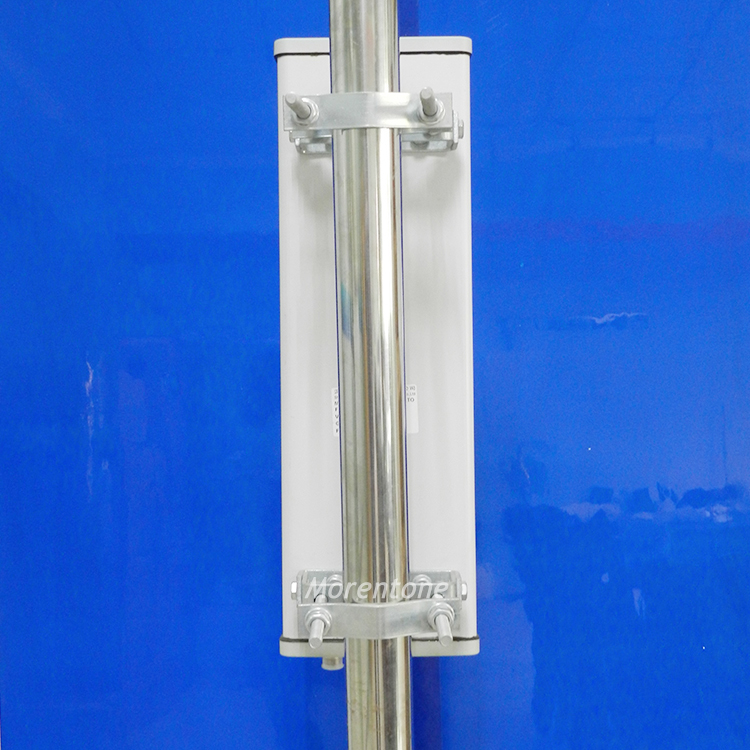

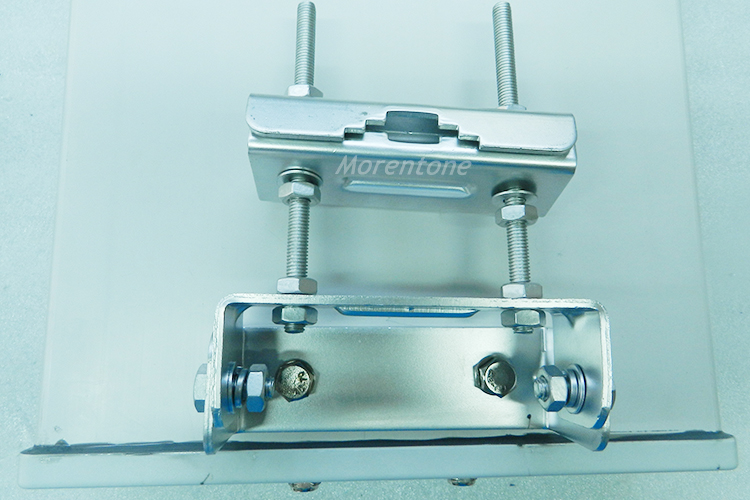

Applicable Rod Diameter

40~55mm
