Good Synchronization Performance Linear Motion Ball Spline Shaft

Supplier: Dalian Running Engineering Company Limited
Region: Liaoning, China
Contact: Ms. Joyce Wang
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Axial clearance and preloard code:	P0, P1, P2, P3, P4;	Material:	Steel;
Nominal dia.:	15mm~150mm;	Packaging Detail:	Ball Spline Package:Standard export packing;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Item:	Ball Spline;
Length:	1600mm;	Material:	50CrMo4;
Torque Capacity:	33532.7;	Vibration:	V1 V2 V3;
Model Number:	GJF,GJH,GJZA,GJZ,GJFG,GJZG,GJZD;	Place of Origin:	Liaoning China (Mainland);
Supply Ability:	500 Piece/Pieces per Month Some products in stock;	The Nut material:	GCr15;
Brand Name:	DRE;	Noise:	Z1 Z2 Z3;
Structure:	Spline;	Delivery Detail:	20-25 days after payment received;
Port:	Dalian or main port in china;	Accuracy grade code:	C0, C1, C2, C3, C5, C7, C10;

Good Synchronization Performance Linear Motion Ball Spline Shaft

Product Overviews

The ball spline is a kind of linear motion system. When the spline nut makes linear movement along the precisely ground shaft by balls inside, the torque is transferred. The spline has compact structure. It can transfer the over load and motive power. It has longer lifetime.

At present our company manufactures three kinds of spline, namely convex ball spline, concave ball spline and end housing ball spline. Generally the convex ball spline can bear larger radial load and transfer more torque than the other two kinds.

Product Description

DRE High Precision Linear Ball Spline:Below please find the reference number of linear ball spline, and click the number to see more details and specifications.

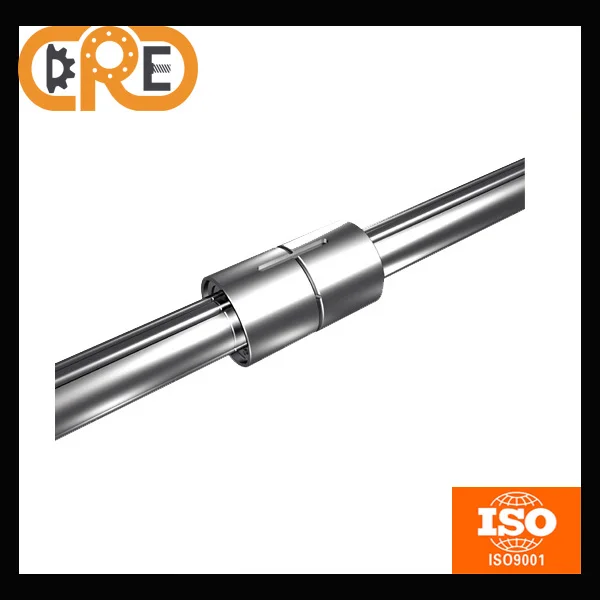

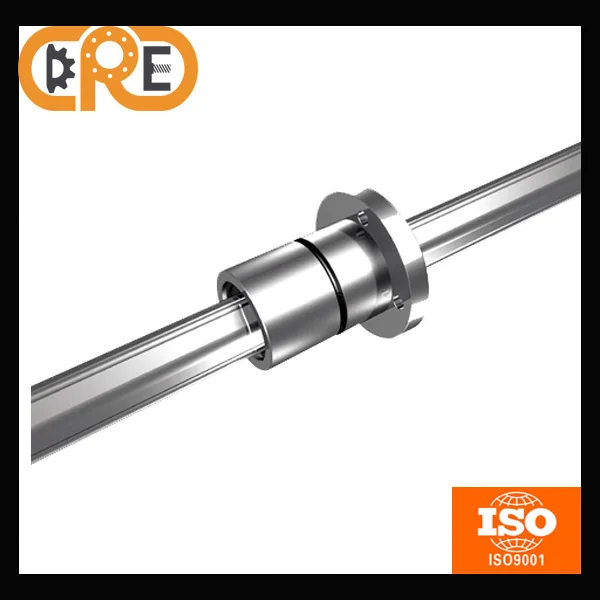

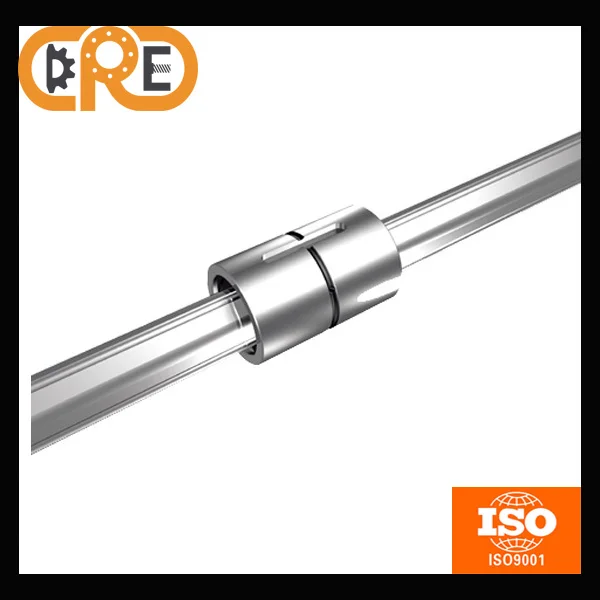

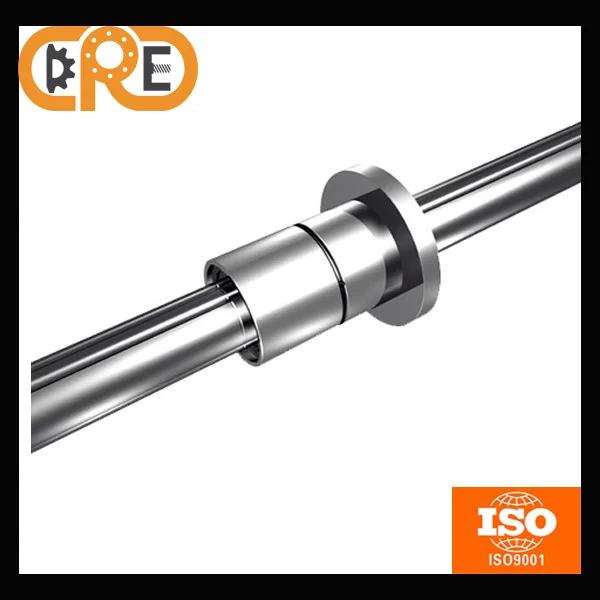

Convex Ball Spline

GJF series

GJH series

GJZA series

GJZ series

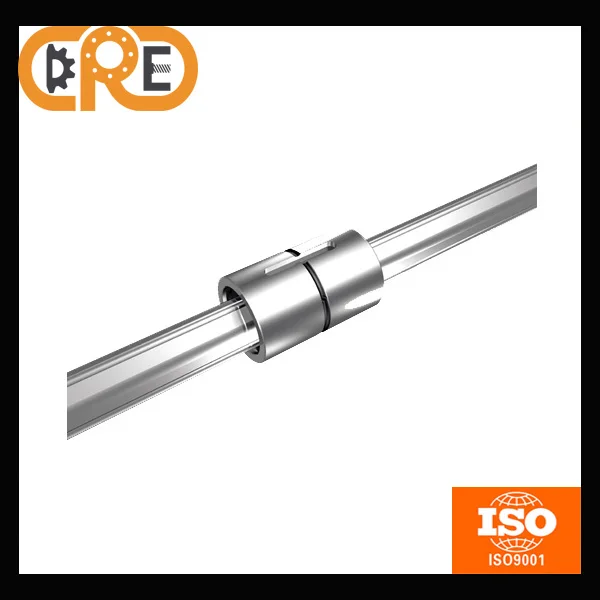

Concave Ball Spline

GJFG series

GJZG series
