High quality semi-automatic carton lamination gluer/carton lamination forming machine

Supplier: Dongguang Luyuan Carton Machinery Manufacture Co., Ltd
Region: Hebei, China
Contact: Mr Allen Lee
Price: $5000.00 / 1 - 4 sets
$2000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Video shipment inspection:	if	brand:	green source
Dimensions (LWH):	250019001300mm	Materials used for packaging:	plastic
Driver type:	electrical	Local service location:	Egypt, Canada, Turkey, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria , Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	Origin:	Hebei china
type of packaging:	Movie	After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services
application:	Daily necessities, machinery and hardware	Marketing Type:	normal product
product name:	Semi-automatic corrugated box pressing and pasting machine	Main selling points:	high accuracy
Core component warranty:	2 years	Health status:	new
Voltage:	380V	Supply capacity:	1000 sets per year
Warranty:	2 years	Applicable industries:	manufacturing plant
port:	Tianjin Port, China	payment terms:	L/C, T/T
Mechanical test report:	if	Packaging Details:	Packed in plastic film, fixed with steel wire inside the container
Automatic level:	semi-automatic	Function:	Cardboard box gluing machine
After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services, video technical support, online support	Package preview:
Showroom location:	not any	weight:	1500 kg
type:	Glue applicator	Certification:	CE certification

Product Description

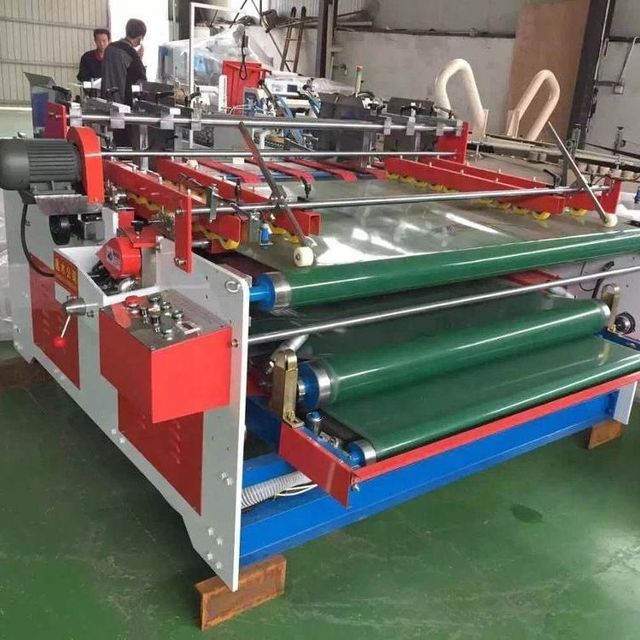

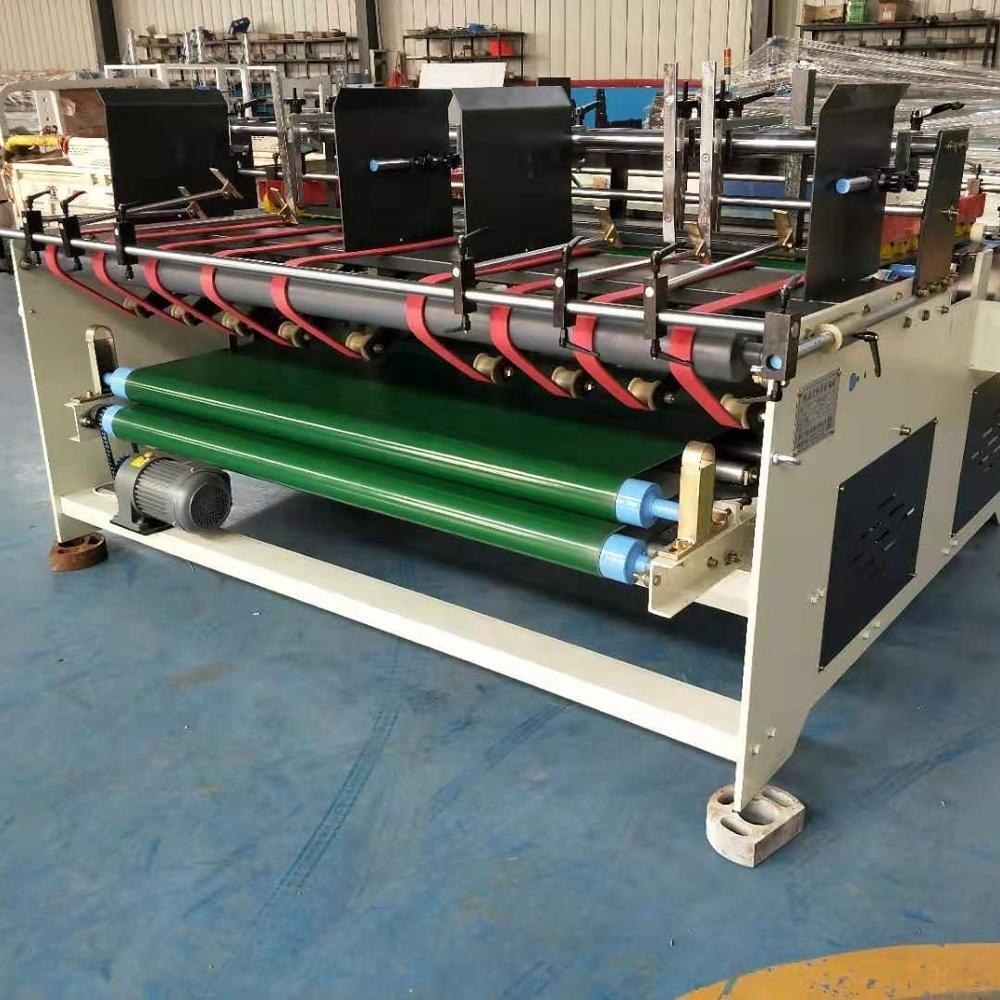

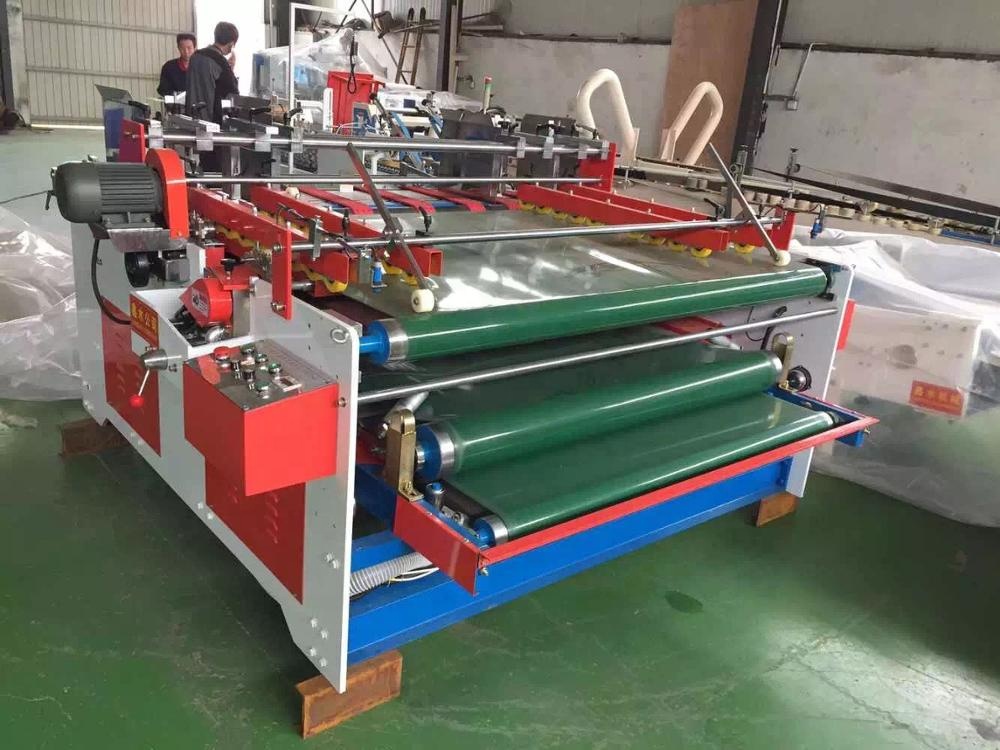

High quality semi-automatic carton lamination gluer/carton lamination forming machine

The new folder-gluer series is newly developed according to the needs of users. It occupies a small area, is easy to install, adjust, and use, and requires no experience. It is very suitable for small-batch production and variety replacement; it is used for ordinary cartons and folding cartons. Adhesive single-page forming , the automatic glue spraying device can be installed to hook Tianya cover boxes and cartons; save manual glue application, the amount of glue applied is only equivalent to 1/3 of manual glue application; the maximum speed of the machine is 56 m/min, and the efficiency is 3-4 times that of manual glue times; strong stickiness, clean and no glue overflow, the patented head sander will sand the sticky mouth very well to remove plastic film or UV light layer of plastic film and other enhanced adhesive glue, the carton factory is seasonal in several easy-to-open plastic cartons question. This machine is not suitable for automatic processing machine lines with incorrect indentation and paper-based products with special shaped windows due to the use of folding or telescopic hand panels to improve work efficiency and product quality.

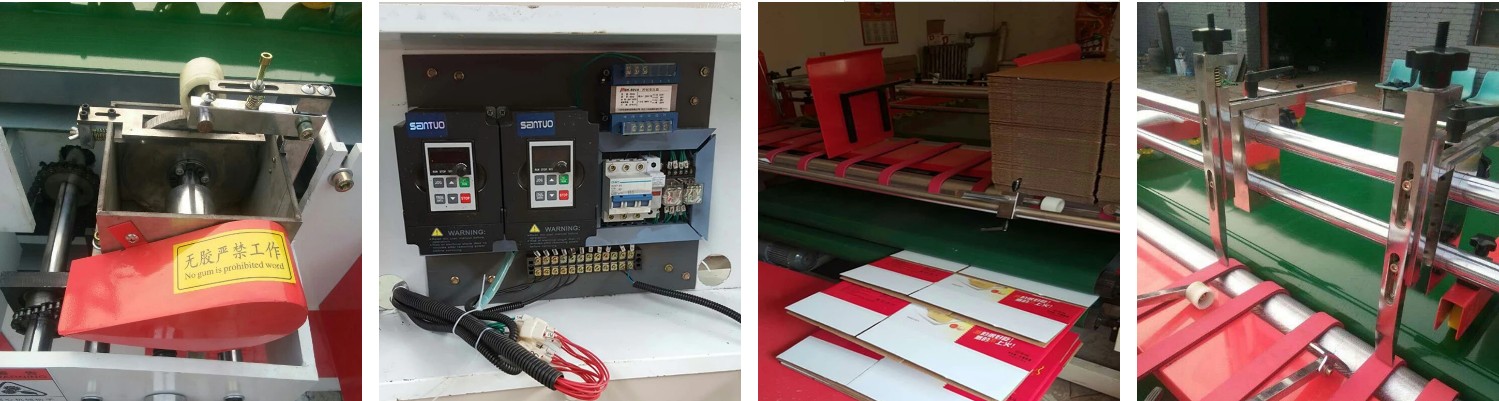

machine structure

1. This machine adopts 380V (220V/440V), power 2.7KW, energy saving and high efficiency.
2. Use imported Italian belt loops for seamless butt joint belts.
3. The bearing adopts the internationally famous brand TR bearing.
4. Spiral wire, ball screw and nuts are all made of 45# steel and processed by high-quality quenching process.
5. Copper sleeve (ZQSn6-6-3) belt, lubricated by dripping oil, wear-resistant and durable.
6. The whole machine adopts Taiwan motor, low noise, environmental protection, energy saving and low energy consumption
consume.

Product parameters

Model	1500	1800
Voltage	3-380VAC	3-380VAC
hertz	50/60	50/60
strength	2.7KW	3.2KW
current	6.3A	7A
weight	1.0 tons	1.3T
total measurement	2200×1900×1300mm	2200×2400×1300mm
maximum. Cabinet size	1500×1100mm	1800×1100mm
Minute box size	180×160mm	180×160mm

Our advantage

1. We promise you excellent quality and after-sales service.
2. We guarantee timely delivery of your order.
3. Because we are a factory, we can provide you with the highest quality at the most competitive price.
4. Any questions, please feel free to contact me

Dongguang Lvyuan Carton Machinery Manufacturing Co., Ltd.

Sales: Zhang Lili
Sales Hotline (WhatsApp): 0086-18600835821
E-mail: cartonmachinechina@163.com
cartonmachine_lily@vip.163.com
Skype: Chinese carton machine
URL: http://www.cartonmachine.net
Factory Address: Xiaoxing Village, Lianzhen Town, Dongguang County, Cangzhou City, Hebei Province
