Cross-belt laboratory high-gradient magnetic separator magnetic sheet separator manufacturers hot-selling source

Supplier: Baoding Lianchi Tengbo Mechanical Equipment Factory
Region: Hebei, China
Contact: Mr haiyuan wang
Price: $1580.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Core components:	engine, bearing	payment terms:	Western Union, D/P, D/A, T/T
Showroom location:	not any	Packaging Details:	Wooden packing
Material:	NdFeB	Mechanical test report:	if
brand:	tempo	Video shipment inspection:	if
brand:	tempo	Marketing Type:	normal product
Model:	TB-B	Supply capacity:	10 acres per week
Health status:	new	Package preview:
type:	Magnetic separator	Applicable industries:	Manufacturing plants, machinery repair shops, retail, construction, energy and mining
Warranty:	1 year	port:	Tianjin harbor
Weight (kg):	160

Specification

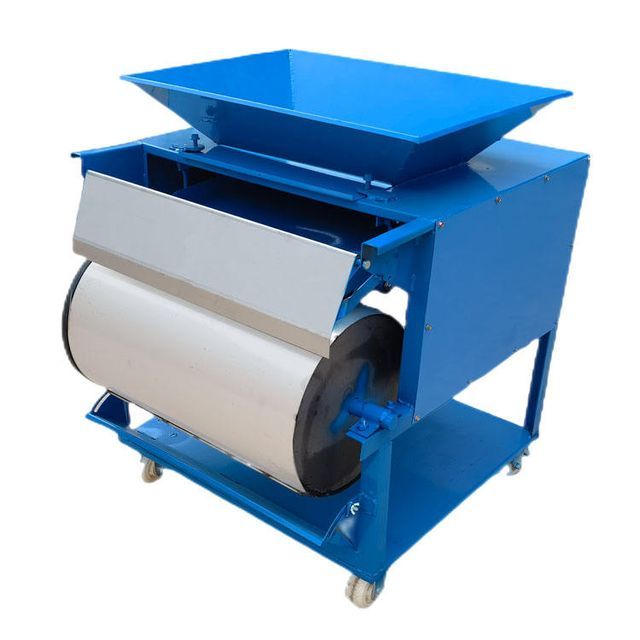

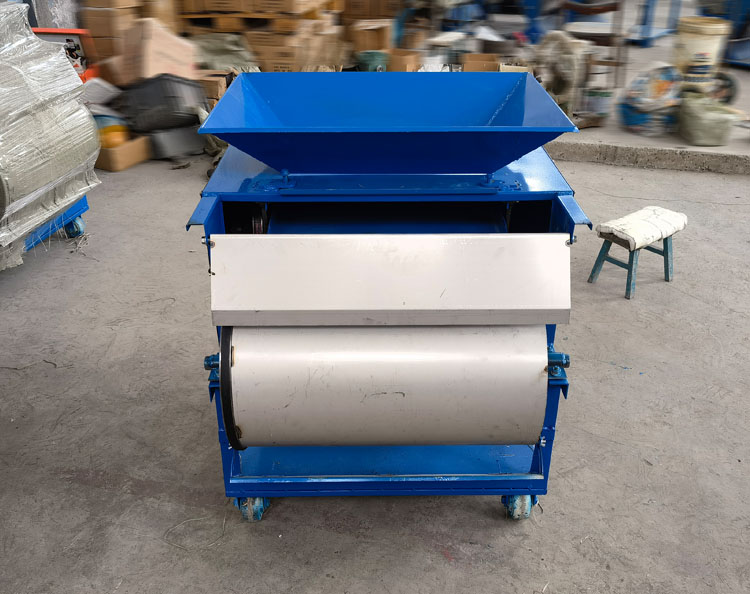

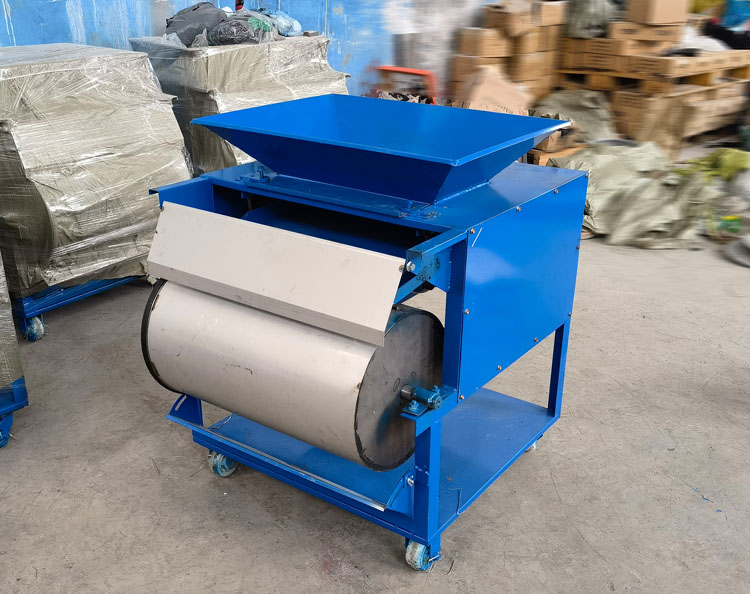

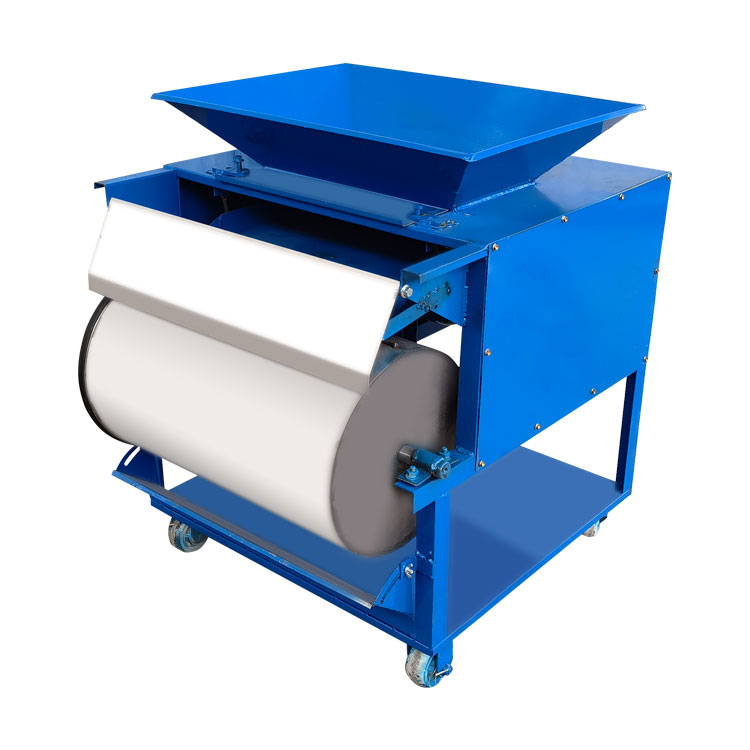

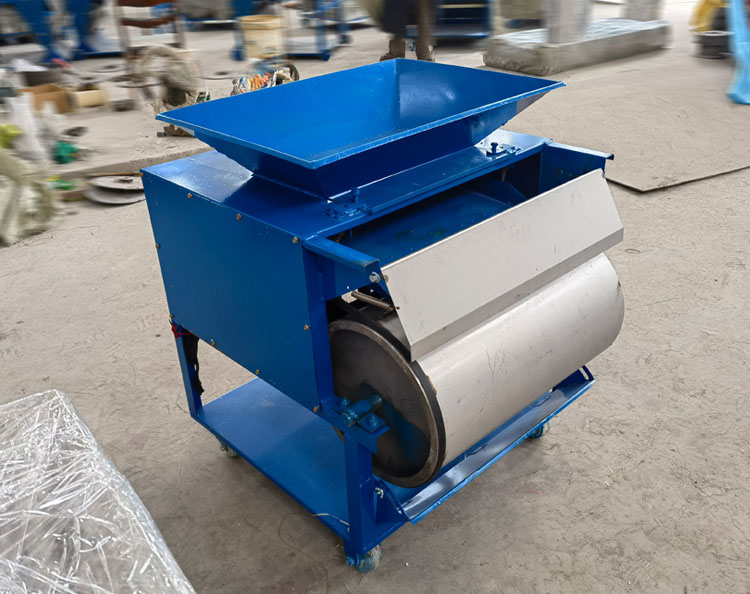

Model	Single Rod Drum Magnetic Separator
Drum Specifications	350*600mm
physical dimension	800876952mm
Full Magnetic/Half Magnetic	semi-magnetic
Magnetic range	1000-2500gs
Motor Power	1.5kw 220v or380v motor to be determined
weight	148 kg
Drum speed	0.8 rev/s
Reducer	pulley deceleration
Inlet	450*250mm adjustable

Single roller drum magnetic separator, also known as b-type new iron absorber, aluminum needle iron needle separator, aluminum needle iron needle separator, copper rice iron absorber, iron powder magnetic separator, is developed by Tengbo Machinery Factory Separation of aluminum needles, aluminum powder, waste aluminum, aluminum powder, aluminum shavings, copper powder, copper rice, plastic packing belt, iron slag, iron sand, stainless steel, steel slag, zinc powder, aluminum ash and iron filings, iron slag, Iron powder. It is a reliable product for non-ferrous metal manufacturers.

Product Description

Product advantages

Entity manufacturers directly supply many old customers at home and abroad, professional iron-absorbing equipment manufacturers, patented iron-removing additives

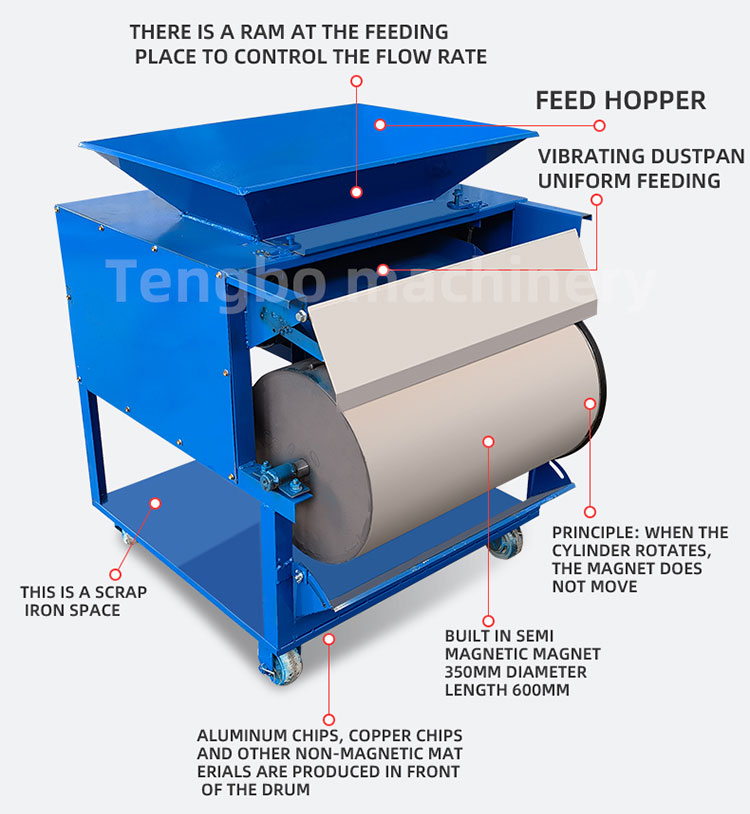

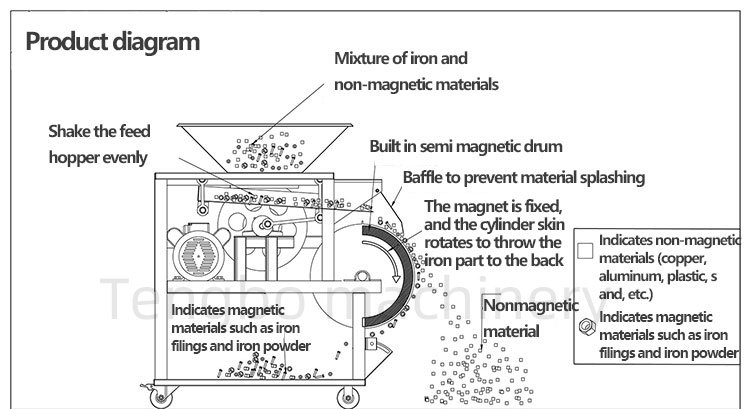

How it works

The material is evenly fed into the magnetic field area on the rotating semi-magnetic drum through the mechanical swing feeding device, and the magnetic material is adsorbed on the surface of the drum and rotates with the drum. Because magnetic materials and non-magnetic materials have different magnetic forces in the magnetic field, the magnetic particles are adsorbed on the surface of the drum by the magnetic force in the magnetic field, and are thrown off when they are brought to the non-magnetic field area. Due to the different magnetic forces, the non-magnetic and weak magnetic particles The throw trajectory is also different. The stronger the magnetism, the closer to the tumbler when throwing. The circling direction adopts an alternating magnetic field, which swings at a certain angle and period, so as to achieve the separation effect.

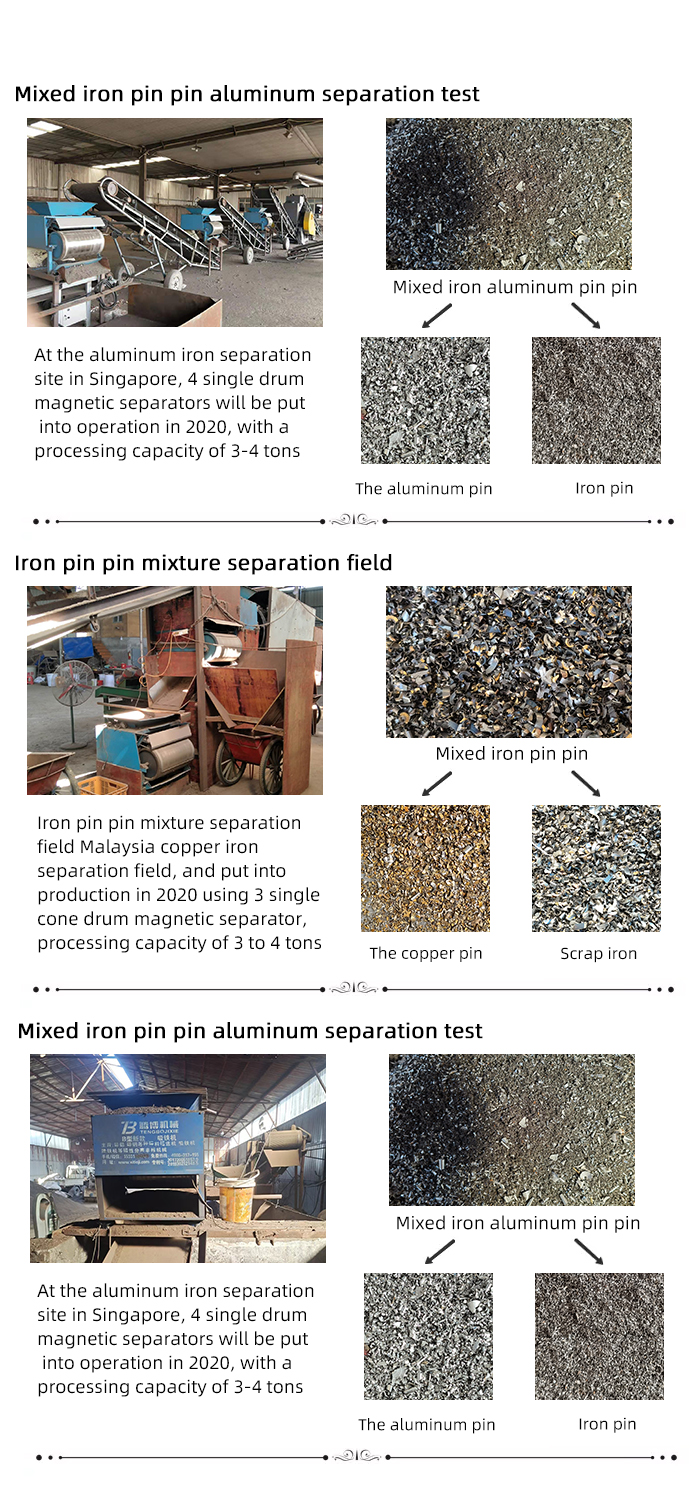

seperate effect

Separable material:

Aluminum needle, aluminum shavings, aluminum powder, aluminum shavings, electronic feet, copper powder, copper rice and other metals and iron are separated to remove iron sundries, abrasives, refractory materials, non-metallic mineral processing, carbon black, grain, feed, chemical raw materials, ETC.
