Hot selling belt conveyor magnetic separation drum with strong rare earth magnetic drum pulley

Supplier: Baoding Lianchi Tengbo Mechanical Equipment Factory
Region: Hebei, China
Contact: Mr haiyuan wang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable industries:	Manufacturing, Mechanical Repair, Retail, Construction, Energy & Mining	type:	Magnetic separator
brand:	Tumble	Supply capacity:	20 pieces per week
Packaging Preview:		Marketing Type:	normal product
Material:	NdFeB	Model:	TANDBERG-5001-2
Magnetic field range:	800-14000gs	Health status:	new
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram	Showroom location:	not any
Card:	Tumble	Packaging Details:	Wooden packing
Weight (kg):	70	Core components:	engine, bearing
port:	Tianjin harbor	Video external inspection:	if
Mechanical test report:	if	Warranty:	1 year

Specification

Permanent magnet drums are divided into two types of magnetic systems: semi-magnetic and full-magnetic. It is mostly used in the iron removal and purification process of powdery, granular and fine materials, or the recycling of iron. Reliable protection against damage and wear of crushers, grinders, conveyors and presses.

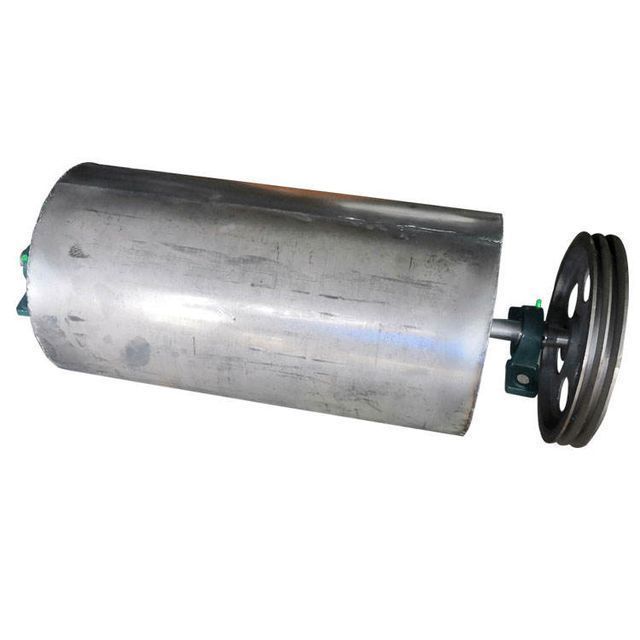

Permanent magnet drum

It has the advantages of convenient installation, large suction, no energy consumption, continuous work, time-saving and labor-saving, and simple operation.

Permanent magnets

It can be used for belt conveyors, which can meet the needs of users for strong magnetic fields and deep iron removal.

Roller model	Roller diameter mm	Roller length mm	Magnetic GS
TB-001	220	400	800-3000
TB-002	220	600	800-3000
TB-003	320	600	800-3000
TB-004	350	600	800-3000
TB-005	350	800	800-3000

Product Description

The permanent magnet drum is a permanent magnet separator that continuously separates non-magnetic and magnetic materials. It can achieve excellent results in granular, powder, small block, material purification or iron recycling.

According to the installation diagram of the magnetic roller, the iron removal effect of the magnetic roller combined with the iron remover is doubled, and the default effective adsorption distance of the magnetic roller is 10 cm.

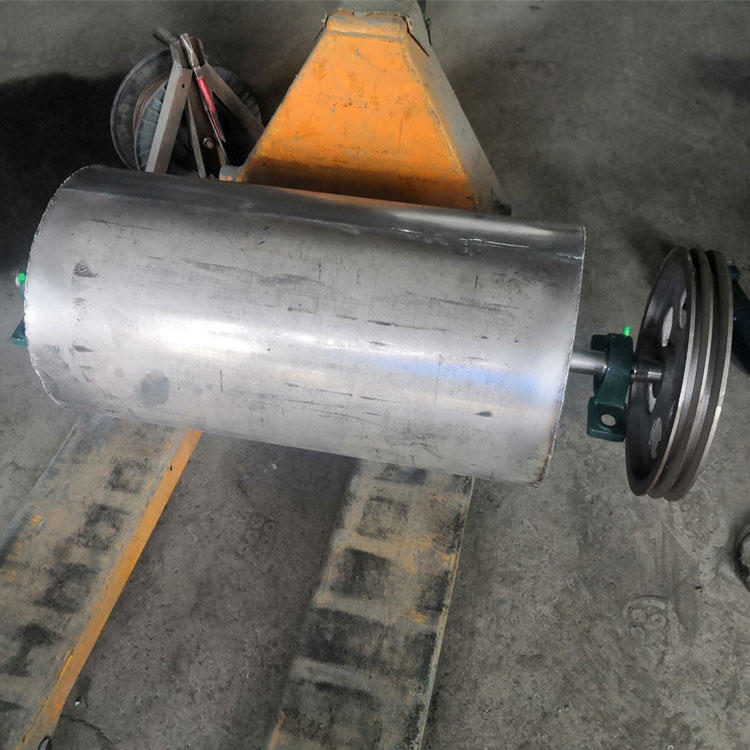

Permanent magnet drum

No energy consumption, no pollution, simple structure, easy to use, automatic iron removal, no manual operation, automatic separation of raw materials and iron slag.

Good iron removal effect

Iron removal is convenient and quick, iron removal is more thorough, and the effect is more significant.

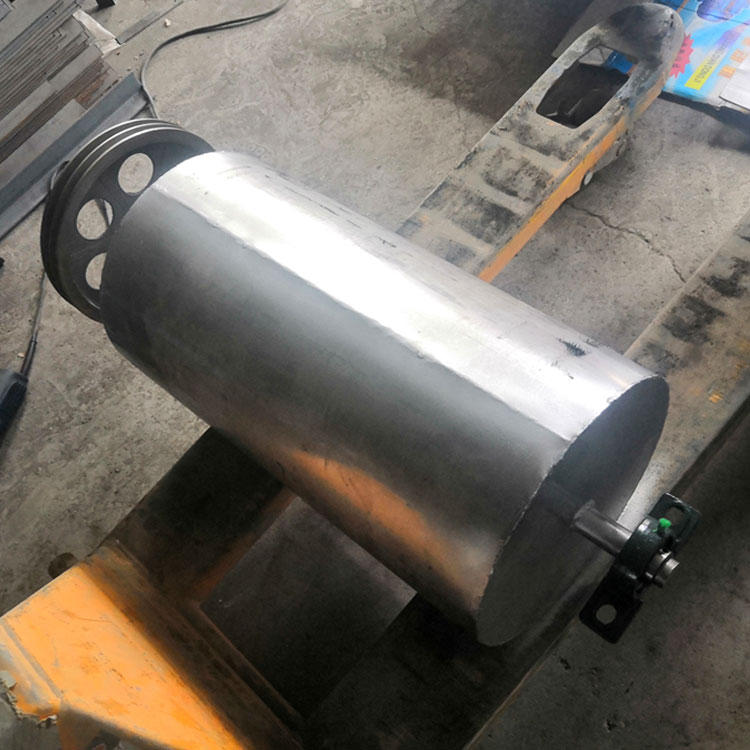

Special for conveyor belt

This product uses rare earth alloy NdFeB as the magnetic source, which has strong magnetic force and long service life. Specifications and styles can be changed and customized according to customers' usage requirements and site conditions.
