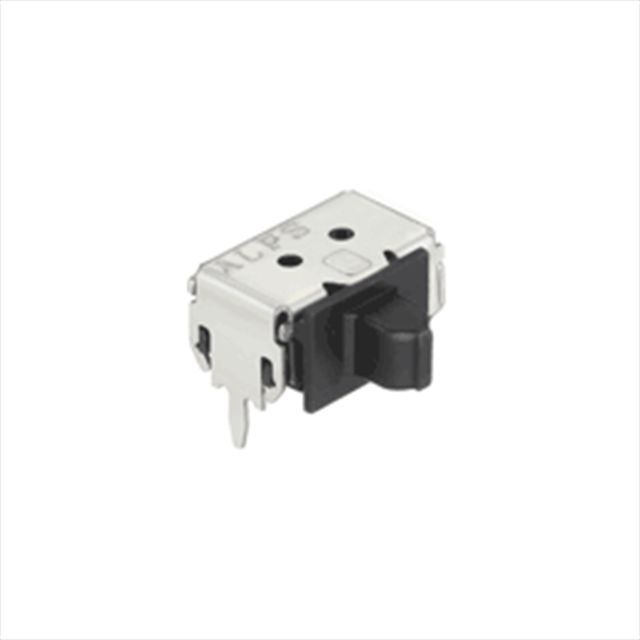

1.5mm stroke external knob type SSAC series ALPS Japanese slide switch Japanese original
- 0.15 20 - 399 pieces
- 0.13 400 - 1199 pieces
- 0.12 >=1200 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Conversion time: | non short circuit | Poles: | 2 |
| Actuator Direction: | horizontal | maximum. current: | 1mA |
| Operating force: | 2.5±1.5N | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Packaging Details: | 400 pieces in a tray, 1200 pieces in a box | Mechanical life: | 10,000 cycles |
| Actuator length: | 3.2mm | Position: | 2 |
| Certification: | Alps | maximum. Voltage: | 5V |
| travel: | 1.5mm | range of working temperature: | -10°C to +60°C |
| installation method: | push-in | welding: | manual, impregnated |
| model: | SSAC120100 SSAC120200 | Origin: | Japan |
| brand: | Alps | port: | Shenzhen Port |
our certificate
company information
Founded in 1996, Guangzhou Saner Electronics Co., Ltd. has won a good reputation in the industry for its good reputation and reliable quality, and has now developed into a well-known supplier of electronic components in China. The company has established good business relationships with many well-known manufacturers in Japan, South Korea, Europe and the United States. The most important thing is that our company has a large stock, and can provide original brand-new international famous brand products in time, and our customers are all over the world.
