Popular machine Semi-automatic DIY photo album making machin

Product details
Type:Binding Machine;Place of Origin:Guangdong China (Mainland);
Dimension(L*W*H):125*90*155cm;Voltage:220V;
Warranty:One Year;Temperature:55-110°C;
Brand Name:HY;Creasing width:0.8/1.2/1.5mm;
Hot pressing height:285mm;Hot pressing width:550mm;
Creasing and trimming way:Pneumatic;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Computerized:No;Weight:414kg;
Packaging Detail:Plywood case. Popular machine Semi-automatic DIY photo album making machine;Trimming length:540mm;
Trimmng thickness:70mm;Supply Ability:100 Set/Sets per Month Popular machine Semi-automatic DIY photo album making machine;
Creasing length:550mm;Certification:CE Certificate;
Condition:New;After-sales Service Provided:Video technical support,Online support;
Hot pressing length:460mm;Port:Guangzhou or Shenzhen or Yiwu;

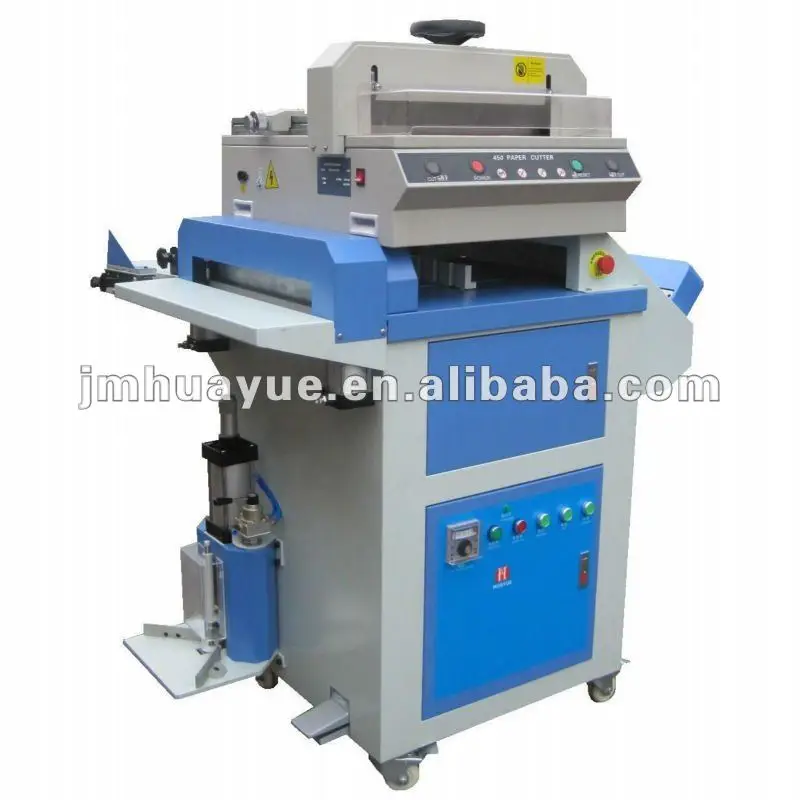

Popular machine Semi-automatic DIY photo album making machine



 10

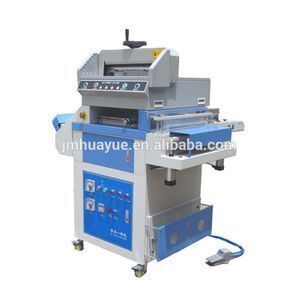

The Popular machine Semi-automatic DIY photo album making machine, photo binding hardcover machine is used for making photo album, menu and more. Multifunctional photo album machine includes 10 functions. Creasing, trimming, hot pressing, cold pressing, corner rounding, cover position, cover creasing, cover corner cutting and Mute oil free compressor. It operates easily and works highly effective.



1. Temperature uniform and shorten the drying time

2. Not to change the album's shape

3. Adjustable pressure

4. Small space , contineous ,operation ,increasing efficiency

5. Fine pressing marks , not to hurt the photos



Specification



Model

DHY-A

Max working width

550mm

Creasing mark thickness

0.8/1.2/1.5mm

Creasing way

Pneumatic

Trimming length

540mm

Trimmng thickness

70mm

Trimming way

Pneumatic

Hot pressing height

285mm

Hot pressing length

460mm

Hot pressing width

550mm

Temperature

55-110°C

Cold pressing height

300mm

Cold pressing length

600mm

Cold pressing width

50mm

Max cutting size

450x450mm

Min cutting size

50mm

Max cutting thickness

40mm

Pushing paper

Manual operation

Corner cutting thickness

60mm

Angle size

R3-R8

Corner cutting way

Pneumatic

Max cover area

580mm x 370mm

Thickness of paper board

0.5-6mm

Thickness of backbone

0-6cm

Way of counterpoint

Light



For the country which use power supply in 110V, we will send you one power transformer together to 110V with the machine and you can use it. But buyer need to pay extra USD250.

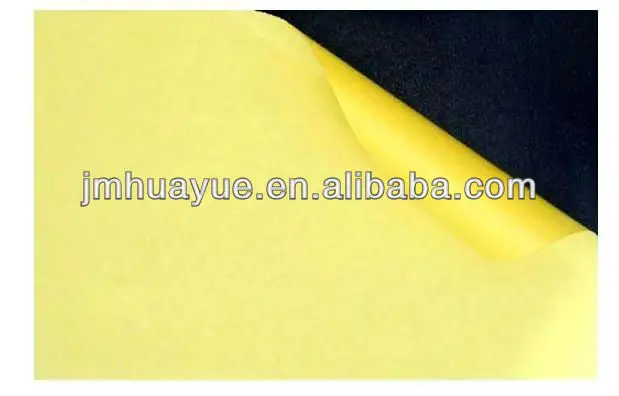

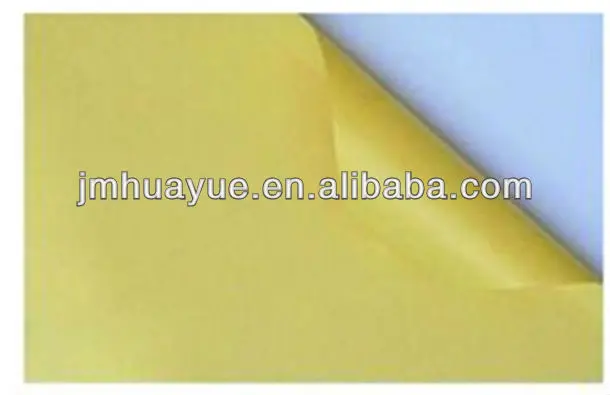

Consumables:  PVC Sheet







Model

PVC-1

Color

Black ,white

Double-side Adhesive

Yes

MOQ

500 sheets

Standard Size

21*31cm, 27*38cm, 31*45cm, 21*21cm, 26*26cm, 31*31cm, 41*41cm, 19*19cm, 14*19cm, 15*21cm, 16*16cm

Customized Size

Yes

Standard Thickness

0.5mm,0.6mm,0.8mm,1.0mm,1.5mm

Package Kind

Carton

Delivery Time

9 Working days against payment

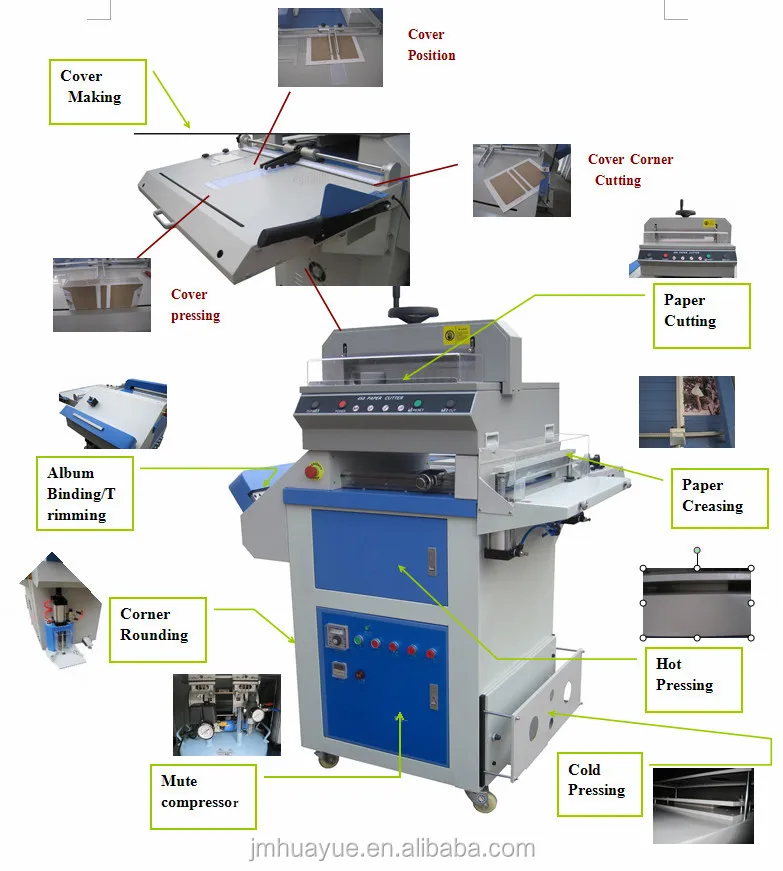

Machine details

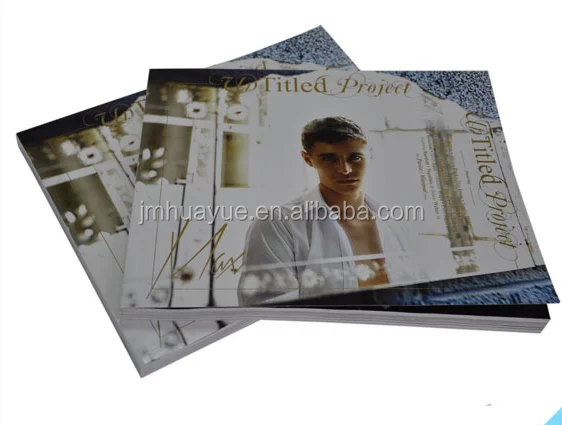

Products make by this machine:



0
