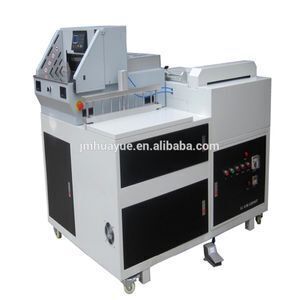

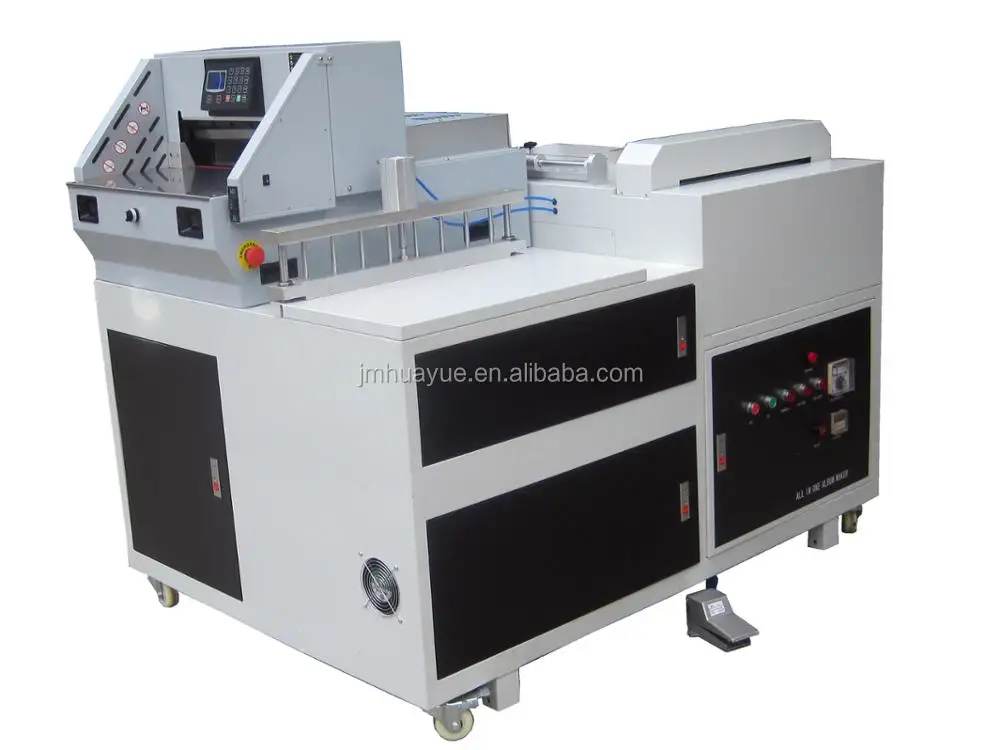

automatic photobook machine /Photobook making machine for digital photo

Product details
Supply Ability:500 Set/Sets per Month;Port:guangzhou / shenzhen/hongkong;
Place of Origin:Guangdong China;Item name:automatic photobook machine;
Creasing width:0.8/1.2/1.5mm;Power(W):2.5KW;
Weight:454KG;Style:New 2018;
Certification:CE;After-sales Service Provided:Video technical support,Online support;
Functions:12 functions;Warranty:1 Year;
Warranty period:one year;Brand Name:HY;
Packing size:167*124*153cm;Packaging Detail:standard export plywood case or wooden case. automatic photobook machine /Photobook making machine for digital photo;
Applicable Industries:Manufacturing Plant,Retail,Printing Shops,Advertising Company;Payment Terms:T/T,Western Union,MoneyGram;
Creasing way:pneumatic;Voltage:220V;
Machine size:150*110*140cm;Quality Certificate:CE;
Condition:New;Dimension(L*W*H):167*124*153CM;
Creasing length:550mm;



automatic photobook machine /Photobook making machine for digital photo



The automatic photobook machine /Photobook making machine for digital photo is used for making photo album, menu and more. The Heat and cold pressing corner cutter photo album making machine includes 12 functions. Paper Creasing, album binding, hot press, cold press, paper cutting, corner rounding cutter and cover making.leather cover angle cutter, magazine angle cover cutter,album grooving machine ,cover position and the air compressor . It operates easily and works highly effective.



1. Temperature uniform and shorten the drying time

2. Not to change the album's shape

3. Adjustable pressure

4. Small space , contineous ,operation ,increasing efficiency

5. Fine pressing marks , not to hurt the photos

6.According to the mechanics of the latest design, reduce fatigue, improve the book uniformity,



*This machine features,
Each location independence,
According to the process to design, the operation is very convenient,





Specification



Model

SZHY-A

Max working width

550mm

Creasing mark thickness

0.8/1.2/1.5mm

Creasing way

Pneumatic

Trimming length

540mm

Trimmng thickness

70mm

Trimming way

Pneumatic

Hot pressing height

285mm

Hot pressing length

460mm

Hot pressing width

550mm

Temperature

55-110°C

Cold pressing height

300mm

Cold pressing length

600mm

Cold pressing width

50mm

Max cutting size

450x450mm

Min cutting size

50mm

Max cutting thickness

40mm

Pushing paper

Manual operation

Corner cutting thickness

60mm

Angle size

R3-R8

Corner cutting way

Pneumatic

Max cover area

580mm x 370mm

Thickness of paper board

0.5-6mm

Thickness of backbone

0-6cm

Way of counterpoint

Light



For the country which use power supply in 110V, we will send you one power transformer together to 110V with the machine and you can use it. But buyer need to pay extra USD250.

Consumables:  PVC Sheet







Model

PVC-1

Color

Black ,white

Double-side Adhesive

Yes

MOQ

500 sheets

Standard Size

21*31cm, 27*38cm, 31*45cm, 21*21cm, 26*26cm, 31*31cm, 41*41cm, 19*19cm, 14*19cm, 15*21cm, 16*16cm

Customized Size

Yes

Standard Thickness

0.5mm,0.6mm,0.8mm,1.0mm,1.5mm

Package Kind

Carton

Delivery Time

9 Working days against payment

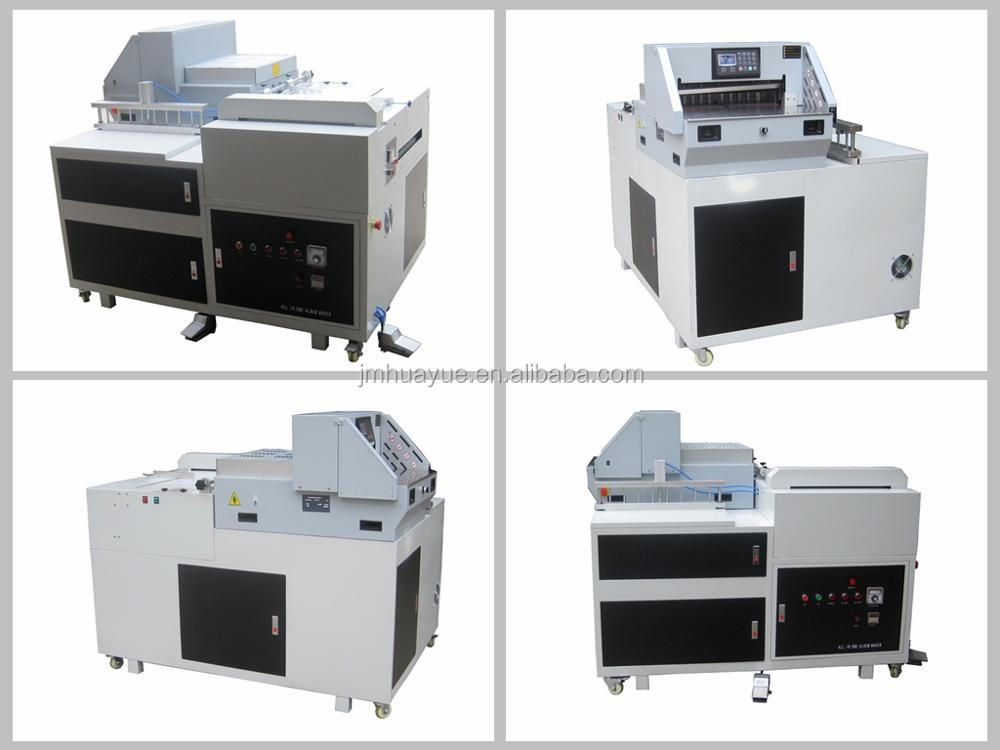

Machine details



Products make by this machine:





Company details





Payment



Customers can choose the payment terms you accept.

Shipping



Because the machine is very heavy, it is always transported by ocean shipping. The ocean shipping cost depends on the destination port and package size. Port to port.



We arrange the local shipment,which’s easy for you to control the transportation cost. If your own forwarder in China can help you to handle the export ,we also accept the factory price(EXW.)



If you need the machine very urgently. We can also ship by air and express. We have good cooperations with them, this saves your shipping cost and guarantee your goods safe.Please contact for the shipping cost.

**Please note: Import duties, taxes and charges are not include in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your local custom office to know the details.

Warranty
  • One year warranty from you receive the item.
  • We will provide free replacement part in warranty. (Eliminate vulnerable and artificial damage.) But any warranty shipping cost is responsible by buyer.
  • Installation labor is your responsibility. (We have detailed instrution of parts replacing.)
  • For the sales service of our product, we will provide free technical support of equipment lifelong.
