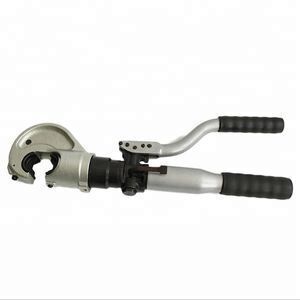

HT-300 hydraulic hose crimping tools for 16-300mm2 terminals

Product details
Length:460 MM;Brand Name:TIANYI;
Crimping Type:Hexagon Crimping;Model Number:HT-300;
Supply Ability:2000 Piece/Pieces per Month;Standard Dies:16,25,35,50,70,95,120,150,185,240,300 MM2;
Packaging Detail:Neutral Packing;Stroke:17 MM;
Place of Origin:Sichuan, China (Mainland);Type:Hydraulic Crimping Tools;
Port:Shanghai, Guangzhou, Shenzhen;Range of Application:16-300 MM2;
Weight:3.3 KG;Product Name:HT-300 hydraulic hose crimping tools for 16-300mm2 terminals press;
Crimping Force:6 Ton;Application:for press CU/AL cable lugs;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Color:Black;

HT-300 hydraulic hose crimping tools for 16-300mm2 terminals press

Article Description

Tianyi is developing, producing and selling high-class electrical tools. We are now supported with a complete line of crimping tools, cutting tools, stripping tools, hydraulic tools, fastening tools, telecom tools, hammers. The company is committed to achieving the highest levels of customer satisfaction by offering quality, price and service that meet the epectations of clients.

hydraulic tool

1. Features

-Fast advancing speed for rapid approach of the blades to the connector and slower more powerful speed for cutting.

-The head could be rotated at 180° freely for narrow space working

-The tool is provided with full automatic reaction when crimping complete, it can save the time of manual pressure release

-High strength aluminum alloy and prevent-slip handle

2. Parameters

Product Model                           HT-300
Range of Application                16-300 MM2
Crimping Force                         6 Ton
Length Size                               460 MM
Standard Dies                           16,25,35,50,70,95,120,150,185,240,300 MM2
Weight                                      3.3 Kgs

ModelRange of ApplicationCrimping Force Length SizeStrokeWeight
YQ-706-70 MM26 Ton310 MM10 MM2.5Kg
YQK-120A10-120 MM28 Ton410 MM13 MM4.8Kg
YQK-240A10-240 MM28 Ton475 MM16 MM4.8Kg
YQK-300A10-300 MM28 Ton475 MM16 MM6.4Kg
EP-41035-300 MM212 Ton755 MM30 MM6.6Kg
EP-43035-400 MM212 Ton610 MM32 MM6.4Kg

3. Instruction

The hand-operated hydraulic crimping tools are capable of pressing Cu/AI cable terminals and be widely used in power transmission and ditribution project.



hydraulic tools

4. Category

Our comprehensive selection of electrical tools includes crimping tools, cutting tools, stripping tools, hydraulic tools, fastening tools, telecom tools, hammers. Thus, this is a definite benifit for you to finish one-stop purchasing. As for detailed infomation, please send enquiry to get a full e-catalog to refer.








5. Benefits for you

-Wholesale price structure even for one piece of your order

-OEM custom solution especially adapted to your application

-Rapid delivery due to a large sum of models in stock

Company Profile

Established in 1992, Tianyi Electronics Technology Co., Ltd. offer a full line of RoHS compliant electronics product line, transformers, electrical tools and accessories for a wide of range of industries. We have a experienced and qualified team of engineers and enterprise managers, and imported state-of-the-art producing and testing facilities. Now we have been approved by T19001-2016, ISO9001:2015, UL1446, CE, JET etc international certificate.

Toroidal X11

1. Key Figures:

Date of EstablishmentRegistered CapitalEmployeesFactory Floor SpaceSales Volume (2017)
1992 Year6,000,000CNY120 Persons120000sq.ft50,000,000CNY



2. Enterprise Certificate




3. Patent Certificate

Through entire scientifice research personnel of company's unremitting efforts, Our products have obtained nearly twenty kinds of patents!


4 Overseas Marketing

Toroidal X8

FAQ

Q1. Can we brand with our logo and how does it effect MOQ?

Surely, we accept custom manufacturing for OEM & ODM order. MOQ is 100 Pieces.

Q2. What kind of file type do you need if we use our logo and lable?

Please send us original format logo and lable with design.

Q3. What are the payment terms?

We accept T/T, L/C, Paypal, Western Union, E-checking, Credit Card and etc.

Q4. How can I get sample and is it free or paid?

Generally, we provide one sample for free, but the freight need to be paid.

Q5. What is your delivery time?

Usually we ship the order within 3-5 days after confirmation with deposit.
