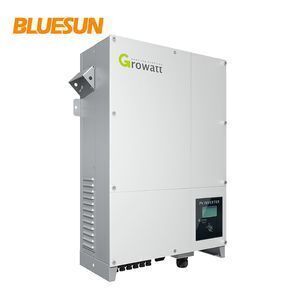

Growatt Inverter 10KW On Grid Inverter Price 10000W Grid Tied Solar Power System Home

Click here to contact

Product details

Package Preview:	https://sc01.alicdn.com/kf/HTB1RuGua2jsK1Rjy1Xaq6zispXag.jpg_640x640.jpg;	Output Current:	42A;
Input Voltage:	100-600V;	Brand Name:	Growatt;
Type:	DC/AC Inverters;	Place of Origin:	Anhui China (Mainland);
Selling Units:	Single item;	Topology:	Transformerless;
Cooling Concept:	Natural Cooling;	Size:	14/27.3/8.3inch (355/694/210 mm);
Application:	Grid Tied Solar Power System;	Model Number:	Growatt10000MTLP-US;
Output Voltage:	110V/220V;	Weight:	30KG;
Package Type:	Packed By Carton With Pallet For The Inverter;	Single gross weight:	30 KG;
Single package size:	35.5X69.4X21 cm;	Output Type:	Single;
Output Frequency:	60HZ;	Delivery Detail:	0 days after payment;
Product name:	Growatt Inverter;	Altitude:	2000m without derating;
AC Connection:	Single Phase;	Warranty:	5 Years;
Certificate:	CE/VDE 0126-1-1/EN50438;	Display:	LCD;
MPPT Efficiency:	97.8%;

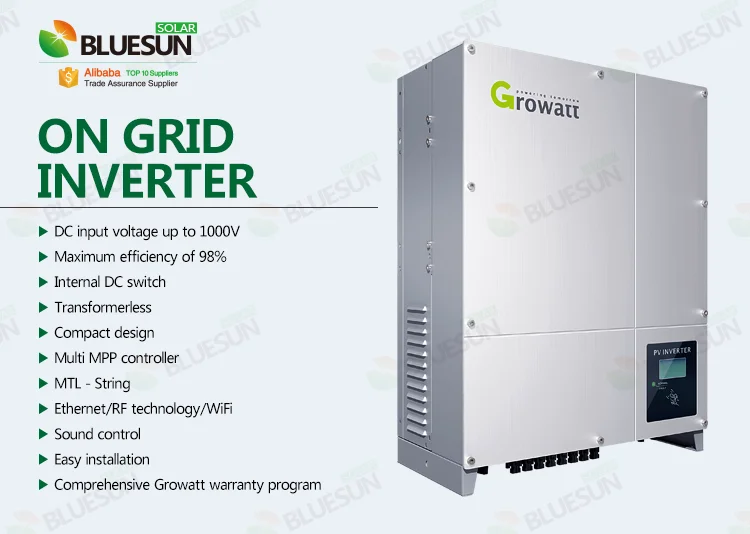

Grid Tie Inverter

Equiqments&& Details

Datasheet	Growatt 10000UE	Growatt 12000UE	Growatt 18000UE	Growatt 20000UE
Input Data
Max.DC power	11000W	13200W	19800W	22000W
Max DC Voltage	1000V
Start Voltage	350V
PV Voltage Range	180-1000V
MPPT Voltage Range	300V-1000V/600V
Full Load DC Voltage Range	400V-800V
Number of MPP Trackers/ Strings per MPP Trackers	2/2
Max.Input Current	15A/15A	17A/17A	23A/23A	26A/26A
Max.Input Current per String	20A
Output (AC)
Rated AC output power	10KW	12KW	18KW	20KW
Max. AC output power	10KVA	12KVA	18KVA	20KVA
Max. apparent power	16A	19A	28.6A	32A
Max. output current Range	230V/400V184-275V
Power factor at rated power	1
THDI	<3%
AC connection	3/N/PE,3W+PE(Opt)
Efficiency
Max.efficiency	98.0%
Euro-eta	97.5%
MPPT efficiency	99.5%

Packing & Delivery

By sea	Delivery from Shanghai or Ningbo seaport
By air	Departure from Shanghai Pudong Airport
By express	By TNT/DHL

Global Exhibitions

Payment

Payment Term	T/T	EXW	30% T/T in advance, paid the balance before shipment
		FOB
		CNF	30% T/T in advance, paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container
