Hot air sewing machine for tents, tarpaulins, car covers, jackets, raincoats

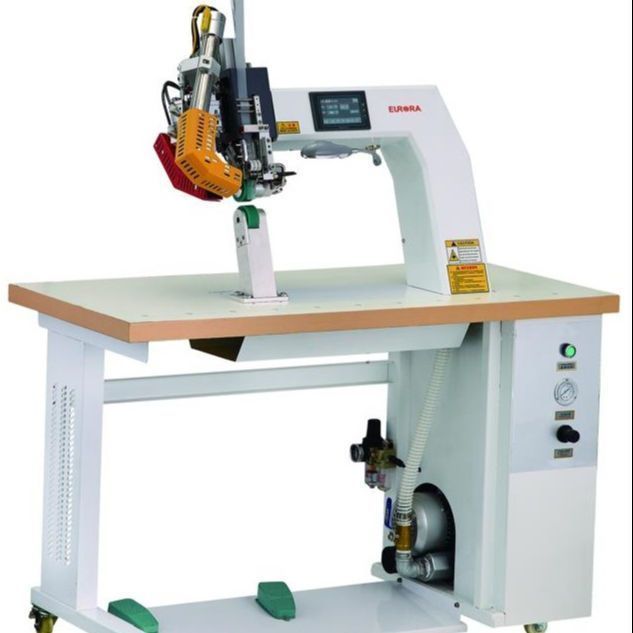

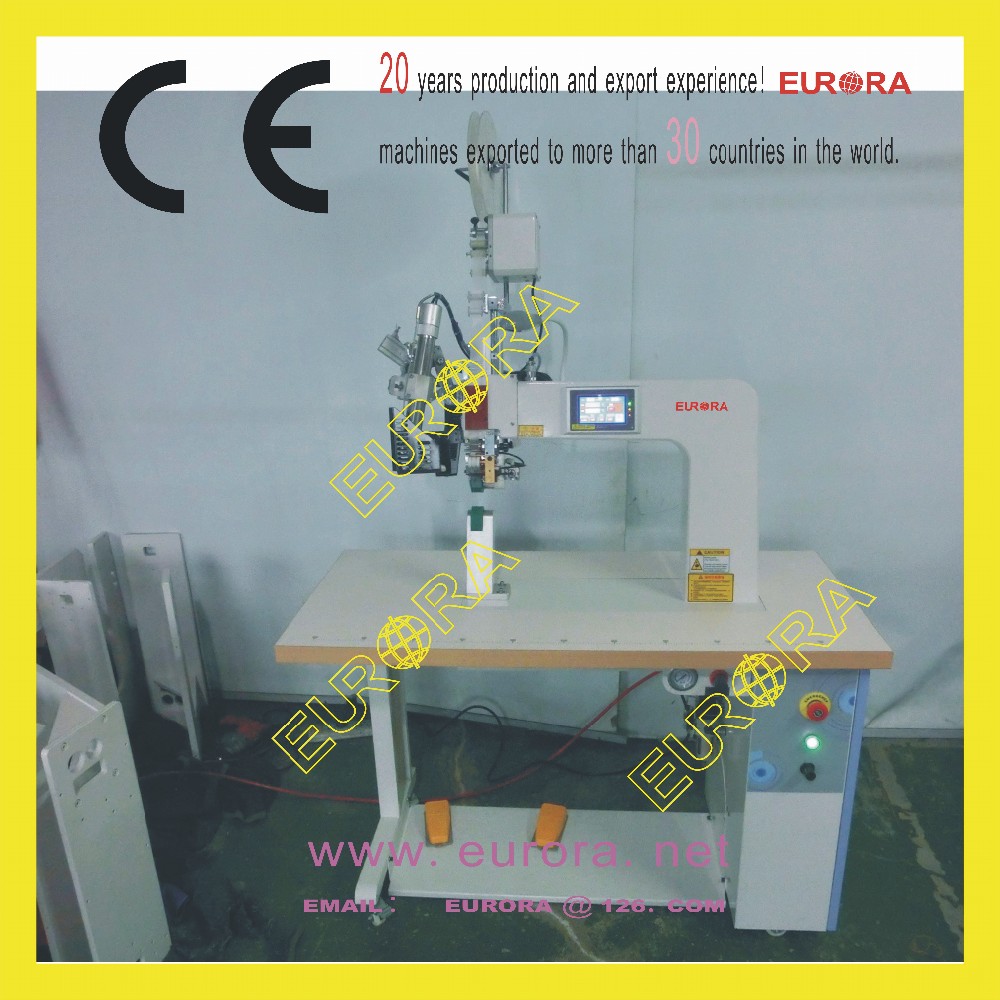

EURORA garment hot air sewing machine (suitable for nautical suits----raincoats, drysuits, wading pants)

application:
Our hot air sealer can easily adapt to any thick or thin PVC, PU, ​​NYLON, NEOPRENE material. Seam sealing tape suitable for seamed seams or glued joints required for the production of waterproofing products. Such as nylon-PVC and nylon PU, Oxford cloth, rubber cloth raincoat, jacket, windbreaker, snow suit, ski suit, nylon tent, military waterproof cover and bag, light vehicle cover, car cover, etc.

feature:

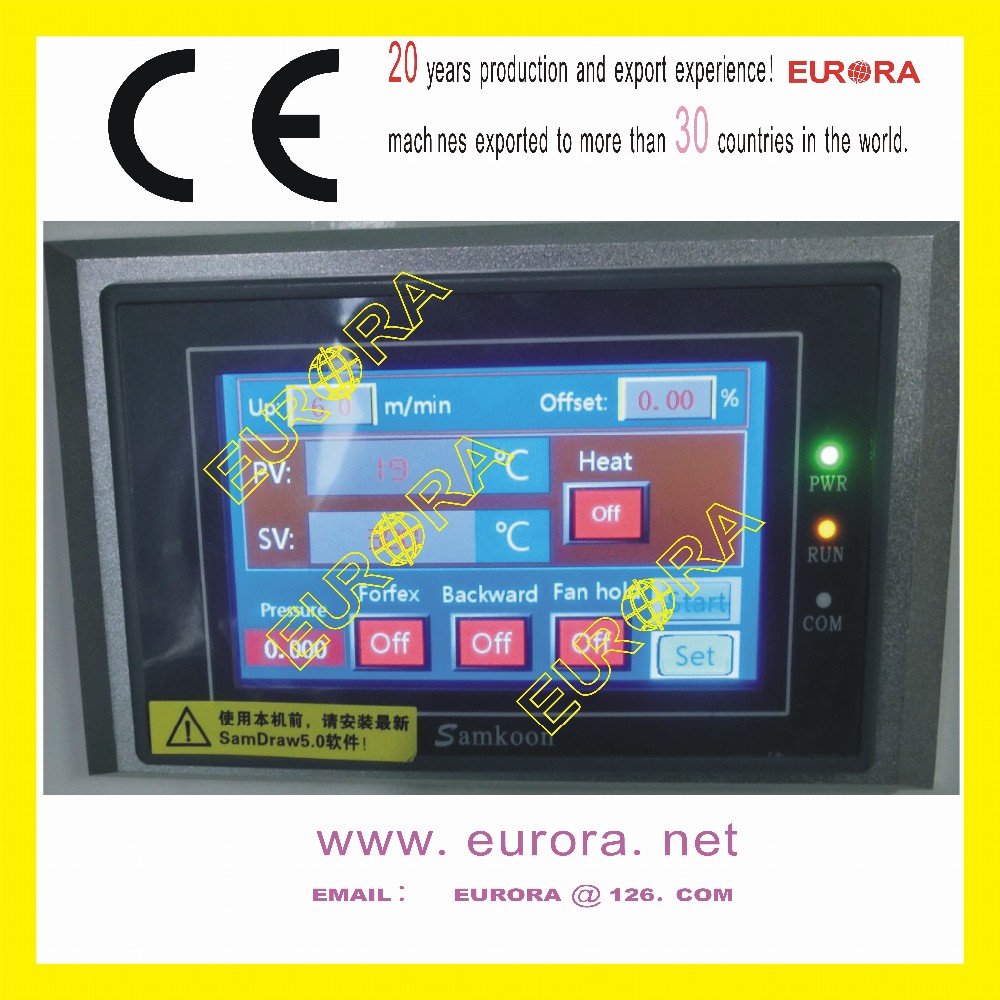

1. Fully automatic microcomputer control.
2. The temperature is automatically controlled by PLC, and the fire alarm system protects the heating element.
3. The circuit is automatically controlled by PLC with high working precision.
4. The speed digital setting is 0~28m, and the accuracy is ±0.03mm/s

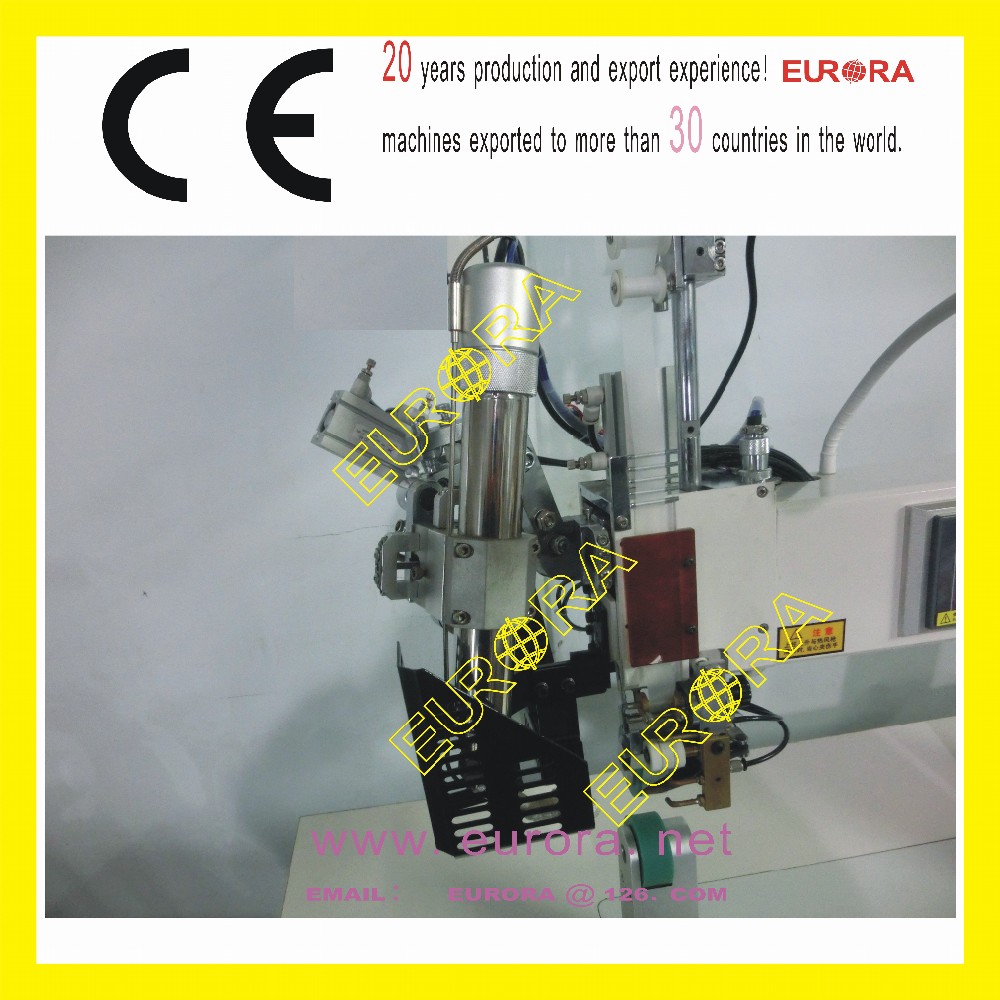

5. The hot air nozzle can be automatically adjusted to avoid scalding the fabric, and is suitable for fabrics of different thicknesses.
6. The heating system has a single air supply to avoid compressing steam and oil.
7. Automatic tape cutting, tape feeding, and tail sealing to reduce tape material waste.
8. Automatic mini back function, better product quality.
9. The mini strap length is automatically set, sent and sealed, avoiding the resetting process.
10. The synchronous chain of the upper and lower rollers avoids the gap of the tape seal, and the small feeding roller adopts the synchronous chain control.

Specification:
Power consumption single phase 220v ac50hz 2000w abt
Working pressure 0-0.5kgf/cm2
Temperatures up to 750°C
Current 0-8.5A
Speed ​​0-28m/min
Compressed air 50 psi (minutes)
Upper roller lifting 30mm
Work roll height 150mm
Fusible tape width standard 14mm-23mm, others optional
Heater power 1800w special heating element
Roller width 25mm standard width, others are optional
Size 1200mm(L)*600mm(W)*1700mm(H)
Weight 220kg
