Multifunctional 2 x 72 Belt Grinder Other Knife Sharpeners

Supplier: Henan Junzheng Import And Export Co., Ltd.
Region: Henan, China
Contact: Mr Yuan
Price: $1499.00 / 1 - 19 sets
$1390.00 / 20 - 49 sets
$1290.00 / >=50 sets
Min. Order: 1 set

Click here to contact

Product details

Grinder type:	Horizontal Belt Grinder, Vertical Belt Grinder	Rubber contact wheels:	PH 427 X 12"
Energy source:	electrical	port:	Shanghai/Qingdao/Tianjin/Ningbo etc.
Rated voltage:	380v/220v	Package preview:
Origin:	Henan	Warranty:	1 year
Packaging Details:	Wooden box or carton packaging, suitable for long-distance sea and rail transportation, or machine-loaded container transportation.	weight:	90KG
type:	Belt Grinder	Applicable industries:	Belt Grinder
Supply capacity:	100 sets per quarter	current:	3.5A/7.5A, others
Voltage:	110V-230V, 380V	Rotating speed:	3000 rpm
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Sand mat size:	188050/210050mm
Maximum motor speed:	other	Customization support:	OEM,ODM,OBM
grade:	DIY, industrial	frequency:	50Hz/60Hz
model:	JZ-S03	application:	Copper, LRON, ferrous materials, brass, steel
Dimensions (LWH):	685864cm	Abrasive belt motor power:	1.5kw/2.0kw

Product Description

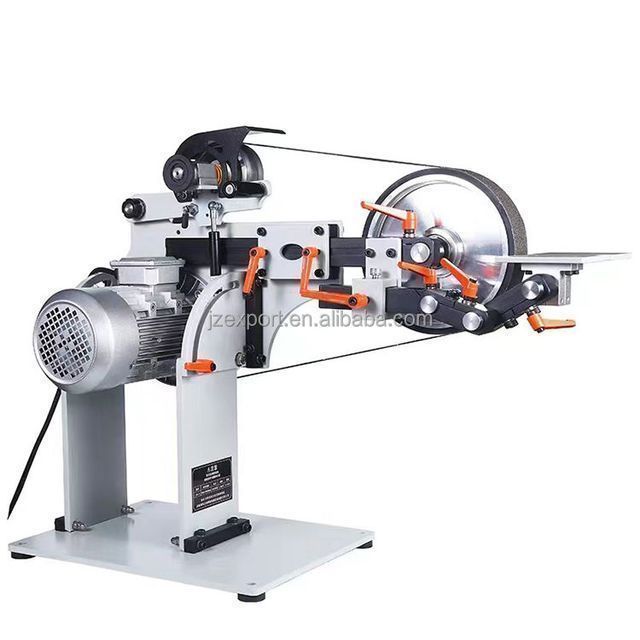

Variable Speed Belt Sander (Reversible) Heavy Duty with Inverter 2 HP 1500W 220V

* Belt Grinder Variable Speed Chassis is designed for professional knife and other cutting tool and machine builders. we provide full
A range of accessories for making knives, blades, scissors and other metalworking materials.

* The unit is very easy to maintain
And doesn't require any special skills from an engineer and can be built in your workshop. You have to place the motor additionally
and pulleys.

* Available abrasive belt size: 70.9-82.7"*2"/1800-2100mm*50MM (our machine is equipped with 1800mm abrasive belt)

detailed drawing

Heavy duty inverter

Equipped with heavy-duty frequency converter, high torque at low speed. The whole machine is fixed with all bolts, which greatly improves the running accuracy of the machine.

Wide range of applications

The main frame is made of 12mm thick steel plate, which is not easy to deform. It is used for regular and irregular polishing of stone, wood, metal appliance parts and accessories.

Title here.

The machine board is equipped with reinforcing ribs, which effectively avoids the deformation of the frame due to gravity after long-term use. The all-steel frame is welded at all joints, very strong and stable.

Title here.

Detachable workbench. Platen or wheels/attachments can be easily changed without tools, and tool arms and tool holders can be quickly released.

Product parameters

* Motor power 1.5KW; line speed 0-31/s; speed: 2800r/min; motor: 2HP;
* Knife and steel working belt: 2" X 48". Inverter*1

* All-steel structure, the surface of the machine is polished and sprayed, which is durable and durable.
* Equipped with 1500w pure copper motor.
* Adjustable table.
* It comes with three different grinding wheels.
