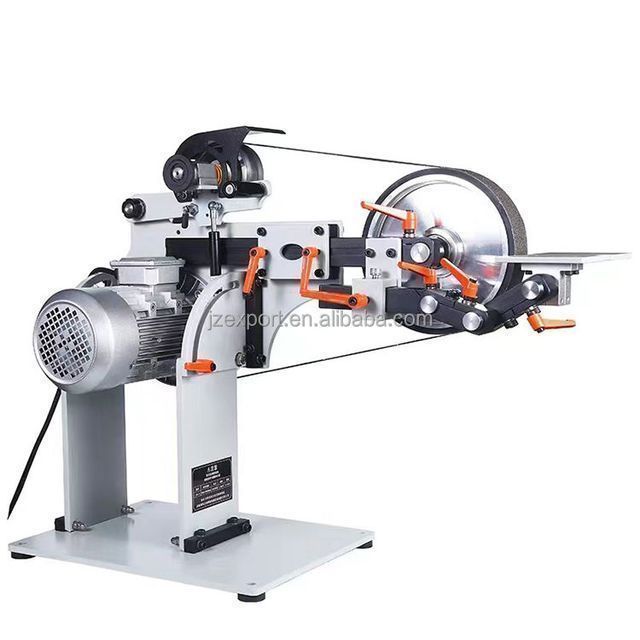

JUNZHENG 220V 380V 5KW 3000 RPM 2x72 Belt Sander Sander Knife Making Variable Speed ​​Metal

Click here to contact
Product details
Belt motor power:1.5kw/2.0kwfrequency:50hz/60hz
current:3.5A/7.5A, othertype:Belt Sander
place of origin; place of origin:Henan, ChinaEnergy source:electrical
Dimensions (L*W*H):68*58*64cmRubber Contact Wheel:PH 427 X 12"
Sand pad size:1880*50/2100*50mmVoltage:110V-230V, 380V
Rotating speed:3000 rpmPackaging Preview:
Applicable industries:Belt GrinderMaximum Motor Speed:other
port:Shanghai/Qingdao/Tianjin/Ningbo etc.payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
Rated voltage:380v/220vgrade:Industrial, DIY
model:JZ-S03Grinder Type:Horizontal belt grinder, vertical belt grinder
Custom Support:OBM,ODM,OEMSupply capacity:100 sets per quarter
Packaging Details:Packed in wooden or carton boxes, suitable for long-distance sea and rail transportation, or machine-packed transportation.application:LRON, Brass, Iron Materials, Steel, Copper
weight:90KG
Product Description
Variable Speed ​​Belt Sander (Reversible) Heavy Duty Belt Inverter 2 HP 1500W 220V
* Belt grinder variable speed chassis designed for professional tool, other cutting tool and machine builders. We provide full
Accessories for the manufacture of knives, blades, scissors and other metalworking materials.
* This kit is very easy to maintain
And doesn't require any special skills from an engineer, can be built in your workshop. You have to place the motor additionally
and pulleys.
* Usable belt size: 70.9-82.7"*2"/1800-2100mm*50MM (our machine is equipped with 1800mm abrasive belt)
detailed picture
heavy duty inverter
Equipped with heavy-duty inverter, low speed and high torque. The machine is fixed with full bolts, which greatly improves the running accuracy of the machine.
widely used
The main frame is made of 12mm thick steel plate, which is not easy to deform. It is used for regular and irregular polishing of stone, wood, metal appliance parts and accessories.
The title is here.
The machine board is provided with reinforcing ribs, which can effectively avoid the deformation of the frame due to gravity after a long time. All steel frames are welded at all joints, which are very strong and stable.
The title is here.
Detachable work table. Easy to change platen or wheels/accessories without tools, quick release tool arm and tool holder.
Product parameters
* Motor power: 1.5 KW; Linear speed: 0-31/s; Speed: 2​​800r/min; Motor: 2 HP;
* Knife and Steel Band: 2" X 48". Inverter*1
* The whole machine has an all-steel structure, and the surface is polished and sprayed for durability.
* Equipped with 1500w pure copper motor.
* Adjustable table.
* It is equipped with three different grinding wheels.
Voltage
220V
weight
152 lbs / 69 kg
Belt size
72"inch*2inch/1828mm*50MM
pack
wooden box
multipurpose machine
Multi-field application
