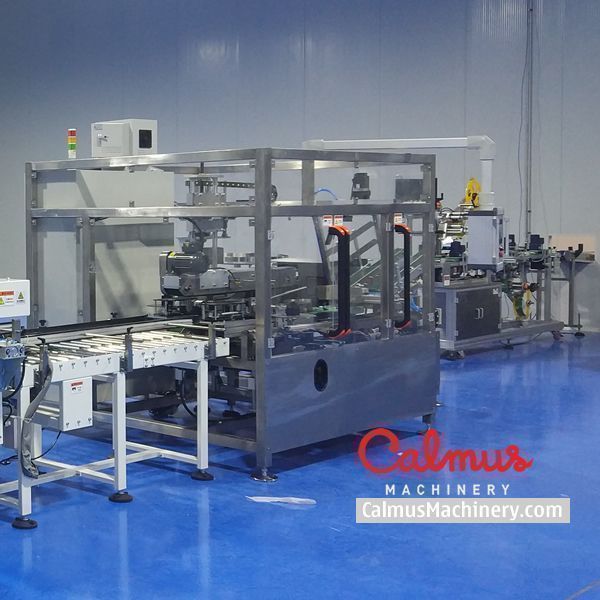

High-Speed Cartoning Machine Monoblock Side-Load Case Packer

This side-load cartoning machine is a monoblock case packer with corrugated cases/cartons forming, filling and sealing functions. It employs a pushing system for inserting brick-shaped products in multiple layers into cases from their sides. This case packer can accommodate a wide range of case sizes and pack patterns. The cartons can be sealed with tape or hot-melt glue. It is a monoblock cartoning machine and easy to be installed.

1. Form-insert-seal 3-in-1, with a smaller footprint.

2. The products that this machine can pack through its dedicated infeed system.

3. Easy to install.

4. System pauses and alert if cartons or tapes are empty.

Packing type: side-load

Sealing media: tape or hot-melt glue

Compressed air: 0.4-0.8MPa

Power supply: 3 phases, customized voltage

Power consumption: 3 kW

System weight: 2,300 kg

System dimensions: 3,500*1,900*2,300mm

We also can customize monoblock cartoning machines for other shaped products than bricks.
